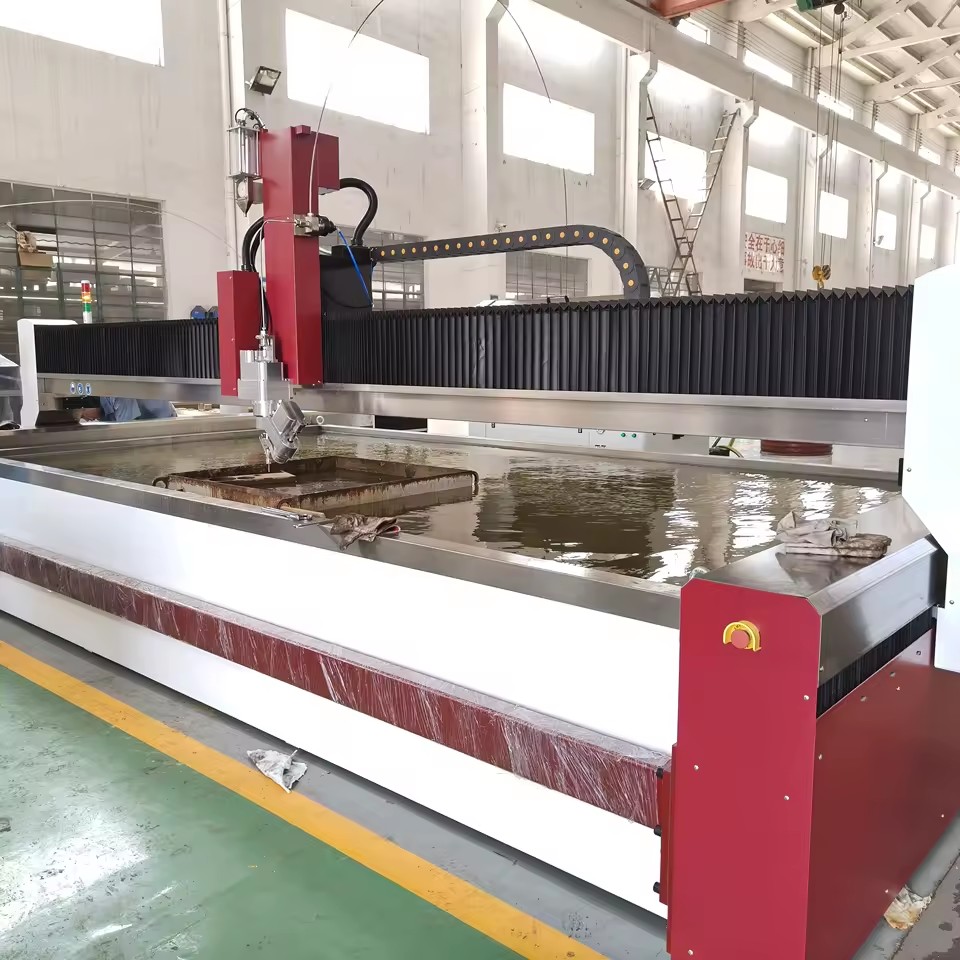

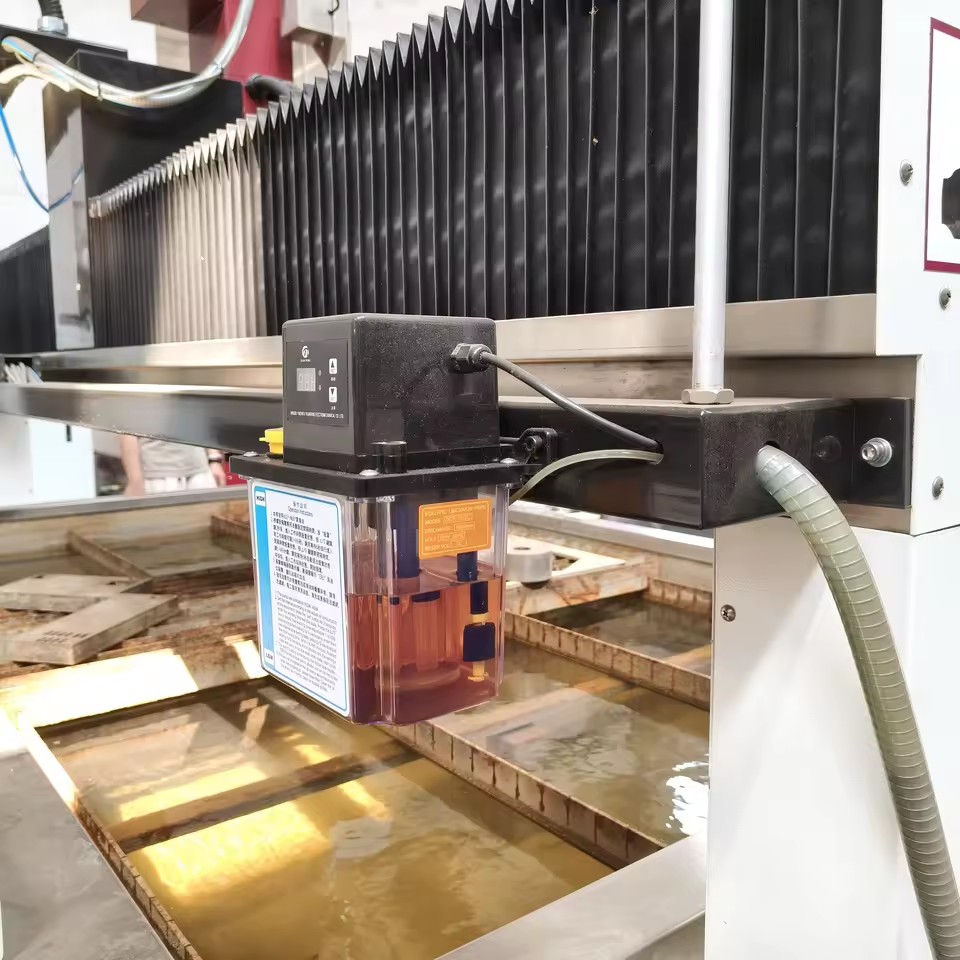

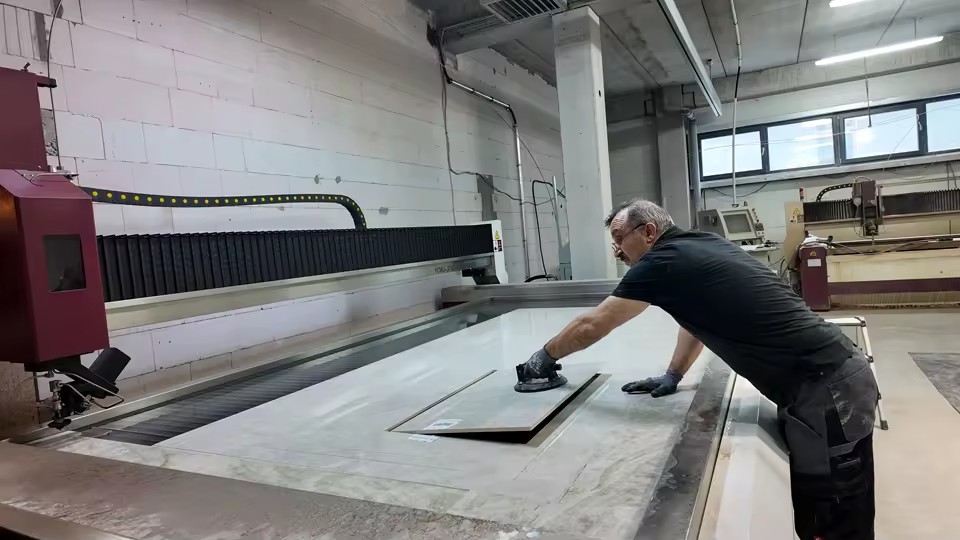

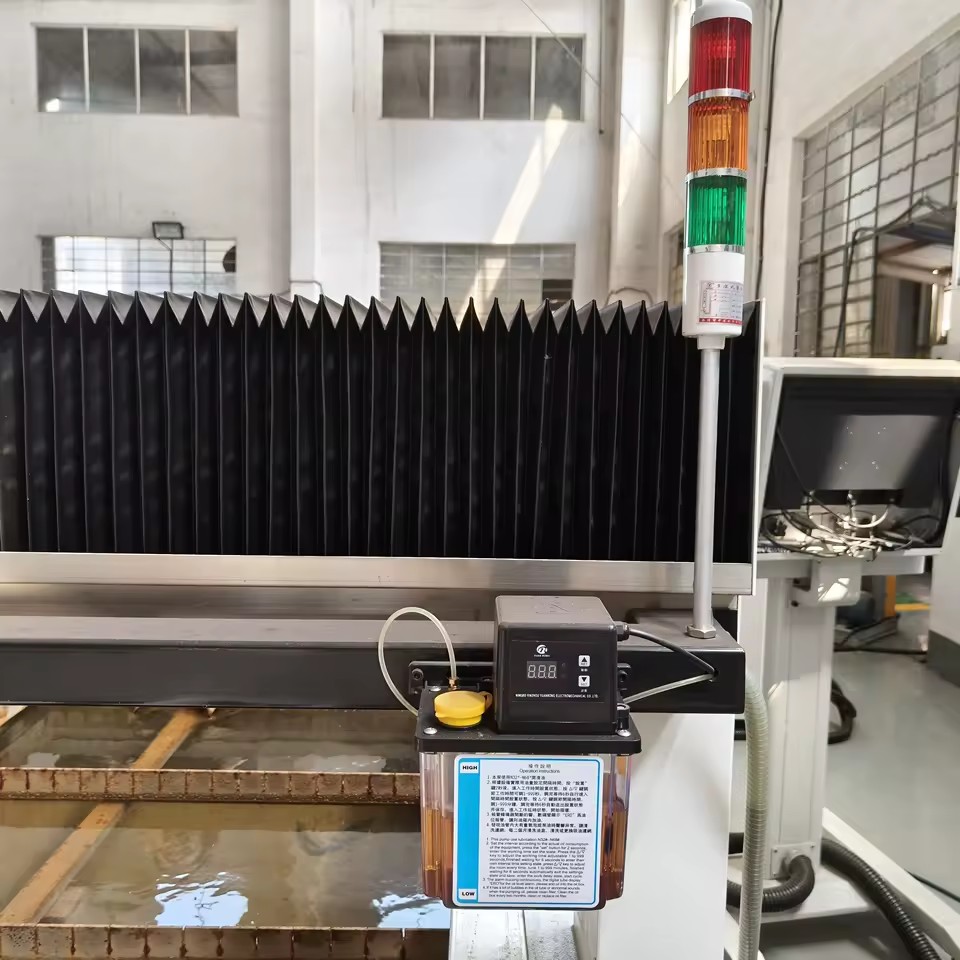

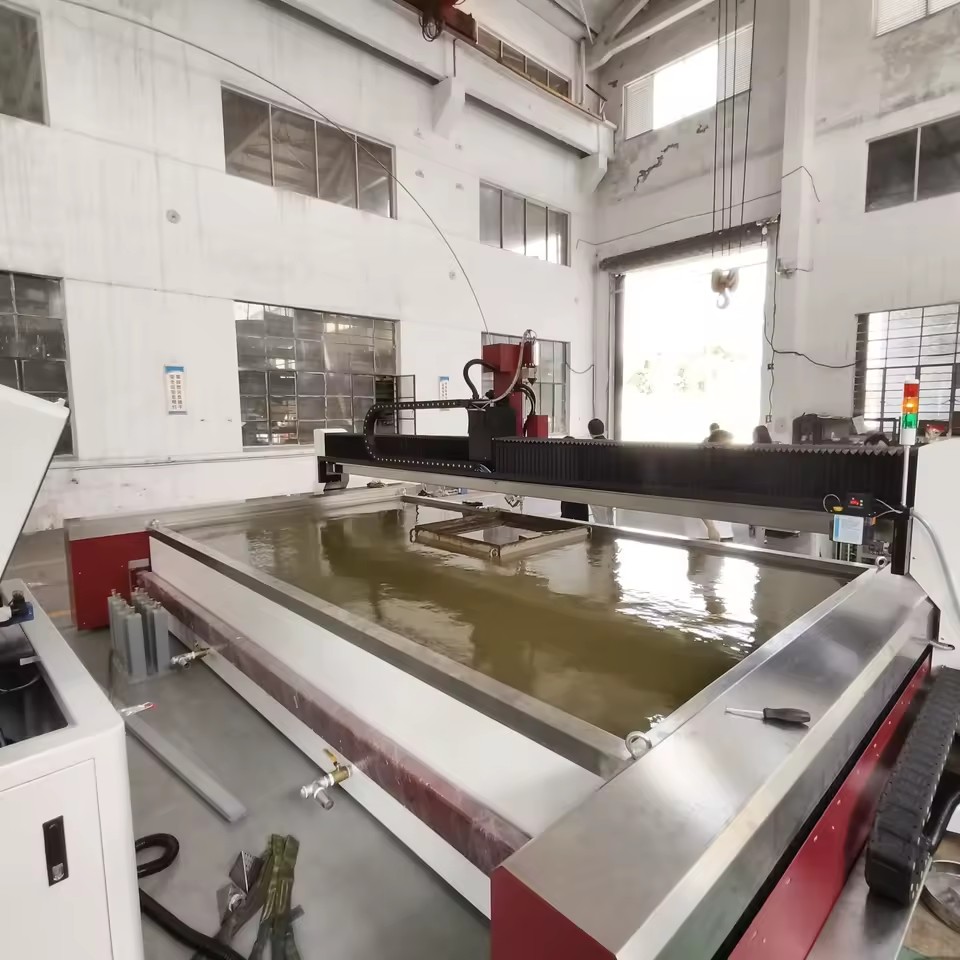

MAX5 series 5 axis water jet cutting machine unlike a conventional 3-axis waterjet cutting machine, this product is added with A-axis (in a vertical direction) and C-axis (which rotates around the Z axis).By using state-of-the-art technology and the Italian ECS control system, it can produce 0-±45° inclined cuts with a maximum rotation angle of up to ±540°. Currently, this state-of-the-art cutting equipment has been applied by a wide variety of advanced processing industries.
It can cut the product cross section without inclination, and cut bevel at any angle, as well as cut the workpiece vertically, especially cut cone, curved impeller, gear, etc.
Technical Parameters
Bevel axis (A): ±45°
Rotary axis (C): ±540°
Control accuracy: ±0.01mm
Angle accuracy: 0.01°
CNC Water Jet Cutting Machine Parameter (L=Gantry type)
Parameters
Unit
YCWJ-L1010
YCWJ-L2015
YCWJ-L3015
YCWJ-L3020
YCWJ-L2060
Efficient Cutting Area
mm
1000×1000
2000×1500
3000×1500
3000×2000
2000×6000
Axis Travel
X
1000
2000
3000
Y
1500
6000
Z
150-180
X axis and Y axis adopt HIWIN or I+F ball screw and guideway;The servo motor to drive we adopt MITSUBISHI or Yaskawa
Cutting Accuracy
±0.1
Positioning Accuracy
±0.025
X,Y Dry-run Speed
m/min
0-15 (if need 30m/min speed,we can do as request )
Cutting Speed
as to detail material and thickness
Main Feature: Control: PLC Shifting: electro-hydraulic Control Cooling: cooler/oil heat exchanger Inlet water filter accuracy: ≤0.45μm Oil-return filter accuracy: 20 μm Working temp: 0-50°c Outlet: UNF 3/8" Cooling in/out-let: NPT1" Max orifice size: 0.33mm
High Pressure Pump
Model
YCG-3038
YCG-3742S
YCG-7542S
Max Pressure
3800Bar/55,000Psi
4137Bar/60,000Psi
Max Water Flow
3.7L/min
7.4L/min
Max Orifice/Nozzle
0.011/0.03
0.013/0.04
0.016/0.05
Power
30KW/40HP
37KW/50HP
75KW/100HP
1999, was established by Mr. Min, mainly engaged in manufacturing large production line.
2019,YC has sold the products to more than 50 countries.
We are engaged in machinery manufacturing since the year 1999,there are more than 20% workers with more than 8 years experience in water jet cutting field.
Our chief engineer Mr. Tian who started research of water jet when he was a university student has 20 years experience in water jet cutting field, and other technical persons have over 10 years experience. YC is the partner of Accustream/Hyperthem, every year we have technical meetings with engineers.
For different customers in different industries we will provide different solutions, Your water jet is tailored based on your individual needs. Our Engineers go to many countries for installation and debugging every year.
Product Details
This product has acquired the relevant product qualification(s)/license(s) of certain applicable country/countries.
Max5 axis waterjet cutting
machine
CNC Water Jet Cutting Machine Parameter
(L=Gantry type)
X axis and Y axis adopt HIWIN or I+F ball screw and guideway;The servo motor to drive we adopt
MITSUBISHI or Yaskawa
High Precision Fully Automatic
Customized Cold Cutting
✔Support non-standard customization
✔Provide free sample trial cutting service for you
S-SERIES
Structure：
It is hygienic and reliable. Totally enclosed glass cutting space, clean and dust-free. we can clearly watch the cutting
process.
It will be shut down if open the window, it's safe and smart.
The SS collecting tank can concentrate the residue and the waste water after cutting.
Movable cleaning window is simple and convenient to operate.
Main Feature
Control: PLC
Shifting: electro-hydraulic
Control Cooling: cooler/oil heat exchanger
Inlet water filter accuracy: ≤0.45μm
Oil-return filter accuracy: 20 μm
Working temp: 0-50°c
Outlet: UNF 3/8" Cooling in/out-let: NPT1"
Max orifice size: 0.33mm

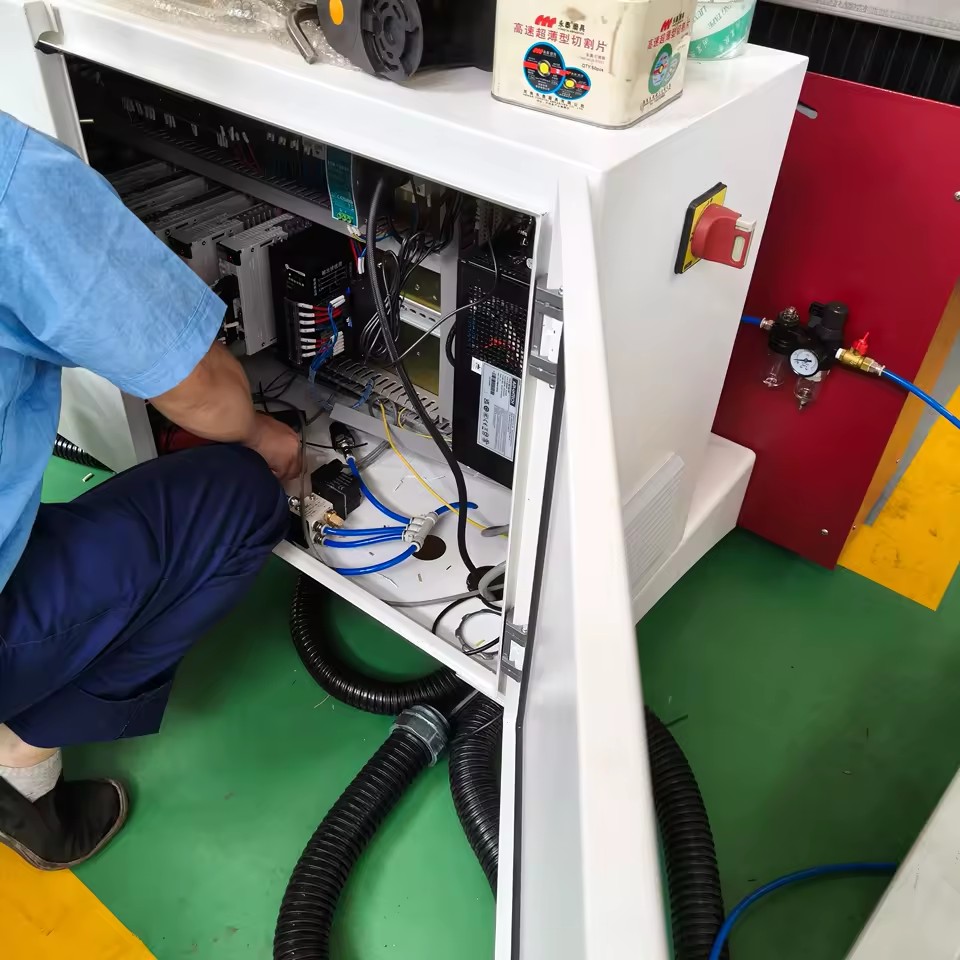

Waterjet CNC
Controller
1. 17ʺLCD liquid crystal display.
2. DNC on-line working function.
3. Functions of returningarbitrary point,bending and circular are working auto deceleration.
4. Function of cutting figure imitation display.
5. 80GB memory hard disk.
6. MITSUBISHI AC servo driver and motor.
7. 1GB memory card.
8. Multilingual function(Chinese English etc.).
9. Drive-by-wire and hand-hold controller.
10. NAIKY PCIMC-6A special software is special for YC.
Italian ECS Controlling system
Specification Parameters：
1. Up to 16 axes interpolated.
2. Hardware Architecture dual core ( Kontron).
3. With high performance and low power.
4. Monitor 15" LCD - Integrated Touch Screen(Optional).
5. Peripheral interface: EtherCAT.
6. Node EtherCAT to manage EcsLink.
7. Mechatrolink® 2 and analogic drives.
8. Up to 2048 I/O with EtherCAT.
9. Modular machine panel (Optional).
10. Alphanumeric keyboard (Optional).
Optional Accessories
Auto sludge removal system
Remove the abrasive from the tank automatically
separate the abrasive and water.
Reduce the labor force,improve work efficiency.The absorption pump sucks up the mixture of sand and water from the tank into a collection box when it works.There are plastic woven filter bags in the collection box,water is recycled to the machine tank, sand and the mixturefrom cutting are collected into filter bags Inside. So as to achieve the purpose of automatic collection to make it easy to clean.
Cutting Samples
Packing&Delivery
Company Information
2005, YC started to research and developed UHP water jet cutting equipment and cooperated with German KMT as well.
2008, YC started to cooperate with the agent.
2009, YC started to cooperate with Accustream whom is specialized in water jet parts and pumps.
2015, YC WATERJET started to cooperate with RU agent.
Our chief engineer Mr. Tian who started research of water jet when he was a university student has 20 years experience in water jet cutting field, and other technical persons have over 10 years experience.
YC is the partner of Accustream/Hyperthem, every year we have technical meetings with engineers.
For different customers in different industries we will provide different solutions, Your water jet is tailored based on your individual needs.
Our Engineers go to many countries for installation and debugging every year.
Pre-sales service
1. YC owns a 15 years team focusing on waterjet. We promise to provide prompt service.
2. Any question will be replied within 24 hours. We promise to provide a reasonable and detailed quotation.
3. Welcome to send us your materials, and we will cut them into samples as required.
After-sales Service
1. If the product proves detective during the warranty period, we will respond within 12 hours after receiving your request. Our operators will reach you by
2. If you need to purchase wear parts, we will respond within 12 hours and provide technical support after receiving your request.
FAQ
Q
Can you provide your
certifications
?
A
Yes, our products comply with CE, ISO,SGS and other standards. We ensure all certifications remain valid (the renewal process takes approximately one month).
How about the
delivery time
Standard Motors (380V, 50Hz, 3-Phase): 3-Axis Standard Models: Approximately 25-30 days. AC 5-Axis Models: Approximately 35 days. G-Series Large Gantry Models: Approximately 45 days. Non-Standard Motors (e.g., 220V/50Hz/3-Phase, 380V/60Hz/3-Phase, 400V/50-60Hz/3-Phase): Approximately 50 days, as custom motor procurement takes about 45 days.
Q: How to choose a standard cutting table?
A: You need to offer the size of the materials you want to process or the size of the cutting table.
Q: How to solve the incision bevel problem by 3 axis water cutting?
A: It is not a vertical cutting for a waterjet cutter. This is due to the physical characteristics of waterjet. If it is required precise vertical angle cutting, we will provide you with a five-axis dynamic cutting system. It can make a small angle compensation in the software.
Can I
customize products
Yes, we can customize the branding based on client requirements. For instance: If a client acts as a middleman, we can affix their company's logo instead. For domestic trading companies handling export, if they wish to prevent end-clients from directly identifying our factory, we can omit any YC-related logos entirely. In addition, you can customize the color, size, cutting range, etc. of the machine. Please send your detailed customized requirements to us.
What
logistics company
do you use?
For courier services, we offer options such as FedEx, DHL, and UPS for shipping the spare parts and wear parts of water jet cutting machines. We also have ocean freight forwarding companies available, and we support pricing based on Incoterms CIF and DAP, depending on your delivery location. Door-to-door service is also available.
What is your
payment terms
Option 1: 30% deposit by T/T after signing the contract, with 70% balance payable by T/T before shipment. Option 2 (Subject to approval): 30% deposit by T/T after signing the contract, with 70% balance payable by L/C upon presentation of shipping documents.
Do you offer
Yes, we provide comprehensive after-sales support: 1. A one-year warranty covers the machine (excluding consumable parts). Free replacement parts are shipped for non-manual defects. 2. Remote guidance (with manual and video support) is provided. On-site engineer assistance (e.g., for split type waterjets) is available, with costs (travel, visa, accommodation, fee) borne by the client. 3. Each unit undergoes rigorous pre-delivery testing. We provide prompt responses to ensure
reliable
technical support.
