Product description

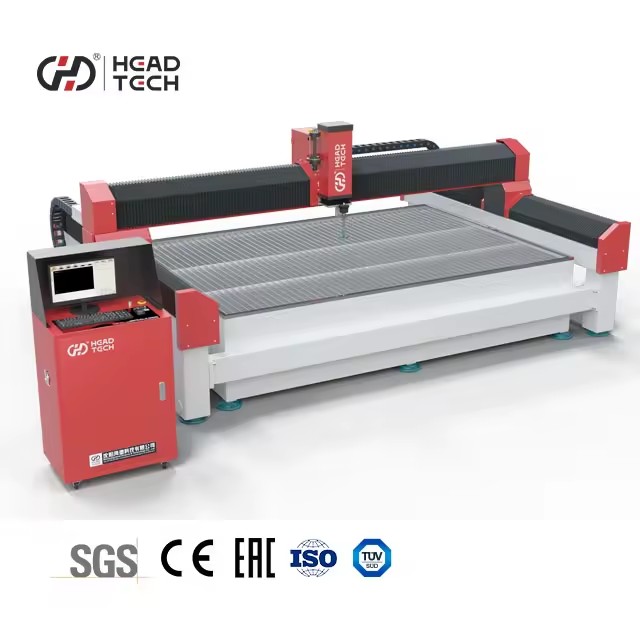

Complete set waterjet including 4 parts 1. CNC Controller 2.Cutting Table(Bridge or Cantilever) tensifier Pump to Abrasive Delivery
Keeping track of latest market development we are actively engaged in offering CNC Water Jet Cutting Machine. Widely used for cutting soft & hard materials, the offered jet cutting machine is good demand in the market for its high performance. In order to assure the quality, the complete range of jet cutting machine is checked on numerous parameters before the final delivery at the customer's end. The offered jet cutting machine is provided with different specifications at affordable price
• 50 HP High 420 MPa pressure for smooth finish cutting at high speed. • Main heart of Supercharger, "Intensifier" is "". • User friendly & minimum maintenance cutting design with make "Water Switch Seal Kit" & other parts. • All parts of machine are processed on Highly accurate YASKAWA servo motor (). Which gives you trouble free operation & long life of parts. •Ability to cut the most intricate stone, tile and marble designs
SPECIFICATIONS FOR WATER JET CUTTING MACHINE
Max. pressure
420MPA
Max. flow rate
3.7L / min
Electrical source voltage
3 phases 220/380 Voltage, 50/60Hz, 37KW, 50HP
Max. diameter of nozzle / orifice
1.02mm / 0.33mm
Max. delivery capacity of oil pump
106L / min
Max cutting
1-10 cutting (1 for standard machine)
>>>Try to Read This · Our Service
1. Maintenance free of charge for 12 months. 2. We will provide the consumable parts at an agency price. 3. 24 hours online service, free technical support. 4. Machine has been adjusted before delivery, operation disk is included in the delivery. If there is any other questions, pls kindly tell me. 5. We have manual instruction and Videos for software Installation, operation and machine's using and maintenance; We will send professional technician to customers' factory, provide them two-weeks training, including working principle of machine, Auto CAD drawing, common problems and solution, etc.
>>>Try to Read This · FAQ Q1: Does This Machine Pass CE Certificate? A2: Yes, this machine passed European CE certificate and meet Safety Standard. Q2: How much of cutting thickness? A2: Marble is 0-120mm; granite is 0-110mm; tiles are 0-40mm; glass and mosaic is 0-80mm; steel, stainless steel, copper is 0-60mm; aluminum is 0-80mm; plastic, acrylic, foam is 0-200mm. With our double-pressures system, it can cut 0-160mm steel sheet, 0-200mm stones. It is good for customers cut thicker materials. Q3: How fast of speed? A3: Speed depends on cutomers' materials and cutting requirement, and customers can adjust speed parameters.
Keep safety
Although anything can be cut through, waterjet is still very safe. It is because we don't need to put any body parts under the waterjet cutting while it is on, obviously. If there is a leak in a high-pressure water system will tend pressure rapidly drop to safe level. Water itself is safe and non-explosive and the garnet abrasive is also inert and non-toxic. So using waterjet to cut material is very safety. Environmentally friendly As long as we are not machining a material that is hazardous, the spent abrasive and waste material become suitable for land fill. The garnet abrasive is inert and can be disposed of with our other trash.If we are machining lots of lead or other hazardous materials, we will still need to dispose of our waste appropriately, and recycle the water. Keep in mind, however, that very little metal is actually removed in the cutting process. This keeps the environmental impact relatively low, even if we do machine the occasional hazardous most areas, excess water is simply drained to the sewer. In some areas, water treatment may be necessary prior to draining to sewer. In a few areas, a "closed loop" system that recycles the water may be required.
why choose water jet
1. Competitive price: It is can meet your budget and best-selling business very well. 2. OEM Accepted: We can produce any your request design. 3. Good Service: We treat clients as friends. 4. Good Quality: We have strict quality control system. Good reputation in the market. 5. Fast & Delivery: We have big discount from forwarder
1. Our Wooden Case is after fumigation treatment. Needn't timber inspection,saving shipping time. 2. All the spare parts of the machine were bovered by some soft materials,mainly using Pearl Wool. Avoiding all damages that could happen in the delivery process.Then we'll covered plastic wrap out it tightly, make sure intact of the covered soft materials,also avoiding Waterproof and rust proof. 3. The outmost is Wooden Case With Fixed Formwork. 4. The bottom of the wooden case has firm iron jack,convenient to Handling and transport.
Before delivery, we would do the test about 20-30 working hours for machine, and use standard packing to each configuration. We choose famous export company and transport company, making shipment more convenient and safer.
Please
Product Description
Complete set waterjet including 4 parts
1. CNC Controller
2.Cutting Table(Bridge or Cantilever)

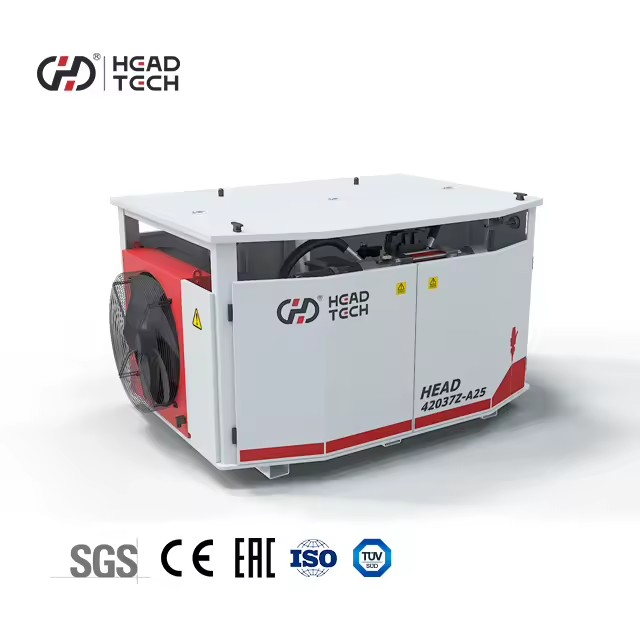

tensifier Pump

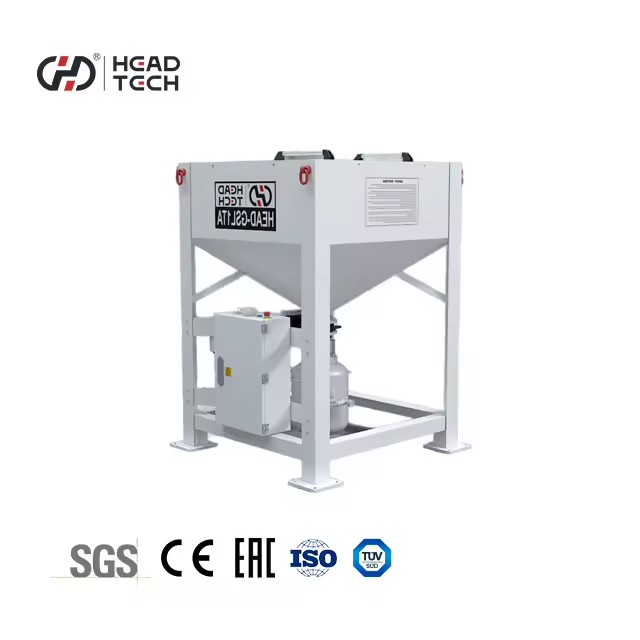

to Abrasive Delivery
Features
• 50 HP High 420 MPa pressure for smooth finish cutting at high speed.
• Main heart of Supercharger, "Intensifier" is "".
• User friendly & minimum maintenance cutting design with make "Water Switch Seal Kit" & other parts.
• All parts of machine are processed on Highly accurate YASKAWA servo motor (). Which gives you trouble free operation & long life of parts.
•Ability to cut the most intricate stone, tile and marble designs
Ideal for cutting up to 12"(30 cm) of materials depending on density of product
Eliminates the risk of discoloring or deformation
Customer Feedback
Service & FAQ
1. Maintenance free of charge for
12 months.
2. We will provide the consumable parts at an agency price.
3.
24 hours online service
free technical support.
4. Machine has been adjusted before delivery, operation disk is included in the delivery. If there is any other questions, pls kindly tell me.
5. We have manual instruction and
Videos for software Installation
operation and machine's using and maintenance; We will send professional technician to customers' factory, provide them two-weeks training
including working principle of machine, Auto CAD drawing, common problems and solution, etc
>>>Try to Read This · FAQ
Q1: Does This Machine Pass CE Certificate?
A2: Yes, this machine passed
European CE
certificate and meet
Safety Standard.
Q2: How much of cutting thickness?
A2: Marble is 0-120mm; granite is 0-110mm; tiles are 0-40mm; glass and mosaic is 0-80mm; steel, stainless steel, copper is 0-60mm; aluminum is 0-80mm; plastic, acrylic, foam is 0-200mm. With our double-pressures system, it can cut 0-160mm steel sheet, 0-200mm stones. It is good for customers cut thicker materials.
Q3: How fast of
speed
?
A3: Speed depends on cutomers' materials and cutting requirement, and customers can adjust speed parameters.
Although anything can be cut through, waterjet is still very safe. It is because we don't need to put any body parts under the waterjet cutting while it is on, obviously. If there is a leak in a high-pressure water system will tend pressure rapidly drop to safe level. Water itself is safe and non-explosive and the garnet abrasive is also inert and non-toxic. So using waterjet to cut material is very safety.
Environmentally friendly
As long as we are not machining a material that is hazardous, the spent abrasive and waste material become suitable for land fill. The garnet abrasive is inert and can be disposed of with our other trash.If we are machining lots of lead or other hazardous materials, we will still need to dispose of our waste appropriately, and recycle the water. Keep in mind, however, that very little metal is actually removed in the cutting process. This keeps the environmental impact relatively low, even if we do machine the occasional hazardous most areas, excess water is simply drained to the sewer. In some areas, water treatment may be necessary prior to draining to sewer. In a few areas, a "closed loop" system that recycles the water may be required.
1.
Competitive price
It is can meet your budget and best-selling business very well.
2.
OEM Accepted
We can produce any your request design.
Good Service
We treat clients as friends.
4.
Good Quality
We have strict quality control system. Good reputation in the market.
5.
Fast & Delivery
We have big discount from forwarder
Company Profile
00:00
>>>Brief Introduction Of waterjet company
water jet is an independent technology research and development, high-tech, promote high-quality, high credibility of the focus on large-scale ultra-high pressure water cutting machine manufacturer. Has been engaged in water jet cutting research,manufacturing, is one of the most professional water jet manufacturers in the stone parquet, glass parquet,metal shaped cutting,aerospace, and other fields of research and manufacturing. We are a manufacturing and trading combo for water jet cutting machine in Liaoning, with more than 15 years full experience and a professional sales team. water jet, so cutting is no longer a problem!
Quality and credit goes all the way., a company surviving fierce market competition, has very strong national culture, and develops shoulder by shoulder with the world and this Era. We are determined to achieve our dreams step by step with the advantages of high technology.
Packing & Delivery
1. Our
Wooden Case
is after fumigation treatment. Needn't timber inspection,saving shipping time.
2. All the spare parts of the machine were bovered by some soft materials,mainly using Pearl Wool.
Avoiding all damages that could happen in the delivery process.Then we'll covered plastic wrap out it tightly, make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.
3. The outmost is Wooden Case With Fixed Formwork.
4. The bottom of the wooden case has firm iron jack,convenient to Handling and transport.
Before delivery
we would do the test about
20-30
working hours for machine, and use standard packing to each configuration. We choose famous export company and transport company, making shipment more convenient and safer.
