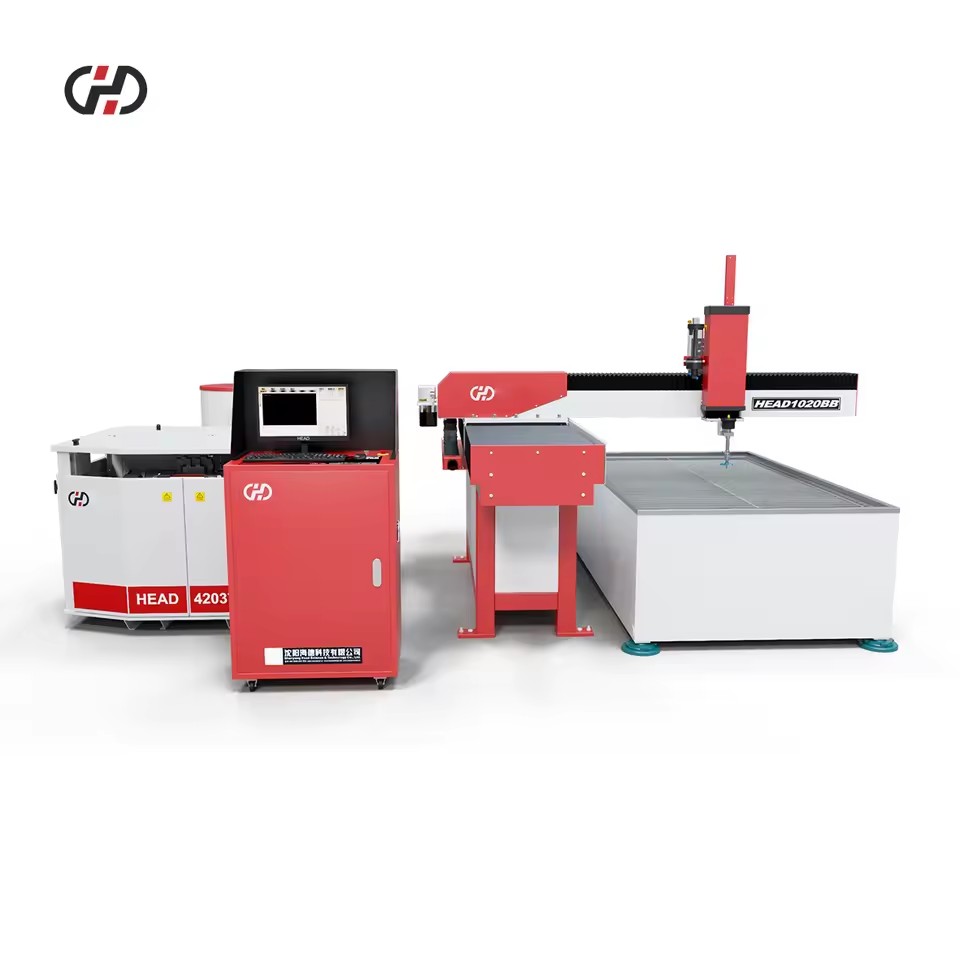

Do you trust water can cut delicate material like cake or a modern material like thick steel pieces? Have you at any point imaged a bone surgery being directed utilizing water as a cutting apparatus? A stream of water, when pressurized up to 50,000 PSI turns into an effective cutting device that can be utilized as a part of a heap of utilizations.Water jet Machine can be used for profile cutting application on Aluminum and the machine uses cold supersonic erosion to provide through cut. The highly pressurized water stream is forced through a tiny area which carries abrasive garnet to erode away the material.
• 50 HP High 420 MPa pressure for smooth finish cutting at high speed. • Main heart of Supercharger, "Intensifier" is "". • User friendly & minimum maintenance cutting design with make "Water Switch Seal Kit" & other parts. • All parts of machine are processed on Highly accurate YASKAWA servo motor (). Which gives you trouble free operation & long life of parts.
SPECIFICATIONS FOR WATER JET CUTTING MACHINE
Max. pressure
380-420MPA
Max. flow rate
3.7L / min
Electrical source voltage
3 phases 220/380 Voltage, 50/60Hz, 37KW, 50HP
Max. diameter of nozzle / orifice
1.02mm / 0.33mm
Max. delivery capacity of oil pump
106L / min
Max cutting
1-10 cutting (1 for standard machine)
1) Bridge structure stability in line with international mainstream trends 2) Water tank bearing platform and frame structure, and can be customized water level adjustment function, the work area can be customized protection grating and anti-splash protection screen in line with EU regulations 3) X-axis Y-axis Z-axis using the mainstream brand, and by the use of dust-proof cloth completely wrapped protection, dust, water, oil, sand on the rail, screw corrosion to extend the service life 4) Y Bed body structure Casting concrete structure, and by the stress release treatment, to eliminate deformation, heavyweight frame structure than similar products 30% guarantee stability accuracy, Y-axis bed design is reasonable, easy handling and transportation, rigidity, and Side support combination, the stability of the traditional structure than the 30% Z-axis dual-rail four-slider structure

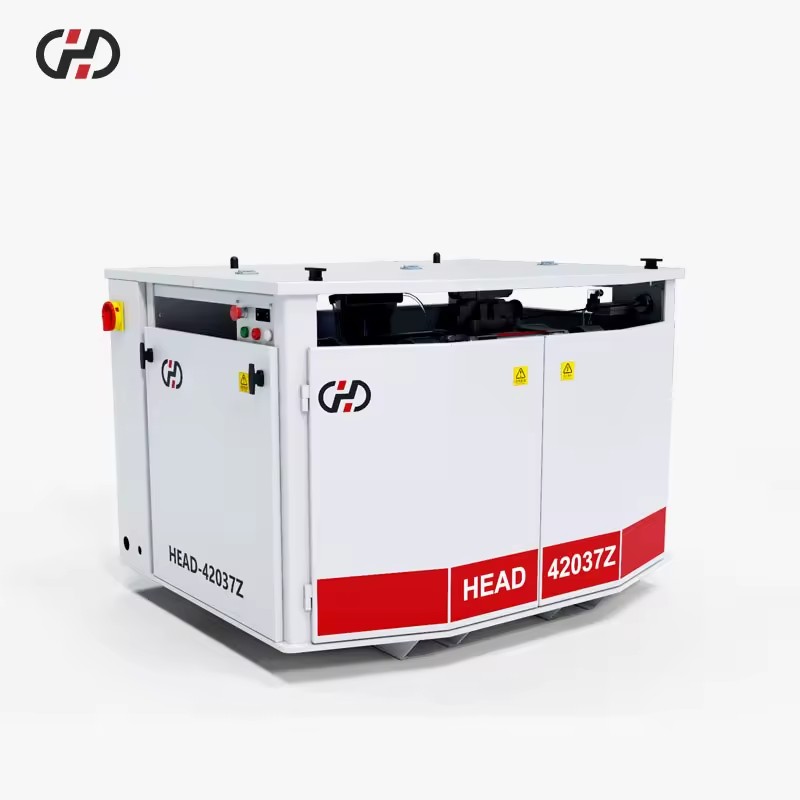

HEAD42037Z pumps are some of the technologically most advanced ultrahigh-pressure pumps available. In their second generation of design they feature advanced diagnostics, an improved hydraulic circuit and shifter for highly efficient pressure generation.
420mpa/55,000 psi is delivered by one intensifier, thus delivering low maintenance costs and quieter C controller provides operators an instant snapshot of all key pump operating conditions, in addition to tracking HP seal life and key operating parameters.Sensors ensure continual and adequate flow of water to protect your system. Switches between high pressure cutting and low pressure piercing for brittle materials
Dimension(L*W*H)
1530mm*1230mm*1070mm
Power rate
37kw/50hp
420Mpa /4200bar
Working pressure
350-380Mpa
Max. diameter of orifice
0.33mm
Max. oil discharge
106 L/min
accumulator capacity
1.2L
Type
2015
2040
3020
4020
Max.cutting range(mm)
2000*1500mm
2000*4000mm
3000*2000mm
4000*2000mm
Travel of Z axis
150mm
Servo system
YASKAWA
Control accuracy
±0.01mm
Cutting accuracy
±0.1mm
Re-positioning accuracy
±0.025mm/m
Max. moving speed
6000mm/min

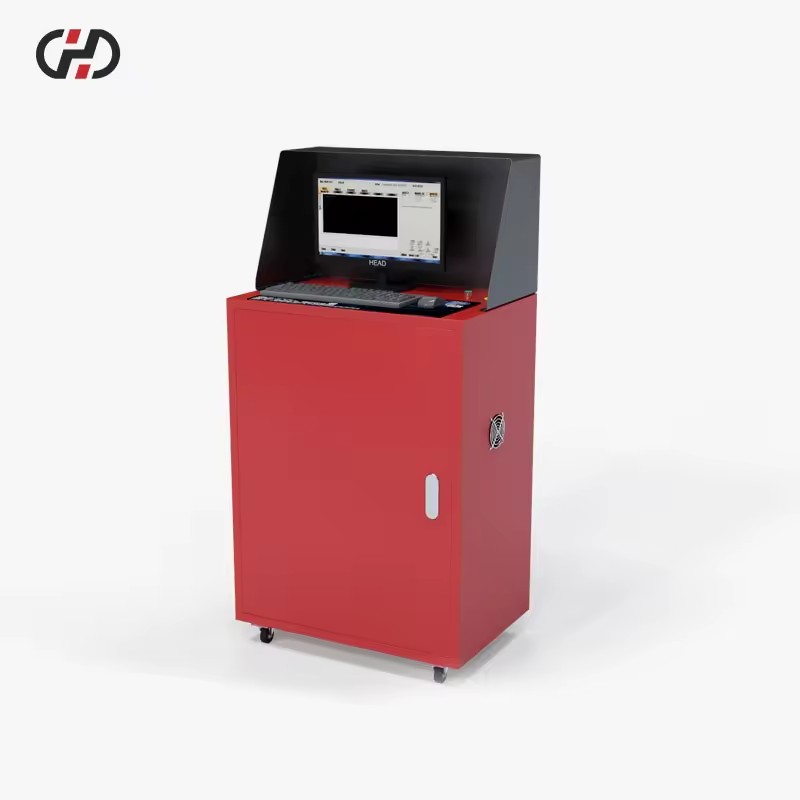

Model
CNC Control System
Dimension (L*W*H)
650*460*1070mm
Weight
70KG
Power supply
AC220V 50/60Hz
Drawing system
Auto-CAD
PLC
Omron
Servo Driver
Yaskawa

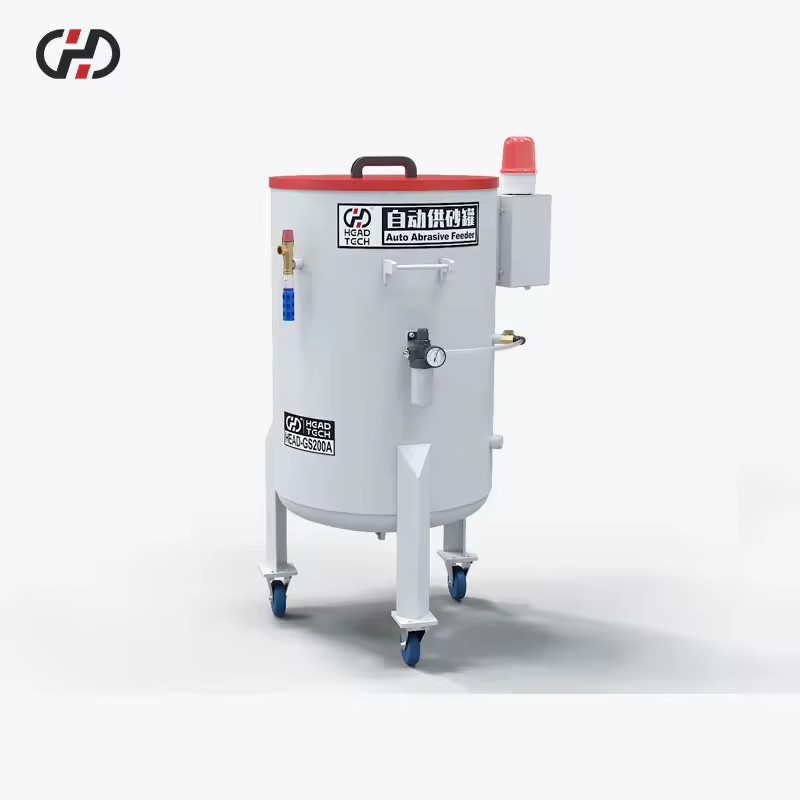

Auto abrasive delivery feeder
92KG
Max. air pressure supply
0.2Mpa
Voltage
24V
pacity
200kg
feature
1.Need less than 0.2 Mpa compressed gas pressure, sand amount evenly,delivery smooth. 2.Pneumatics technology support, safe and reliable. 3.The worker can add the abrasive directly without stop the waterjet cutting machine.
1. 3-axis cutting:consists of four main parts: pressure valve, orifice, mixing chamber and focusing tube (nozzle). abrasive cutting offers a range of different combinations which makes them easy to convert and optimize for various types of cutting conditions
2. AB5-axis water jet system is the solution for high quality ceramic, marble pattern, anti tilt and metal vertical precision cutting.
3. AC5-axis cutting enables operators to cut bevels and mitre cuts up to 45 degrees. provides the option to activate a "taper compensation" setting which offsets the taper in the water stream to accurately achieve the desired angle
Introduction Of waterjet company
Quality and credit goes all the way., a company surviving fierce market competition, has very strong national culture, and develops shoulder by shoulder with the world and this Era. We are determined to achieve our dreams step by step with the advantages of high technology.
Company honor
Our Service
1. Maintenance free of charge for 12 months. 2. We will provide the consumable parts at an agency price. 3. 24 hours online service, free technical support. 4. Machine has been adjusted before delivery, operation disk is included in the delivery. If there is any other questions, pls kindly tell me. 5. We have manual instruction and Videos for software Installation, operation and machine's using and maintenance; We will send professional technician to customers' factory, provide them two-weeks training, including working principle of machine, Auto CAD drawing, common problems and solution, etc.
FAQ Q1: Does This Machine Pass CE Certificate? A2: Yes, this machine passed European CE certificate and meet Safety Standard. Q2: How much of cutting thickness? A2: Marble is 0-120mm; granite is 0-110mm; tiles are 0-40mm; glass and mosaic is 0-80mm; steel, stainless steel, copper is 0-60mm; aluminum is 0-80mm; plastic, acrylic, foam is 0-200mm. With our double-pressures system, it can cut 0-160mm steel sheet, 0-200mm stones. It is good for customers cut thicker materials. Q3: How fast of speed? A3: Speed depends on cutomers' materials and cutting requirement, and customers can adjust speed parameters.
Keep safety
Although anything can be cut through, waterjet is still very safe. It is because we don't need to put any body parts under the waterjet cutting while it is on, obviously. If there is a leak in a high-pressure water system will tend pressure rapidly drop to safe level. Water itself is safe and non-explosive and the garnet abrasive is also inert and non-toxic. So using waterjet to cut material is very safety. Environmentally friendly As long as we are not machining a material that is hazardous, the spent abrasive and waste material become suitable for land fill. The garnet abrasive is inert and can be disposed of with our other trash.If we are machining lots of lead or other hazardous materials, we will still need to dispose of our waste appropriately, and recycle the water. Keep in mind, however, that very little metal is actually removed in the cutting process. This keeps the environmental impact relatively low, even if we do machine the occasional hazardous most areas, excess water is simply drained to the sewer. In some areas, water treatment may be necessary prior to draining to sewer. In a few areas, a "closed loop" system that recycles the water may be required.
why choose water jet
1. Competitive price: It is can meet your budget and best-selling business very well. 2. OEM Accepted: We can produce any your request design. 3. Good Service: We treat clients as friends. 4. Good Quality: We have strict quality control system. Good reputation in the market. 5. Fast & Delivery: We have big discount from forwarder
Product Description
Features
• 50 HP High 420 MPa pressure for smooth finish cutting at high speed.
• Main heart of Supercharger, "Intensifier" is "".
• User friendly & minimum maintenance cutting design with make "Water Switch Seal Kit" & other parts.
• All parts of machine are processed on Highly accurate YASKAWA servo motor (). Which gives you trouble free operation & long life of parts.
Products Show
1) Bridge structure stability in line with international mainstream trends
2) Water tank bearing platform and frame structure, and can be customized water level adjustment function, the work area can be customized protection grating and anti-splash protection screen in line with EU regulations
3) X-axis Y-axis Z-axis using the mainstream brand, and by the use of dust-proof cloth completely wrapped protection, dust, water, oil, sand on the rail, screw corrosion to extend the service life
4) Y Bed body structure Casting concrete structure, and by the stress release treatment, to eliminate deformation, heavyweight frame structure than similar products 30% guarantee stability accuracy, Y-axis bed design is reasonable, easy handling and transportation, rigidity, and Side support combination, the stability of the traditional structure than the 30% Z-axis dual-rail four-slider structure
1.Need less than 0.2 Mpa compressed gas pressure, sand amount evenly,delivery smooth.
2.Pneumatics technology support, safe and reliable.
3.The worker can add the abrasive directly without stop the waterjet cutting machine.
Detailed Images
About our company
water jet is an independent technology research and development, high-tech, promote high-quality, high credibility of the focus on large-scale ultra-high pressure water cutting machine manufacturer. Has been engaged in water jet cutting research, manufacturing, is one of the most professional water jet manufacturers in the stone parquet, glass parquet, metal shaped cutting, aerospace, and other fields of research and manufacturing. We are a manufacturing and trading combo for water jet cutting machine in Liaoning, with more than 15 years full experience and a professional sales team.
water jet, so cutting is no longer a problem!
Service & FAQ
1. Maintenance free of charge for
12 months.
2. We will provide the consumable parts at an agency price.
3.
24 hours online service
free technical support.
4. Machine has been adjusted before delivery, operation disk is included in the delivery. If there is any other questions, pls kindly tell me.
5. We have manual instruction and
Videos for software Installation
operation and machine's using and maintenance; We will send professional technician to customers' factory, provide them two-weeks training
including working principle of machine, Auto CAD drawing, common problems and solution, etc
FAQ
Q1: Does This Machine Pass CE Certificate?
A2: Yes, this machine passed
European CE
certificate and meet
Safety Standard.
Q2: How much of cutting thickness?
A2: Marble is 0-120mm; granite is 0-110mm; tiles are 0-40mm; glass and mosaic is 0-80mm; steel, stainless steel, copper is 0-60mm; aluminum is 0-80mm; plastic, acrylic, foam is 0-200mm. With our double-pressures system, it can cut 0-160mm steel sheet, 0-200mm stones. It is good for customers cut thicker materials.
Q3: How fast of
speed
?
A3: Speed depends on cutomers' materials and cutting requirement, and customers can adjust speed parameters.
Although anything can be cut through, waterjet is still very safe. It is because we don't need to put any body parts under the waterjet cutting while it is on, obviously. If there is a leak in a high-pressure water system will tend pressure rapidly drop to safe level. Water itself is safe and non-explosive and the garnet abrasive is also inert and non-toxic. So using waterjet to cut material is very safety.
Environmentally friendly
As long as we are not machining a material that is hazardous, the spent abrasive and waste material become suitable for land fill. The garnet abrasive is inert and can be disposed of with our other trash.If we are machining lots of lead or other hazardous materials, we will still need to dispose of our waste appropriately, and recycle the water. Keep in mind, however, that very little metal is actually removed in the cutting process. This keeps the environmental impact relatively low, even if we do machine the occasional hazardous most areas, excess water is simply drained to the sewer. In some areas, water treatment may be necessary prior to draining to sewer. In a few areas, a "closed loop" system that recycles the water may be required.
1.
Competitive price
It is can meet your budget and best-selling business very well.
2.
OEM Accepted
We can produce any your request design.
Good Service
We treat clients as friends.
4.
Good Quality
We have strict quality control system. Good reputation in the market.
5.
Fast & Delivery
We have big discount from forwarder
