New Type Energy Saving Industrial Drying Equipment Rotary Drum Dryer

New Type Energy Saving Industrial Drying Equipment Rotary Drum Dryer

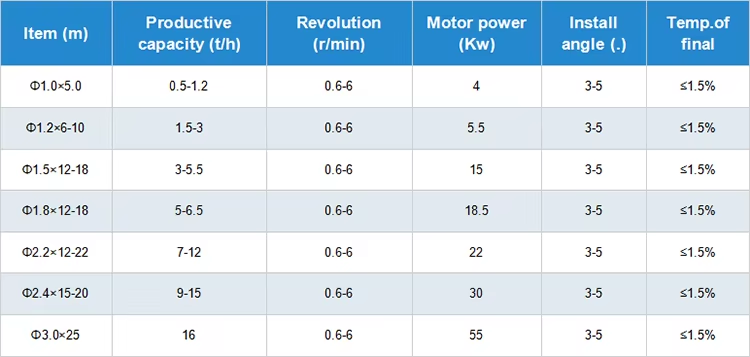

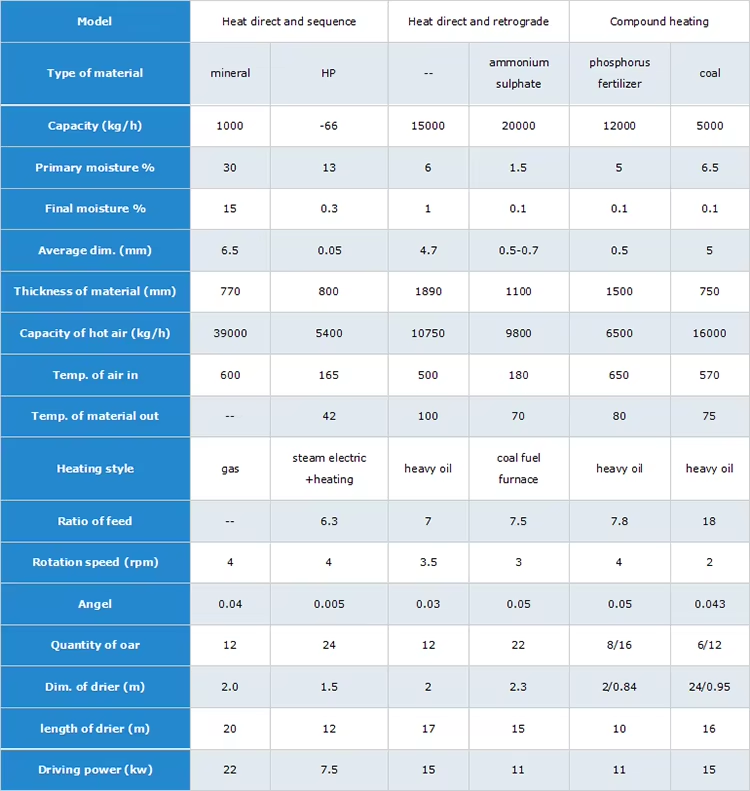

Specifications

Rotary dryer is the choice for high throughput capacity applications involving high moisture

Descriptions

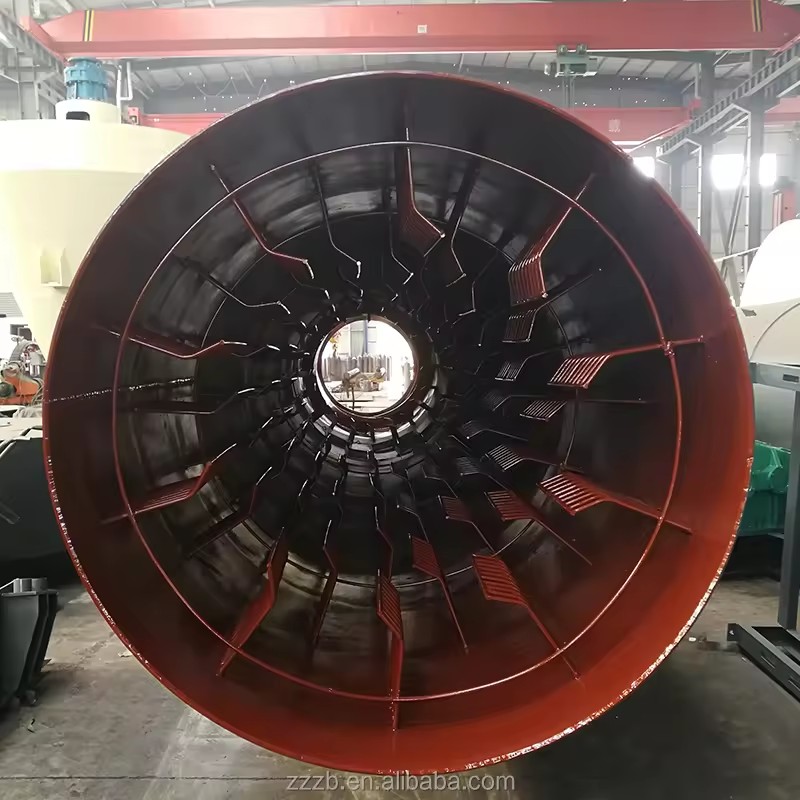

Drum drying equipment is a kind of rotating continuous drying equipment with internal heating conducting-style. Certain thickness of materials film attach to the drum from material liquid vessel under the drum. Heat is transferred to the internal wall of the cylinder through pipes and then to the external wall and to materials film, to evaporate the moisture in materials film so as to dry materials. Dried products are then scraped off by the blade fitted on the surface of the cylinder, fall down to the spiral conveyor under the blade, and are conveyed, collected and packed.

Features

1. High heat efficiency. The principle of heat transfer of the cylinder dryer is heat conduction and the conducting direction keeps identical in the whole operation circle. Except heat loss of end cover and radiation loss, all heat can be used for evaporation of wet materials on the wall the cylinder. The efficiency can reach 70-80%.

2. Large operation elasticity and wide application. Various drying factors of the dryer can be adjusted, such as concentration of feeding liquid/thickness of material film, temperature of heating medium, rotating speed of the drum etc. which can change drying speed of the under dryer. As these factors have no interrelations each other, it brings great convenience to dry operation and makes it applicable to dry various materials and to meet different requirements of production.

3. Short drying period. The drying period of materials is normally 10 to 300 seconds, so it is suitable for heat-sensitive materials. It also can be pressure reducing operated if it is put in vacuum vessel.

Q: Can I visit your factory?

A: Yes. Many domestic and international customers visit

Q: What is the quality of your products?

A:Parts of our products come with best quality, and our products passed CE certification, exported to lots countries around the word, such as,,,,,,,,, etc. You can rest assured with the quality absolutely.

Q: What to do if the machine has a problem?

A: 24 hours timely response of mail and

Q: How long is the warranty of your equipment?

A: Our warranty period is one year generally.
