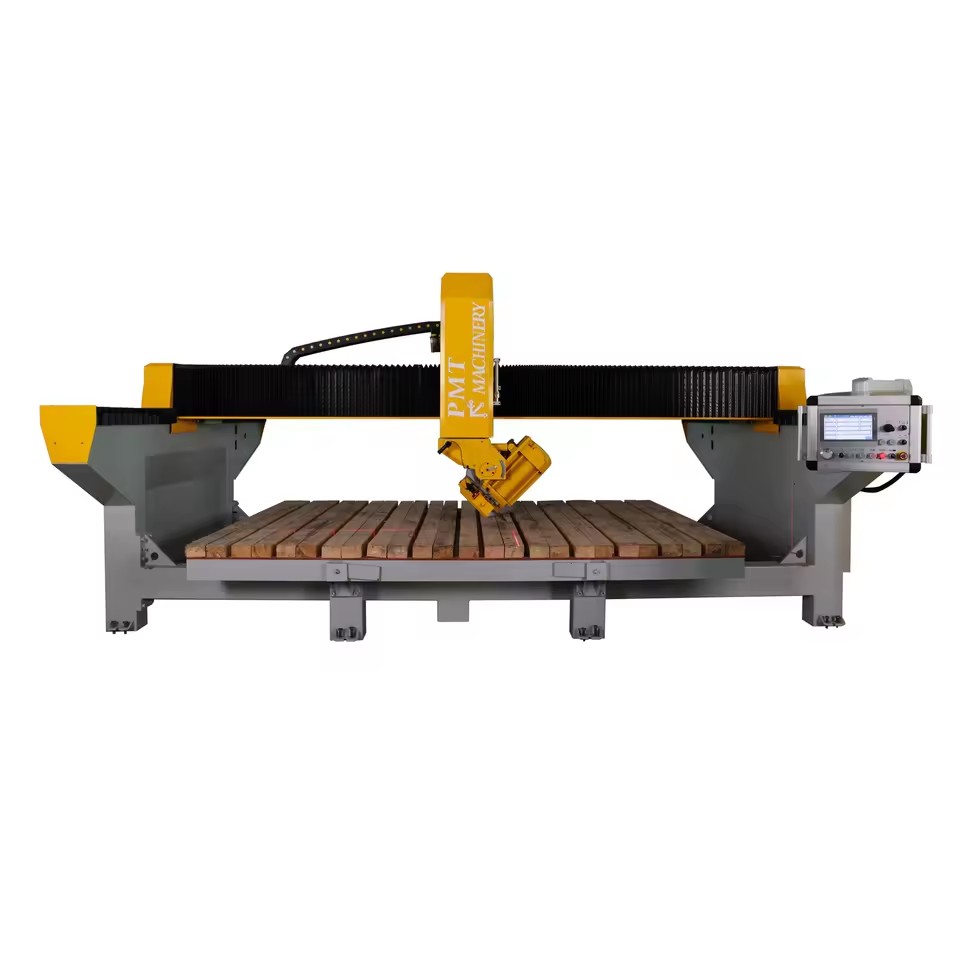

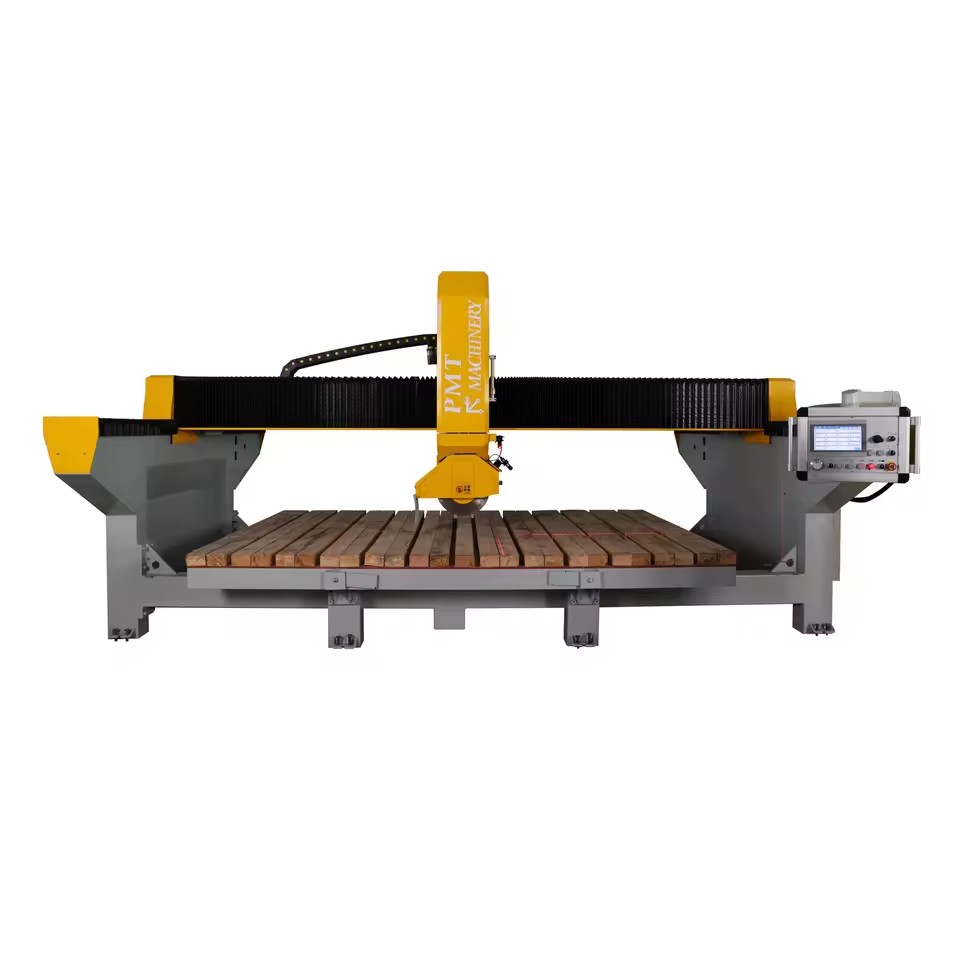

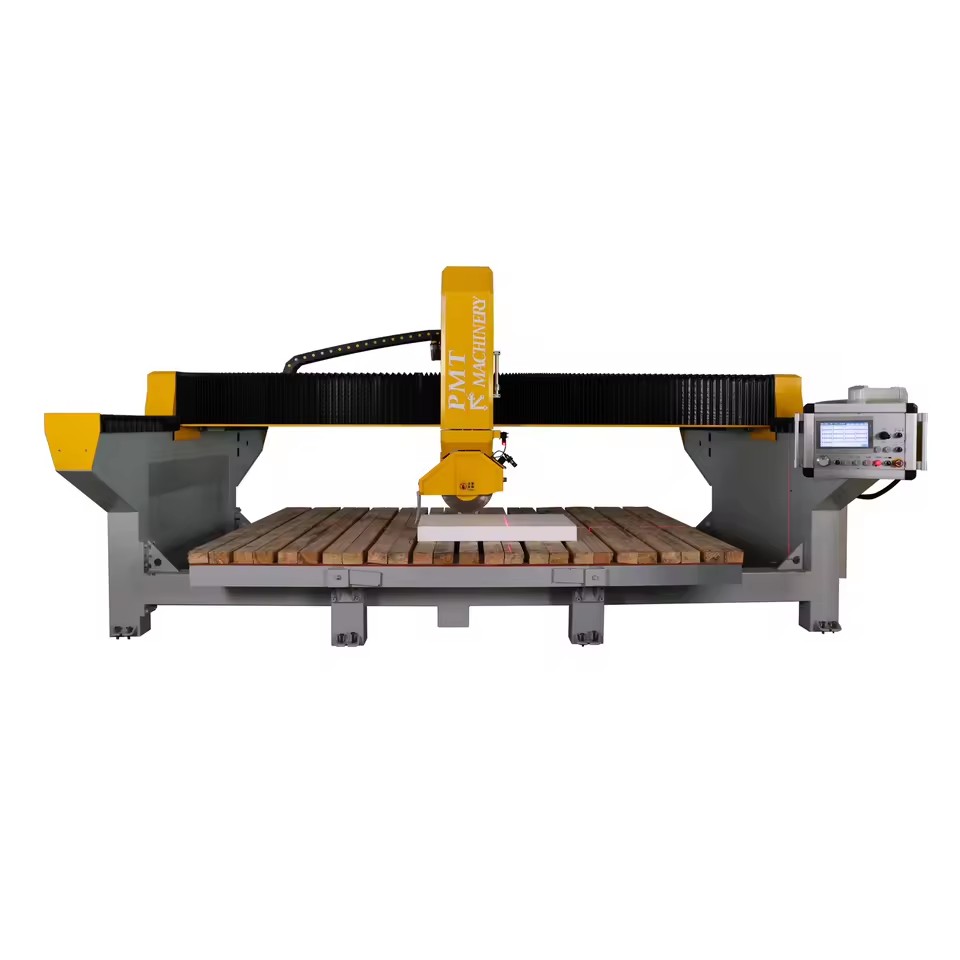

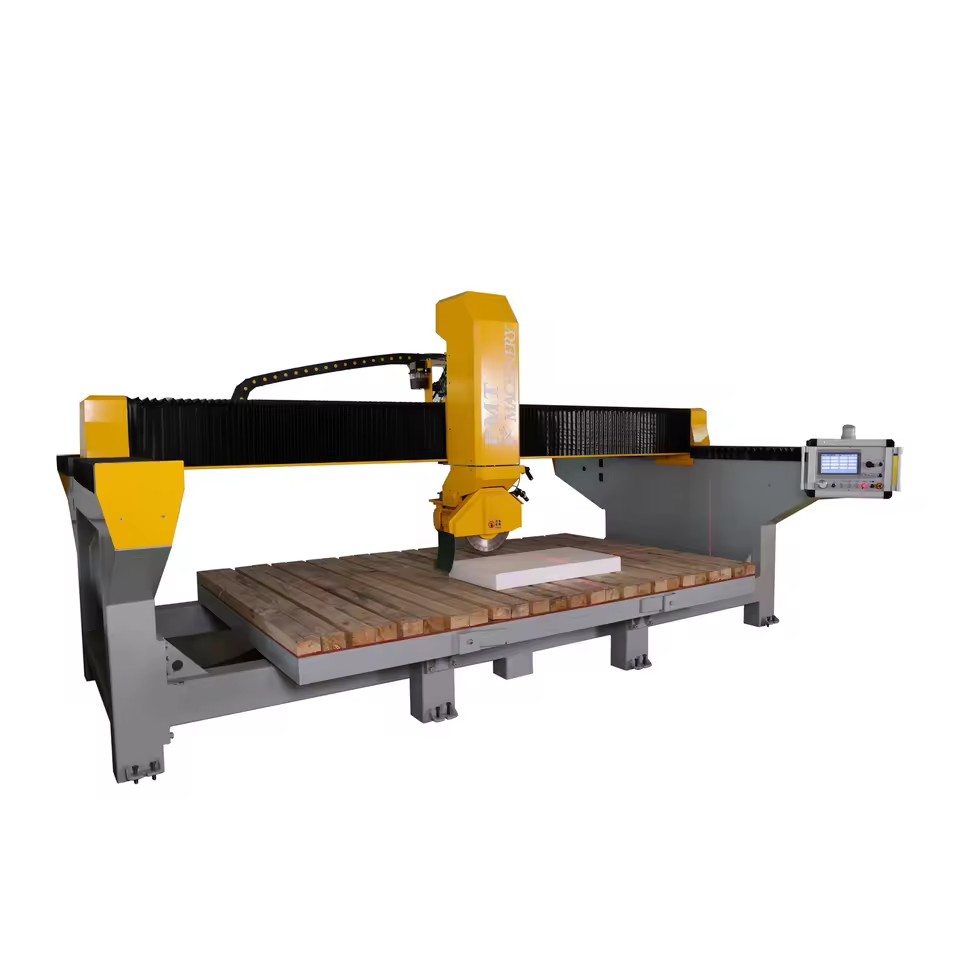

YTQJ400-4X 4-Axis Bridge Cutter with Waterjet Cutting Function

Installation

Technical Parameter

Main motor power

15kw

Max dia of the blades

300-400mm

Controller

PLC

Worktable tilting

0-85°

Head tilting

0-45°

Head rotating

360°

Water consumption

3.5mm³/h

Working area (lenth*width)

3200*2000mm

Demension(lenth*width*height)

4900*2750*2650mm

Weight

3500kg

packing Waterjet cutting machine package: wooden package Waterjet spare parts: soft package inside,carton package outside. The package ways aslo can according to customer requirement.

1. soft packing.

2. suitable size

3. professional sealing

4. delivery

Delivery time for machines:15-30days after order

Delivery time for waterjet spare parts: 3-7 days after order

Product Description

Product Name

Bridge Cutting Machine 4-Aixs YTQJ400-4X

Application and advantages of PMT bridge cutting

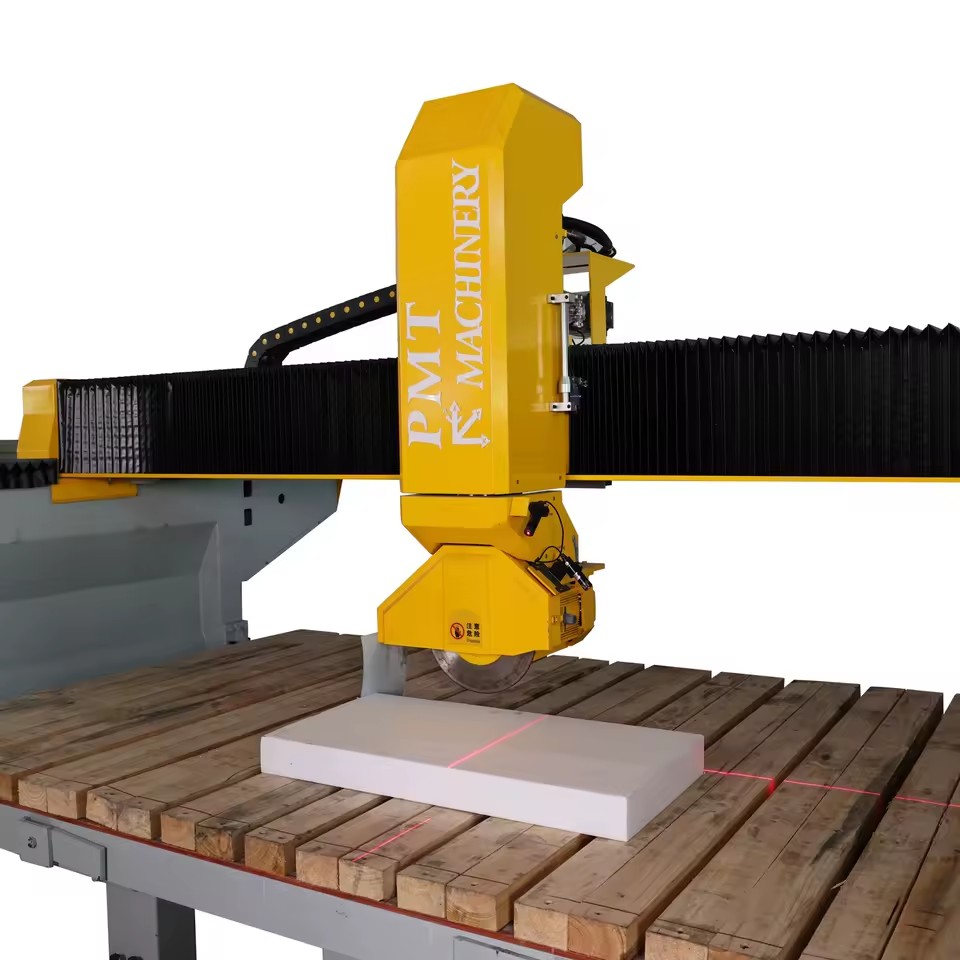

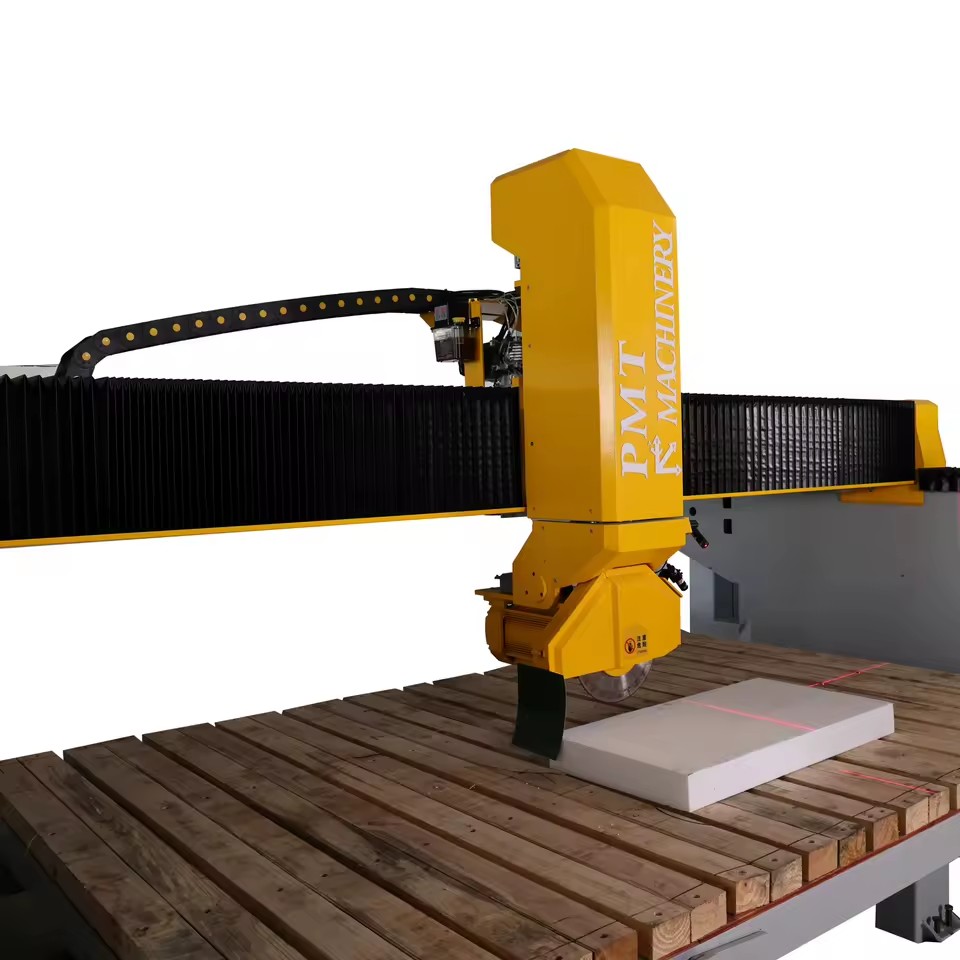

4-Axis Bridge Cutting Machine with PLC controlled head rotation, is a 4-axis mono-block bridge sawing machine easy to perform any types of straight and curve cutting, surface profiling and shaping with blade shoulder. It allow you to input module data simply through touching human-machine interface, with no programming required. The operation is easy and intuitive. This bridge cutting machine is designed for cutting sintered stone tile, granite, marble, quartz or other natural and engineered stone slabs.

PLC Controller

PLC control, more convenient operation

PLC control greatly improves the accuracy and stability of cutting

Company Profile

PMTech is a high-tech Manufacturing and trading company in waterjet cutting machine.We have accumulated more than 15 national utility model technology patents and 3 national invention patents, and won the national title of "high tech industry" through review in 2018 We focus on developing high-end ultra-high pressure pumps and waterjet cutting equipment.

We master the world's most advanced five axis dynamic and 3D cutting water jet technology, as well as 6-axis manipulator sanding / pure water cutting technology. We are in a leading position in the field of designing and manufacturing waterjet cutting machine.

PMT waterjet has provided hundreds of sets of high-end waterjet cutting machine to global water cutting users, and has successfully established a good reputation.We sell more than 80 sets waterjet machine every year, and have loyal users and service in more than 60 countries around the world.

PMTech will always adhere to manufacturing high-quality machinery and equipment, and adhere to the concept of continuous innovation and pragmatism, and always take "making PMT a trusted brand in the world" as the goal.

Certifications

Packing & Delivery

packing

Waterjet cutting machine package: wooden package

Waterjet spare parts: soft package inside,carton package outside.

The package ways aslo can according to customer requirement.

Delivery time for machines:15-30days

after order

Delivery time for waterjet spare parts

3-7 days after order

Our Service

Training on line,the buyer factory should be ready the space more then 40squre meter(7mx6m),power 380V,50HZ,160A,50kw,eletric power,normal water supplier >0.3mpa, air supplier >0.5mpa,Our engineer will on line training machine how to installing and using.

12 Months, Under regular operations in accordance with the Operation Manual, the parts of the machine, shall be guaranteed for replacement and repair during the guarantee period of twelve months.

FAQ

Q1

What is the advantage of water jet cutting head machine?

A:Cold processing, no heat reaction zone. no deformation; strong cutting ability, pure water jet can cut soft materials, abrasive waterjet can cut hard materials; can cut flammable and explosive objects;cutting precision is high, edge is neat no secondary

processing is required. Waterjet also has the title of universal cutting machine.

Q2

How to choose the cutting table for waterjet cutting machine?

A

You need to offer the size of the materials you want to process or the size of the cutting table.

Q3

How to solve the incision problem of water cutting for waterjet machine?

It is not a vertical cutting for a waterjet cutter. This is due to the physical characteristics of waterjet. If it is required precise vertical angle cutting, we will provide you with a five-axis dynamic cutting system.

Q4

Is the equipment easy to operate for waterjet cutting machine?

A: PMT

intelligent waterjet cutting machine is easy to operate. You could upload the electronic images file of DXF format to the operating system via USB or network. The system will automatically program, and only need to set a few simple parameters, it can automatically complete the cutting operatio.

Q5: How to request waterjet cutting machine parts?

A: you just tell us

Which waterjet parts effect you need?

Which waterjet parts size for work before work or finish work?

Which waterjet parts material tiles?

How about waterjet cutting machine capacity?
