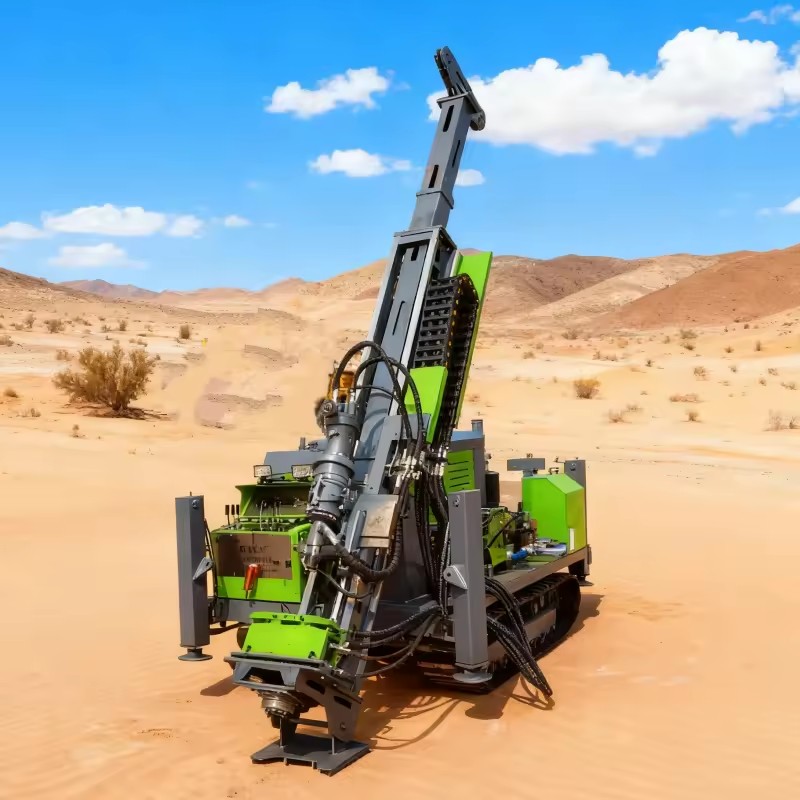

Product Importer Gallery 01 · eba40d5d20

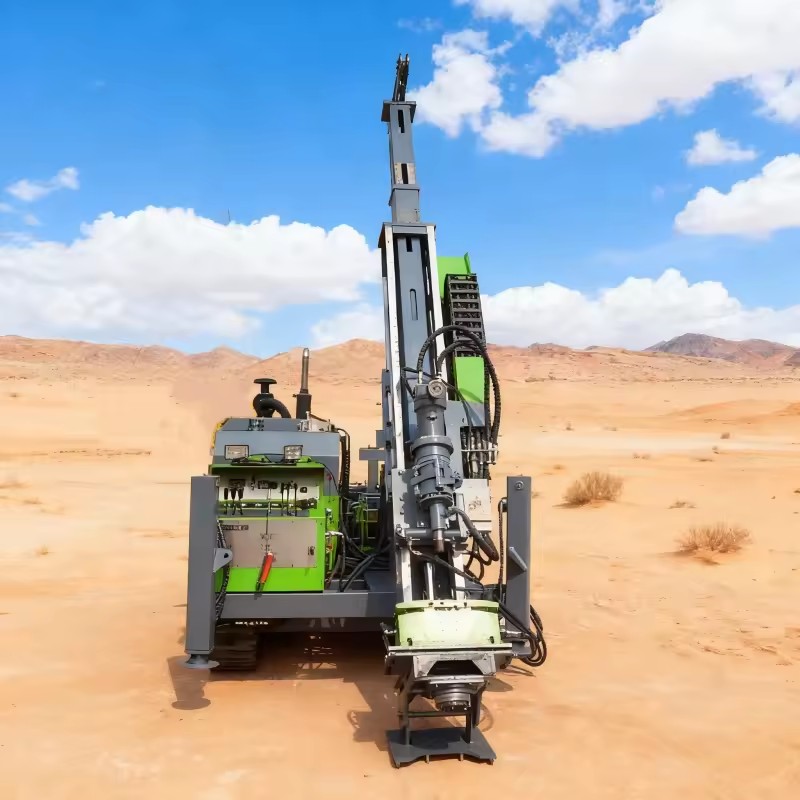

Product Importer Gallery 02 · 614e68a081

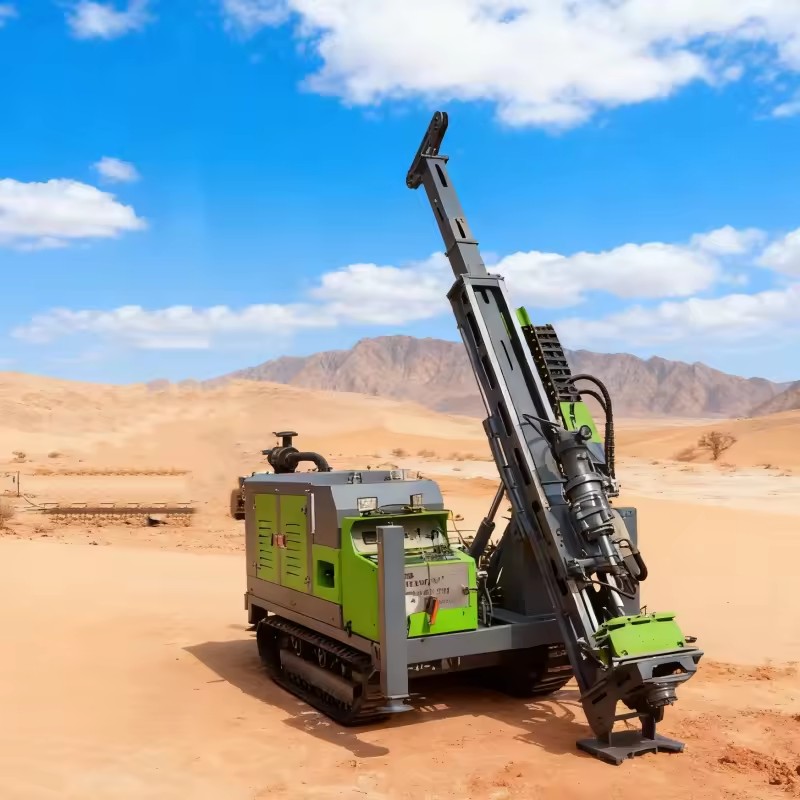

Product Importer Gallery 03 · f0c6534c4e

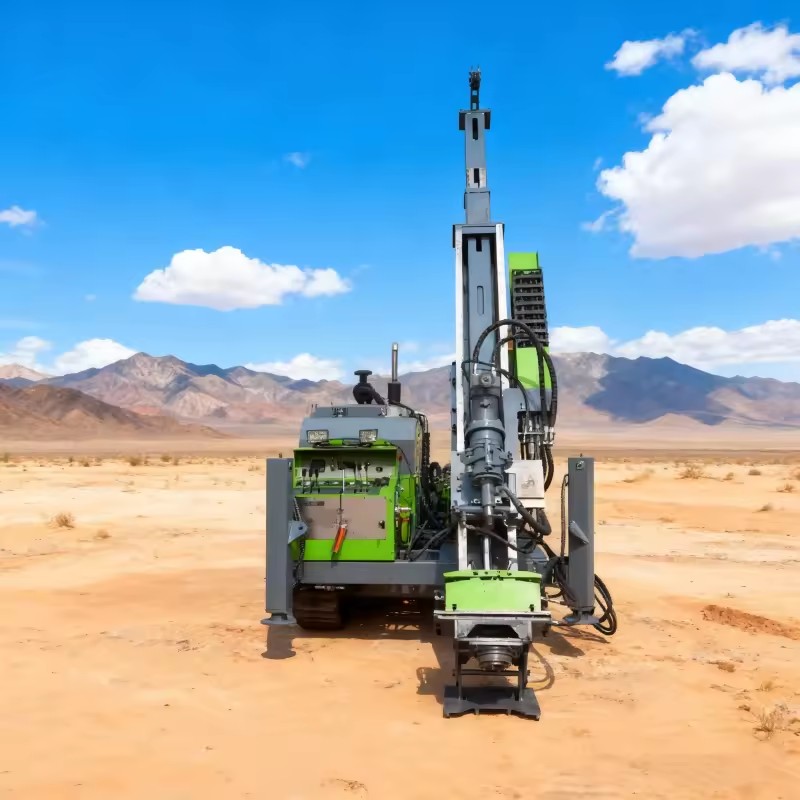

Product Importer Gallery 04 · acd167352e

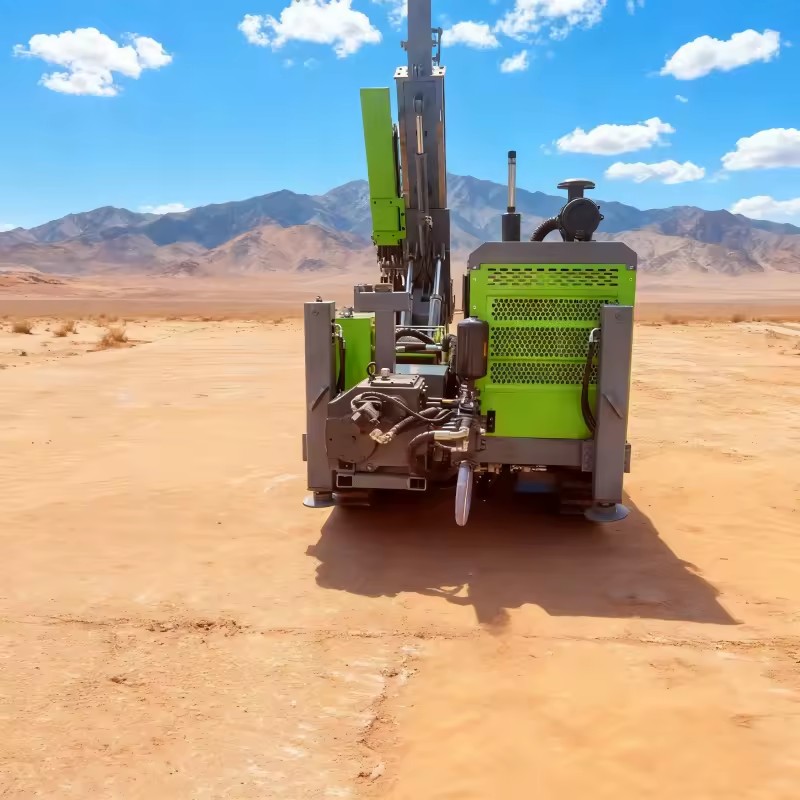

Product Importer Gallery 05 · e6b6a0c506

Product video

High Torque RC Drilling Rig400 Mining Geological Spt Diamond Exploration Wireline Core Drilling Rig Price Water Well Drill Rig

Name: High Torque RC Drilling Rig400 Mining Geological Spt Diamond Exploration Wireline Core Drilling Rig Price Water Well Drill Rig
SKU: VHMZ-2SKM-9HQP
Price: 6260.0 USD
Availability: PreOrder

Available for enquiry 0.0 · 0 reviews

USD

$ 6,260.00 6260.0 USD $ 6,260.00

Minimum order quantity: 1 Units

Key attributes

View all

Usage

Ore

Type

Drilling Rig

Drilling Depth

Max.400m

Drilling Diameter

60 mm(2.36in), 300 mm(11.81in), 50 mm(1.97in), 75mm(2.95in), 100 mm(3.94in), 700 mm(27.56in), 200 mm(7.87in), 450 mm(17.72in), 250 mm(9.84in), 150 mm(5.91in), 70 mm(2.76in), 120 mm(4.72in), 40 mm(1.57in), 140mm(5.51in), 90 mm(3.54in), 80 mm(3.15in), 180 mm(7.09in)

Power Type

Diesel

Voltage

380 V, 220 V

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Shipping fees and delivery dates are confirmed with your quotation.

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

Product Features

Model	HKD600	HKD800	HKD1000
Drilling Capacity	BTW (m)	650	1200	1400
NTW (m)	600	1000	1200
HTW (m)	300	800	1000
PQ (m)	200	600	800
Hydraulic Systems	Rated Pressure Mpa	32+16	32+16	32+16
Cooling Method	Air cooling + Water cooling	Air cooling + Water cooling	Air cooling + Water cooling
Engine Parameter	Model	Yuchai 4 Cylinder	Yuchai 6 Cylinder	Yuchai 6 Cylinder
Rated Speed Kw	92	92	129
Rated Speed rpm	2200	2200	2300
Power Head parameters	Maximum Torque N.m	1400	1800	2600
Maximum speed rpm	1400	1400	1400
Stroke / m	2	2	3.5
Lifting Force kN	240	300	360
Thrust kN	120	150	180
Parameters of Rope Coring Winch	Wire Rope Length Capacity m	800	1000	1200
Lifting Force kN	15	20	24
Lifting Speed m/min	110	110	110
Wire Rope Diameter/mm	5	5	6
Mast Parameters	Height/m	6.1	6.1	7.9
Drilling Angle°	45-90	45-90	35-90
Slip Stroke mm	800	800	1200
Gripper Parameters	BQ/NQ/HQ/PQ	130mm	130mm
Track Parameters	Maximum climbing angle°	20	20	20
Maximum Walking Speed km/h	2	2	2
Package Size	LWH mm	450019002650	450021002800	560022003000
Weight（t）	4.5	6	7.3

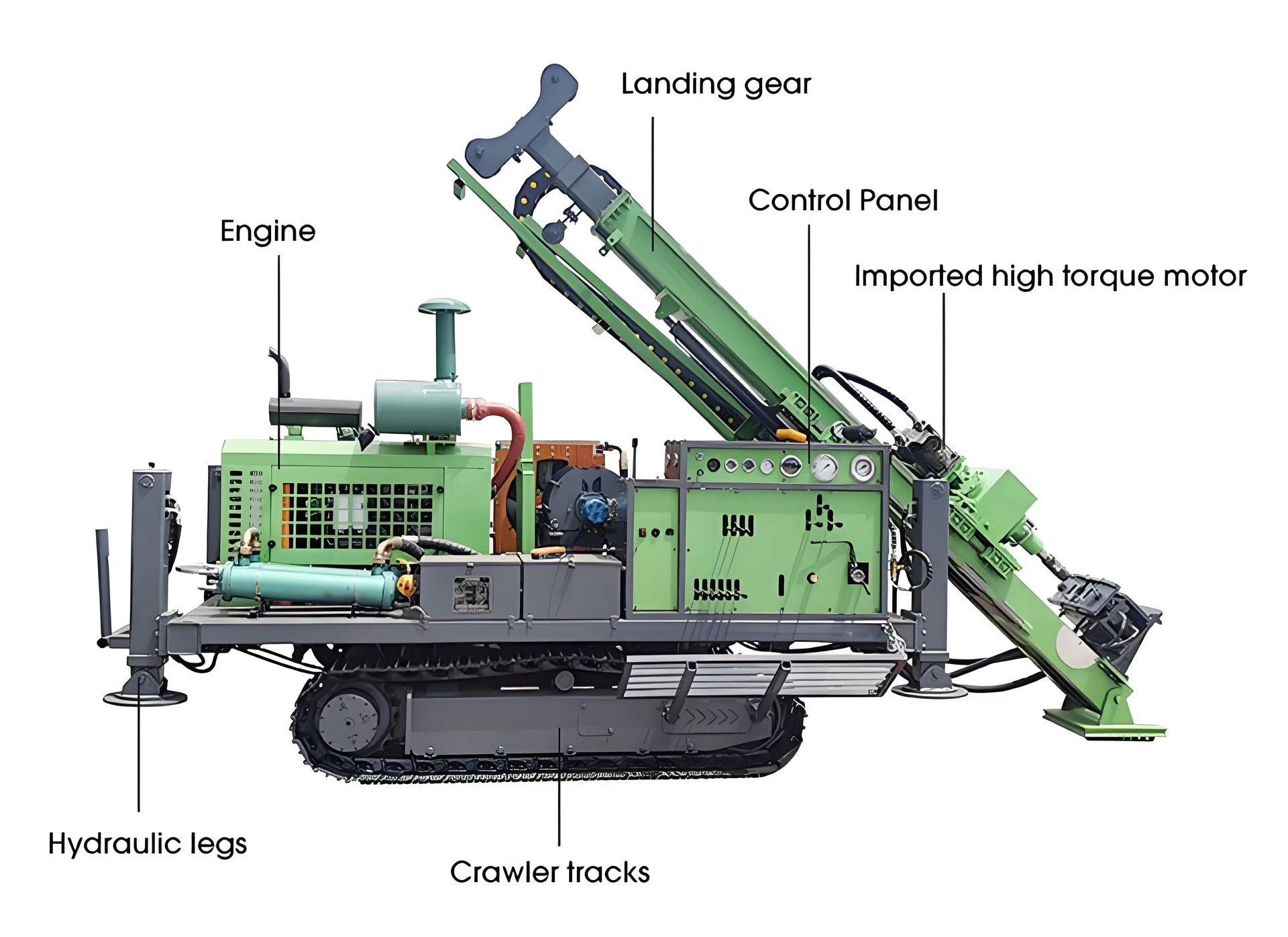

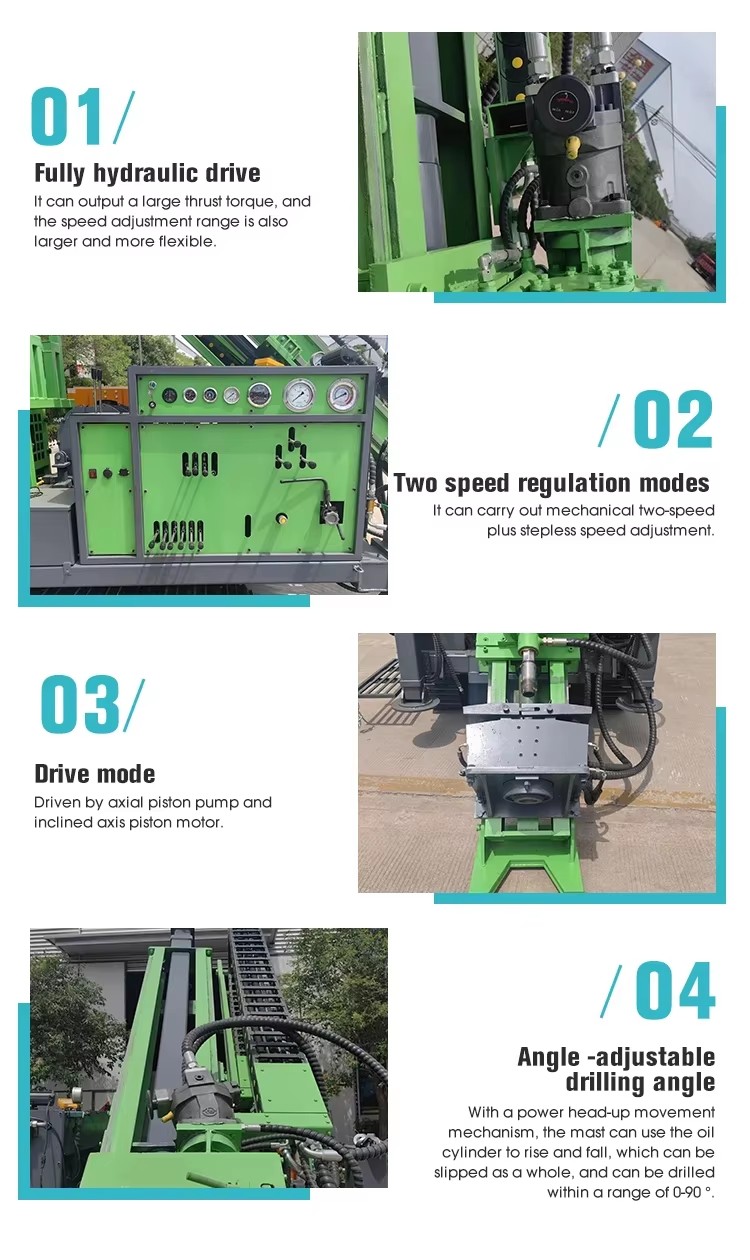

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

20 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 30 fields

Usage

Ore

Type

Drilling Rig

Drilling Depth

Max.400m

Drilling Diameter

Power Type

Diesel

Voltage

380 V, 220 V

Core components

Bearing, Motor, Engine, Pump

Warranty

1 Year

Machinery test report

Provided

Video outgoing-inspection

Provided

Key selling points

High Rigidity

Place of origin

China, Shandong

Weight

4000 kg(8818.49lb)

Dimension (L*W*H)

4500*1900*2650

Mobility

Tracked

Power Head parameters

Lifting Force kN

240kN

Thrust

120

Wire Rope Length Capacity m

800m

Lifting speed

110m/min

Wire Rope Diameter

5mm

Height

6.1m

Slip Stroke mm

800mm

Maximum Walking Speed km/h

Package size

4500*1900*2650

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Model number

HKD600

Power (W) (Product option)

Lead time

20 days

Minimum order

1 Units
