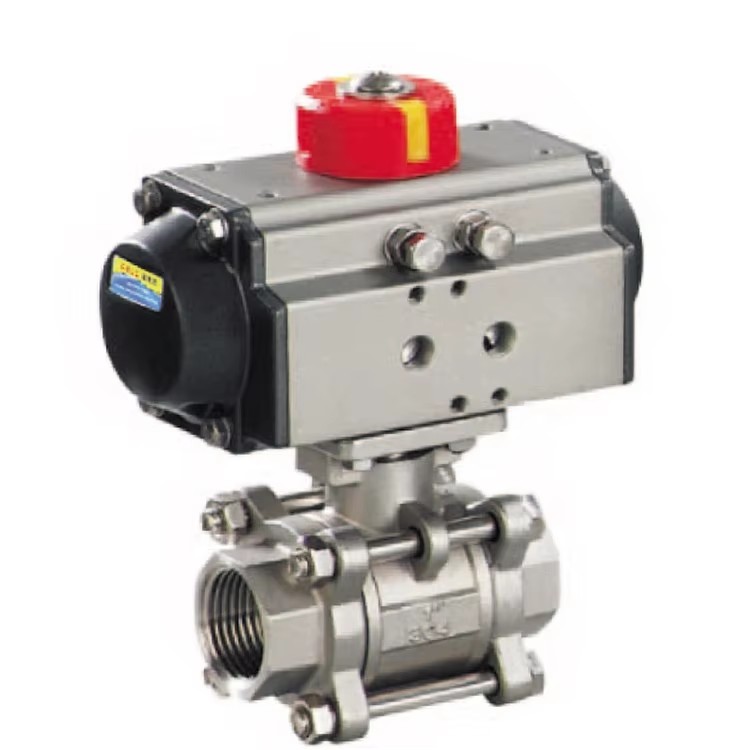

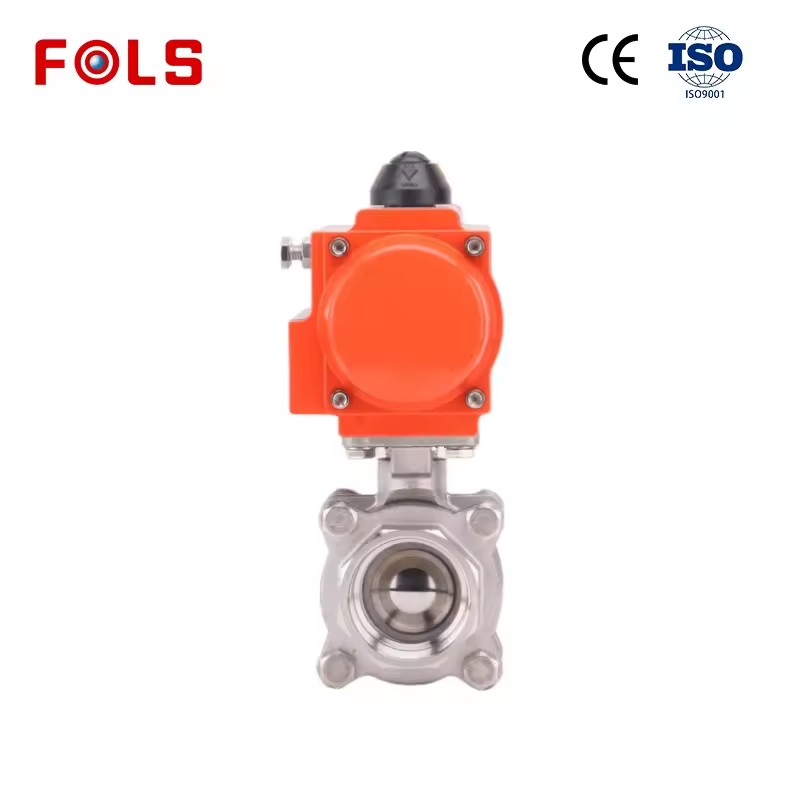

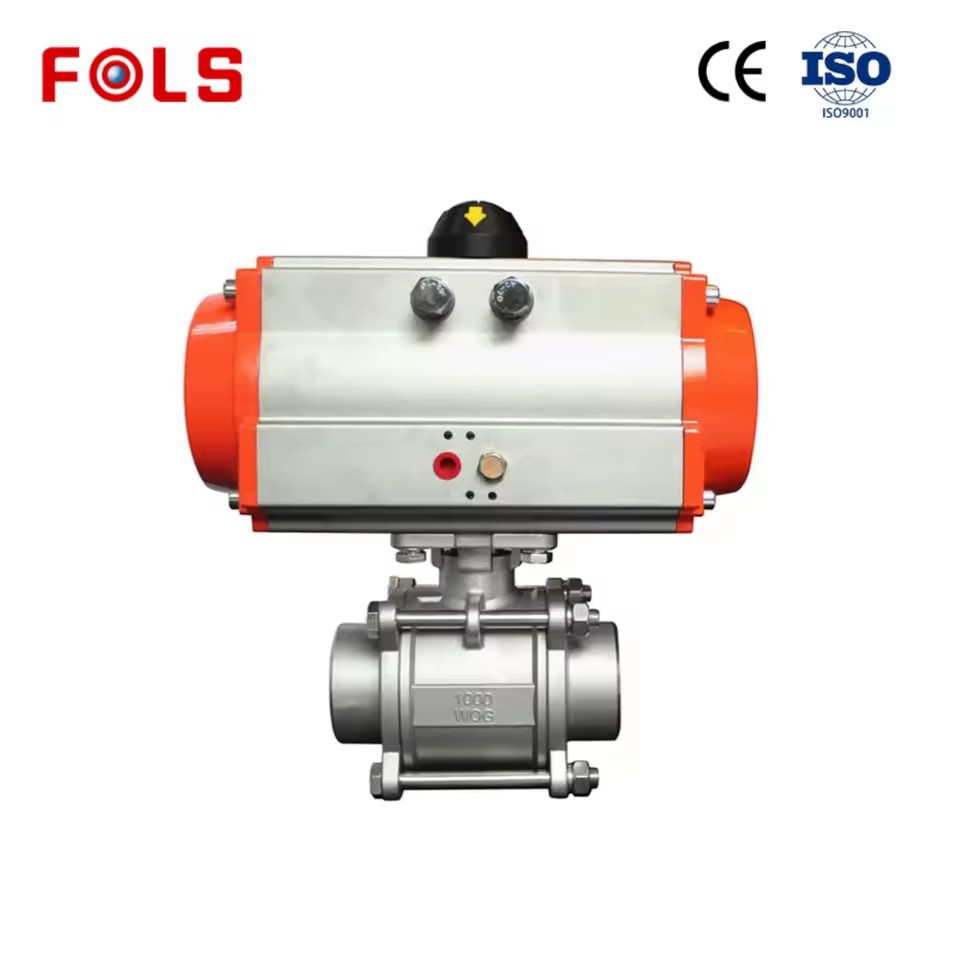

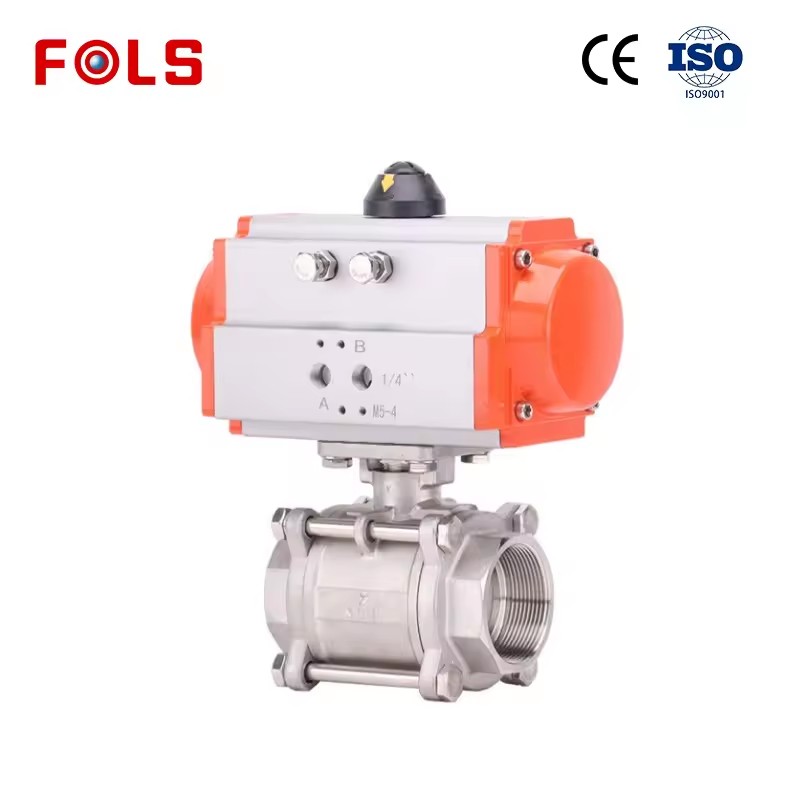

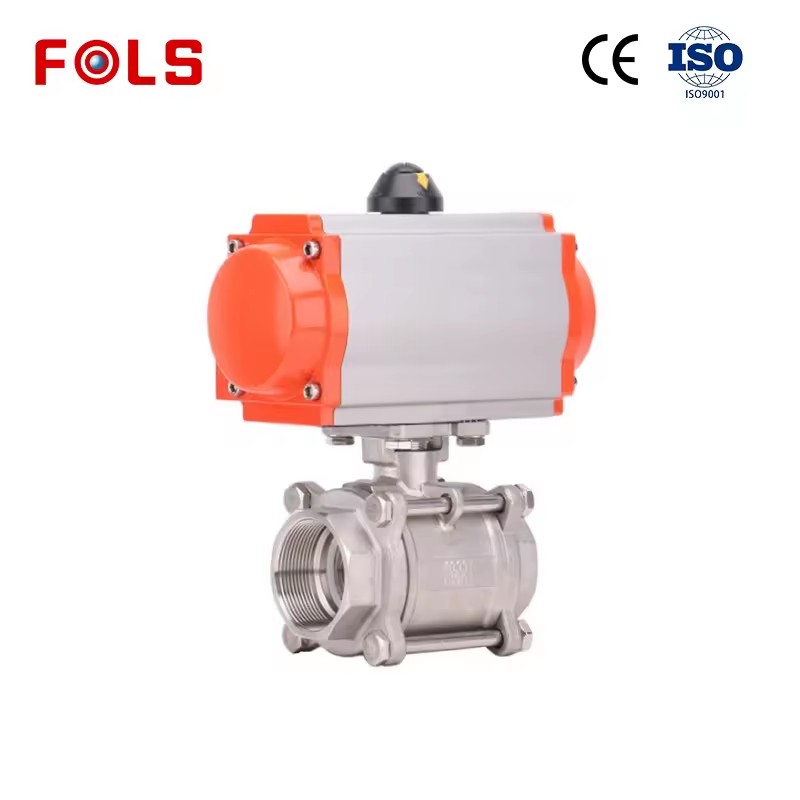

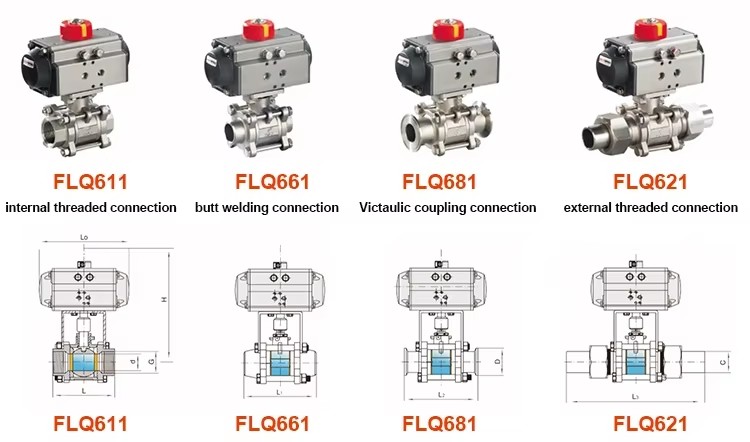

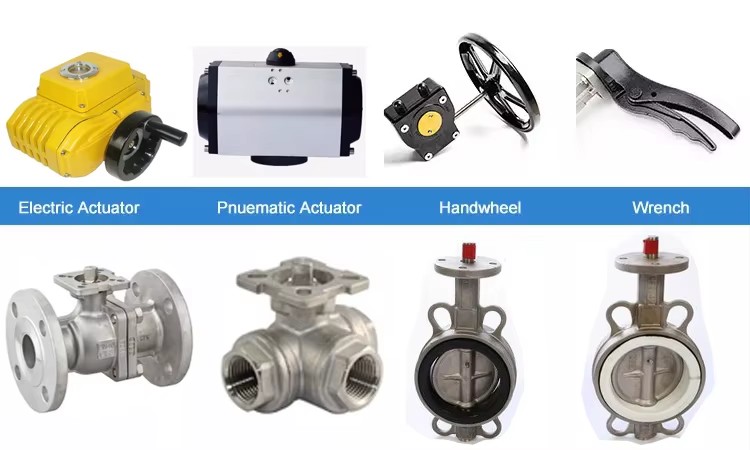

Factory Spring Return Pneumatic Actuator Stainless Steel 316 Threaded Wafer Connection Ball Valve OEM IP65 Air Actuated

Spring Return Pneumatic Actuator stainless steel Threaded ball valve 316l air actuated valve

Advantages

• aims to provide

• Over 30 YEARS manufacturer of actuated valves, MASS CUSTOMIZATION acceptable.

• 3 production base, large stock, SHORT LEAD TIME, same day shipping.

• German imported manufacturing facilities, 100% Q.C passed before shipping, quality assured. Industrial standard 1 YEAR (12 months) warranty.

• ISO 9001 certificated, with extra certifications include CE, RoHS, SGS, BV, explosion & fire safe.

• OEM / ODM service available.

The pneumatic three piece ball valve has many advantages, such as strong function, small volume, light and pleasant, reliable performance, simple matching, large circulation capacity, especially suitable for medium which is thick, granular and fibrous medium. At present, the valve is widely used in the industrial automation control systems, such as food, environmental protection, light industry, oil, paper, chemical, fire, air conditioning, water supply and drainage.

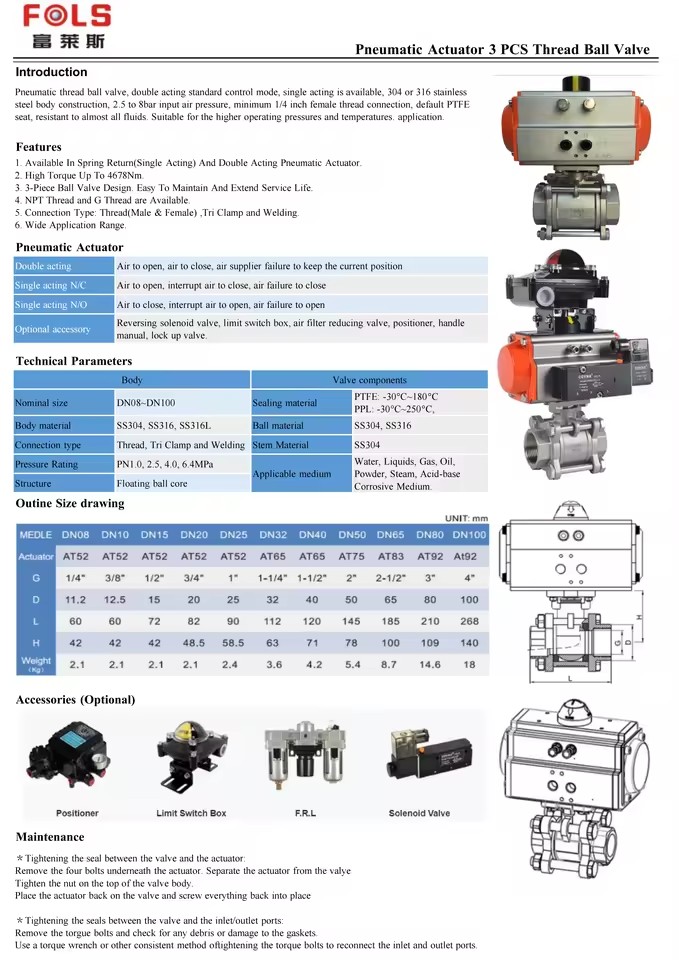

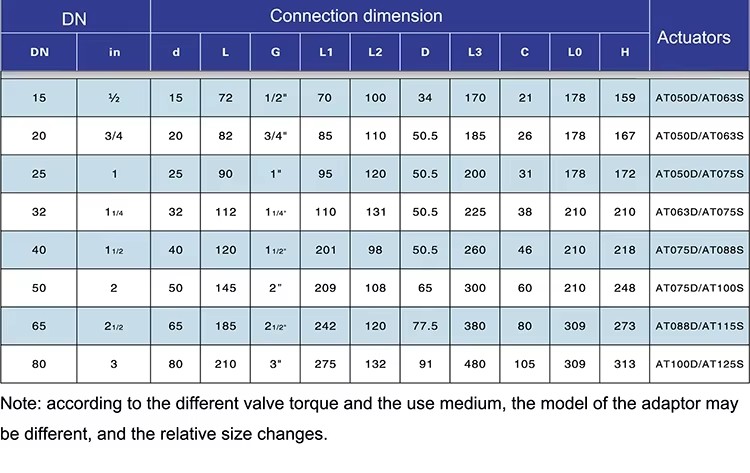

Technical Parameters

Design and Manufacturing Standards Design and Manufacture: GB/T12238-2008 Connection Standard: JB/T 79.1-1994 ASME B16.10 Structure Length: GB/T12221-2005 ASME B16.5 Pressure Testing: GB/T13927-2008

Pneumatic Actuator

Transmission structure principles

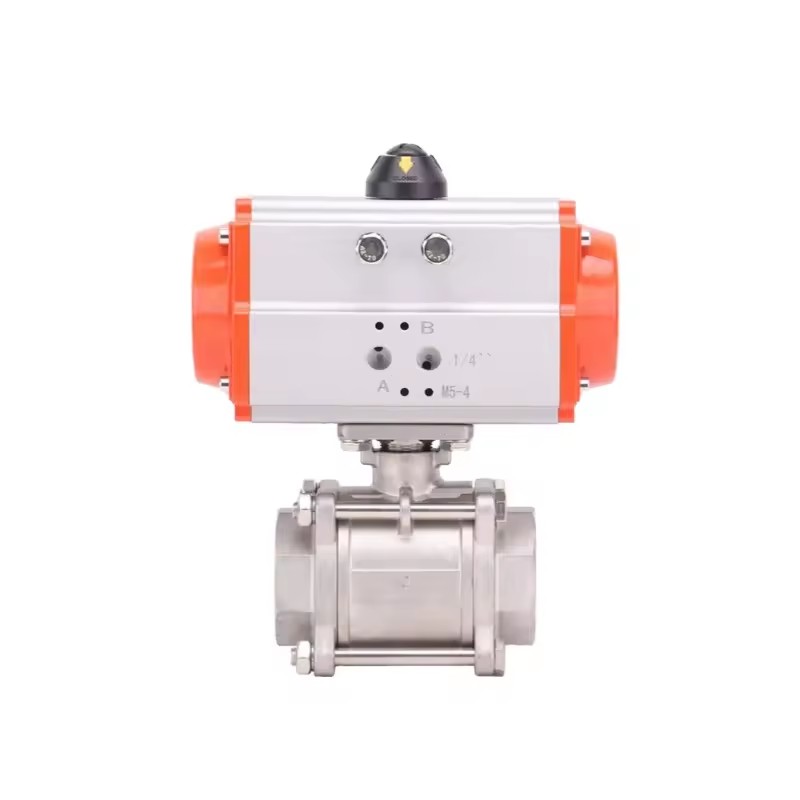

When the compressed air enters the pneumatic actuator through Nozzle A (as shown in Fig 1), the air will drive the double piston straightly moving toward two ends ( cylinder head end) and the piston rack will drive the gear of the rotary shaft by 90 degrees counter-clockwise. In this case, the valve will be opened. At this moment, the air in both ends of pneumatic actuator is discharged through Nozzle B. On the contrary, when the compressed air entered both ends of the pneumatic actuator through Nozzle B (as shown in Fig 1), the air will drive the double piston to straightly move towards the middle position and the piston rack will drive the gear of the rotary shaft by 90 degrees clockwise. In this case, the valve is closed. At this moment, the air in the middle of the pneumatic actuator is discharged through Nozzle A. What is aforementioned is the transmission principle. According to users' needs, the pneumatic actuatorcan be equipped with transmission principles contrary to the standard type. In other words, the valve will be opened when the rotary shaft rotates clockwise, while the valve is closed when it rotates counterclockwise. Single acting (spring return type) pneumatic actuation is implemented along the Nozzle A which is the air inlet, while Nozzle B is the air outlet (a muffler shall be installed in the Nozzle B). When Nozzle A inlets air, the valve will be opened, while the valve will be closed by the spring force when the air source is cut off.
