Name: Vertical Three Phase Marine Oily Water Fuel Filter Mineral Oil Water Separator
SKU: B2B-29016
Price: 7500.0 USD
Availability: PreOrder

Product description

Marine Oily Water Separator

More than ten years of successful industry experience

The best materials and strict control system

Equipment quality gaurantee

original design for customized service

Full refund money in case of bad quality.

Product Description

Introduction

KYDH207SD-23 oil purifier are mainly applied in

1.the purification and clarification of the diesel, light fuel oil, heavy fuel oil, transformer oil

lube oil,Marine mineral oil.

2.other mineral ed to remove the water, moisture, mechanical impurities

3.some harmful substances of the oil.

This series is oil purifier and clarifier, we also have other clarifier series and concentrator series.

Main Feature

Simple, compact and robust design

• Highest separation efficiency in removing solids and water

• No pre-filtration necessary

• Environmentally friendly sludge disposal (no cartridges)

• Automatic, unattended operation

• Easy maintenance

• Low operating cost

• Proven reliability and long lifespan

• Reliable process for maximum performance

Designing including as below

• Feed pump with electric motor

• Self-cleaning centrifugal separator with electric motor

• Control panel with local operator device

• Atmospheric sludge tank complete with sludge pump

• Instrument air distribution system

• Wired and piped to skid limit

• Module base frame with drip pan, lifting lugs and earthing

• Suitable offshore painting

• Tagging and marking

• Factory Acceptance Test (FAT)

• Documentation

Moled and Parameters of oil purifier

No.	Model	Capacity (l/h)	Drum diameter (mm)	Drum speed	Motor Power (KW)	Discharge way	Separator factor	Weight(kg)	Size(mmmmmm)
1	KYDR203CD-23	1500	230	6930	2.2	Manual	6170	245	850625985
2	KYDH204SD-23	2000	270	7200	4	Automatic	6950	550	8656451100
3	KYDH206SD-23	3000	315	6500	5.5	Automatic	7000	650	9006001150
4	KYDH207SD-23	4000	385	6500	7.5	Automatic	7500	750	110010501250
5	KYDH209SD-23	5000	430	6000	11	Automatic	8050	900	12009501400
6	KYDH211SD-23	10000	500	5500	18.5	automatic	8000	1200	125010001550

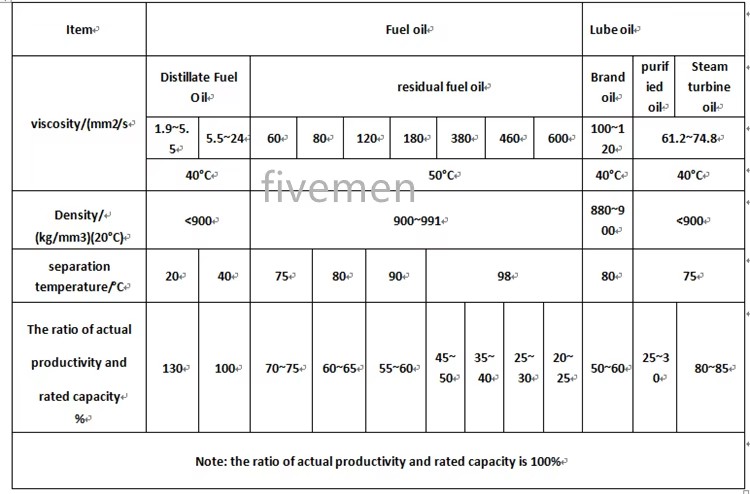

Speration conditions and actual productioivity of mineral oil

The parts are bolted to the wooden cases. with layers of plastic and standard wooden cases

for packaging, it provide safe and convenient shippings.

Over the years, our products have been successfully applied in liquid-solid or liquid-liquid-solid separation of biomedicine, traditional Chinese medicine, phytoextraction, health foods, beverages, dairy products, lanolin, animal and plant oil, mineral oil, petroleum, chemical industry, environmental protection and other industries. For some materials with small difference in specific gravity of liquid and solid phase,small solid particle size and low content by use of centrifuge extraction, concentration and clarification

We have passed ISO9000 quality system certification awarded by Classification Society; our mineral oil separators used in inland rivers, offshore and ocean shipping have achieved CCS approval certificate, and the products used in fishing boats also passed the fishery inspection.

Description images

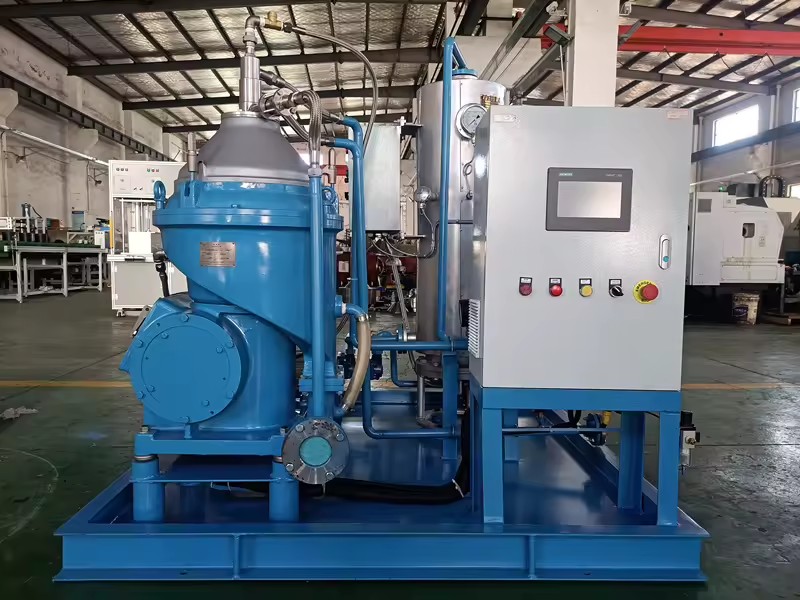

Vertical Three Phase Marine Oily Water Fuel Filter Mineral Oil Water Separator

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

30 days
Step 3

Packaging and dispatch

Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 24 fields

Voltage

380V/220V/415v

Flow

3000L/H

Condition

New

Warranty

1 Year

Place of origin

China, Jiangsu

Dimension(L*W*H)

900*600*1150

Power(w)

5.5KW

Weight

650 kg

Keyword

Marine Oily Water Separator

Name

Marine oily water disc separator

Application

diesel oil, lube oil, fuel oil, mineral oil

Drum diameter

230mm

Pump pressure

≥0.2MPa

Vibration speed

≤4.5 mm/s

Moisture in the material

less than 1%-2%

Separation temperature

95~98°C(heavy fuel oil)

Materials

304/ 316L SUS

Discharge Way

manual and automatic discharging

Selling Units

Single item

Single package size

1000X800X1200 cm

Single gross weight

500.0 kg

Model number

KYDH203SD -23

Working pressure (Product option)

no requirements

Usage (Product option)

Other, Lubricant Oil, Transformer Oil, centrifuge oil cleaner

Lead time

30 days

Minimum order

1 Units
