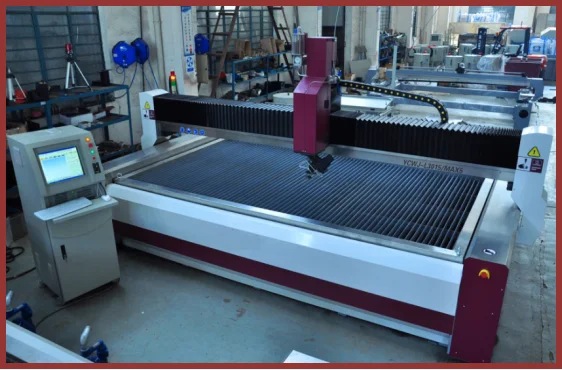

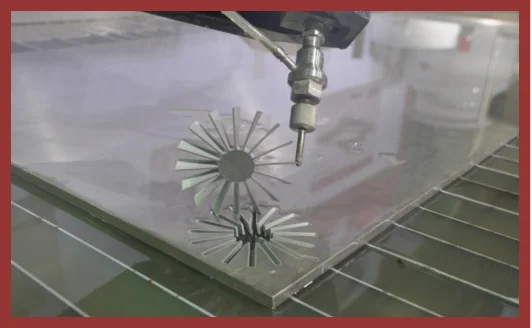

High Quality New CNC Water Jet 5 Axis Water Jet Cutting Machine Waterjet Cutting Machine

High quality New CNC Water Jet 5 Axis Water Jet Cutting Machine Waterjet Cutting Machine

Technical characteristics description

CNC water-jet cutting machine is composed with cutting table, HP pump, CNC control system with waterjet cutting software, cutting head, Hp water valve, and sand controlling system. Auto abrasive feeding system and water cooling system are needed. Also you can choose optional systems such as water softening system and auto sludge removal system according your requests.

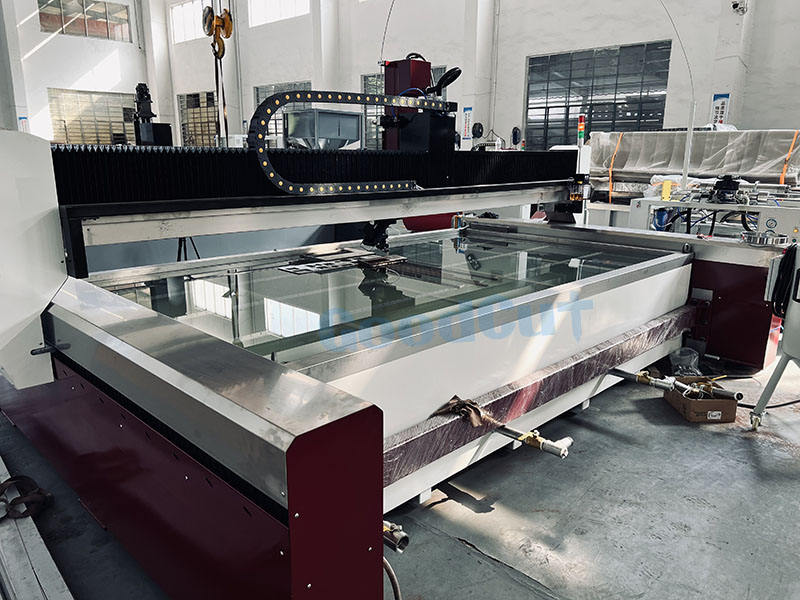

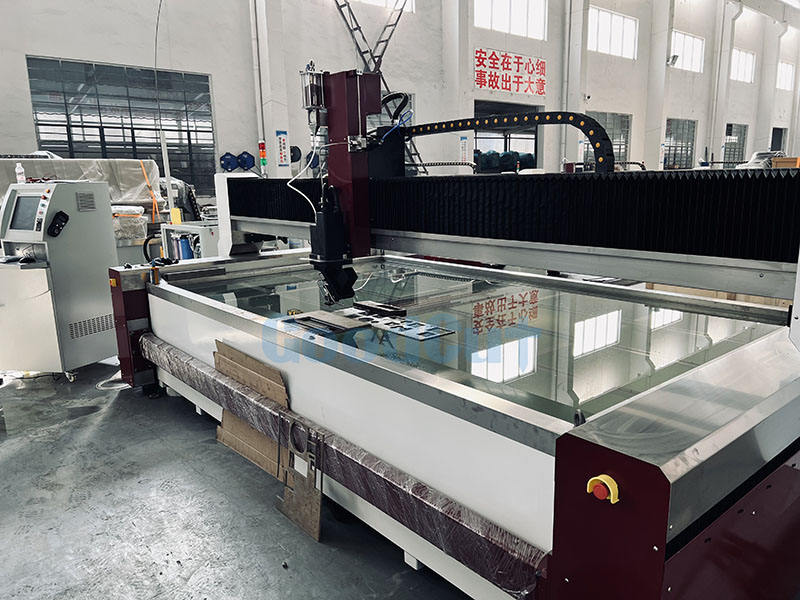

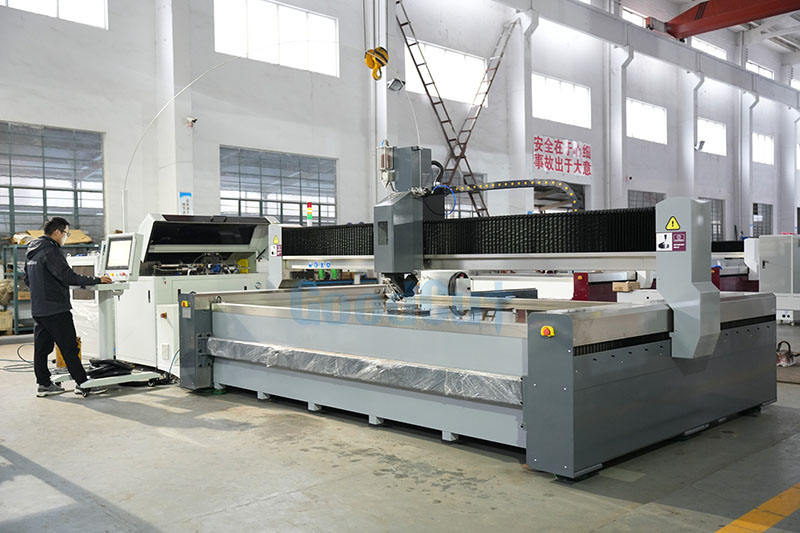

1. Cutting table

1.1 Platform body

1.1.1Chief technical parameter

1.1. 2 S tructure feature

The machine body with the welding box structure, then make stress relief by annealing process.

Table body and water tank which are split structure, lessen the splash of sands and water into moving parts, It is also conducive to the disassembly and transportation of the machine.

X-axis and Y-axis transmit to rolling ball screw mandrel.

1.1. 3 Controlling system

We adopt the WEIHONG controlling system based on the ADVANTECH industry computer

YASKAWA digit servo driver and motor.

1.1.4Transmission system

We adopt HIWIN linear guide rail and TBI ball screw to ensure accuracy and quality.

1.1.5Prevention system

Over travel auto spacing function and soft spacing function

Unique prevention design: new mazy protection and z-axis totally enclosed professional design prevent sand and water from eroding the guide screw and linear guide rail.

1.1.6Lubrication system

We adopt auto mass lubrication system to make oil reach every oil site on time and also make table steadier and easier.

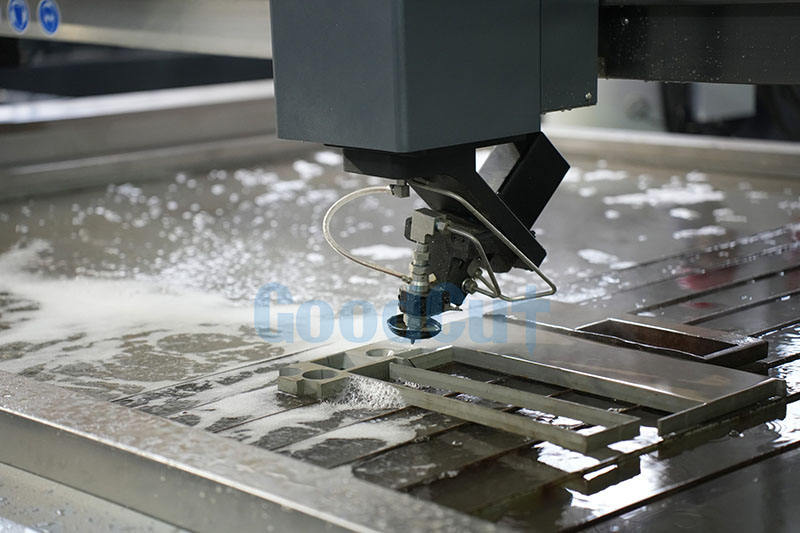

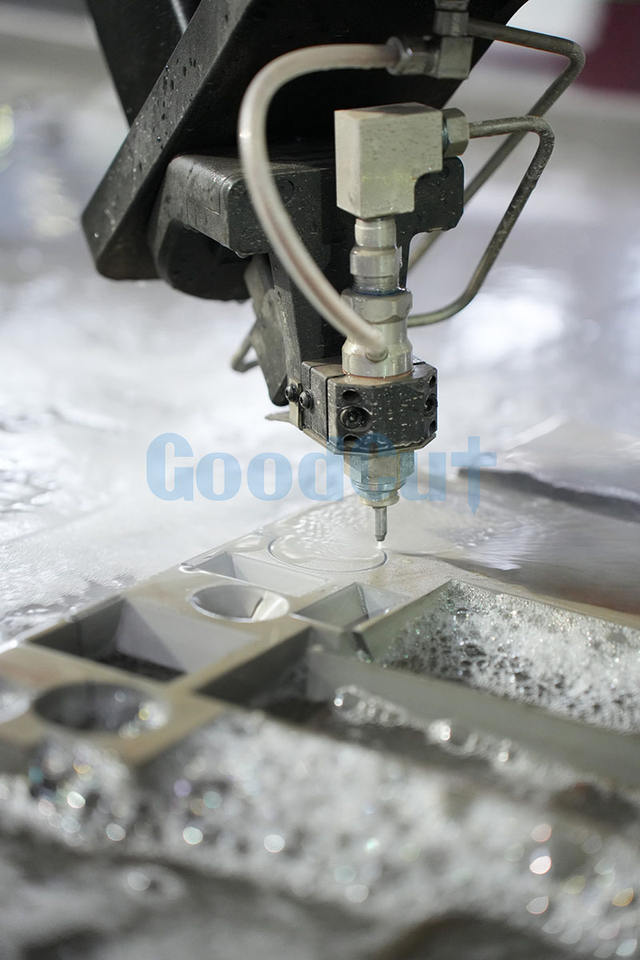

1.2 Cutting head assembly

1. 1.2.1 GC hp water switch

Air valve can open and close the hp water instantaneously.

With the help of CNC we can control hp water automatically.

Blockage pressure can be adjusted arbitrarily to realize

the operation under the low pressure circumstances.

1.2.2 GC abrasive feeding system

Dynamic sand feeding

Manual makes up the sand for the feeder

(assisted with sand meter, auto feeder

can realize automatically feeding)

2. High Pressure Pump

Model: GC -3742

2. 1 Chief technical parameter

2. 2 H P G enerator

the configurations single pole two-way plunger type intensifier

The main parts of intensifier assembly is imported the

(Accustream/Hypertherm)

Single-row type water filtering system

(5Micron, 1micron, 0.45micronparallel)

3. CNC Controlling System & Software

3. 1 CNC Controller

1 7 ”LCD t ouch screen display

DNC on-line working function

Functions of returning arbitrary point, bending

and circular arc working auto deceleration.

Function of cutting figure imitation display.

80GB memory hard disk

MITSUBISHI AC servo driver and motor.

1GB memory card

Multilingual function( Chinese English,etc., )

Drive-by-wire and hand-hold controller,( according to requests )

4. Auto Abrasive Feeding System

Dynamic type comes over traditional type.

Manual type makes the operation easier.

Side-hanging sand hopper

There is a window on the side face. It can remind workers when to feed sand

It can provide the sand consumption every time after it is filled up.

It provides the functions of shoring and sanding sands for the machine

also improves the automation and lessens intensity of labor.

Capacity: 170L

High accuracy can remain workers when to feed sands.

5. Auto Cooling System

T he working environment is clean and tidy.

control the hydraulic system oil temperature.

Model: GC 25 0PAX

It can be set to any temperature, and is not subject to the working environment.

Refrigerating capacity:25 000 Kcal/h

Voltage: 380V 50Hz 3 Phase

Total unit capacity: 1 0.8 KW

Water pump flow80L/min

Water lift:25m

Water Capacity: 165L

Chilled water pipe diameter: G1. 25 ”

Dimension: 980×1020×1700mm

Weight: 35 0KG

6. Water Soften System

Here are many kinds of compounds in the running water.

(Calcium carbonate, carbonic acid)As the machine

working, the raising of the temperature will generate

some substance of the reaction of chemistry or physics-as

we called it furring, which will reduce the life of the high

pressure system and increase the cost. After many years’

experiences, the system can solve the problem.

7. Sludge Removal System

I ntroduction

Remove the abrasive from the tank automatically

separate the abrasive and water. reduce the labor force

improve work efficiency.

Suction pump parameters:( )

The single pump parameters

Flow: 10M³/H

Shoot range: 50 M

Outlet pressure: 6 kgf/cm²

Absord range: 7 M

Maximum promise through solid part: 4.5mm

Pump inlet and outlet diameter: 40mm

Power:compressed air

The max inlet pressure: 7 kgf/cm²

The max air consume: 0.6 mm³/min

Tracheal diameter: 10mm

Collection box: 1.6m*1.5m*1.2m

One set including pipe parts,total is two set s

One year warranty period (except for vulnera)
