Product video
Certifications CE · RoHS

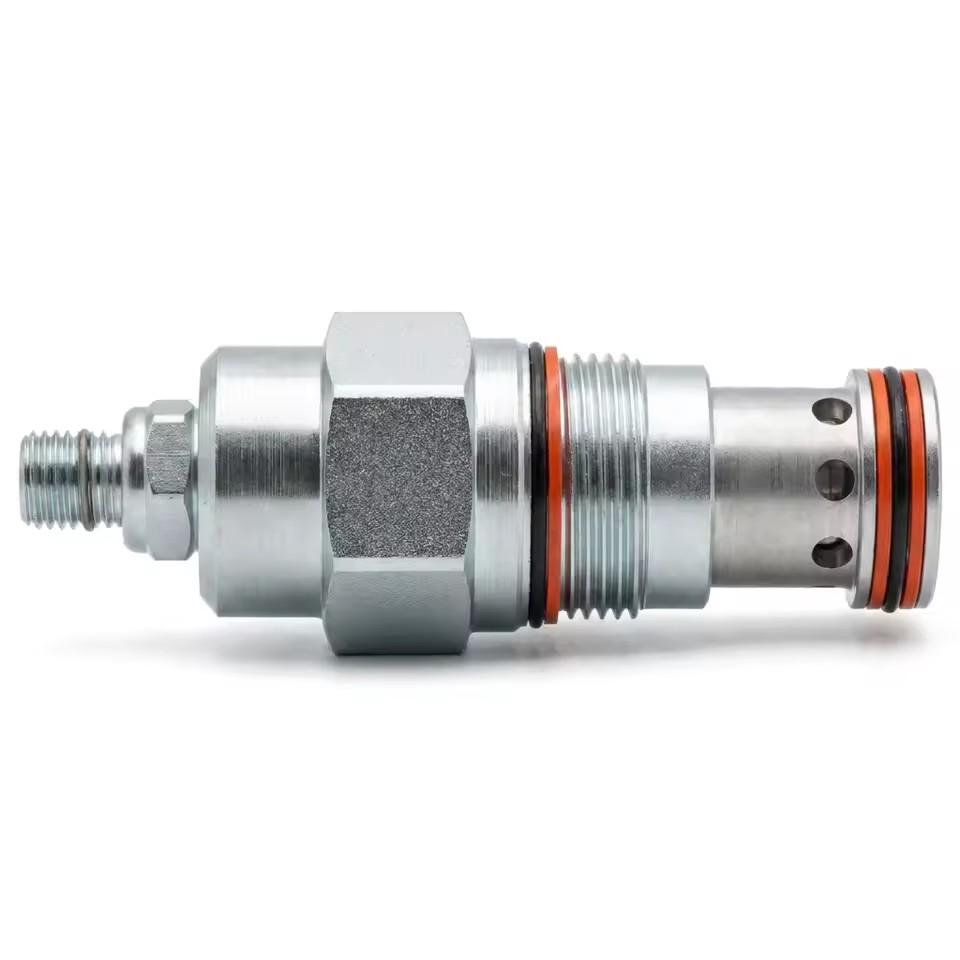

VALZOOM Gold Supplier Certified Factory Customizable Pilot Operated Threaded Cartridge 2-Stage Spool Relief Valve Fast Hydraulic

Available for enquiry 0.0 · 0 reviews
USD

$ 60.00 60.0 USD $ 60.00

Not Available For Sale

Minimum order quantity: 10 Units
  • Valve type
  • Number Of Ways
  • Maximum pressure
  • Maximum Flow Rate
  • Port Connection Size
  • Pressure Connection
  • Flow Range (gpm)
  • Warranty
  • Showroom Location
  • Dimension (L*W*H)
  • Place of origin
  • Weight
  • Maximum operating pressure
  • Maximum flow
  • Maximum internal leakage
  • Installation torque
  • Orientation
  • Oil Temperature Range
  • Fluids
  • Viscosities
  • Filtration
  • Cavity
  • Selling Units
  • Single volume
  • Single gross weight
  • Model number
  • Certifications & Compliance

This combination is unavailable.

Key attributes

View all
Valve type
Relief Valves
Number Of Ways
One-way
Maximum pressure
350bar
Maximum Flow Rate
200L/min
Port Connection Size
1/4 in
Pressure Connection
3/4 in
Product description
  • Power Transmission
  • Hydraulic Parts
  • Hydraulic Valves

    • Key attributes

    Dimension (L*W*H)

    101.6*28.4*25(mm)

    Flow Range (gpm)

    52.6gpm

    Maximum Flow Rate

    200L/min

    Maximum pressure

    350bar

    Valve type

    Relief Valves

    Place of Origin

    Anhui

    Secure payments

    Every payment you make on is secured with strict SSL encryption and PCI DSS data protection protocols

    Money-back protection

    Claim a refund if your order doesn't ship, is missing, or arrives with product issues

    Other recommendations for your business

    $27.58-28.98

    VALZOOM Pilot Operated Check Valve IPC-10 Series Threaded Cartridge Design Gold Quality 240bar Pressure Factory Direct Hydraulic

    $16.29-16.79

    VALZOOM IPC-10 Pilot Operated Check Valve Threaded Cartridge Hydraulic Valve Gold Certified 240bar 8gpm 1 Year Warranty

    $17.48-18.98

    VALZOOM Industrial Pilot Check Valve IDC-10 One-way Hydraulic Lock Optional Hot Oil Relief Valve 8gpm Flow Gold Certified Custom

    $17.39-17.89

    VALZOOM ILS-04 Solenoid Shuttle Valve Threaded Cartridge High Pressure Oil Circuit Shut-off 240bar 5.8L/min One-way Premium Gold

    $4.79-5.99

    VALZOOM ILS-08 Solenoid Valve Threaded Cartridge Design Priority High Pressure Oil Circuit Closing Trusted Factory Gold

    $9.29-9.99

    VALZOOM High Quality Pilot Operated Directional Valve IPD-10 Series Threaded Cartridge Spool Type Remote Hydraulic Valve

    $25.19-25.89

    $16.68-17.98

    VALZOOM ILS-10 Series Ball-Type Load Shuttle Threaded Cartridge Hydraulic Valve Gold Quality Certified Factory Supply Custom

    $10.09-10.59

    $23.29-23.89

    VALZOOM Threaded Cartridge Solenoid Valve ILS-04 Hydraulic High Pressure Oilway Priority Cut-off Reliable Factory Gold Quality

    $3.69-4

    Fast Delivery Low Hysteresis IRV-10 Threaded Cartridge Pilot Spool Relief Valve Custom Factory with Good Quality

    $14.05-15.95

    VALZOOM Gold Approved OEM/ODM Custom Pilot Operated Threaded Cartridge 2-Stage Spool Relief Valve Fast Acting Low Hysteresis

    Customized IRV-10 Threaded Cartridge Pilot Spool Relief Valve Fast Delivery Low Hysteresis with High Quality

    $15.20-15.80

    Gold Certified Strong Factory High Quality IRV-10 Threaded Cartridge Pilot Spool Relief Valve Fast Delivery

    Factory Direct Sales High Precision Gold Valley Symbol Hydraulic Control Valve Pressure-Compensated Flow Regulator

    $17-18

    High-Performance 27VDC 100%ED Hydraulic Solenoid Cartridge Valve for Industrial Manifold Systems and Power Units

    $17.39-17.99

    Gold Certified IPR-10 Series Threaded Cartridge Direct Acting Spool Type Pressure Reducing Relief Valve Custom

    $22.89-23.49

    Heavy-Duty ISV08-B40 Hydraulic Solenoid Operated Directional Spool Valve 4-Way 2-Position Cartridge Style

    $19.48-19.98

    $11.90-12.50

    $20.08-22.68

    ISV08-47A 4-Way 3-Position Tandem Center Spool Type Solenoid Operated Hydraulic Directional Control Valve

    $32.93-38.93

    $13.55-15.55

    ISV10-47A Solenoid Directional Valve 4 Port Hydraulic Control Valve

    $34.08-35.98

    Lead time

    Quantity (pieces)1 - 5051 - 500> 500
    Lead time (days)725To be negotiated

    Service & quality control

  • Minor customization
  • Drawing-based customization
  • Raw material identification and traceability
  • Finished product inspection

    • popular products

    VALZOOM Professional Customizable 2-Stage Pilot Spool Threaded Pilot Operated Relief Valve Low Hysteresis Rapid Hydraulic

    $12.70-13.30

    $7.19-8.99

    High Quality Pilot Operated Threaded Cartridge Relief Valves Low Hysteresis Hydraulic Pressure Limiting Devices Gold Verified

    $24.08-25.98

    ISV08-B40 Direct-Operated 4-Way 2-Position Spool Type Solenoid Valve for Hydraulic Fluid Power Circuits

    ISV08-30B Integrated Manifolds 3/2 Way Spool Type Solenoid Cartridge Valve Customizable Hydraulic Valves

    $17.49-17.99

    Gold Quality Factory Wholesale Custom IPC12-30-0-N Hydraulic Check Valves Valve Used in Hydraulic Power Control System Devices

    $26.09-27.99

    Factory-supplied ICXFA Threaded Cartridge Hydraulic Check Valve for One-way Cut-off and Load Holding Equipment

    $17.09-19.99

    $11.08-12.98

    VALZOOM ICV10-B20-0-N-7 Check Valve One-Way 1 in 240bar Ball Valve 20 Gpm Flow 1 Year Warranty

    $7.58-9.58

    ICKBB-XCN Series Heavy Duty Hydraulic Check Valves New Custom Gold Certified Factory Hydraulic Tools 350bar Pressure 1/4

    $16.09-17.99

    VALZOOM IPC10-30-0-N Hydraulic Check Valve One-Way 1/4 in Port 240bar 8 GPM Flow 3/4 in Pressure Connection 1 Year Warranty

    $15.98-18.98

    VALZOOM Customizable Industrial Hydraulic Check Valves Model IPC12-30-0-N Anti-backflow 420bar Pressure 94.8L/min Flow Hydraulic

    Factory Direct Sale High Flow Hydraulic Pilot Operated Check Valve IPC08-30-0-N with High Quality

    $16.07-17.97

    Hydraulic ISV08-B35 Series Solenoid Valve 2-Way Spool Type High Pressure Cartridge Valve for Actuator Direction Control

    $12-13

    Large Quantities High Quality VALZOOM Pressure Reducing Relief Valves IPR-08 350bar with 1 in Port Connection 15L/min Flow Rate

    $18.08-19.98

    ISV08-B35-0-N Hydraulic Threaded Cartridge Solenoid Direction Valve for Actuator Flow Control Customized

    $17.19-18.99

    $17.08-18.98

    IFD50-45 Flow Divider Combiner Valve Single-acting Hydraulic Flow Control Valve

    $17.05-18.95

    OEM ODM Industrial ISV08-B35 Series 2 Position 3 Way Solenoid Valve High Pressure Spool Type Screw-in Cartridge Valve

    $15.58-17.98

    Customizable ISV08-24 Hydraulic Threaded Cartridge Valve Direct Acting Spool 2 Way Normally Closed Factory Direct

    $13.08-14.98

    Industrial Hydraulic Check Valve IPC10-30-0-N Hardened Steel Poppet with Precision Seat OEM Customization

    $16.08-17.98

    VALZOOM ISV08-58C-0-N-0 Three-Way High Pressure Hydraulic Solenoid Directional Valve 241bar 13.3L/min

    $33.05-35.85

    $16.05-17.95

    IFR10-30F Pressure Compensated Flow Control Valve 3-Way Hydraulic Cartridge Valve

    $16.55-18.85

    VALZOOM IDC-10 Series Dual Pilot Hydraulic Lock 240bar Pressure Load Holding Circuit Cut-off Hot Oil Relief Port 4 3 ODM Custom

    $16.98-18.98

    ISV10-4754B Solenoid Directional Valve 4-Way 240Bar Hydraulic Cartridge Valve

    $33.09-35.89

    Compact Hydraulic Solenoid Valve ISV08-B40 4-Way 2-Position Spool Style for Integrated Block Manifolds

    IFR10-30F-0-N-M2.5/M3.5/M5.0/M8.0 Single-acting Fixed Flow Control Valve Inline Hydraulic Regulator Factory Direct Sales Custom

    $11.50-12.30

    $34.58-35.98

    Customized Hydraulic Cartridge Flow Control Valve 30L/Min Hydraulic Power Unit 240bar Max Pressure 1 Year Warranty

    $27.09-27.89

    $36.09-37.99

    $17.35-18.85

    IPC12-30-0-N Pilot Operated Check Valve 240Bar Screw-in Cartridge Valve

    $25.09-26.99

    About

  • Why choose
  • Co-Create Pitch
  • Corporate responsibility
  • Careers
  • Secure payments
  • Money-back guarantee
  • Guaranteed on-time delivery
  • After-sales protections
  • Production monitoring & inspection services
  • Policies and rules

    • Source on

  • Verified manufacturers
  • Request for Quotation

    • Help Center

  • Buyer Help Center
  • Live chat
  • File a trade dispute
  • Refunds
  • Report IP infringement
  • Report a violation

    • Sell on

  • Sell on
  • Start selling
  • Check order status
  • Partnerships

    • Accio Work

    From design to sourcing, let Accio Work handle the heavy lifting. Boost your ROl today!

    Certifications & compliance
    CE
    Complies with EU standards
    RoHS
    RoHS compliant
    Description images

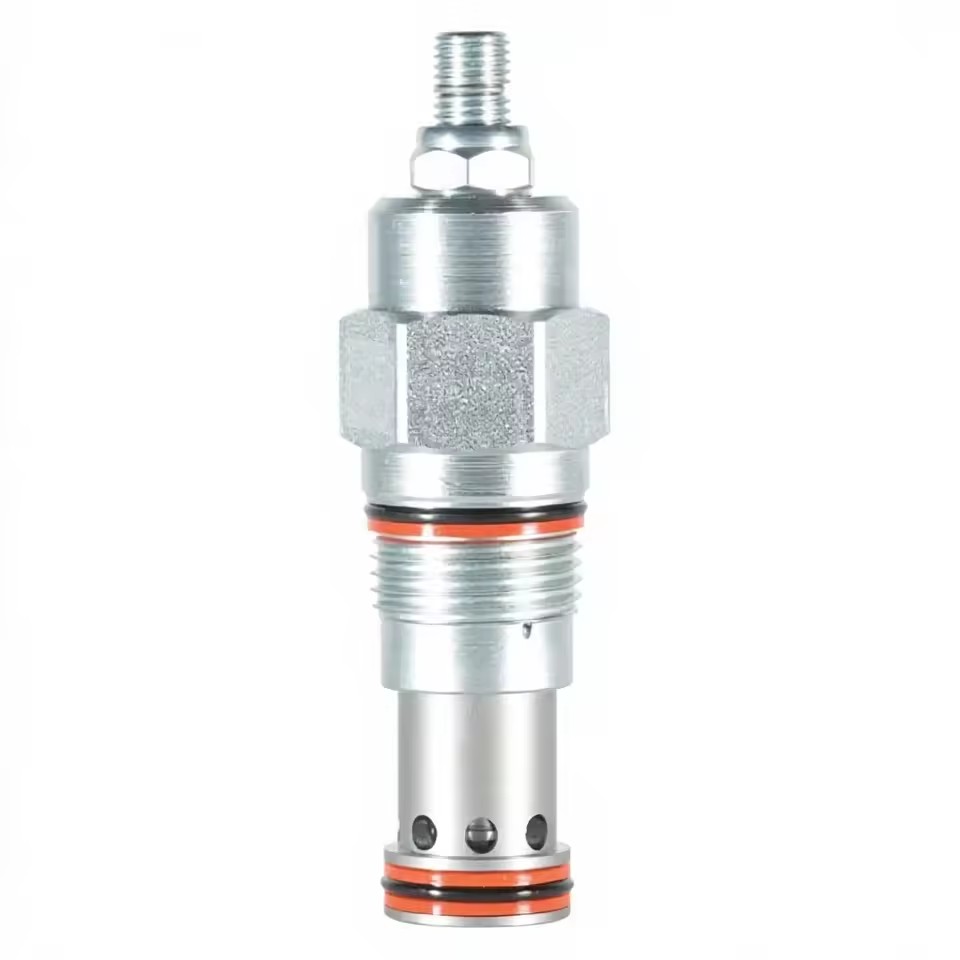

    Product detail

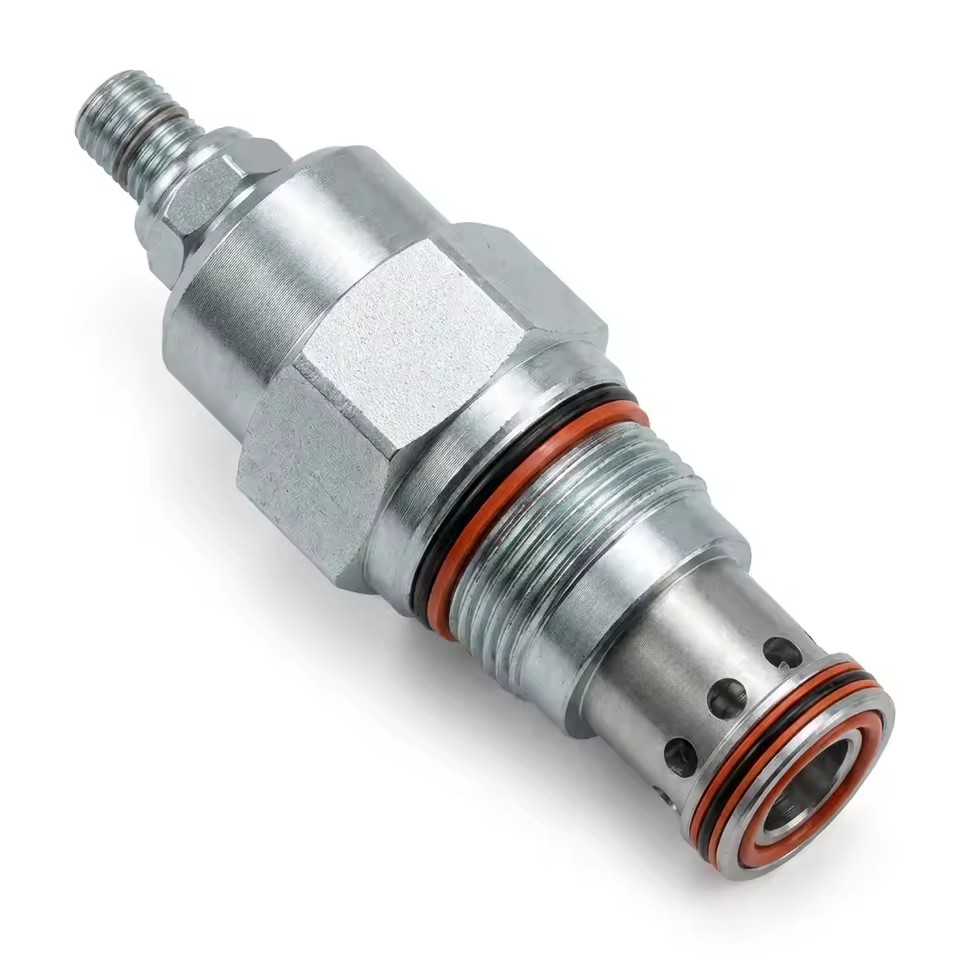

    Product detail
    Product detail
    Product detail
    CE
    RoHS
    Packaging and fulfilment
    • Step 1

      Payment and order readiness

      Minimum order: 10 Units

      Payment terms, specifications, and order details are confirmed before preparation begins.

    • Step 2

      Preparation

      7 days

    • Step 3

      Packaging and dispatch

      Packaging details are available on request.

      Final packing, freight, and delivery dates are confirmed before dispatch.

    Technical specifications
    Other details 27 fields
    Valve type
    Relief Valves
    Number Of Ways
    One-way
    Maximum pressure
    350bar
    Maximum Flow Rate
    200L/min
    Port Connection Size
    1/4 in
    Pressure Connection
    3/4 in
    Flow Range (gpm)
    52.6gpm
    Warranty
    1 Year
    Showroom Location
    None
    Dimension (L*W*H)
    101.6*28.4*25(mm)
    Place of origin
    China, Anhui
    Weight
    0.25
    Maximum operating pressure
    350 bar(5000psi)
    Maximum flow
    200L/min(52.6gpm)
    Maximum internal leakage
    50ml/min@70bar
    Installation torque
    44-51 ft-lbs(60-70 Nm), Hex.28.4
    Orientation
    No restrictions
    Oil Temperature Range
    40°Cto120°C( seals matching required)
    Fluids
    Mineral-based or synthetics with lubricating properties
    Viscosities
    7.4 to 420 cSt(50-2000ssu)
    Filtration
    20/18/15 ISO4406(maximum filtration admitted)
    Cavity
    IT-3A
    Selling Units
    Single item
    Single volume
    0 cm3
    Single gross weight
    0.0 kg
    Model number
    IRPGC, IRPGC-LCN/LWN
    Certifications & Compliance
    CE, RoHS
    Lead time
    7 days
    Minimum order
    10 Units
