Name: Vacuum Drying Chamber Transformer Making System for Oil Immersed Transformer Coil
SKU: B2B-36617
Price: 44870.0 USD
Availability: PreOrder

Product description

Highlights at a glance

Variable Pressure Vacuum Drying Equipment is currently the ideal equipment for the drying treatment of oil-paper insulated power equipment such as oil immersed transformers with voltages of 220kv and 110kv and below, instrument transformer.

Also for the drying treatment of traction motors used in high-speed rail, rail transit and other fields.

Compared with traditional hot air circulation drying and ordinary vacuum drying, it can shorten the processing time by about 1/3 and reduce energy consumption by 40%-50%. The moisture content after treatment is significantly reduced.

Working Principle of Vacuum Drying Equipment:By vacuumizing, the saturated vapor pressure of water in the environment where the coil insulation material is located is reduced, making it easier for water to volatilize from the insulating paper. During this process, continuous heating is applied to raise the temperature and provide sufficient gasification energy for water, so that moisture can be removed more easily.

Features of Vacuum Drying Equipment:Ordinary heating drying starts from the surface and gradually proceeds to the interior of the insulation material. Since the surface dries too quickly, the capillaries of the outer insulating paper shrink, making it difficult for internal moisture to evaporate and prolonging the drying time. In contrast, the variable pressure method adopts intermittent exhaust during the drying process, allowing the evaporated water vapor and hot air to circulate inside the tank. Since the specific heat capacity of water is much higher than that of air, the heating speed is faster. In addition, water vapor has strong diffusivity, resulting in a relatively small temperature difference between the inside and outside of the insulation material.

Frequently asked questions

We are based in Jiangxi,, start from 2012,sell to Mid East(40.00%),Southeast Asia(35.00%),Domestic Market(30.00%),North America(20.00%),Eastern Europe(20.00%),South America(20.00%),Northern Europe(20.00%),Africa(15.00%),Western Europe(10.00%),South Asia(4.00%). There are total about 51-100 people in our office.

CT/PT Winding Machine,Transformer Winding Machine,APG Clamping Machine,Foil Winding Machine,Vacuum Drying Oven, Vacuum Pressure Impregnation Equipment, Vacuum Resin Casting Equipment, Vacuum Oil Filling Machine

1). 25 years experience in this field; 2). 11 items patents products, all rights reserved; 3). 8 workshops for production; 4). more than 200 hundred skilled workers; 5). ABB, Famous CHNT are our customers.

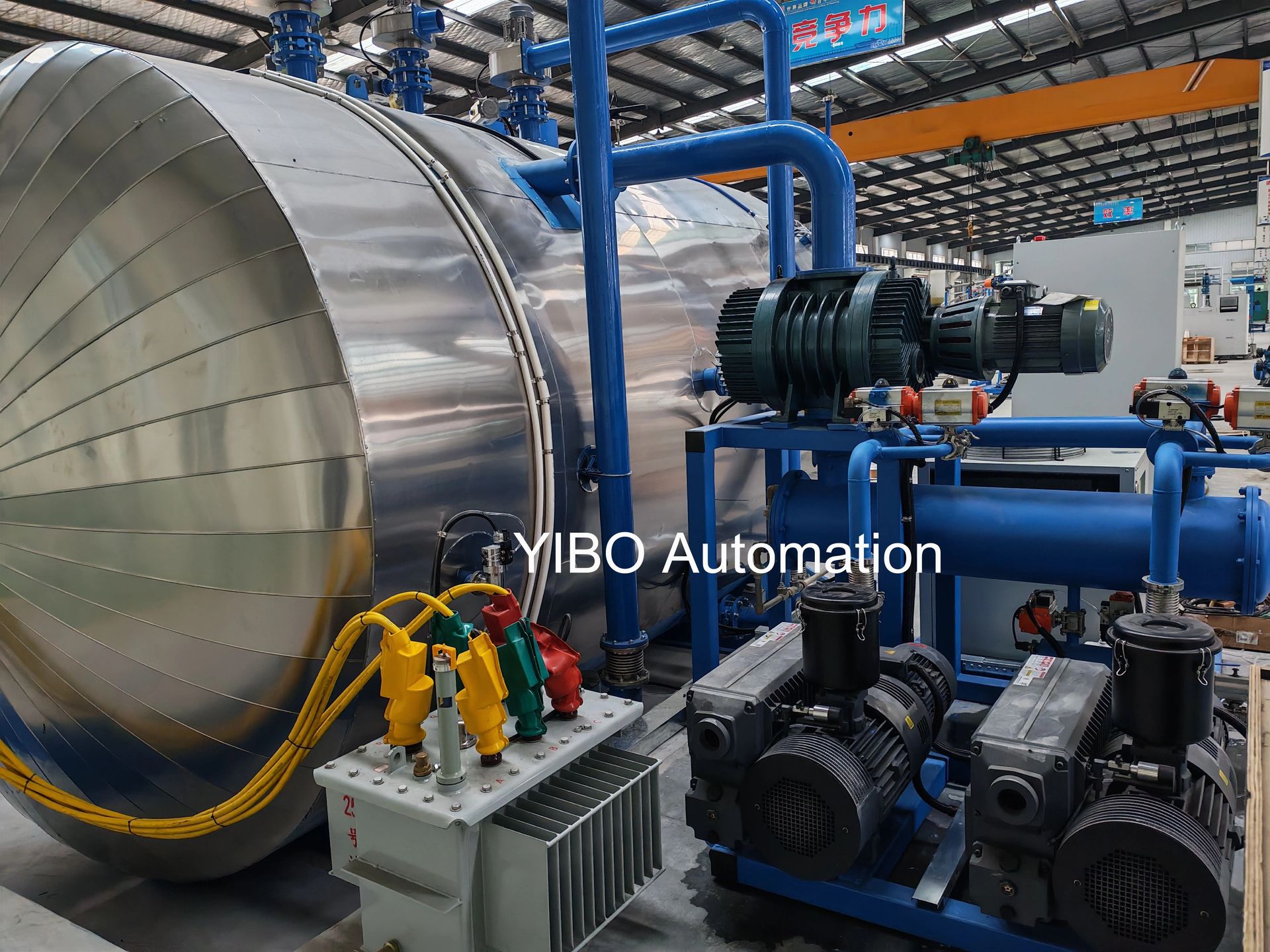

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

90 days
Step 3

Packaging and dispatch

Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 20 fields

Voltage

380 V, 220 V, 440 V

Power (W)

90 kW

Core components

PLC, Motor, Pressure Vessel, Pump

Machinery test report

Provided

Warranty

1 Year

Video outgoing-inspection

Provided

Place of origin

China, Jiangxi

Weight (kg)

30000

Name

vacuum drying equipment

Application

transformer drying

Power supply

220V/380V

Control system

PLC+touch Screen

Shape

rectangular or round

Dimension or capacity

customized

Warranty of core components

1 Year

Applicable Industries

oil type transformer manufacturing

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Model number

KY-3000, KY-5000

Lead time

90 days

Minimum order

1 Units
