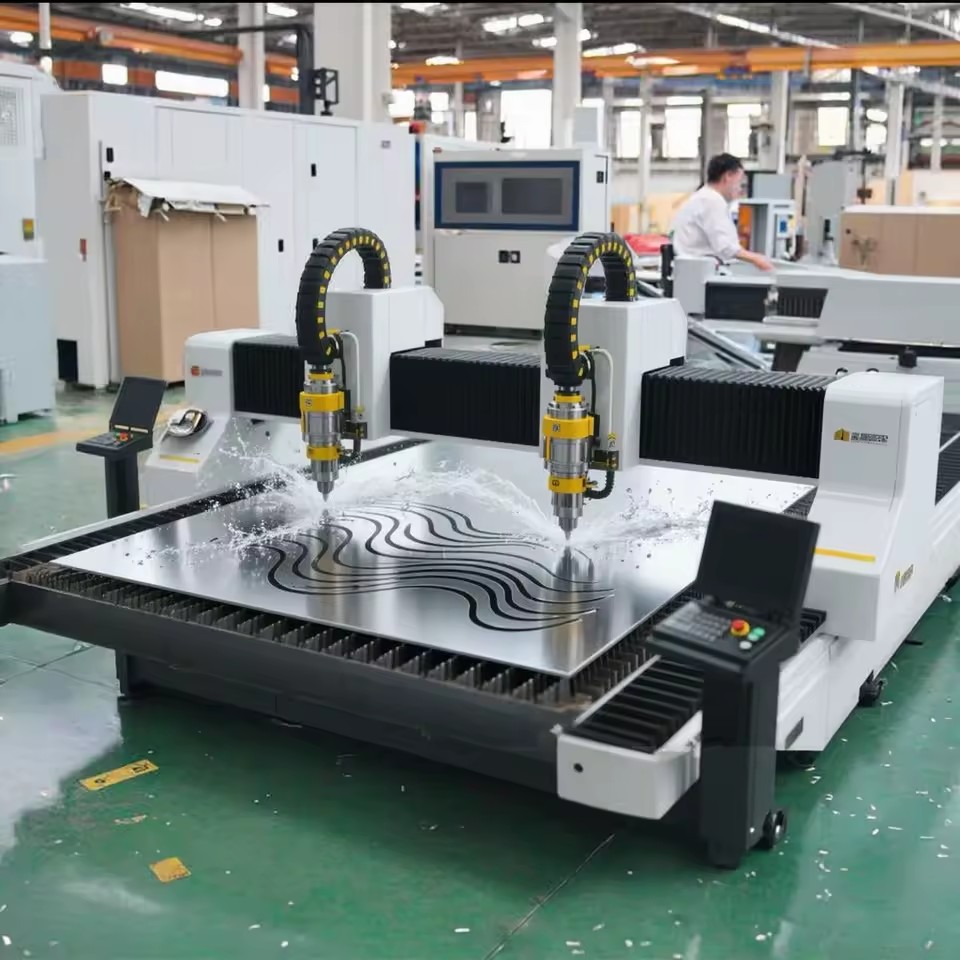

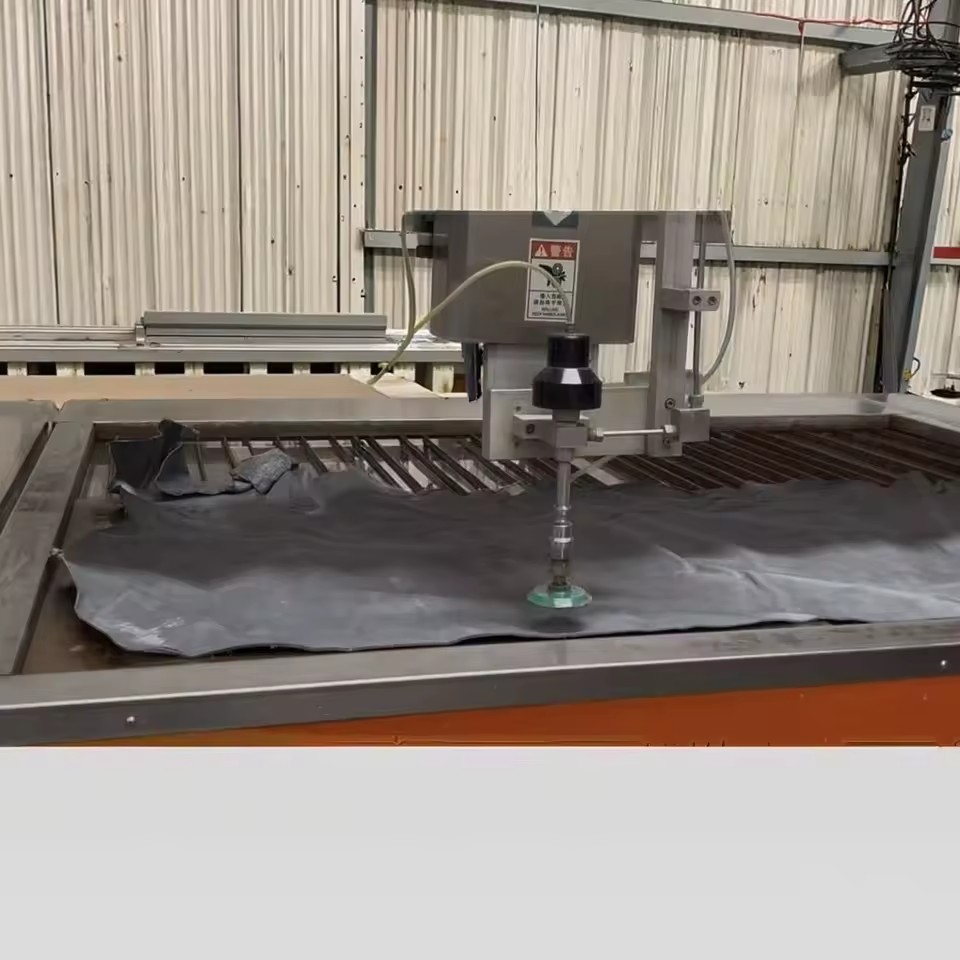

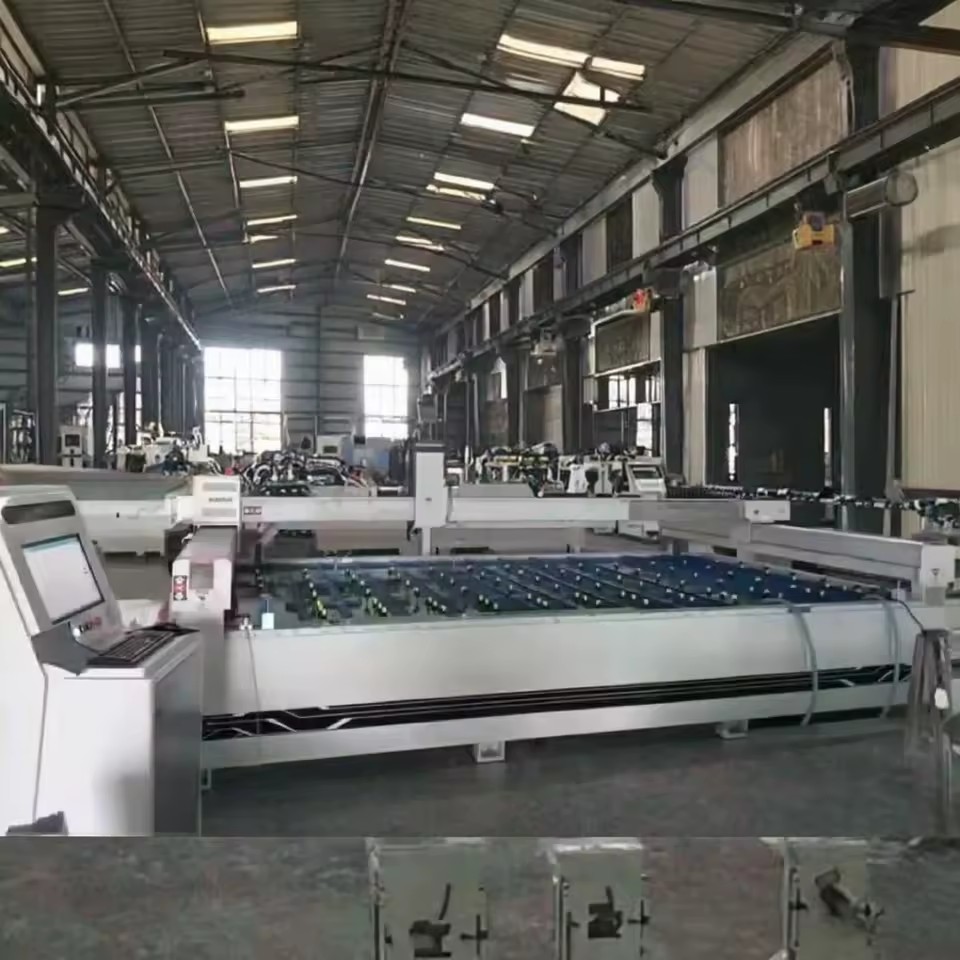

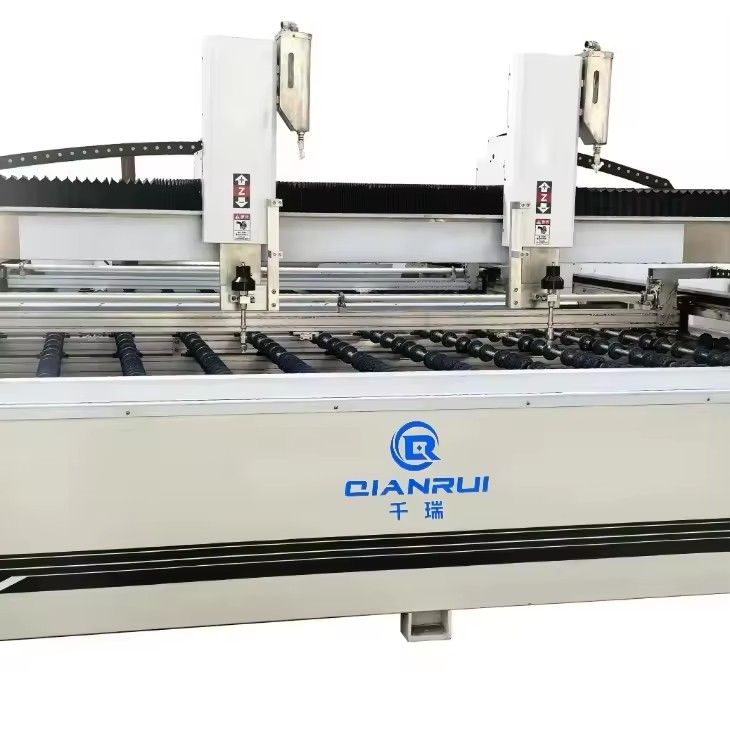

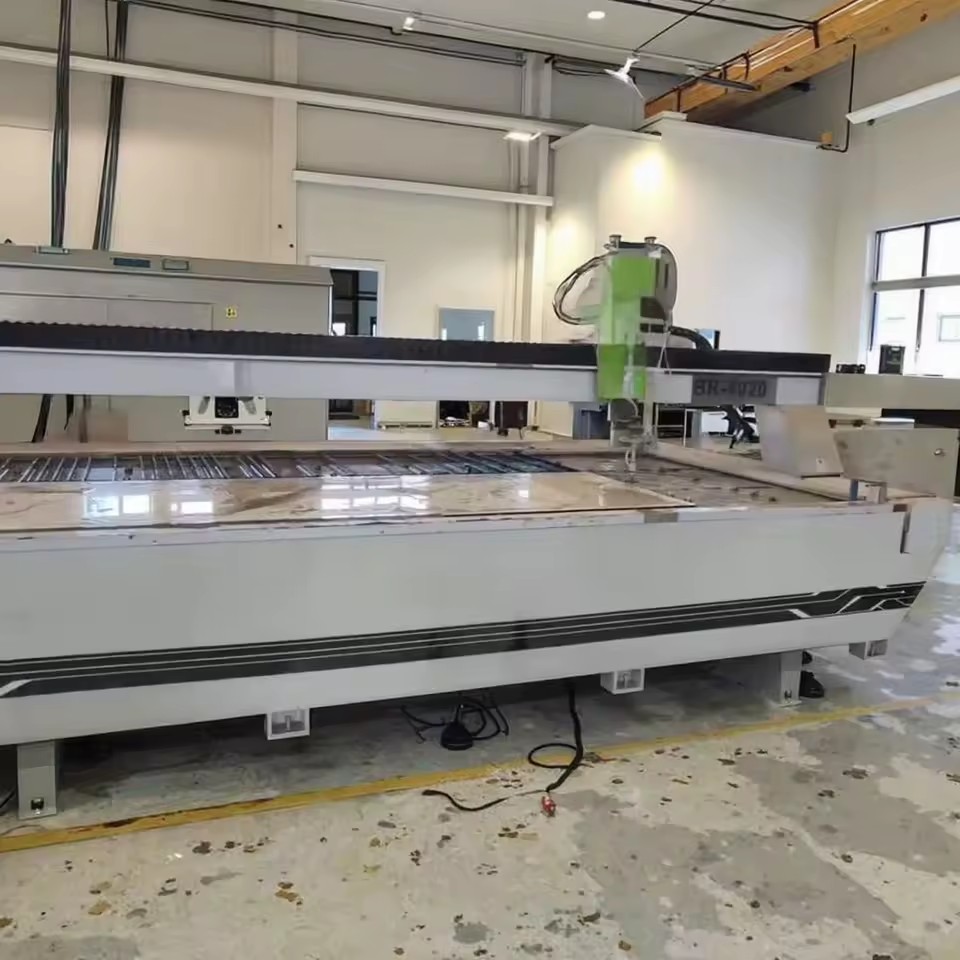

Product Introduction
1.Cutting system: (AB five-axis) 2.Main technical parameters
Number of control shafts
5 shafts
Axis A rotation Angle
±12°
B-axis rotation Angle
Angle control accuracy
±0.01
power-handling capability
50hp(30KW)
Maximum pressure range
420Mpa
Maximum cutting thickness
100mm
Maximum
3.7L/min
Maximum single nozzle diamete
0.33
Working voltage and power suppl
380V50Hz
Environmental operating temperature
lowest:40℉(5℃) highest:104℉(40℃)
Store at ambient temperature
lowest:36℉(2℃)
outline dimension, physical dimension, external dimensions
1500*1400*1500
Water supply information by weight
2460lbs（1120kg）
Minimum water supply flow
4gpm(15.1lpm)
Minimum water supply pressure
35PS0.24MPa
Reservoir capacity
1L
Tank capacity cooling system
30Gal.(114L)
Cooling water consumption
3gpm(11.4pm)
Minimum pressure of cooling wate
0.3MPa
Model
QR-ABL2515
Overall dimensions
3400*2200*1900
Cutting range
2500*1500
Z-axis travel
100
Control accuracy
±0.1
Cutting accuracy
Repeat positioning accuracy
±0.025
The maximum no-load moving speed of the machine tool
8000
Water jet is a type of equipment that uses high-pressure water cutting machines and falls within the category of cutting capabilities. It features a compact structure, no sparks, and no thermal deformation or thermal effect. A high-pressure water jet cutting machine is a tool used to slice metals and other materials at high speed and high pressure with water jets. Our water jet cutting machines feature low noise, no pollution, high precision and high reliability, and have been applied in a variety of fields, including mining, automotive manufacturing, papermaking, food, art and construction. Water sprayers can be used to cut materials such as rubber, foam, plastic, composite materials, stone, ceramic tiles, marble and glass.
The innovative cutting head features a rational structural design that ensures precise concentric alignment between the gem nozzle and sand pipe, significantly enhancing cutting efficiency while extending the service life of the sand pipe. The system incorporates a new high-pressure water valve mechanism with pneumatic valves, delivering instant activation and deactivation of high-pressure water flow. Equipped with original imported sand pipes of premium quality, this design guarantees exceptional durability and ensures processing accuracy within ±0.01mm for all products
00:00
Display of machine parts
QR high pressure supercharger · 1 unit
The high pressure supercharger adopts the international advanced high pressure system, with stable working pressure of 300-350Mpa and maximum pressure of 420Mpa. It has the advantages of high stability and continuous production
QR-turbocharger control panel
1.The system adopts a unique independent high-voltage intelligent control panel and system control to realize closed-loop operation of the control system. The operation panel can be used to control the high-voltage system independently, or the system can be used to control the high-voltage system. The operation is simple and convenient, and the performance is stable. There is no need for tedious touch screen operation. It can intuitively operate and monitor the current working status of the equipment to ensure the best working state of the equipment.
2.Pressure gauge, which visually displays the pressure value
3.The temperature meter visually displays the oil pressure temperature
4.Oil gauge, intuitively display the oil pressure value
5.Hydraulic pressure gauge, intuitive display of hydraulic pressure value, hydraulic pressure alarm
r pressure alarm
7.High voltage start, stop
8.Oil pressure start, stop 9.jerk, scram 10.The hydraulic system shifts left and right
QR-CNC system · 1 unit
The integration of General Electric's AUTOCAD software with our company's automated programming system enables efficient generation of CNC program responses. This innovative approach eliminates the need for manual configuration of high-pressure components, pneumatic valves, sand control valves, and oil pumps within the NC code. The control software automatically manages all parameters based on geometric shapes. The AutoCAD-generated DXF files can be directly invoked in CNC system software without requiring additional conversion tools, with the system automatically linking graphic elements within the DXF file.
Recycling Processing and Continuation of Breakpoints: When processing the same product in batches, users can select the number of recycling cycles to maintain continuous operation, reducing software operations and enhancing efficiency. The system features breakpoint continuation (e.g., power-off memory function that resumes processing after power restoration), corner deceleration, and arbitrary segment starting capabilities as cutting assistance functions
1.Cutting system: (AB five-axis)
2.Main technical parameters
Pneumatic valves enable instant opening and closing of high-pressure water. ● Blade heads can tilt at any angle for cutting, ensuring precise vertical alignment or slope. ● Equipped with the latest servo drive and motor systems. ● Utilizes advanced reducers for compact design and enhanced motion accuracy. ● The innovative AB-axis structure achieves five-axis coordination (X, Y, Z, A, B).
QR automatic sand supply system
1 set
.QR automatic sand supply system · 1 set The pressure-fed sand supply system uses 0.2MPa compressed air to intermittently push the abrasive in the pressure vessel through the hose into the ring-shaped sand tank on the working table. The sand flow rate is automatically distributed according to the needs of cutting, with small gas consumption, slow flow velocity and little wear, and the failure rate is nearly zero
E
xcellent design and performance
Self-suction sand supply mode Can be controlled by CNC Pneumatic valve to prevent sand blockage and sand breakage Unique technology, effective against backwater The sand flow rate can be manually adjusted in a small amount
Cooling water tower · 1 set
.Main features: Feng Shui double cooling is the most unique, safe and stable cooling method. The bidirectional cooling has better effect. The water cooling is economical and convenient, with low operating cost and simple maintenance cost.
Equipment parameters

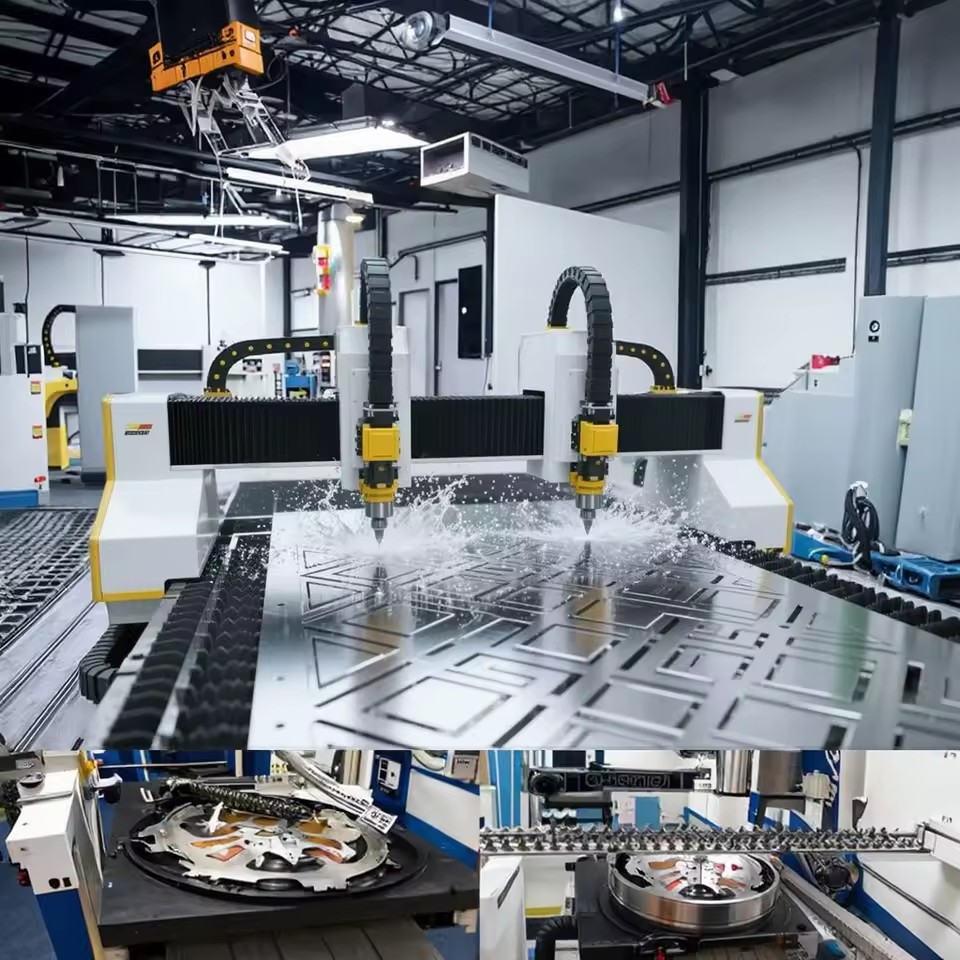

Cut the sample
Question: What factors affect the cutting speed? Answer: It mainly depends on the material properties (hardness/thickness), water jet pressure, abrasive type and particle size. Question: Which vulnerable parts need to be replaced regularly? Answer: High-pressure seals (300-500 hours), nozzles and mixing tubes (80-120 hours), water filter elements (15-30 days). Question: How much water and abrasive are consumed? Answer: Pure water cutting is 15 to 25 liters of water per hour. Abrasive cutting: 10 to 20 liters of water + 2 to 5 kilograms of abrasive per hour. Question: What are the requirements for the installation environment? Answer: Stable 380V power supply, clean water source + drainage outlet, 1-1.5 meters of space around the equipment, temperature 5-40℃. Question: Is the maintenance cost high? Answer: Medium. The average monthly cost of vulnerable parts is 300 to 800 yuan, electricity cost is 6,000 to 12,000 yuan, and annual maintenance cost is 1,000 to 3,000 yuan. Question: What is the maximum cutting thickness? Answer: Pure water cutting soft materials ≤50mm; Abrasive cutting: metal ≤150mm/stone ≤ 200mm at 420MPa and stone ≤300mm at 600MPa.
