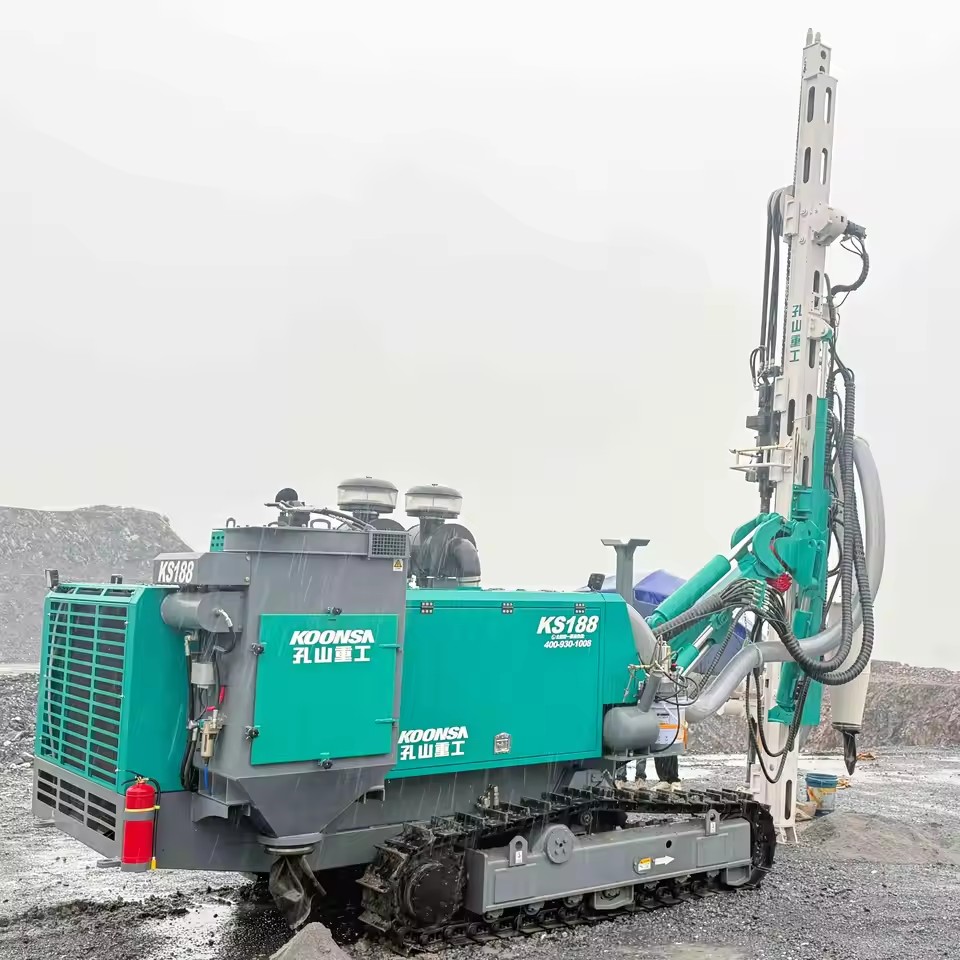

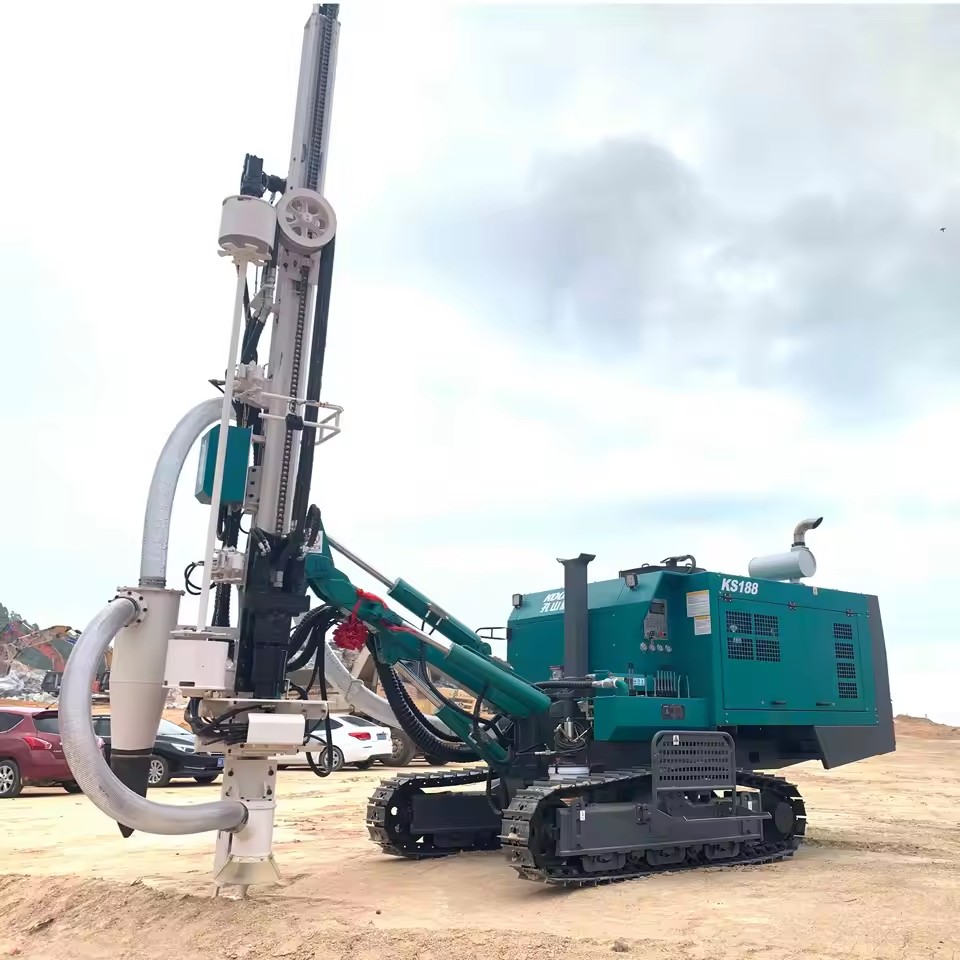

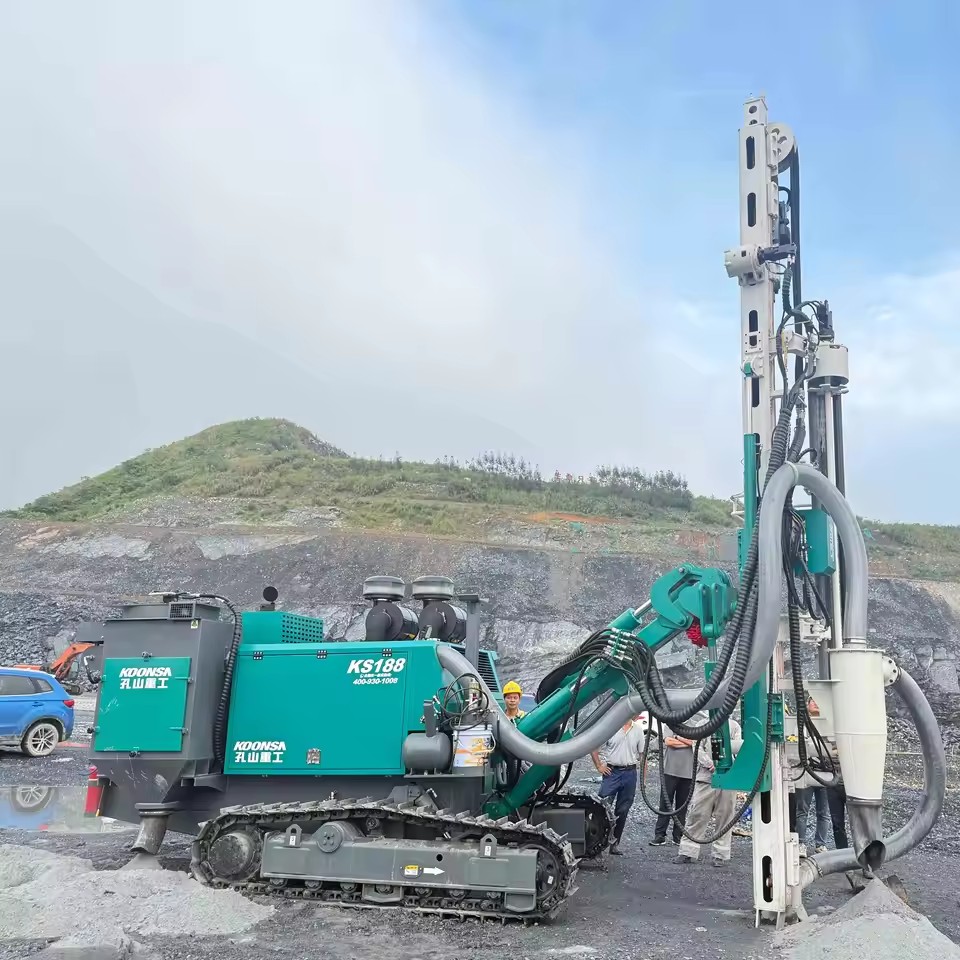

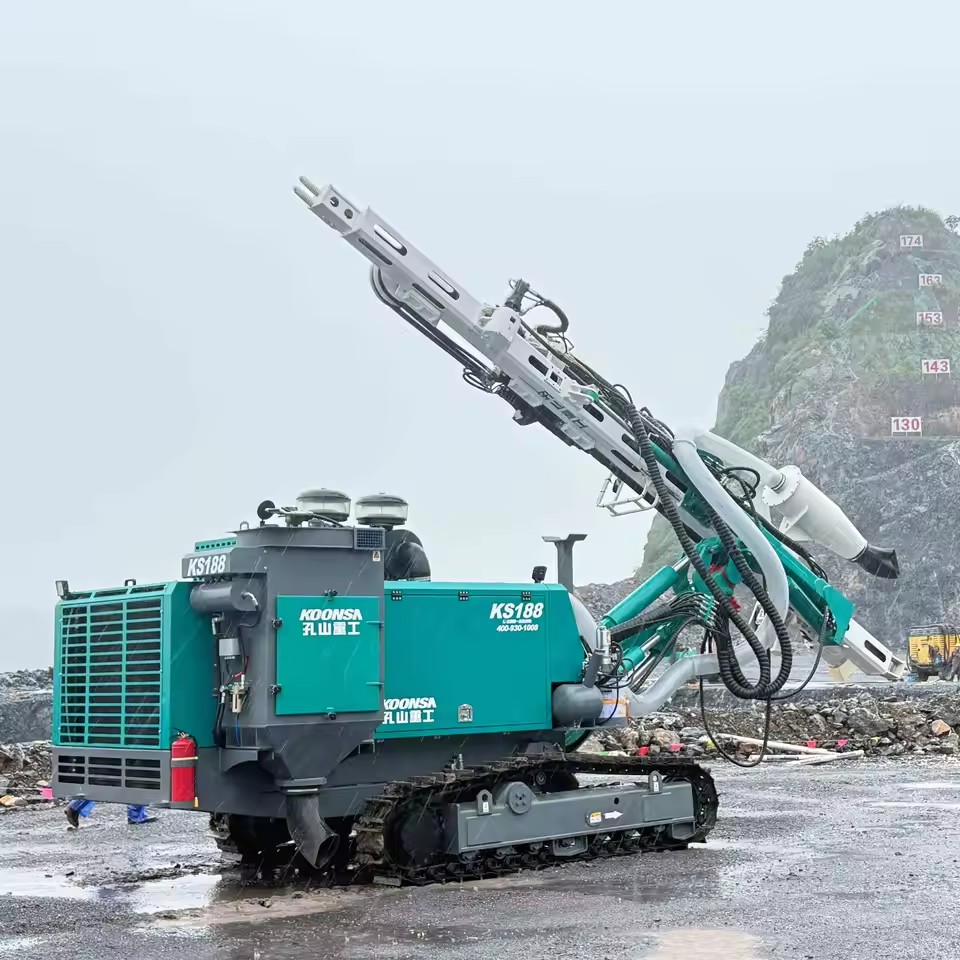

KS188 High-Efficiency Integrated Hydraulic DTH Drill Rig for Open-Pit Mining Blast Drilling Construction Borehole Drilling Rig

Available for enquiry 0.0 · 0 reviews
USD

$ 112,420.00 112420.0 USD $ 112,420.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Usage
Water Well
Type
Drilling Rig
Drilling Depth
Max.30m
Drilling Diameter
150 mm, 90 mm
Power Type
Diesel
Core components
Motor
Product description
KS188 Integrated Drilling Rig Technical Specifications
technical ParameterValue
Drill hole diameter90 mm - 150 mm
Maximum drilling depth30 m
Maximum climbing ability26.5°
Engine modelYCA08280-T301
Engine power206 kW
Engine speed2200 r/min
Number of stored drill pipes6 + 1
Rotary speed70 rpm
Maximum working torque4800 N·m
Air compressor flow rate18 m³/min
Maximum air compressor pressure20 bar
Feed beam thrust force18 kN
Feed beam lifting force35 kN
Travel speed3.8 km/h
Dust collection systemDry type
Operating temperature range20℃ to +45℃
Altitude range≤4000 m
Weight12 T
Transport dimensions7800 mm × 2300 mm × 3500 mm

1.

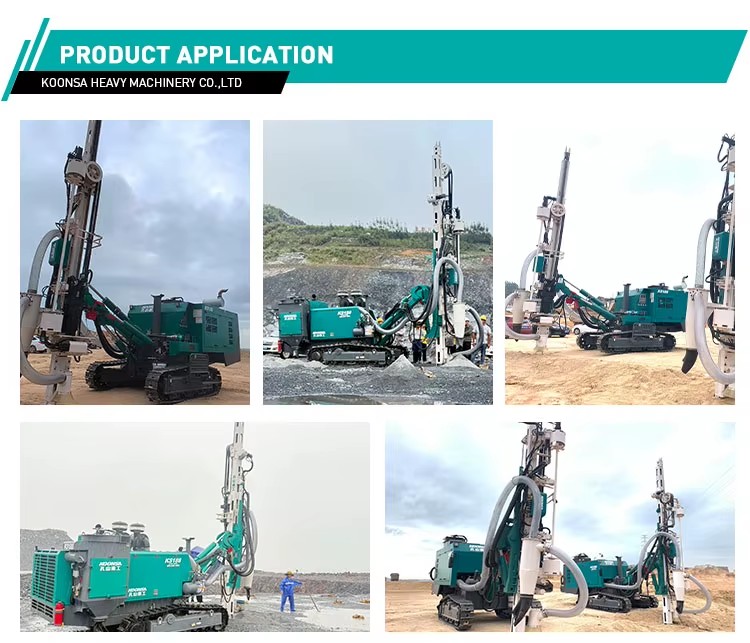

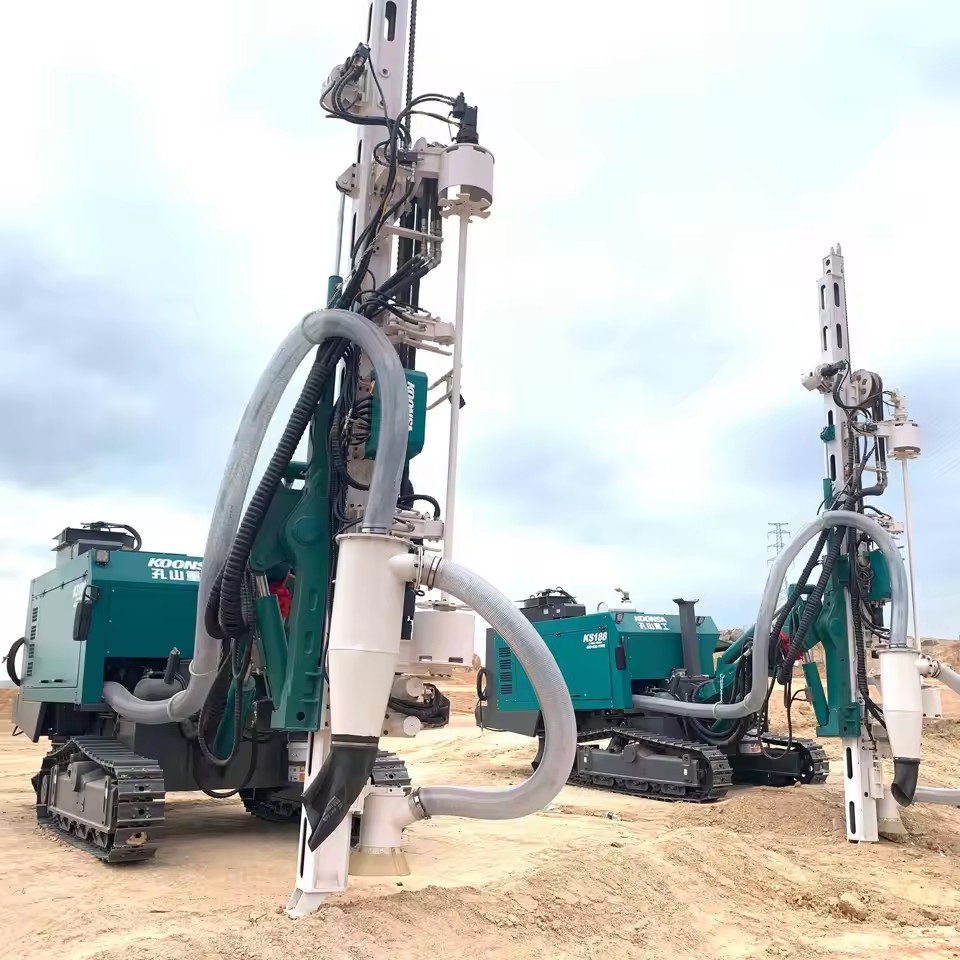

Description images

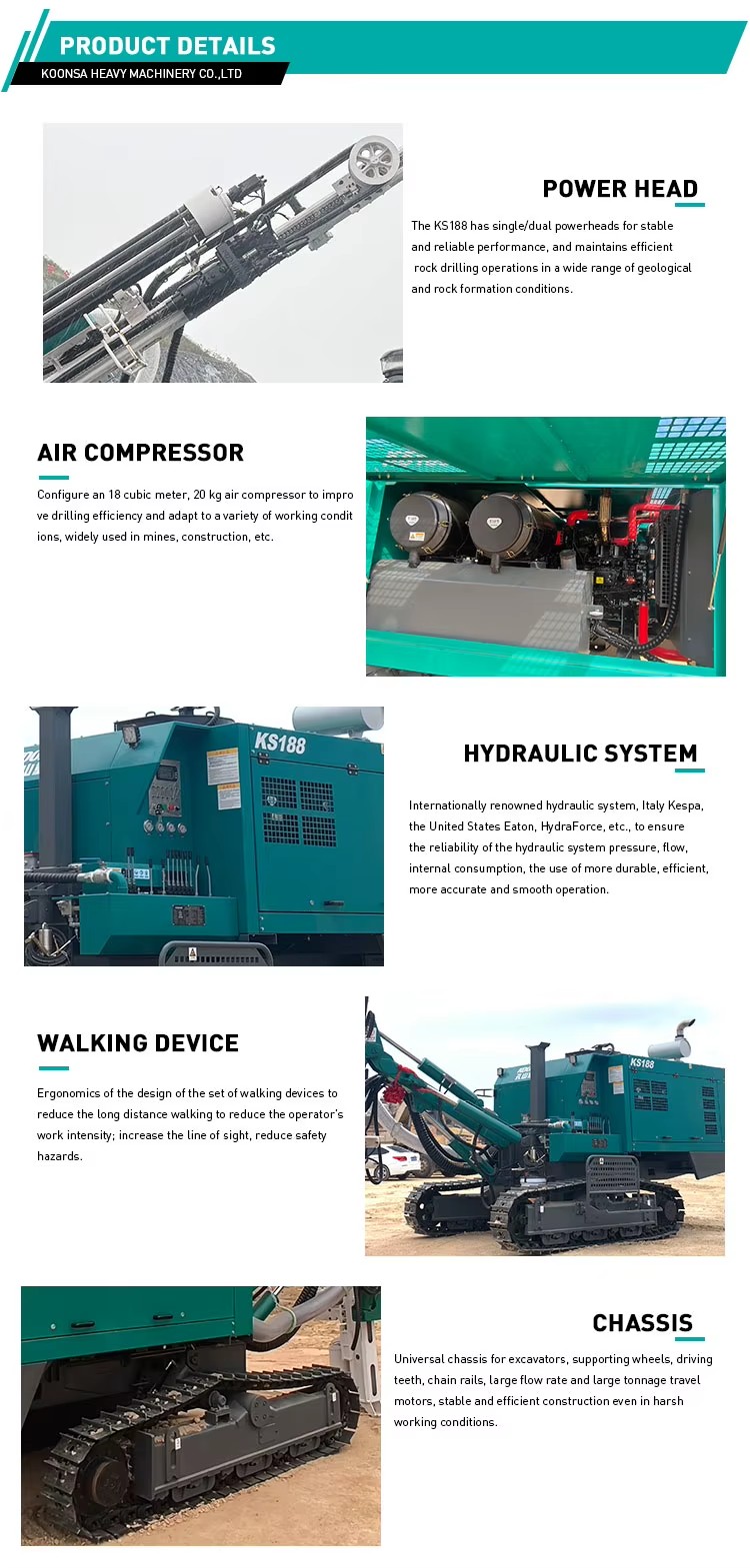

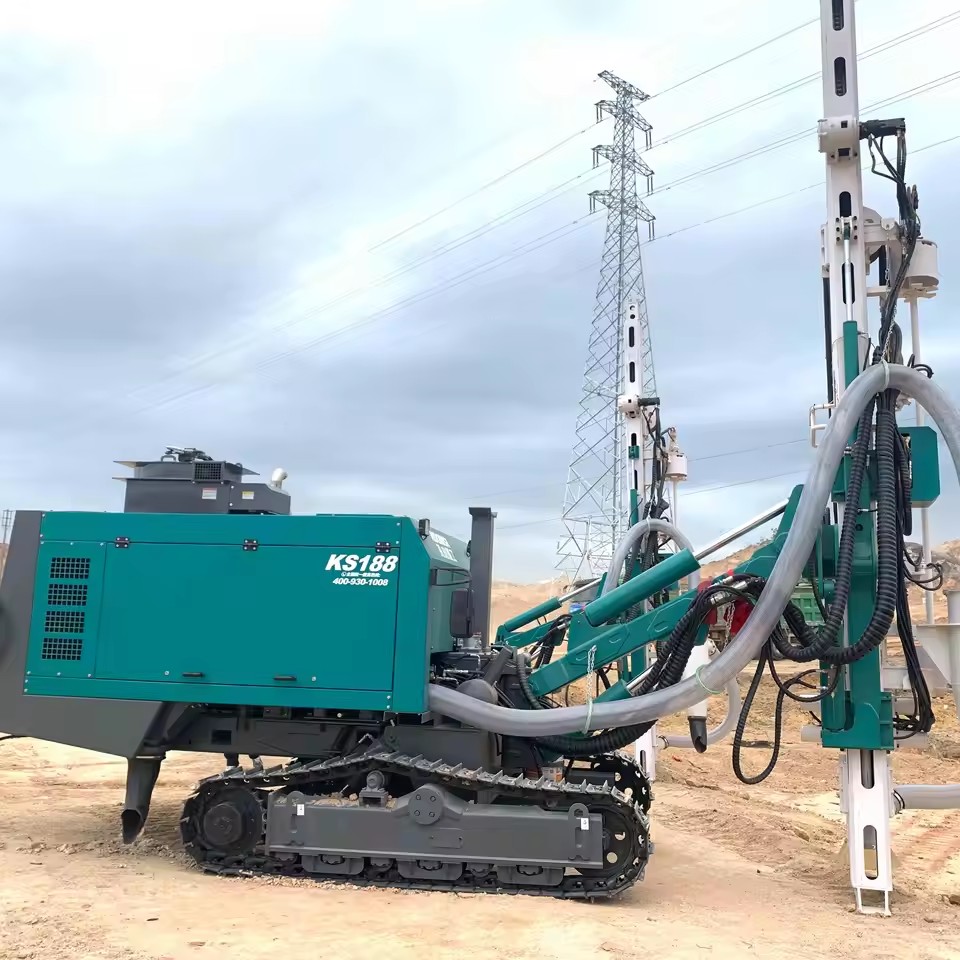

KS188 High-Efficiency Integrated Hydraulic DTH Drill Rig for Open-Pit Mining Blast Drilling Construction Borehole Drilling Rig
KS188 High-Efficiency Integrated Hydraulic DTH Drill Rig for Open-Pit Mining Blast Drilling Construction Borehole Drilling Rig
KS188 High-Efficiency Integrated Hydraulic DTH Drill Rig for Open-Pit Mining Blast Drilling Construction Borehole Drilling Rig
KS188 High-Efficiency Integrated Hydraulic DTH Drill Rig for Open-Pit Mining Blast Drilling Construction Borehole Drilling Rig
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    15 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 25 fields
Usage
Water Well
Type
Drilling Rig
Drilling Depth
Max.30m
Drilling Diameter
150 mm, 90 mm
Power Type
Diesel
Core components
Motor
Warranty
1 Year
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
Automatic
Place of origin
China, Guangdong
Weight
12000 KG
Drill hole diameter
90mm-150mm
Maximum drilling depth
30m
Engine Power
206KW
Number of drill pipes stored
6+1
Maximum working torque
4800N m
Maximum pressure of air compressor
20bar
Air compressor air volume
18m3/min
Transport dimensions
7800*2300*3500mm
Selling Units
Single item
Single volume
0 cm3
Single gross weight
0.0 kg
Model number
KS188
Power (W) (Product option)
206KW
Lead time
15 days
Minimum order
1 Units
