Product video
Certifications 2006/42/EC

2026 New Product Mine Drilling Rig KT9C Blasting KAISHAN Open Pit Rock Drill Rig Dth Rotary Drill Rig for Sale

Available for enquiry 0.0 · 0 reviews
USD

$ 82,960.00 82960.0 USD $ 82,960.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Usage
Ore
Type
Rotary Drilling Rig
Drilling Depth
Max.40m
Drilling Diameter
135-190mm, 100-125mm
Power Type
Diesel
Voltage
24v
Product description
Model No.KT9C
Dimension(L*W*H)8100*2300*3000mm
Weight10800kg
Power of complete machine194kw/205kw
Drilling diameterφ100-125mm
Depth of economical drilling21m
Rotary torque(Max)2800N.m
Travelling speed2.5/4.0km/h
Diesel engineCummins QSC8.3-C260-30 Yuchai YCA08280-T300
Capacity of screw compressor17m3/min
Discharge pressure of screw compressor17bar
Climbing ability≤25°
Ground clearance430mm
Rotation speed of gyrator0-120r/min
Maximum push-pull force32KN
Tilt angle of beam114°
Leveling angle of frame±10°
One-time advance length3490mm
Compensation length900mm
Lifting angle of drill boomUp 47°，Down 20°
Swing angle of drill boomRight 35°，Left 95°
Swing angle of carriageRight 18°，Left 50°
DTH hammerK40
Drilling rodφ76x3000mm
Method of dust collectingDry type(hydraulic cyclonic laminar flow)
Certifications & compliance
2006/42/EC
EU Machinery Compliance
Description images

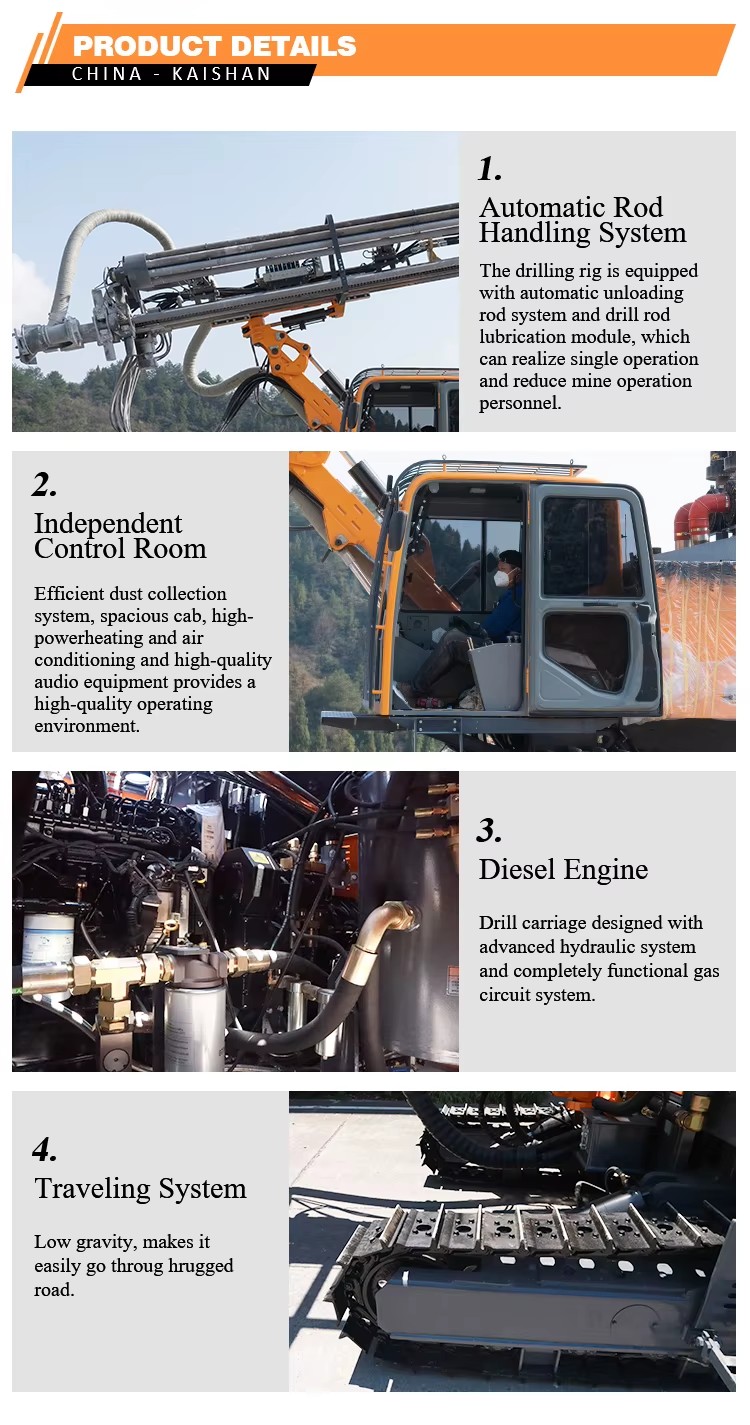

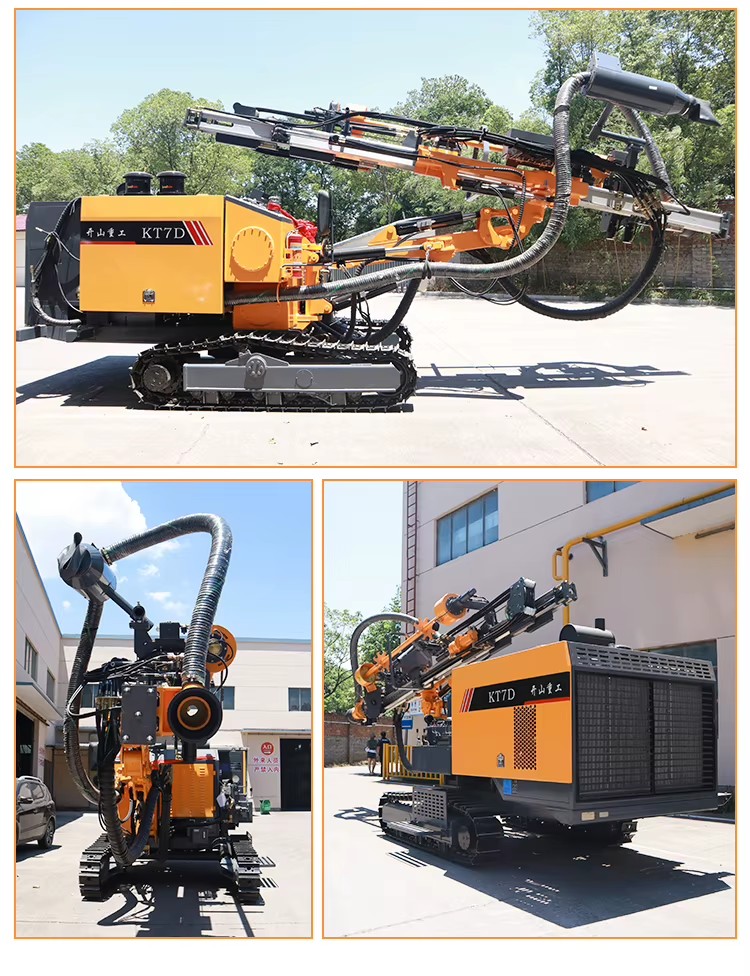

Product detail

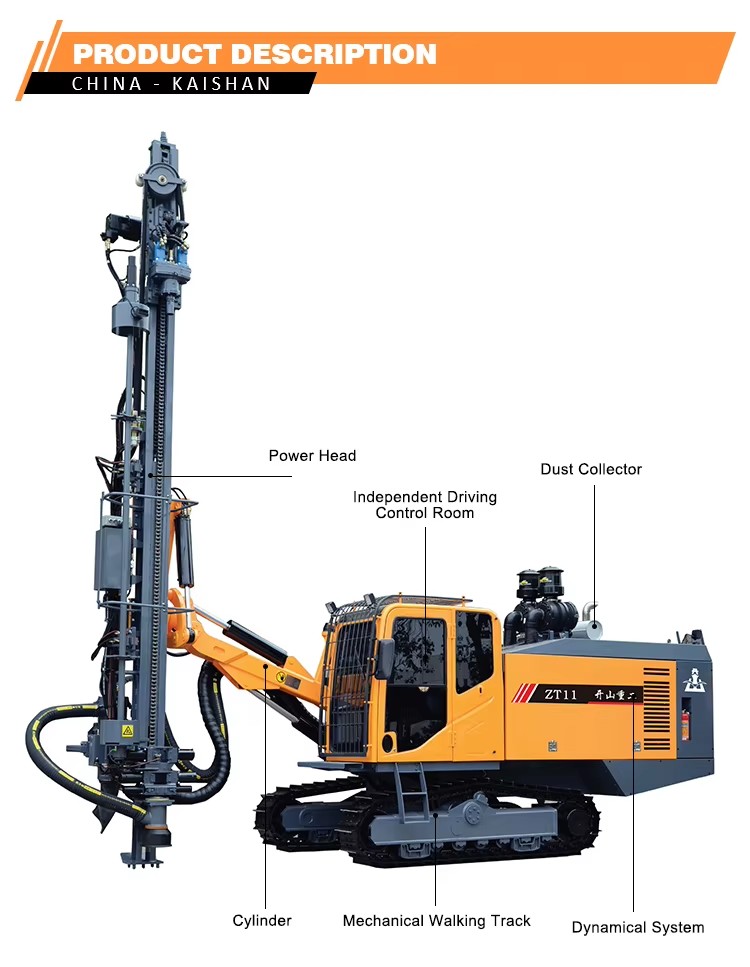

Product detail
Product detail
Product detail
2006/42/EC
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    5 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 29 fields
Usage
Ore
Type
Rotary Drilling Rig
Drilling Depth
Max.40m
Drilling Diameter
135-190mm, 100-125mm
Power Type
Diesel
Voltage
24v
Core components
Bearing, Motor, Engine, Pump
Warranty
1 Year
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
Famous Brand Low Voltage Components
Place of origin
Zhejiang, China
Weight
10800 KG, 10800kg
Dimension (L*W*H)
8100*2300*3000MM
Mobility
YES
Dimension(L*W*H)
8100*2300*3000mm
Drillling hardness
f=6-20
Depth of economical drilling
40m
Capacity of screw compressor
17m3/min
Rotary torque(max)
2800N.m
Maximum push-pull force
32KN
Power of complete machine
194Kw/205Kw
Travelling speed
2.5/4.0km/h
Selling Units
Single item
Single volume
0 cm3
Single gross weight
0.0 kg
Model number
KT9C
Power (W) (Product option)
194KW/205KW
Certifications & Compliance
2006/42/EC
Lead time
5 days
Minimum order
1 Units
