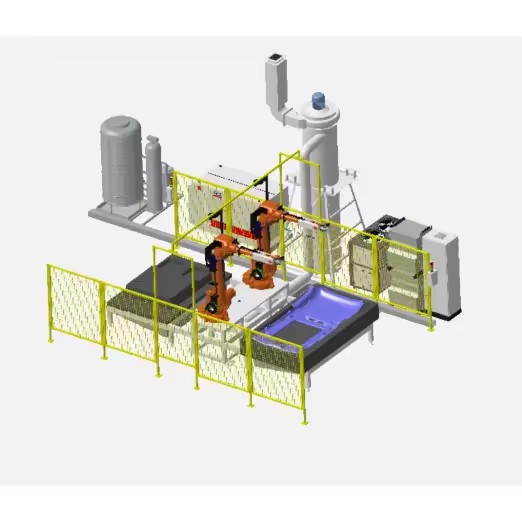

BBET Automotive Industry standing Open-Frame Robot Waterjet Cutting

Available for enquiry 0.0 · 0 reviews
USD

400,420.00 400420.0 USD 400,420.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Voltage
380 V
Number of axes
6
Repeatability (x/y/z) (mm)
±0.05
Core components
Pump, robot
Machinery test report
Provided
Warranty
1 Year
Product description
Qty of RobotOne or two robots
Robot typeABB 4600
YASKAWA MHII50-20
FANUC M70IA
Operators2 operators
Applicable productsLarge workpieces, complex cavity workpieces, multiple varieties, medium and small batch production.

Types of products

A:Cold processing, no heat reaction zone. no deformation; strong cutting ability, pure water jet can cut soft materials, abrasive waterjet can cut hard materials; can cut flammable and explosive objects; cutting precision is high, edge is neat no secondary processing is required. Waterjet also has the title of universal cutting machine.

A:You need to offer the size of the materials you want to process or the size of the cutting table.

A:It is not a vertical cutting for a waterjet cutter. This is due to the physical characteristics of waterjet. If it is required precise vertical angle cutting, we will provide you with a six-axis dynamic cutting system.

A:Wonlean intelligent waterjet cutting machine is easy to operate. You could upload the electronic images file of DXF format to the operating system via USB or network. The system will automatically program, and only need to set a few simple parameters, it can automatically complete the cutting operation.

A:Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.

A:We warranty our materials and workmanship. Our commitment is to your satisfaction with our products. In warranty or not, it is the culture of

A:Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge.

A:The shipping cost depends on the way you choose to get the goods. Express is normally the most quickest but also most expensive way. By seafreight is the best solution for big amounts. Exactly freight rates we can only give you if we know the details of amount, weight and way. Please

Description images
Product detail
Product detail
Product detail
Product detail

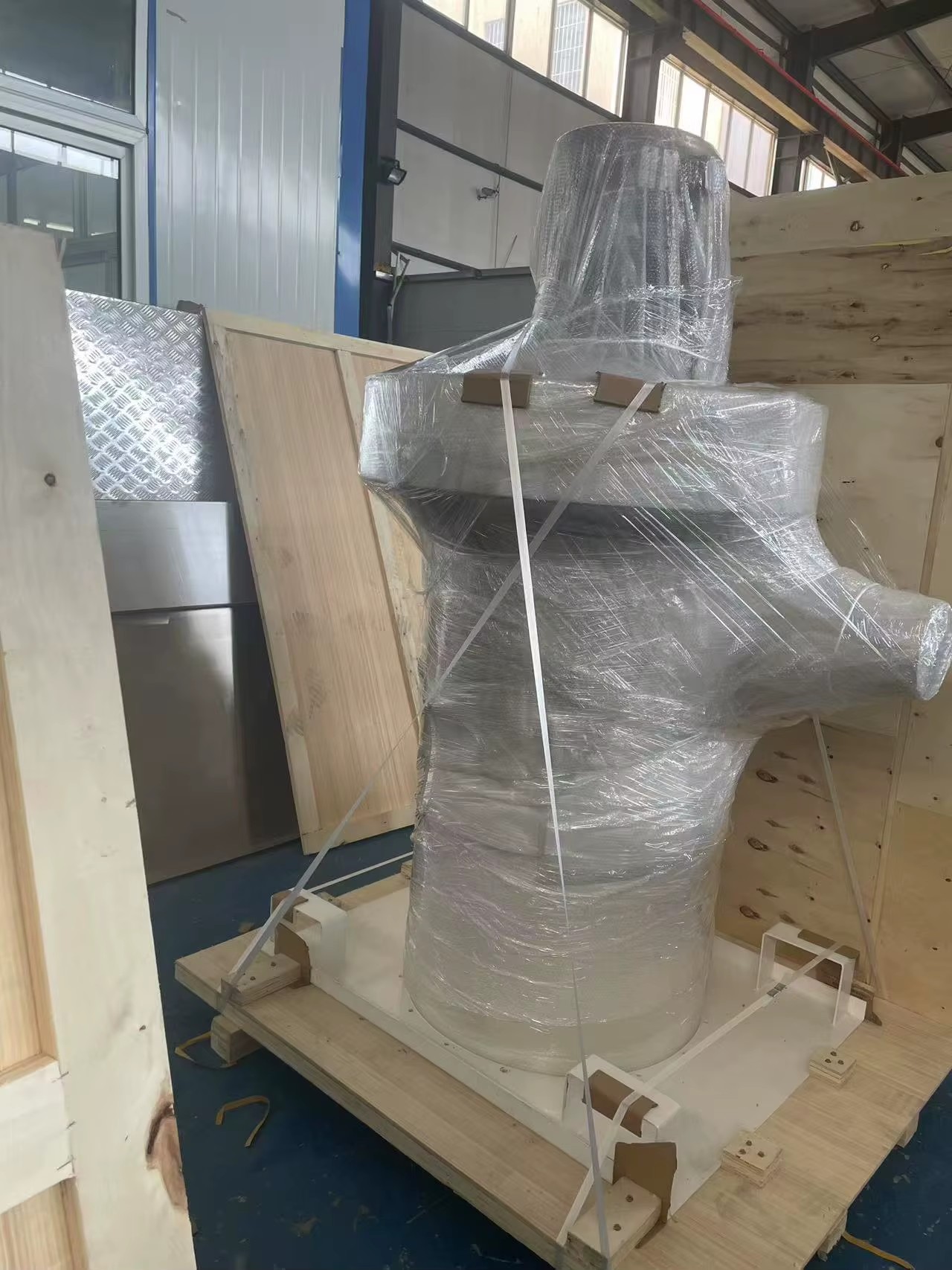

Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    90 days

  • Step 3

    Packaging and dispatch

    Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 27 fields
Voltage
380 V
Number of axes
6
Repeatability (x/y/z) (mm)
±0.05
Core components
Pump, robot
Machinery test report
Provided
Warranty
1 Year
Video outgoing-inspection
Provided
Dimension(L*W*H)
as the machine
Key selling points
Automatic
Rated power
65-75KW
Place of origin
hebei china
Weight (kg)
7000
Cutting accuracy(mm)
±0.03
Application
WATERJET CUTTING MACHINE
Cutting Head Axes
6-Axis
Compatible Materials
Composites
Cutting Head Lifespan
≥ 2000 hours
IP Rating
IP65
Noise Level
≤ 75 dB
Max Cutting Speed
1500 mm/min (20mm Stainless Steel)
Target Industries
Aerospace, Automotive, Architecture Art
Control system
Yaskawa PLC
Selling Units
Single item
Single volume
0 cm3
Single gross weight
0.0 kg
Model number
BBET
Effective cutting range (mm)
2500×1500
Lead time
90 days
Minimum order
1 Units
