Product video
Certifications CE

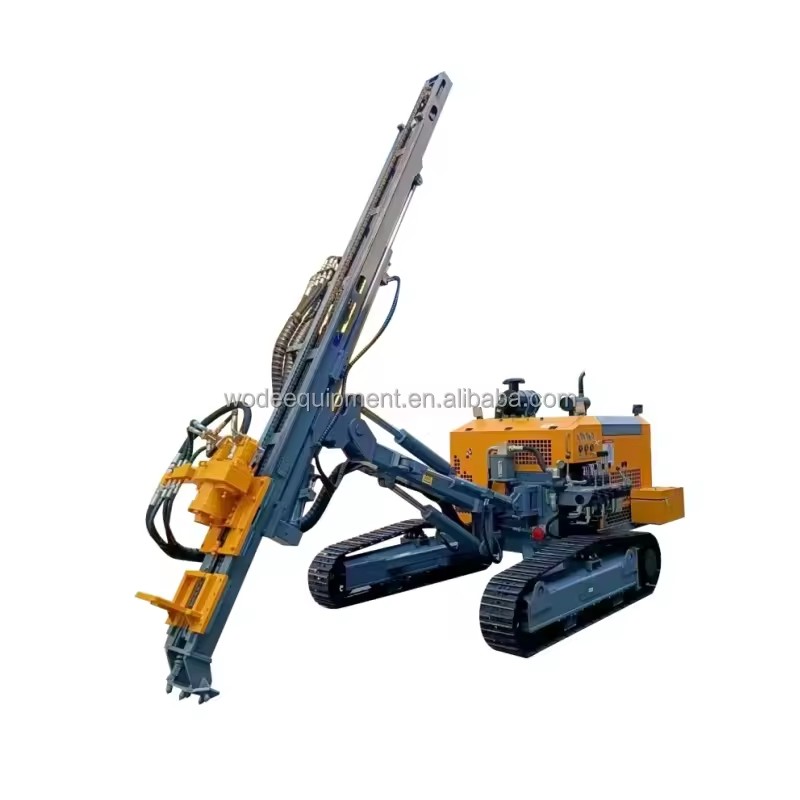

Factory Price Diesel Powerful Surface Integrated 30m Dth Rock Hydraulic Drilling Rig Mining Machinery

Available for enquiry 0.0 · 0 reviews
USD

$ 24,680.00 24680.0 USD $ 24,680.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Usage
coal
Type
dth drill rig
Drilling Depth
30m(98.43ft)
Drilling Diameter
90-100mm(3.54-3.94in)
Power Type
Diesel
Core components
Motor, Engine
Product description
ModelHW617
Hole Diameter90-100mm
Hole Depth30m
Drilling hardnessF=6~20
Max. Rotate Torque2400Nm
Rotate Speed0-150r/min
Diesel EngineYuchai 78Kw
Air consumption9-15m3/min
Working pressure0.8-1.6Mpa
Drill rodØ64x3000mm
Inch / DTH hammer3” / 4”
Feed formHydraulic cylinder + chain
Climbing capacity30°
Ground clearance450mm
Tramming Speed0-2Km/h
Dimension5700*2100*2300mm
Weight4800KG
Method of dust collecting8 core dry type
Certifications & compliance
CE
Complies with EU standards
Description images
Product detail
Product detail
Product detail
Product detail
CE
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    28 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 29 fields
Usage
coal
Type
dth drill rig
Drilling Depth
30m(98.43ft)
Drilling Diameter
90-100mm(3.54-3.94in)
Power Type
Diesel
Core components
Motor, Engine
Warranty
1 Year
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
Easy To Operate
Place of origin
China, Henan
Weight
4800 kg(10582.19lb)
Dimension (L*W*H)
5700*2100*2300mm(224.41*82.68*90.55in)
Mobility
YES
Hole Diameter
90-100mm
Max. Rotate Torque
2400Nm
Rotate speed
0-150r/min
Max Drilling Depth
30m
Drilling method
Down-the-hole
Air consumption
9-15m3/min
Power
Yuchai 78Kw
Drilling hardness
F=6~20
Application
Rock Core Drilling Rig
Selling Units
Single item
Single volume
0 cm3
Single gross weight
0.0 kg
Model number
HW167
Power (W) (Product option)
78KW(104.60hp)
Certifications & Compliance
CE
Lead time
28 days
Minimum order
1 Units
