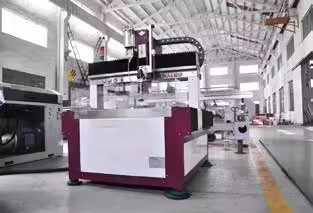

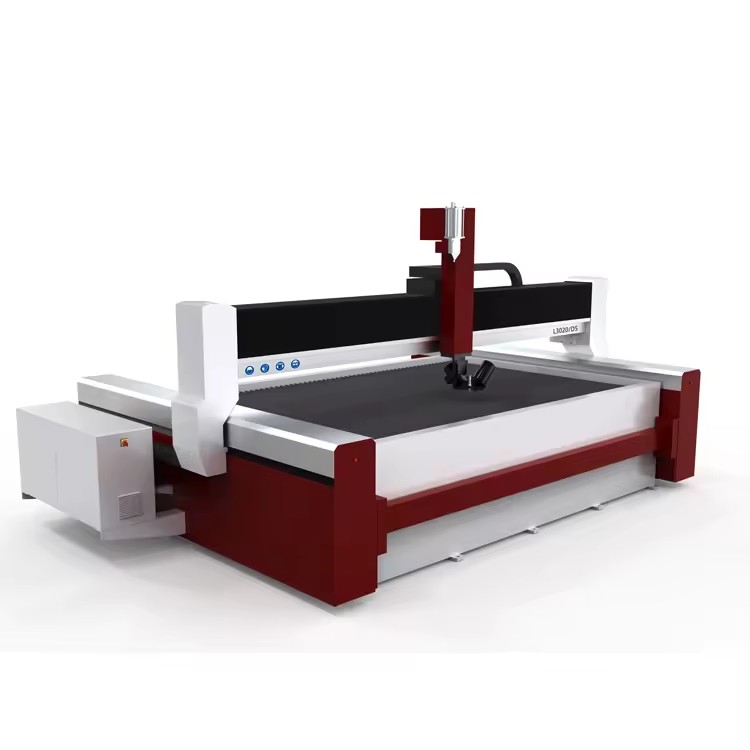

Cnc Water Jet Cut Water Cutting Machine 5 Axis High Pressure Water Jet Cutting Machine

CNC Water Jet Cutting Machine Parameter(L=Gantry type)

Parameters

Unit

CY-L1010

CY-L2015

CY-L3015

CY-L3020

CY-L2060

Efficient Cutting Area

mm

1000×1000

2000×1500

3000×1500

3000×2000

2000×6000

Axis Travel

X

1000

2000

3000

Y

1500

6000

Z

150-180

X axis and Y axis adopt HIWIN or I+F ball screw and guideway;The servo motor to drive we adopt MITSUBISHI or Yaskawa

Cutting Accuracy

±0.1

Positioning Accuracy

±0.025

X,Y Dry-run Speed

m/min

0-15 (if need 30m/min speed,we can do as request )

Cutting Speed

as to detail material and thickness

Product Description

As an advanced cutting equipment, the water jet cutting machine has a wide range of applications in the industrial field. A

complete set of water jet cutting machines usually consists of five main parts: the first is the high-pressure system, which is the key to generating high-pressure water flow and provides strong power support for cutting; the second is the cutting platform, which bears the material to be cut and provides a stable foundation for the cutting operation; the third is the control system, just like the intelligent center of the equipment, accurately regulating various parameters of the entire cutting process; the fourth is the cooling system, which effectively reduces the temperature during the operation of the equipment to ensure the stability and safety of the equipment. The cooling system includes air-cooling system and water-cooling system, and it is necessary to reasonably choose the equipment with high or low cooling intensity according to different usage temperature environments to adapt to the specific working condition requirements; the fifth is the sand supply system, which plays an important role when abrasive water jet cutting is required to ensure the smooth supply of abrasives. The sand we use is generally 80-mesh garnet sand, which has good cutting performance and stability.

How is our CY waterjet cutting platform made?

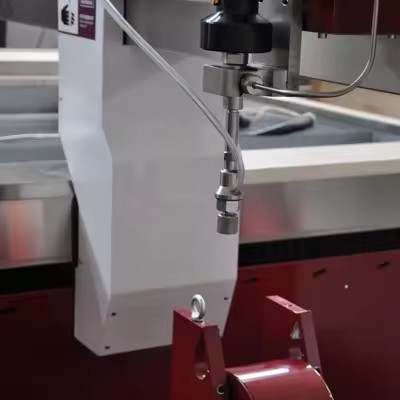

Waterjet cutting head

Ultra-high pressure water jet is mainly divided into abrasive cutting and only water cutting(Including pure water cutting).

Therefore, the cutting head is also divided into abrasive waterjet cutting head and pure waterjet cutting head.

* Abrasive waterjet cutting is mainly used for cutting metal (such as carbon steel, stainless steel, etc.), nonferrous metal

(such as copper, aluminum, titanium alloy, magnesium alloy, etc.), stone, glass, large thickness composite materials (such as carbon fiber, glass fiber) and so on.

* Only water cutting is mainly used for cutting rubber, foam, cloth, paper, rock wool, food （pure waterjet cutting）and so on.

What materials can a waterjet cut?

Alloys，Steels，Laminates，Composites，Plastics/Acrylics，Rubber，Gaskets，Fiberglass，Glass...

Customizable Waterjet Cutting Systems

Customizable X, Y, and Z axesMachine tool with a z-axis of 1 meter

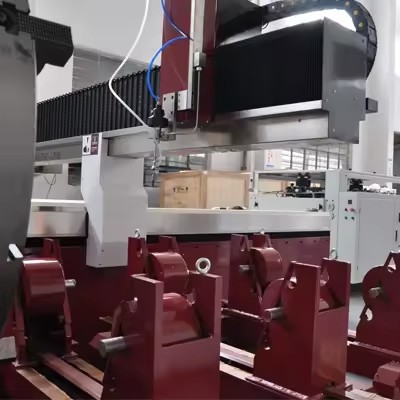

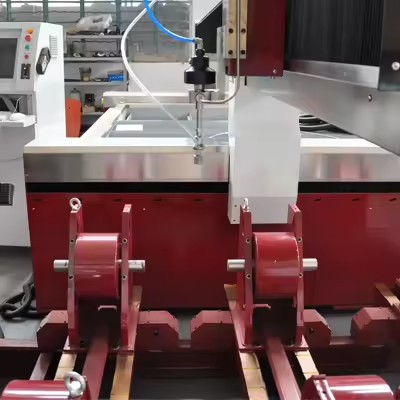

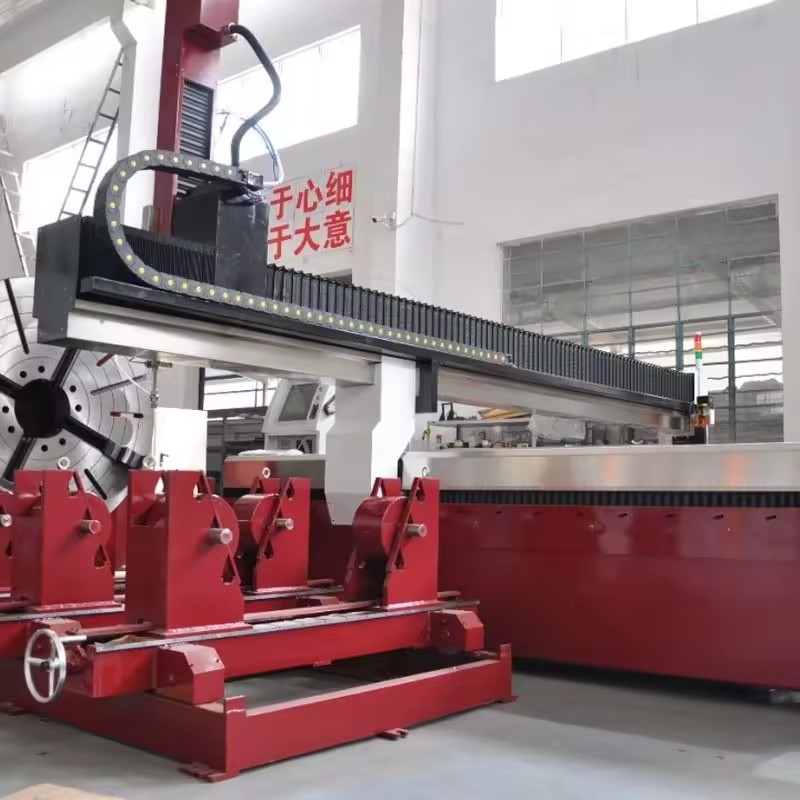

Customized model of tube plate integrated water cutting machine

Customization of water cutting production line

Specification

X axis and Y axis adopt HIWIN or I+F ball screw and guideway;The servo motor to drive we adopt

MITSUBISHI or Yaskawa

Company Profile

Machine

is located in Hi-tech Science and Technology Industry Zone of City, Jiangsu Province,, with a number of research and development and manufacturing bases. Our company specializes in researching,manufacturing and selling precision machines.

20 countries

and we are looking forward to more cooperations with friends from all over the world, and hope our products could help more friends in their local industry and business market development. Our company established in

2003

has 96 employs, and sold about

200 sets

about the machines all of the world. We always keep our enterprise mission · “Quality changes the world” in mind. We start our work from each trivial matter, and do our best to complete each detail well, and offer solid technical service and good service to our machine customers.Quality guarantee, high efficiency, valuing friendship, observing credibility and sincerity-oriented” is our enterprise principle,which all staff should abide by. Quality and honesty are the keys of the enterprise future.

FAQ

Q: What is the advantage of water jet cutting machine?

A:Cold processing, no heat deformation; Strong cutting ability, it can cut almost any material; pure water jet can cut soft

materials, abrasive waterjet can cut hard materials, evenit can cut flammable and explosive objects; cutting accuracy is high

edge is neat. Waterjet also has the title of universal cutting machine.

Q: How to choose a standard cutting table?

A:You need to offer the size of the materials you want to process or the size of the cutting table.

Q:How to solve the incision bevel problem by 3 axis water cutting?

A:It is not a vertical cutting for a waterjet cutter. This is due to the physical characteristics of waterjet. If it is required

precise vertical angle cutting, we will provide you with a five-axis dynamic cutting system. It can make a small angle

compensation in the software.

Q:Is the equipment easy to operate?

A:Based on the good waterjet software, opertaor can learn it easily. and if customer order new machine, our technician will

provide training for the machine’s running and maintenance.
