Product description

Triple Pass Dryer Three Drum Rotary Drying Machine Compact Design Energy Saving Equipment for Kaolin Clay

What Buyers Ask Us Before Ordering

1. What does it cost to dry one ton of material? Fuel is the largest cost in drying. The three-pass design burns 30-40% less fuel than a single-drum dryer, and the multi-fuel furnace lets you run on the cheapest fuel available locally — coal, biomass, gas or diesel.

2. How long do the lifting plates and lining last? Lifting plates are made of wear-resistant steel and are quick to replace; the thickened shell and lining are built for years of 24/7 service, and spare parts stay in stock for the life of the machine.

3. How fast can the line be installed and started? The dryer ships pre-assembled; foundation and erection take about one week, and our engineers stay on site until the line runs at its rated capacity.

Three-cylinder vs. Single-drum at a Glance

Item	three-cylinder dryer	Single-drum dryer
Fuel consumption	30-40% lower	Reference baseline
Floor space needed	About half	Full footprint
Shell length, same capacity	2.2-3.6 m diameter, short shell	Usually 12-25 m long
Final moisture stability	Within ±0.2%	Wider fluctuation
Fuel options	Coal, biomass, gas, diesel	Often single fuel

What You Can Dry with It

Glass & Foundry: Silica sand, quartz sand — dried below 0.5% moisture.

Construction & Aggregates: River sand, sea sand, gravel, clay and dry-mix mortar materials.

Cement & Metallurgy: Slag, coal slime, iron ore powder and mineral tailings.

Energy & Biomass: Sawdust, wood shavings, fly ash and coal gangue.

Technical Parameters

Model	Diameter of outer cylinder (m)	Length of outer cylinder (m)	Drum volume (m³)	Rotation speed (r/min)	Max. air flow temperature (℃)	Production capacity (t/h)	Power (kW)
2.2m*5m	2.2	5	18.99	4-10	700-750	12-20	5.5x2
2.5m*6m	2.5	6	29.43	4-10	700-750	18-28	7.5x2
2.8m*6m	2.8	6	36.92	4-10	700-750	25-35	11x2
3.0m*6m	3	6	42.39	4-10	700-750	30-40	7.5x4
3.2m*7m	3.2	7	56.27	4-10	700-750	35-55	11x4
3.6m*8m	3.6	8	81.39	4-10	700-750	55-75	18.5x4

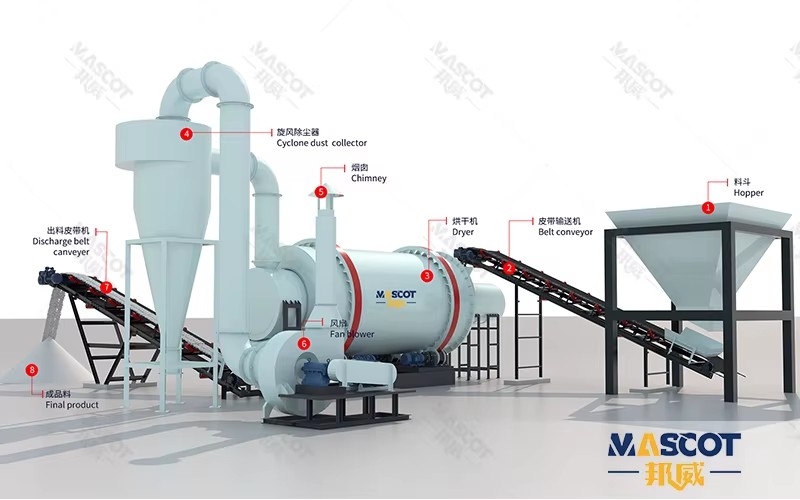

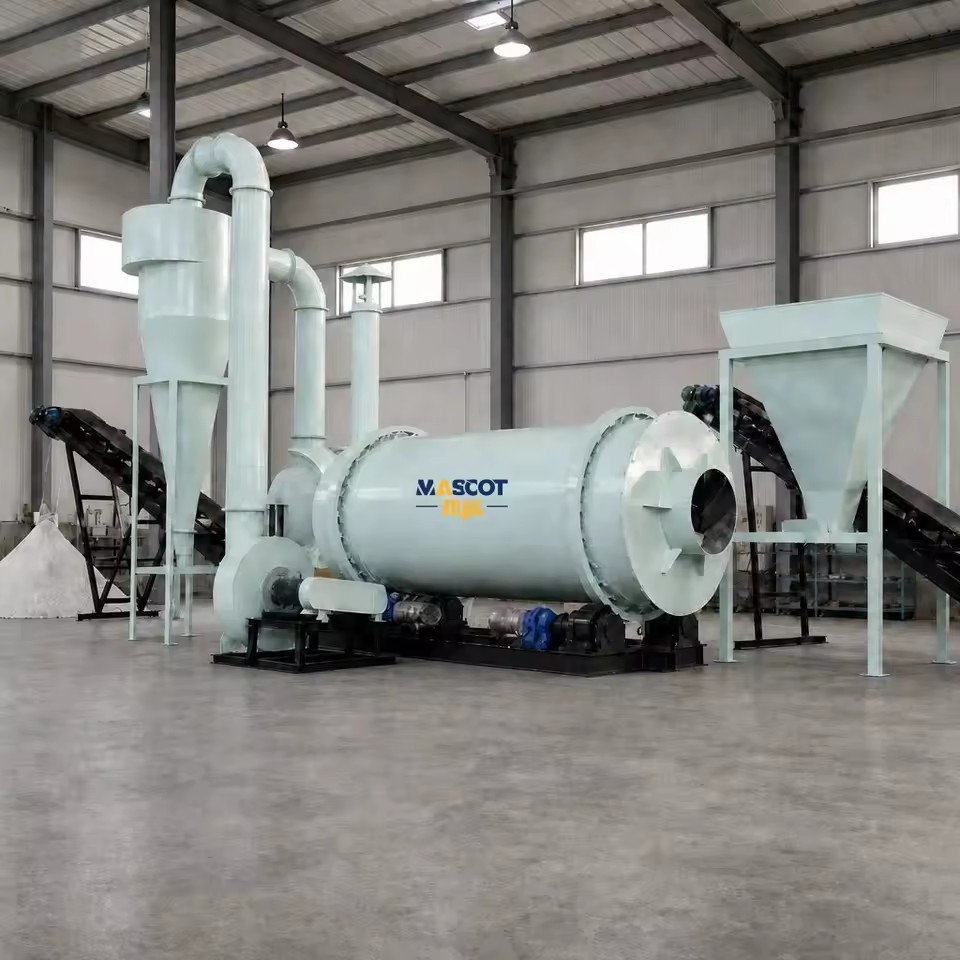

The Three-Pass Drying Cycle

1. Even Entry: A screw feeder meters material into the innermost cylinder at a steady rate — nothing clogs, everything dries evenly.

2. Full

3. Heat Reused Three Times: The gas sweeps the inner, then the middle, then the outer cylinder — one furnace load of heat does the work of three.

4. Moisture Stepped Down: Evaporation happens gradually, pass by pass, protecting particle quality and avoiding over-drying.

5. Clean Air Out: The cyclone and bag filter clean the exhaust before release, meeting local emission rules.

The Customer Site

1.Factory-Direct Pricing: You buy from the manufacturer in Zhengzhou — no middleman markup, transparent quotes and honest lead times.

2.Sized From Your Sample: Send your material and target moisture; our engineers return a free proposal with the right model and line layout.

3.One Supplier, One System: Feeder, furnace, dedusting and control panel are engineered and delivered together, so every part of the line is matched.

's Service

Every dryer ships with a 12-month warranty, a stocked spare parts list and remote troubleshooting. Our engineers travel for on-site installation and commissioning, and stay available 24/7 by

FAQ

1. My material is sticky — will it clog the dryer?

Anti-stick lifting plate designs and adjustable rotation speed handle clay, slime and other sticky feeds without clogging. For oversized lumps we recommend a screen or crusher ahead of the dryer.

2. Can you guarantee the rated capacity and final moisture?

Yes. The model is sized from your actual material sample, and capacity and final moisture are verified together during commissioning before handover.

3. How is the machine shipped and installed?

The dryer ships in sections by container or flat rack with all drawings. Installation takes about one week and is supervised by our engineers, who also train your operators.

4. What after-sales support do I get?

A 12-month warranty, lifetime spare parts supply, remote troubleshooting and priority on-site service, plus operator training at commissioning.

Description images

Triple Pass Dryer Three Drum Rotary Drying Machine Compact Design Energy Saving Equipment for Kaolin Clay

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

15 days
Step 3

Packaging and dispatch

Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 25 fields

Type

Rotary Drying Equipment

Voltage

220V/380V/UPON

Heating method

Gas Heating

Material

Other

Power(w)

11-88KW(14.75-118.01hp)

Application

Mineral processing

Core components

Motor, Gear, Pump

Key selling points

Automatic, Competitive Price, Eco-Friendly

Warranty

1 Year

Machinery test report

Provided

Video outgoing-inspection

Provided

Place of origin

China, Henan

Weight (kg)

3000

Dimension(L*W*H)

Accroding to model

Feed size

4-10r/min

Motor power

11-88KW

Capacity

8-100t/h

Color

Customer's Request

Certification

After-sales Service Provided

Provided 1 year

MOQ

1 Set

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Model number

2m*4m, 2.2m*5m, 2.5m*6m, 2.8m*6m, 3.0m*6m, 3.0m*7m, 3.2m*7m, 3.6m*8m, 4.0m*10m

Lead time

15 days

Minimum order

1 Units
