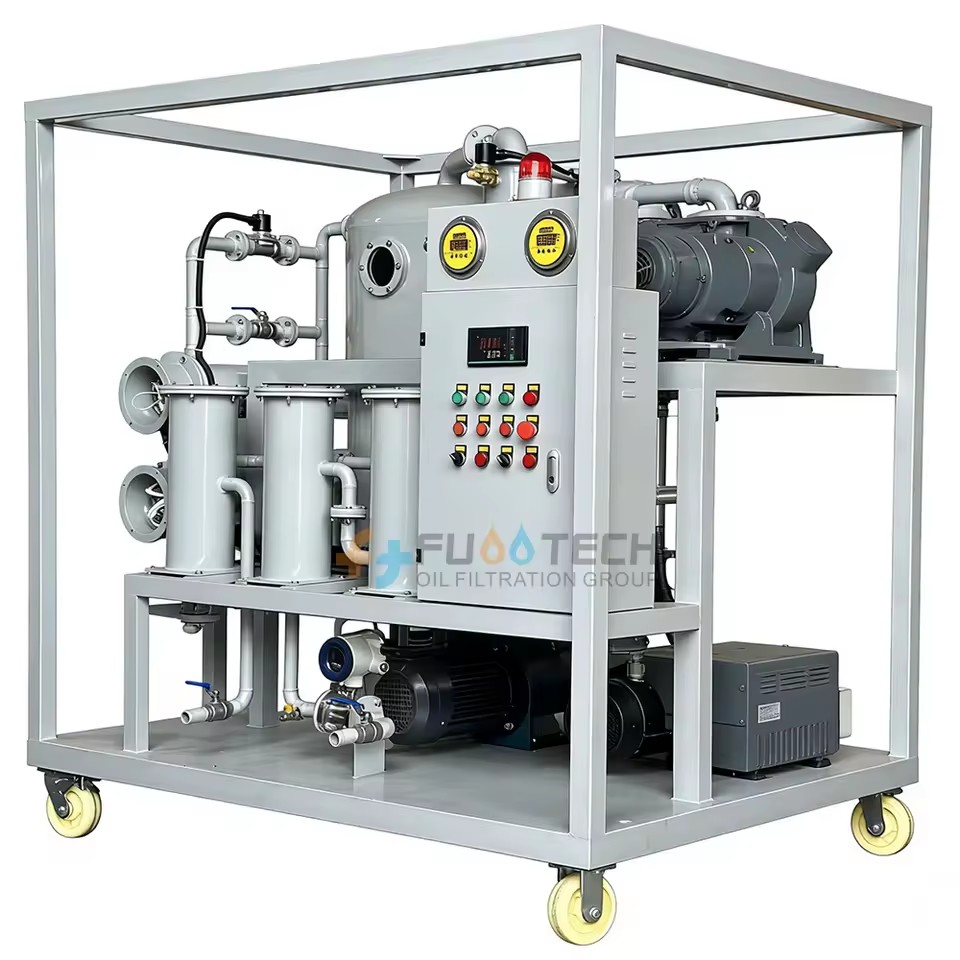

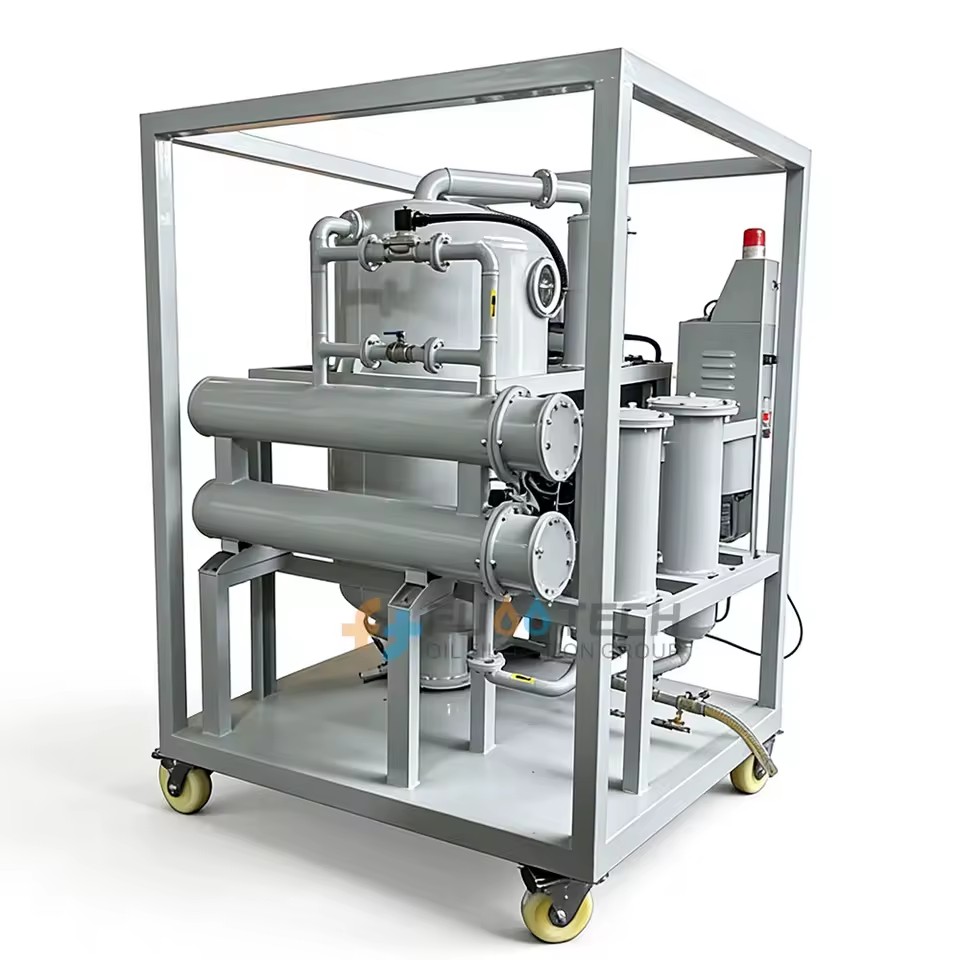

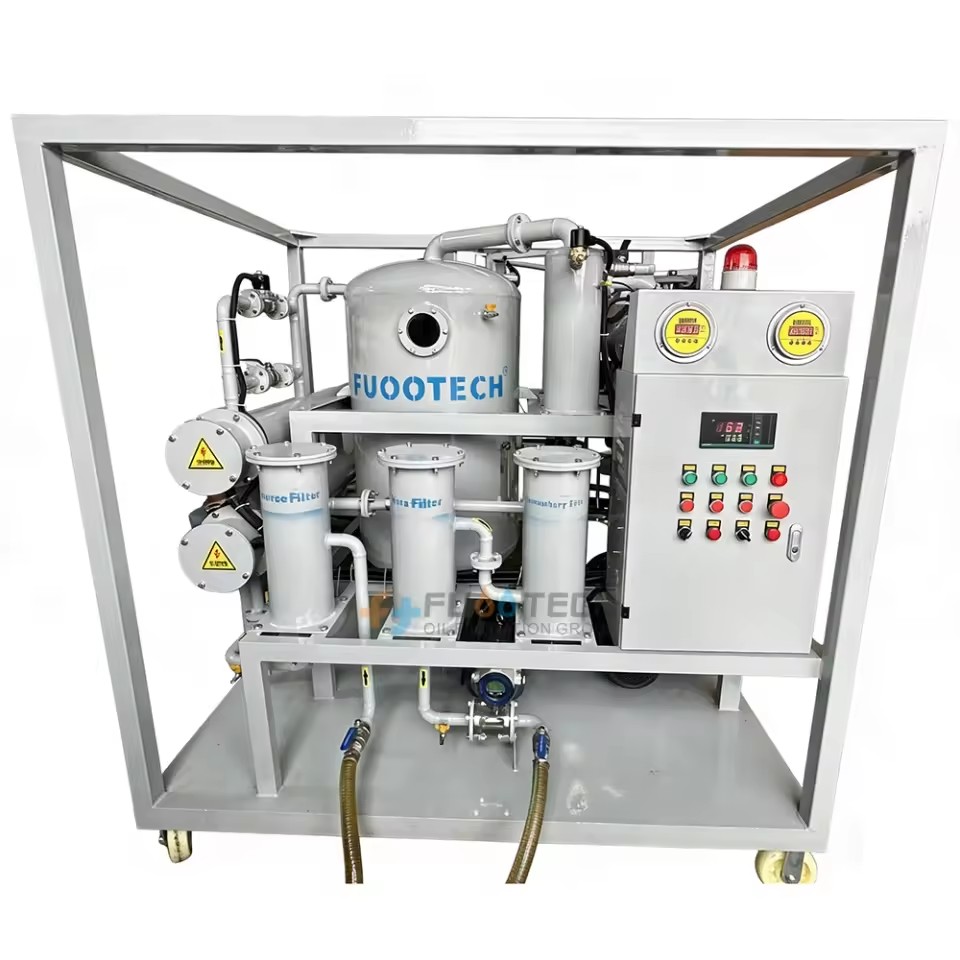

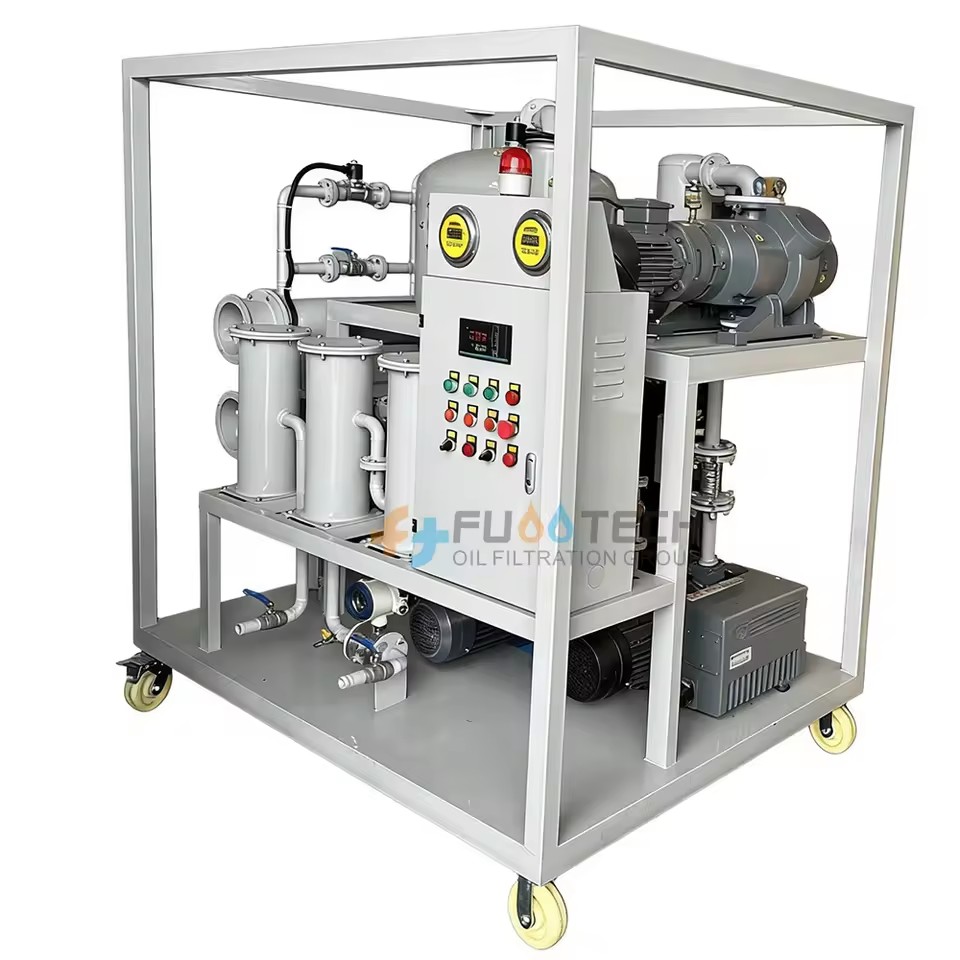

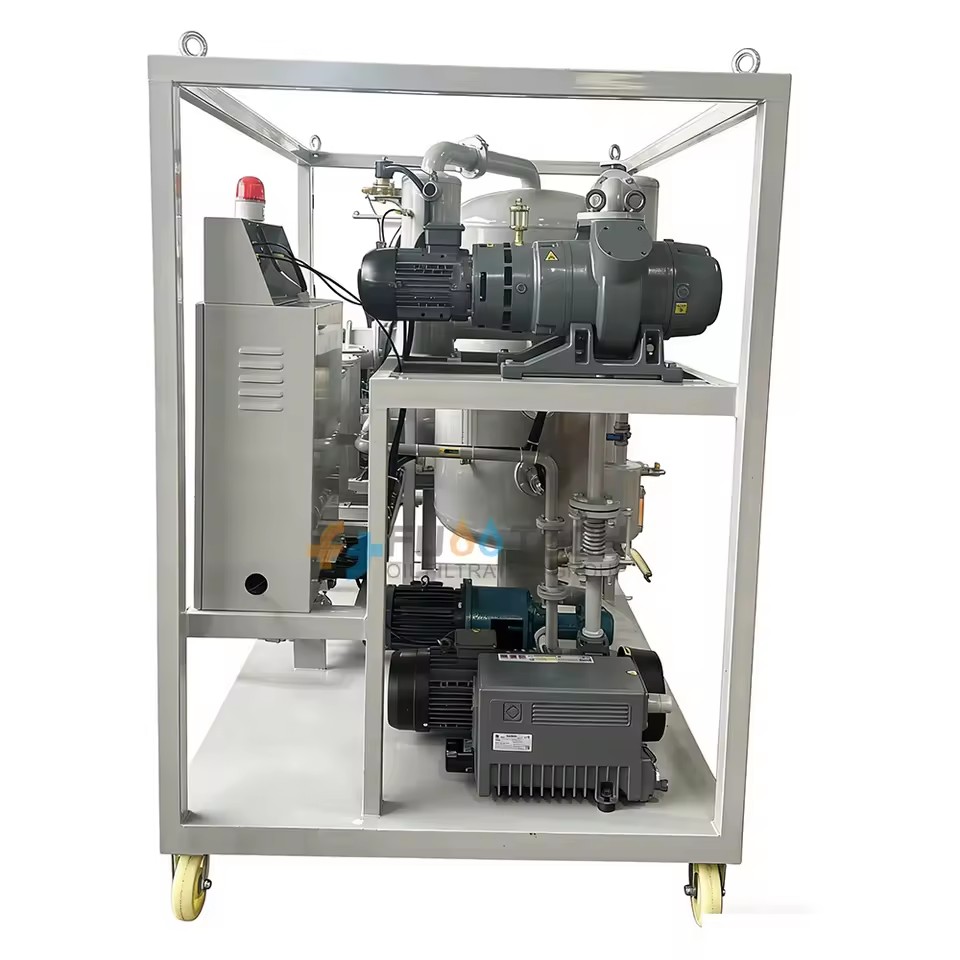

Transformer Oil Filtration Machine for on Site Maintenance and Purification to Extend Transformer Life

Available for enquiry 0.0 · 0 reviews
USD

$ 13,170.00 13170.0 USD $ 13,170.00

Not Available For Sale

Minimum order quantity: 1 Units
  • Oil type
  • Voltage
  • Phase
  • Flow
  • Pressure
  • Condition
  • Warranty
  • Raw material
  • Place of origin
  • Dimension(L*W*H)
  • Overall Dimensions
  • Power(w)
  • Weight
  • Working Vacuum degree
  • Working Discharge Pressure
  • Temperature control range
  • Operation Temperature
  • Working hours without Trouble
  • Continuous working hours
  • Ambient temperature
  • Working noise
  • Core components
  • After Warranty Service
  • Selling Units
  • Single volume
  • Single gross weight
  • Model number
  • Working pressure (Product option)
  • Usage (Product option)

This combination is unavailable.

Key attributes

View all
Oil type
Transformer Oil, Insulation Oil
Voltage
380V, 50Hz, Customer's Requirement, 3phase
Phase
Three Phase
Flow
30L/Min ~ 300L/Min(7.93gpm~79.25gpm)
Pressure
0.4 Mpa(58.02psi)
Condition
New
Product description

Product details

INTRODUCTION

ZYD Double-stage Vacuum Transformer Oil Filtration Machine, developed by in 2007, which is specially designed for the completely filtration, dehydration, degassing, and particles removal of insulating oils in energized or de-energized transformers. It not only provides regular oil purification works including degassing, drying and particulate removal but also reduces acidity, sludge, other soluble oil decay products, and increase the oil dielectric strength value (BDV value) so as to improve the physical & chemical properties comparable to new transformer oil. For special application at outside field, the system also can be mounted on a leak proof base or be installed and operated on a trailer as optional.

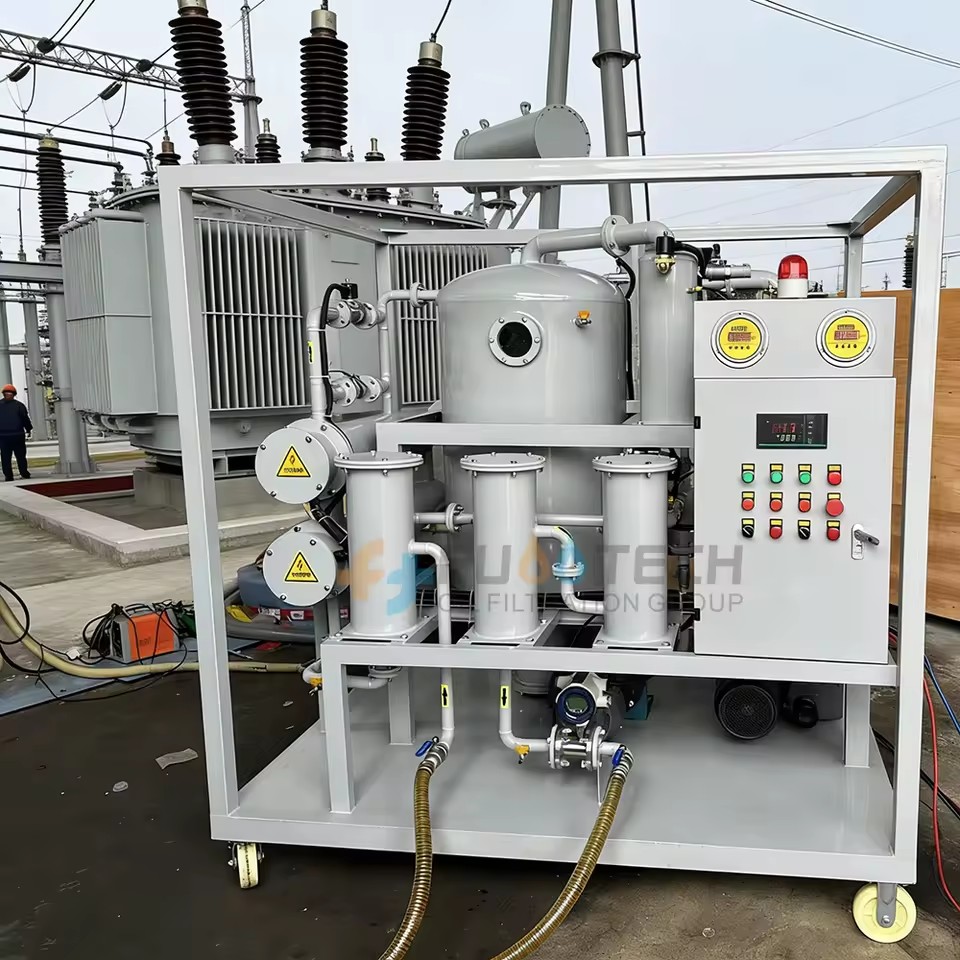

Series ZYD High Effective Transformer Oil Purifier Machine is applied to process transformer oil and insulating oil from power plant, power station, electric power company, power transmission equipment, transformers, industrial and mining enterprises, especially suitable for on-site installation, maintenance and purifying high level new oil, or running oil from big power transmission and distribution equipment and transformers on national main power transformation grid, which is above 110-750KV. It can shorten the oil treatment period for transformer installation and maintenance.

FEATURES

1. Double-stage high vacuum pumping system, strong power of vacuum evacuating, ultimate vacuum value ≤5Pa.

2. Big capacity of moisture and gas separating chamber, efficient oil film evaporation, increasing separating size and separating time to ensure the dry-level and dielectric strength of oil improving greatly.

3. G technology by which the trace water that is show chain, such as dissolved water, can be removed effectively.

4. Multi-stage precision filtration system, progressive filtration combined with molecular adsorption technologies, maximum remove the particles and impurities.

Frequently asked questions

The purification machine adopts physical principles for purification machine, so it can remove moisture, gas, acid, and impurities from oil, and restore the oil characterstics.

There is no consumable except filters.

We offer 12 months of warranty for all our products from the date of shipment. Even if the warranty period is expired, we still provide lifelong maintenance, technical service and spare parts supply.

In general, the delivery time of our standard machine is about 15 days, customized machine will be delivered as the negotiation with our clients.

Dehydration, degassing, impurity removal of old oil, and extend oil life.

This oil purification machine have flow capacity from 30L/Min to 300L/Min.

ATTN: Miss Lilac Xia
Description images

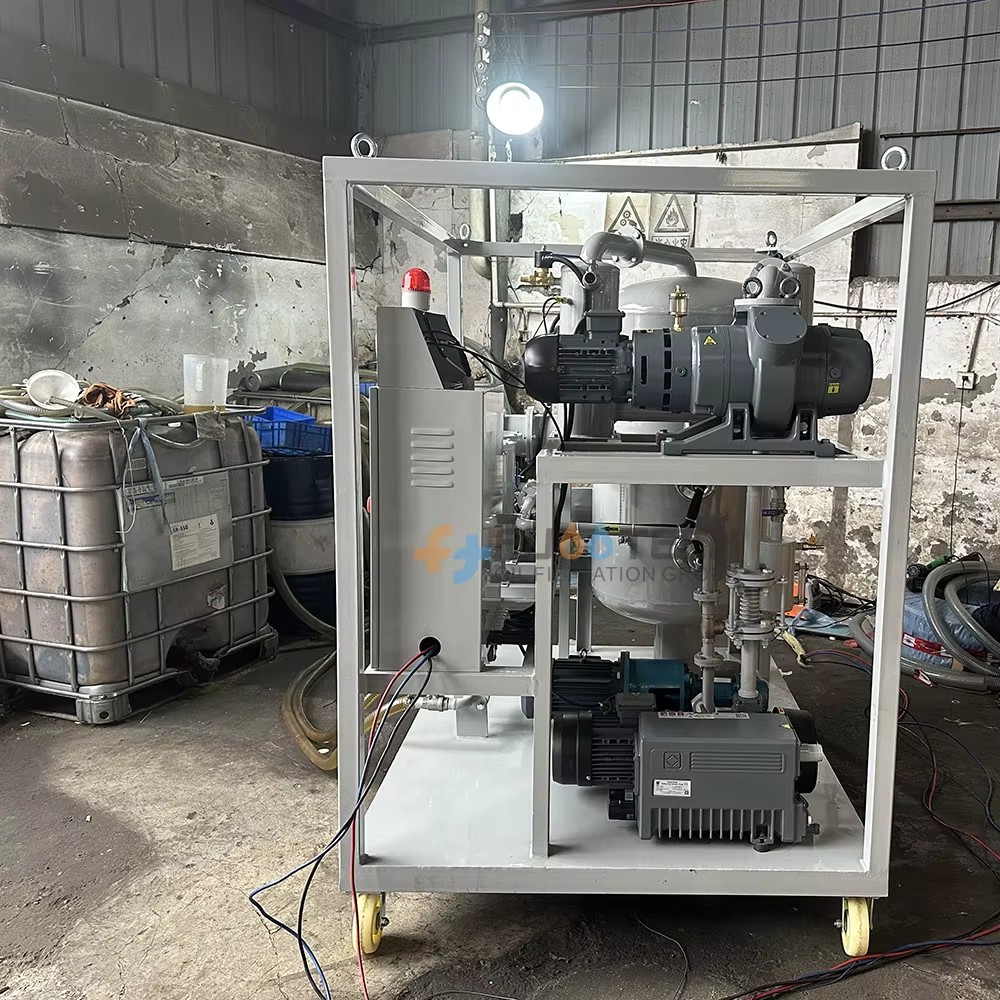

Product detail
Product detail
Product detail
Product detail
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    25 days

  • Step 3

    Packaging and dispatch

    Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

    Final packing, freight, and delivery dates are confirmed before dispatch.

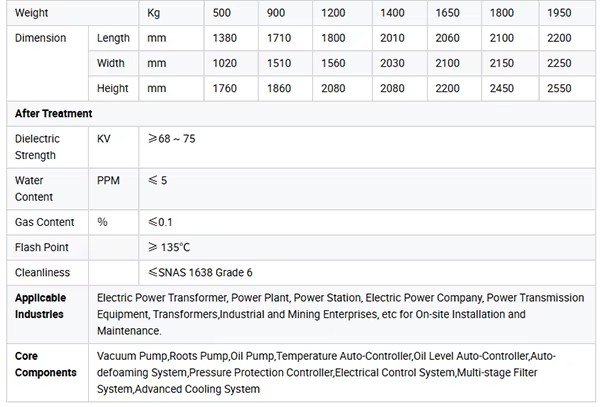

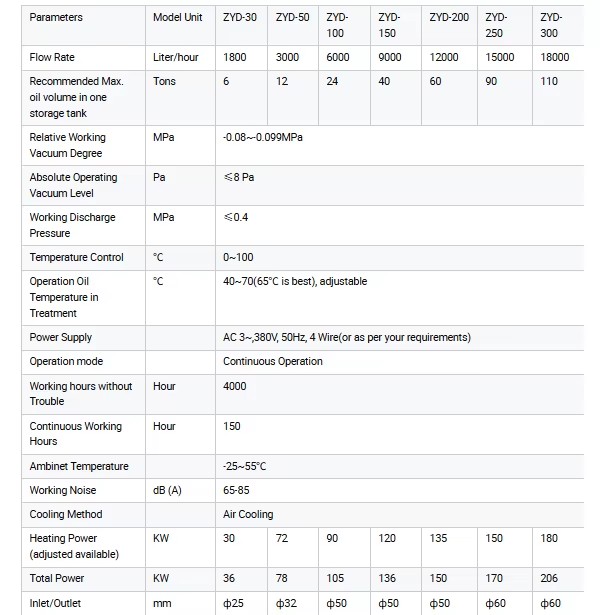

Technical specifications
Other details 29 fields
Oil type
Transformer Oil, Insulation Oil
Voltage
380V, 50Hz, Customer's Requirement, 3phase
Phase
Three Phase
Flow
30L/Min ~ 300L/Min(7.93gpm~79.25gpm)
Pressure
0.4 Mpa(58.02psi)
Condition
New
Warranty
1 Year
Raw material
Carbon Steel
Place of origin
China, Chongqing
Dimension(L*W*H)
Refer to actual model
Overall Dimensions
As per actual model size
Power(w)
36
Weight
500
Working Vacuum degree
0.08 ~ -0.099MPa
Working Discharge Pressure
≤ 0.4MPa
Temperature control range
20 ~ 80°C
Operation Temperature
40 ~ 70 (65°C is best)°C
Working hours without Trouble
4000 Hour
Continuous working hours
150 Hour
Ambient temperature
25 ~ 55°C
Working noise
65 ~ 85dB(A)
Core components
Vacuum pump, oil pump, Roots Pump, Multi-stage Filter System etc
After Warranty Service
7/24 Hours
Selling Units
Single item
Single volume
0 cm3
Single gross weight
0.0 kg
Model number
ZYD-30, ZYD-50, ZYD-100, ZYD-150, ZYD-200, ZYD-250, ZYD-300
Working pressure (Product option)
Less Than 0.4 MPa
Usage (Product option)
Other, Insulation Oil, Transformer Oil, Electric Power Transformer, Power Plant, Power Sta
Lead time
25 days
Minimum order
1 Units
