Good Price AC5-Axis 3015 Glass Marble Water Jetting Cutting Cutter Abrasive Waterjet Cutting

Good Price AB5-Axis 3015 Glass Marble Water Jet Cutting Cutter Waterjet Machining With Abrasives

Series

AC-3015 Water Jet

Type

Gantry Cutting Table

Cutting Angle

0-±68 Degrees

Control Accurcy

±0.01mm

Table Size

3800mmx2200mmx200mm

Travel Of Z Axis

200mm

Cutting Precision

±0.1mm

RE-Positioning Accuracy

±0.05mm/m

Cutting Speed

11000mm/min

Certificate

CE ISO

Motor

30kw / 40HP

After-sales Service

Installation Online Service

MAX.Cutting Range

3000mmx1500mmx200mm

Material

Stainless steel

Win-Win has been focusing on waterjet Industry for over 20 years, our founder is the leader of waterjet technology. We have a complete technical team, who always focus on the R&D of Ultra High-Pressure Technology, so that Win-Win owns more than ten patents of core technology. We have been cooperating with the interior part manufacturers for many years as the authorized supplier. And now, Win-Win becomes the largest and most reliable UHP waterjet system supplier. We have a standard production plant of 2800square meters, you will see the full automation production line, strict QC phase, 100% testing before sell. The slogan of Win-Win is “To provide the best products and the best service, make customers and us to get mutual benefit together.

Q: What is the advantage of water jet cutting machine? A:Cold processing, no heat reaction zone. no deformation; strong cutting ability, pure water jet can cut soft materials, abrasive waterjet can cut hard materials; can cut flammable and explosive objects; cutting precision is high, edge is neat no secondary processing is required. Waterjet also has the title of universal cutting machine. Q: How to choose the cutting table? A:You need to offer the size of the materials you want to process or the size of the cutting table. Q:How to solve the incision problem of water cutting? A:It is not a vertical cutting for a waterjet cutter. This is due to the physical characteristics of waterjet. If it is required precise vertical angle cutting, we will provide you with a five-axis dynamic cutting system. Q:Is the equipment easy to operate? A:WIN-WIN intelligent waterjet cutting machine is easy to operate. You could upload the electronic images file of CAD/G/DXF/ENG/PLT format to the operating system via USB or network. The system will automatically program, and only need to set a few simple parameters, it can automatically complete the cutting operation.

Product Description

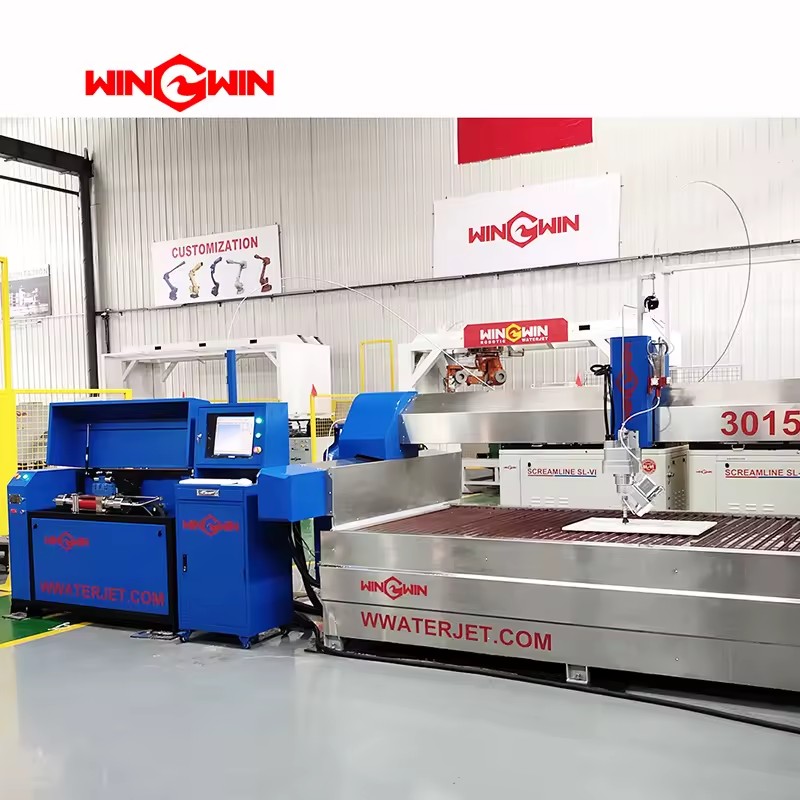

company supports color customization, this equipment is WW5060jet intensifier pump + 4020 AC 5 cutting table, full stainless steel protective structure, good protection, no rust, oil immersed structure, long service life of ball screw and linear guide, fully aluminum alloy cutting head, light weight, reduce the load of the cutting table, AC 5 axis head, cutting angle can reach ±68°, C axis can be 360° rotation.

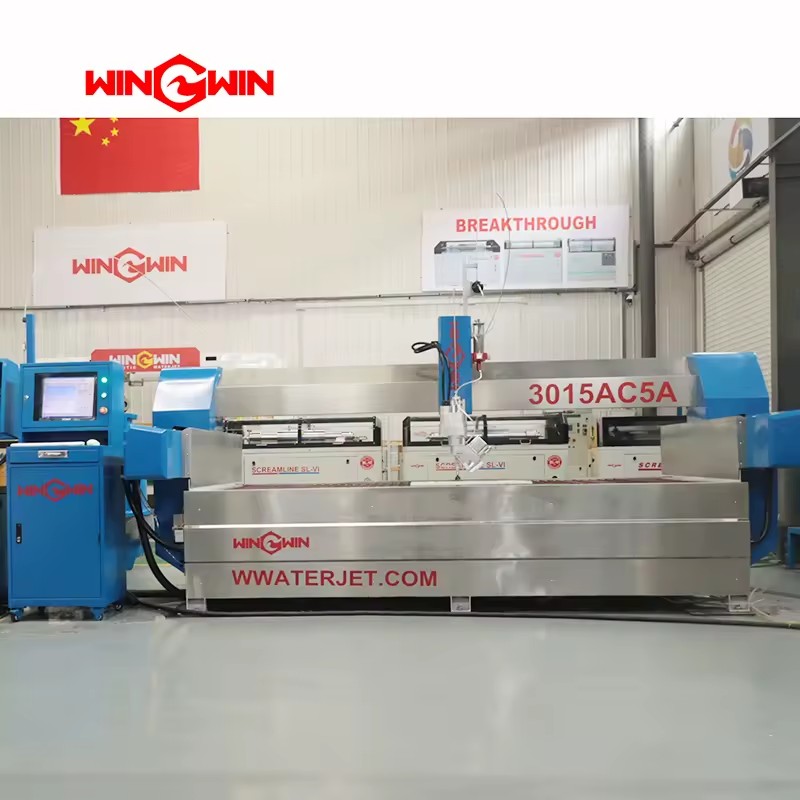

Gantry structure waterjet cutting table

The cutting table adopts an Oil-Immersed structure to reduce the wear of the lead screw and the slider. It has a long service life, a full-protection structure and better sealing. The use of stainless steel materials prevents metal corrosion. It is as new for ten years.

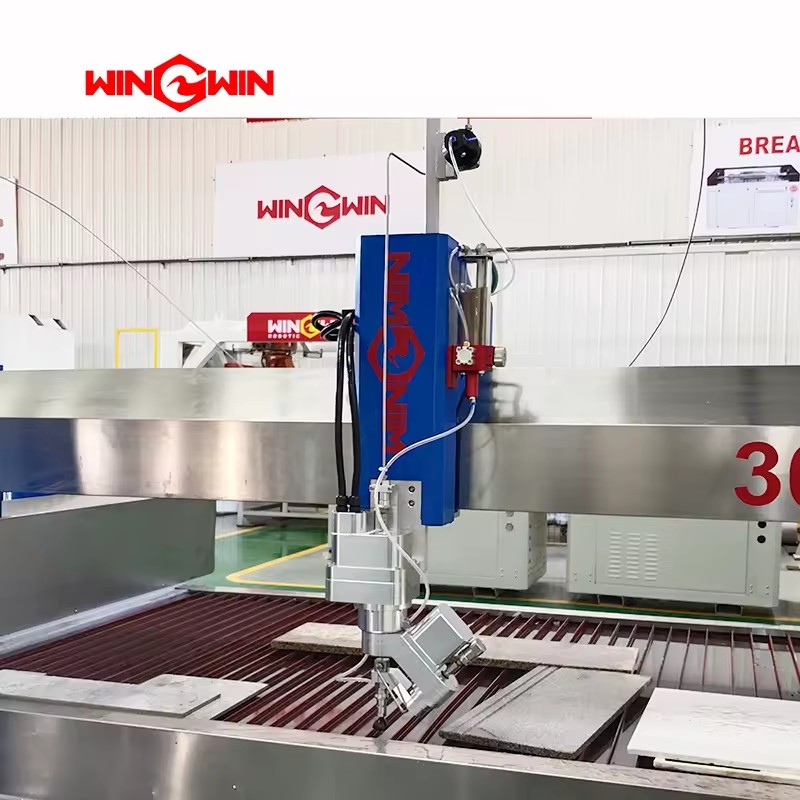

AC 5 axis cutting head

Swing angle ±68°, absolute encoder control system.

AC cutting head is equipped with high quality hardware, swing Angle can reach ±68°, equipped with Weihong system and servo motor, high precision, accurate calculation, with altimetry system, first choice waterjet equipment for cutting large Angle parts

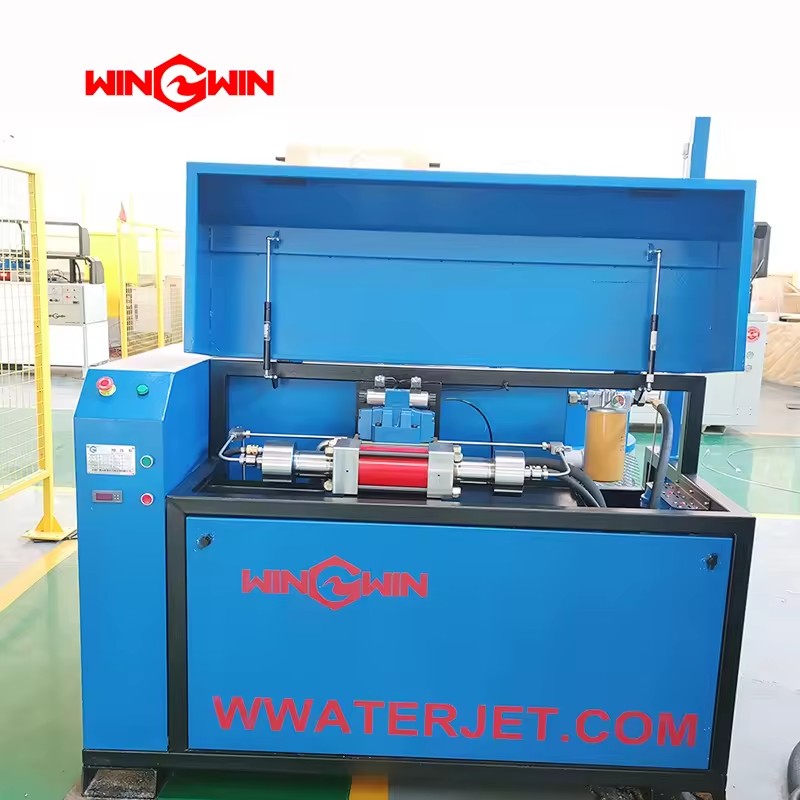

Choice a suitable intensifier pump

WW5060JET intensifier pump is highly versatile intensifier pump, American imported core components, Sandvik high pressure pipelines,Omron PLC electrical components. This pump is a basic, economic intensifier pump, widely used in the market, large wearing parts seller, simple to use, the pressure can be up to 330Mpa, often used in marble cutting, metal cutting, glass cutting, rubber cutting and other industries.

17-inch industrial display, placed in the CNC control shield, good protection, wireless keyboard, mouse and wireless remote control handle, speed can be adjusted under any circumstances, large memory capacity, no delay, smooth operation

Company Information

FAQ

Q: What is the advantage of water jet cutting machine?

A:Cold processing, no heat reaction zone. no deformation; strong cutting ability, pure water jet can cut soft materials, abrasive waterjet can cut hard materials; can cut flammable and explosive objects; cutting precision is high, edge is neat no secondary processing is required. Waterjet also has the title of universal cutting machine.

Q: How to choose the cutting table?

A:You need to offer the size of the materials you want to process or the size of the cutting table.

Q:How to solve the incision problem of water cutting?

A:It is not a vertical cutting for a waterjet cutter. This is due to the physical characteristics of waterjet. If it is required precise vertical angle cutting, we will provide you with a five-axis dynamic cutting system.

Q:Is the equipment easy to operate?

A:WIN-WIN intelligent waterjet cutting machine is easy to operate. You could upload the electronic images file of CAD/G/DXF/ENG/PLT format to the operating system via USB or network. The system will automatically program, and only need to set a few simple parameters, it can automatically complete the cutting operation.
