Product video

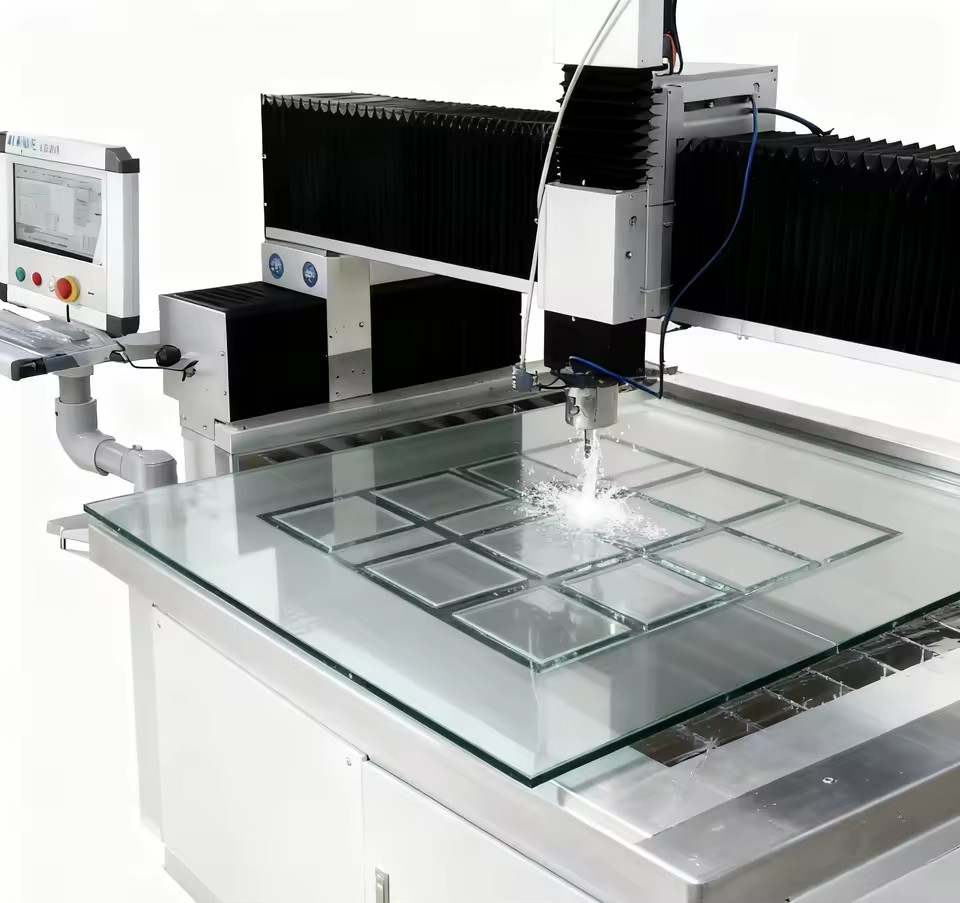

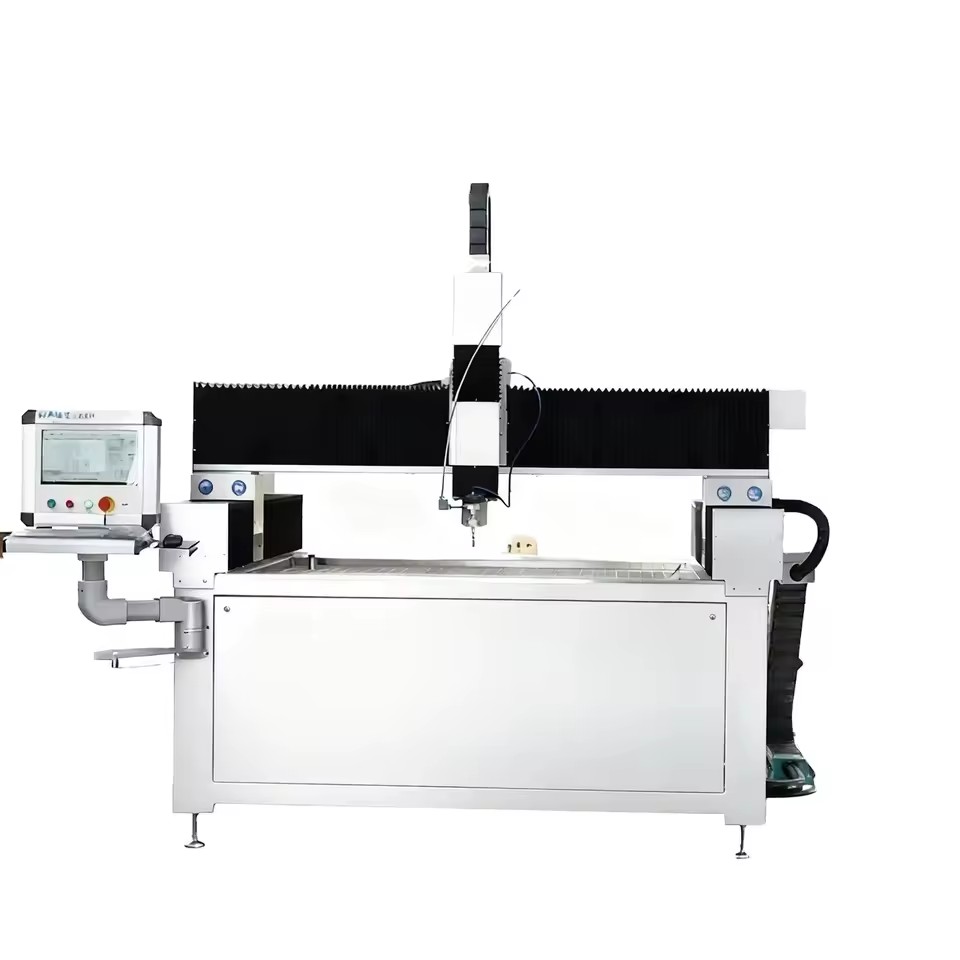

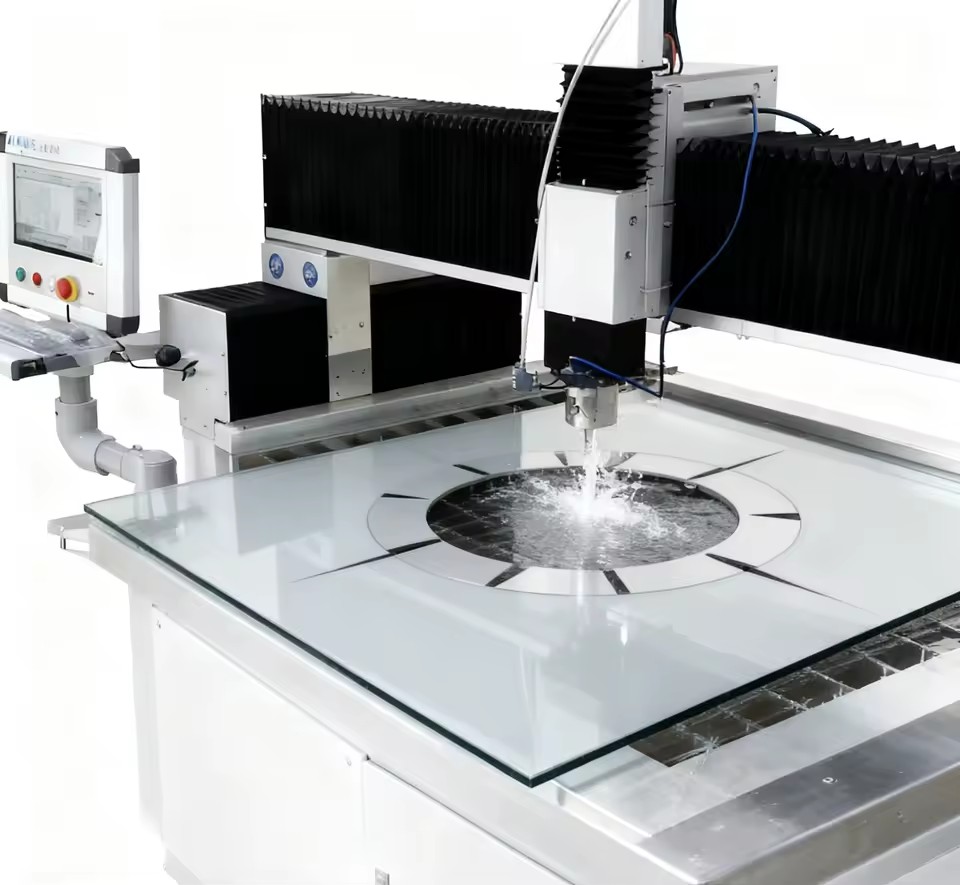

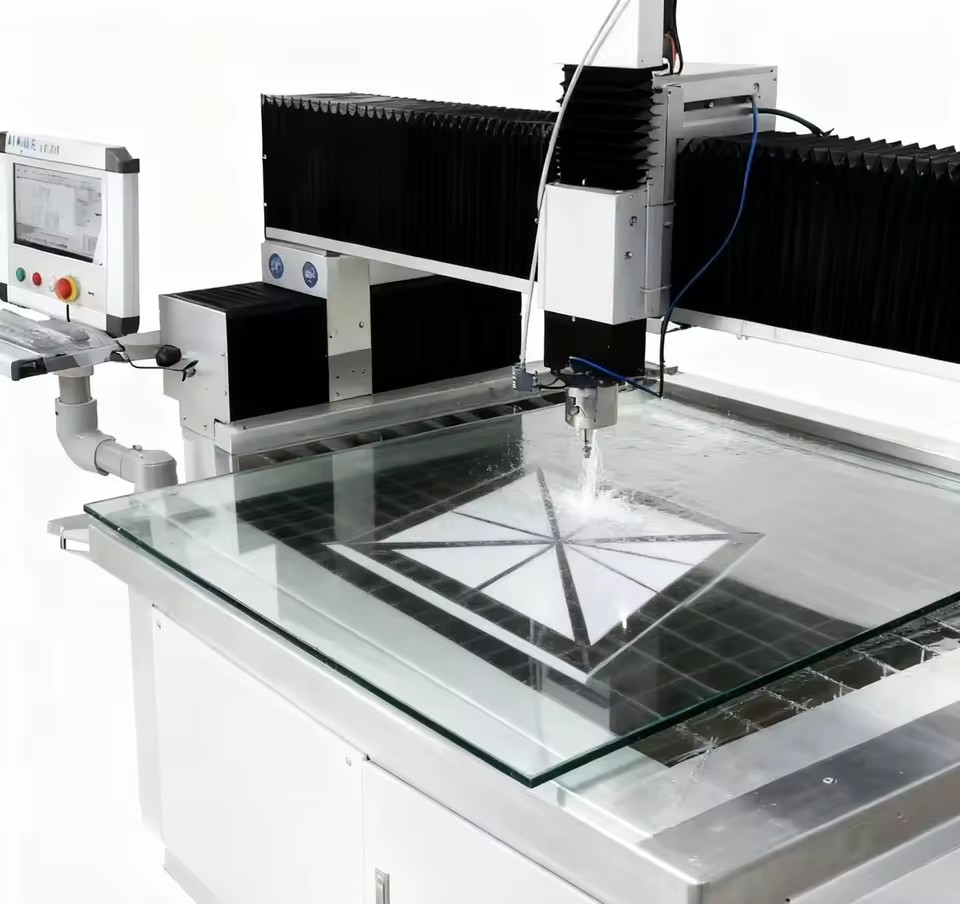

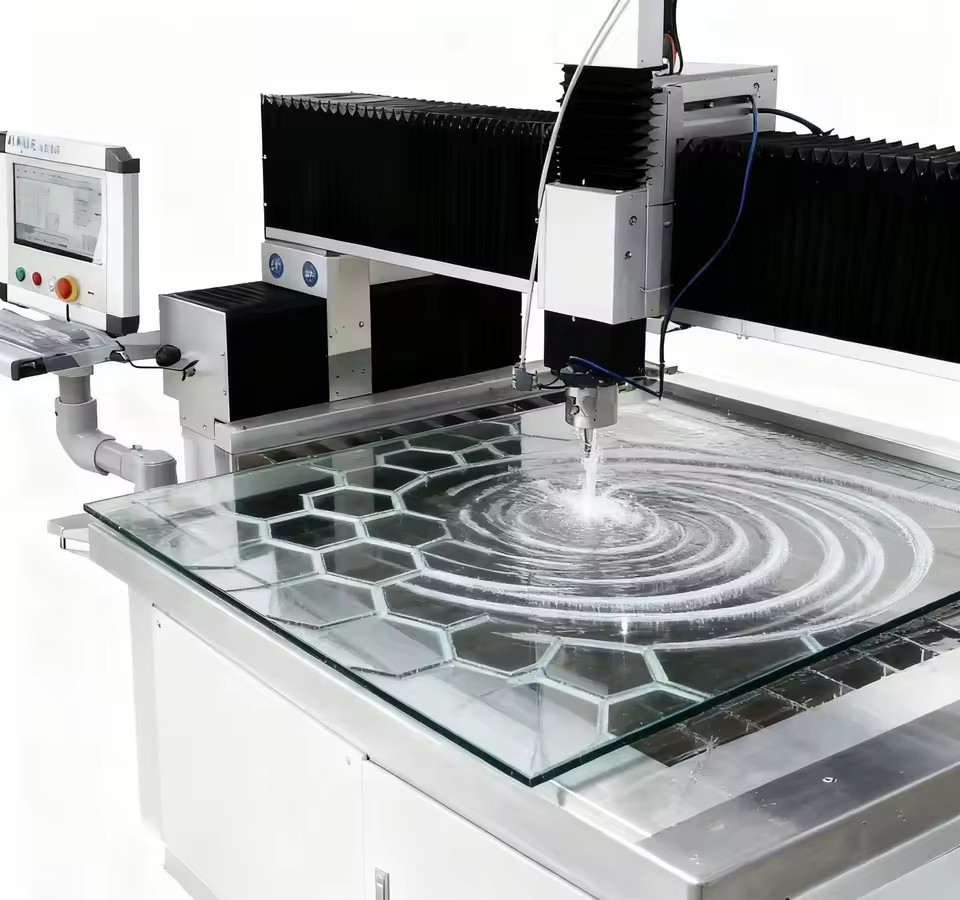

Water Jet Ski Robot 3-Axis Pump High Precision Automated Car Interior/Complex Shaped Parts Processing Water Jet Nozzle

Available for enquiry 0.0 · 0 reviews
USD

$ 40,850.00 40850.0 USD $ 40,850.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Voltage
380 V
Number of axes
3
Repeatability (x/y/z) (mm)
±0.05
Core components
Pump
Machinery test report
Provided
Warranty
1 Year
Product description

Water jet cutting machine

power-handling capability50hp(30KW)
Maximum pressure range420Mpa
Maximum cutting thickness100mm
Maximum3.7L/min
Maximum single nozzle diamete0.33
Working voltage and power suppl380V50Hz
Environmental operating temperaturelowest:40℉(5℃) highest:104℉(40℃)
Store at ambient temperaturelowest:36℉(2℃)
outline dimension, physical dimension, external dimensions1500*1400*1500
Water supply information by weight2460lbs（1120kg）
Minimum water supply flow4gpm(15.1lpm)
Minimum water supply pressure35PS0.24MPa
Reservoir capacity1L
Tank capacity cooling system30Gal.(114L)
Cooling water consumption3gpm(11.4pm)
Minimum pressure of cooling wate0.3MPa

QR-turbocharger control panel

1.Cutting system: (AB five-axis) 2.Main technical parameters
Number of control shafts5 shaftsAxis A rotation Angle±12°
B-axis rotation Angle±12°Angle control accuracy±0.01

Factory real photos

ModelQR-ATL4025
Overall dimensions5000*3300*1900
Cutting range4000*2500
Z-axis travel100
Control accuracy±0.1
Cutting accuracy±0.1
Repeat positioning accuracy±0.025
The maximum no-load moving speed of the machine tool8000

Question: What factors affect the cutting speed? Answer: It mainly depends on the material properties (hardness/thickness), water jet pressure, abrasive type and particle size. Question: Which vulnerable parts need to be replaced regularly? Answer: High-pressure seals (300-500 hours), nozzles and mixing tubes (80-120 hours), water filter elements (15-30 days). Question: How much water and abrasive are consumed? Answer: Pure water cutting is 15 to 25 liters of water per hour. Abrasive cutting: 10 to 20 liters of water + 2 to 5 kilograms of abrasive per hour. Question: What are the requirements for the installation environment? Answer: Stable 380V power supply, clean water source + drainage outlet, 1-1.5 meters of space around the equipment, temperature 5-40℃. Question: Is the maintenance cost high? Answer: Medium. The average monthly cost of vulnerable parts is 300 to 800 yuan, electricity cost is 6,000 to 12,000 yuan, and annual maintenance cost is 1,000 to 3,000 yuan. Question: What is the maximum cutting thickness? Answer: Pure water cutting soft materials ≤50mm; Abrasive cutting: metal ≤150mm/stone ≤ 200mm at 420MPa and stone ≤300mm at 600MPa.

Description images

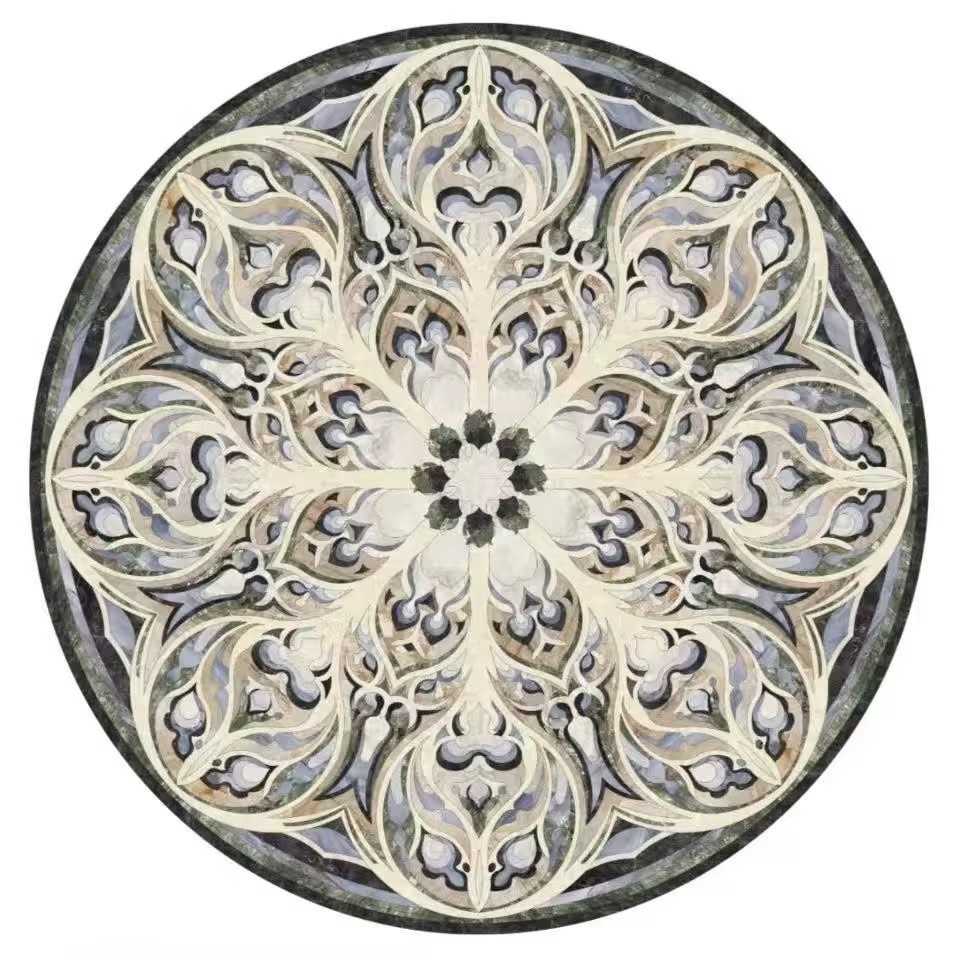

Product detail
Product detail
Product detail
Product detail
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    31 days

  • Step 3

    Packaging and dispatch

    Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 20 fields
Voltage
380 V
Number of axes
3
Repeatability (x/y/z) (mm)
±0.05
Core components
Pump
Machinery test report
Provided
Warranty
1 Year
Video outgoing-inspection
Provided
Key selling points
High-Accuracy
Rated power
40KW(53.64hp)
Place of origin
China, Guangdong
Weight (kg)
4000
Table travel (x) (mm)
3000
Table travel (y) (mm)
2000
Table travel (z) (mm)
200
Cutting accuracy(mm)
4000*2500
Selling Units
Single item
Single package size
500X330X190 cm
Single gross weight
4000.0 kg
Model number
qr
Effective cutting range (mm)
4000*2500
Lead time
31 days
Minimum order
1 Units
