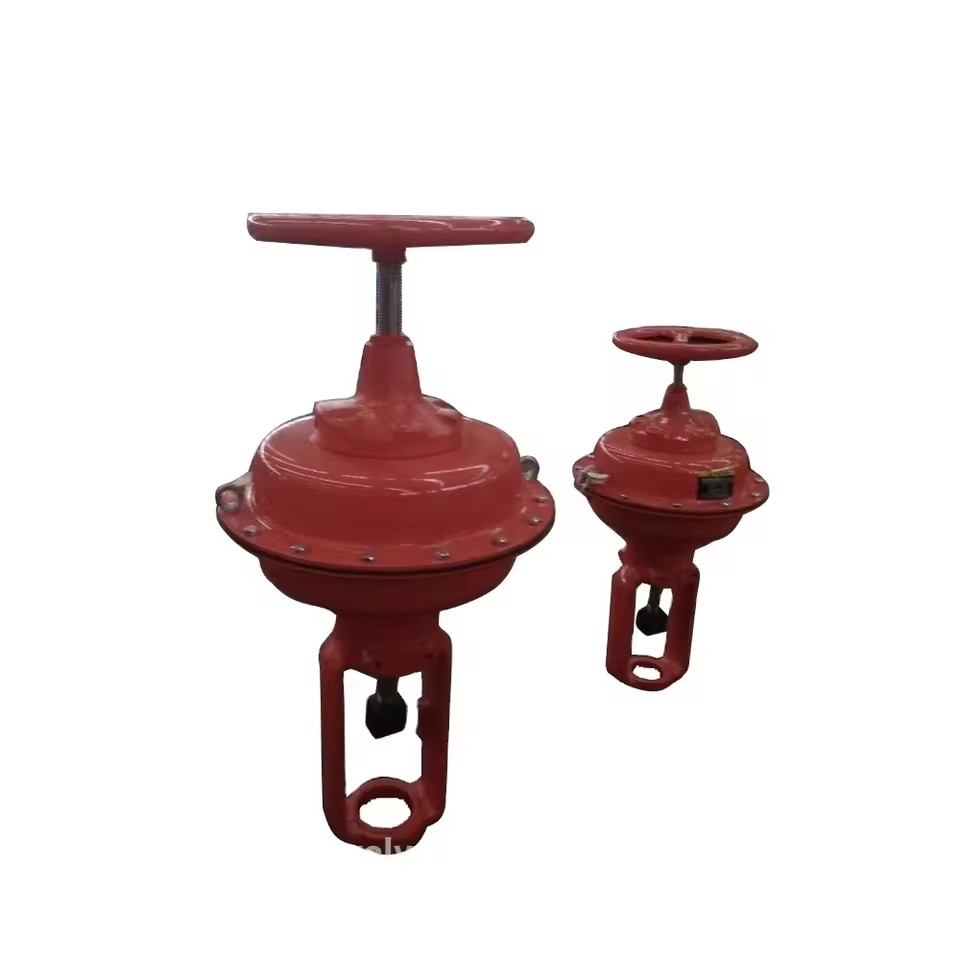

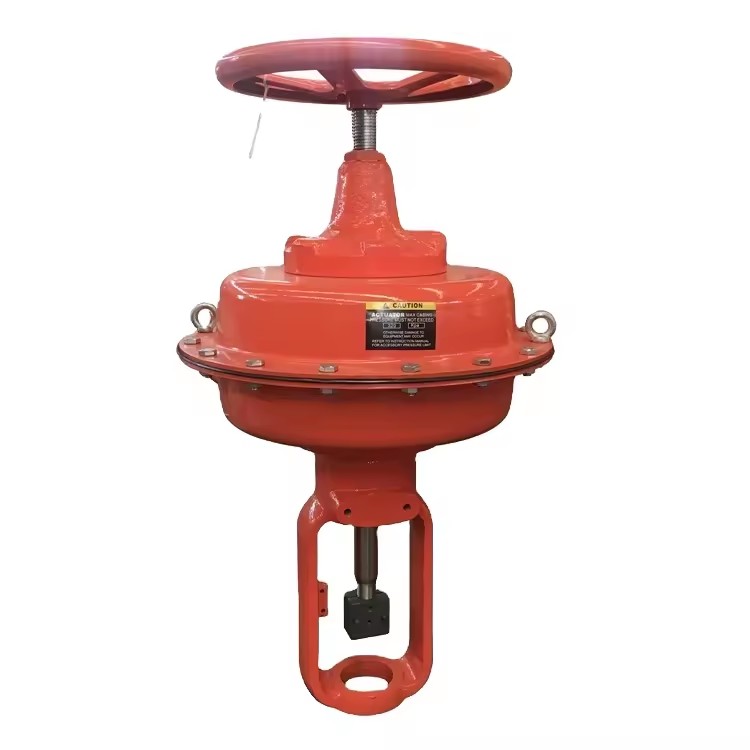

Name: Top Handwheel air to Open Diaphragm Pneumatic Actuator
SKU: B2B-12019
Price: 670.0 USD
Availability: PreOrder

Product description

This series of pneumatic film actuator is divided into two types, positive effects type and reaction type. The design of this actuator can make control valve switched and adjusted reliably.

Series	957,967
Form	multi-spring structure
Models	20,30,34,40,45,50,70
Action	1.positive action 2.reverse action
Maximum Thrust Output	see table 1
Route	see table 2
Supply Gas Pressure	320Kpa
Spring Range	positive action:20 ~ 100Kpa,40 ~ 200Kpa reverse action:80 ~ 200Kpa,120 ~ 240Kpa
Environment Temperature	standard form:-40 ℃ ~ 82 ℃ special form(choose):-18 ℃ ~ 149 ℃,-54℃ ~ 149 ℃
Major Parts Materials	Standard Form	membrane housings: steel film: chemigum film substrate: steel O-type ring: chemigum route sign: stainless steel pointer: stainless steel spring of actuator: steel guide rod of actuator: galvanized steel clamp block: galvanized steel holder: cast iron hand wheel: nodular cast iron
Special Form	film: fluororubber (-18 ℃ ~ 149 ℃) silicone synthetic rubber (-54 ℃ ~ 149 ℃) O-type ring: silicone synthetic rubber guide rod of actuator: galvanized steel connecting bolt:galvanized steel
Coating color	orange, white, green or custumers' required

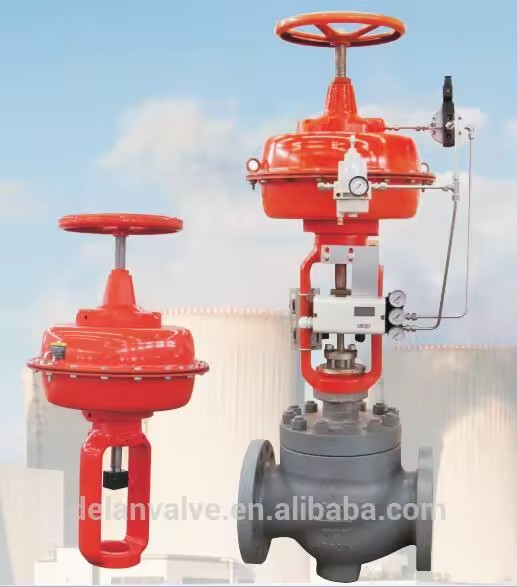

Attachment	locator, air filter depressurizer, limit switch, solenoid valve, lock up valve, amplifier, etc
Equipment Selection	manual operation mechanism, Special air piping and special air fittings, using with high temperature environment, using with low temperature environment, Salt corrosion prevention, designated coating color, etc.

Sheet 1 Maximum Output Thrust

Actuator Series	Compression Force Kpa	Spring range Kpa	Bleed Pressure Kpa	Maximum Output Thrust Kgf
Actuator Specification
20	30	34	40	45	50	70
957	20	20 ~ 100	320	440	770	1232	1232	1980	1980	3080
40	40 ~ 200	240	420	672	672	1080	1080	1680
967	80	80 ~ 200	160	280	448	448	720	720	1120
120	120 ~ 240	240	420	672	672	1080	1080

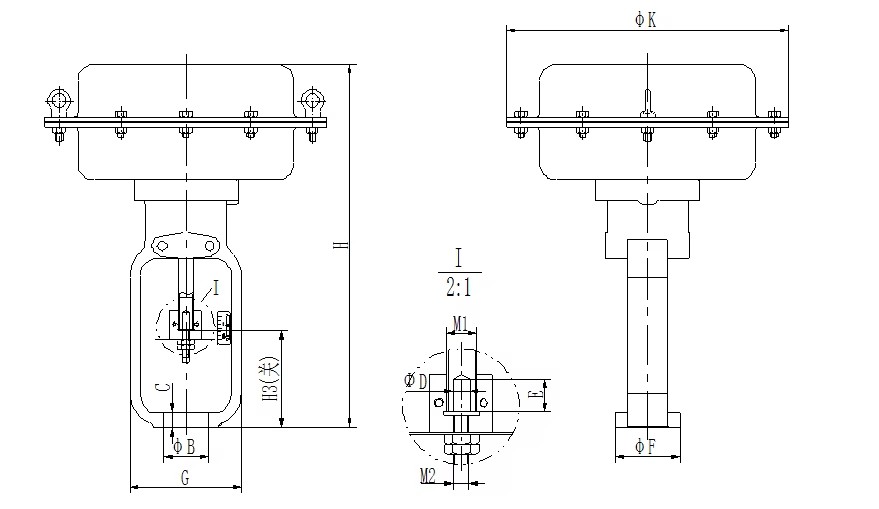

Sheet 2 The Active Area and Stroke of Diaphragm

Actuator Specification	20	30	34	40	45	50	70
Shell Diameter(mm)	240	280	340	340	470	470	560
Holder	20	30	30	40	40	50	70
Active Area of Diaphragm (cm2 )	200	350	560	560	900	900	1400
Standard Stroke (mm)	19	19	29	38	51	51	76
Lengthened Stroke(mm)	29	38	51	76	76	102

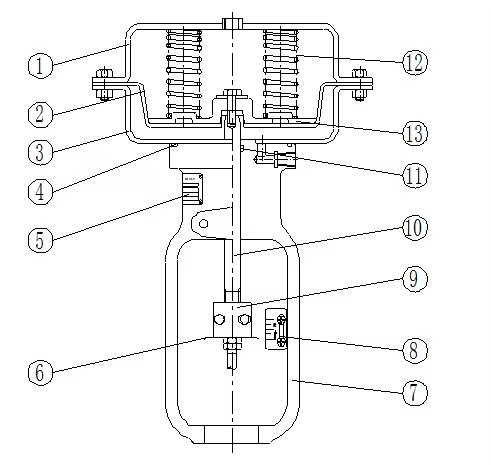

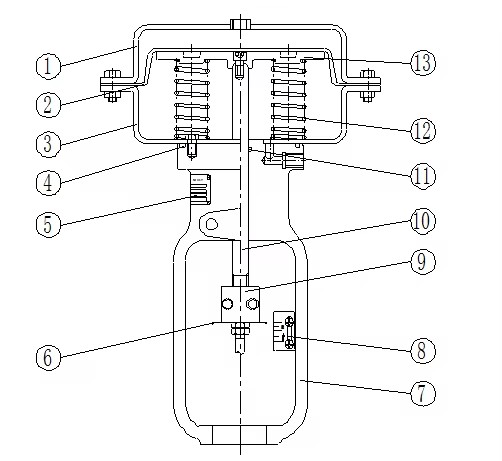

01 direct action ( fail up)

02 reverse action (Fail down)

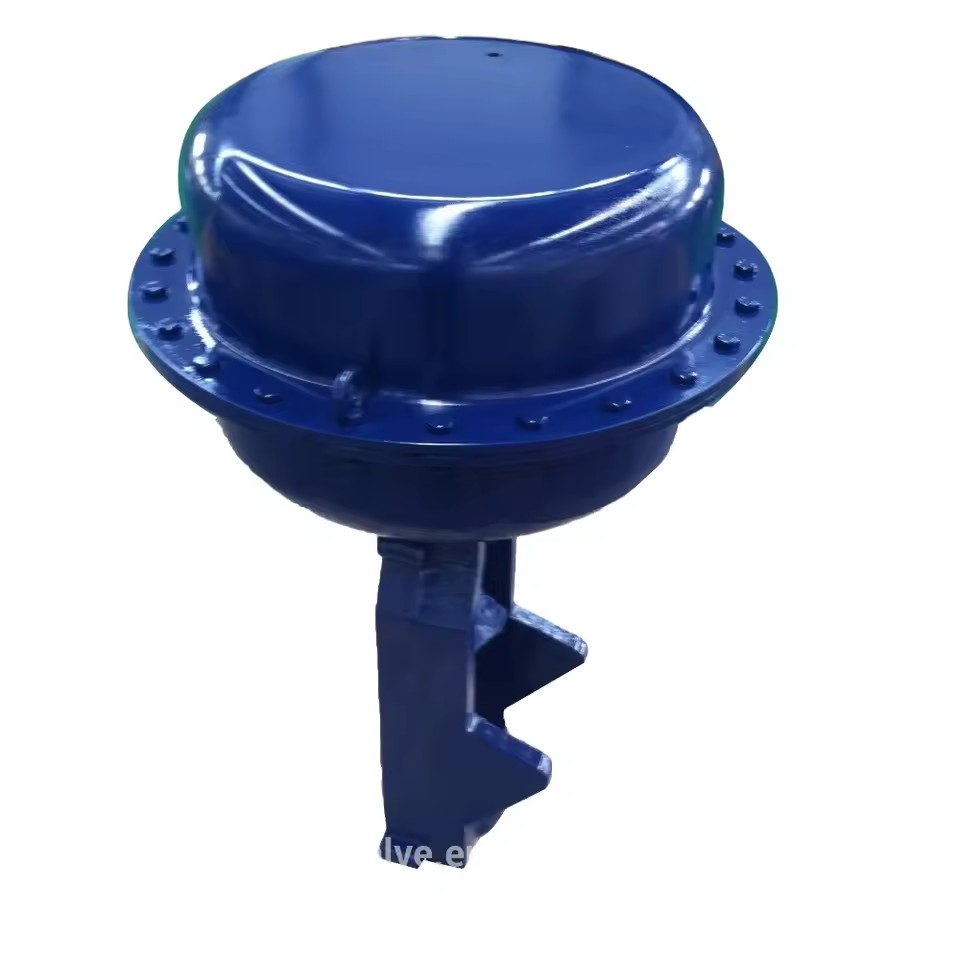

03 no handwheel

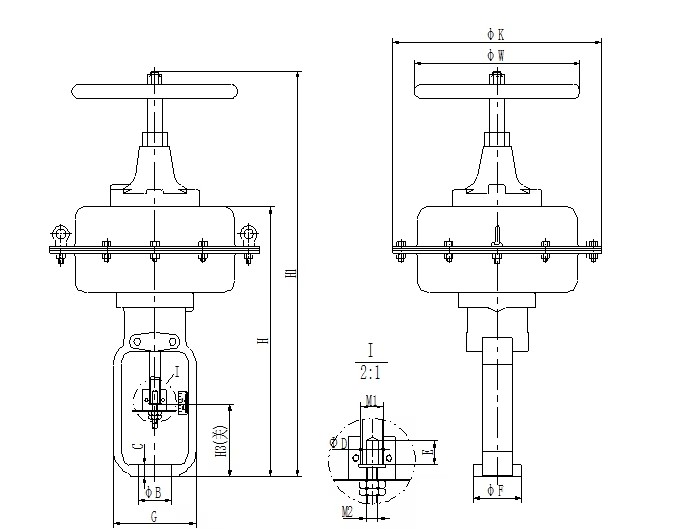

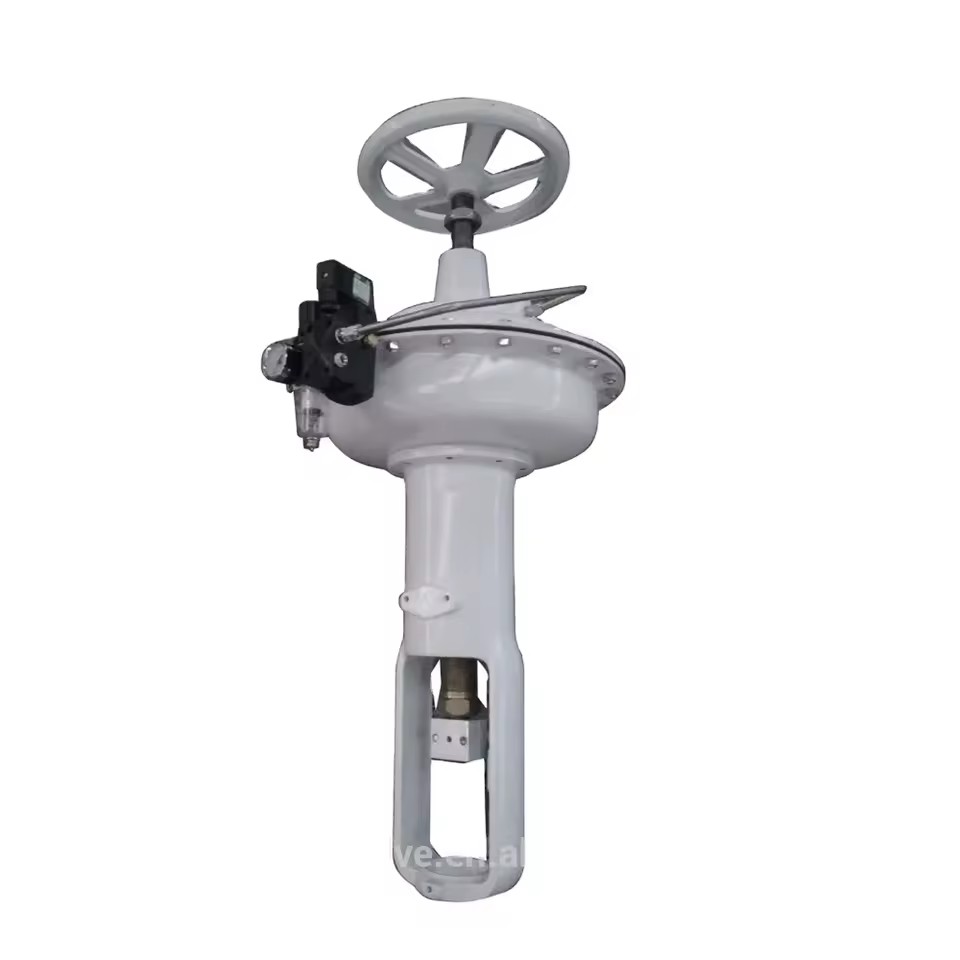

04 top handwheel

05 side handwheel
