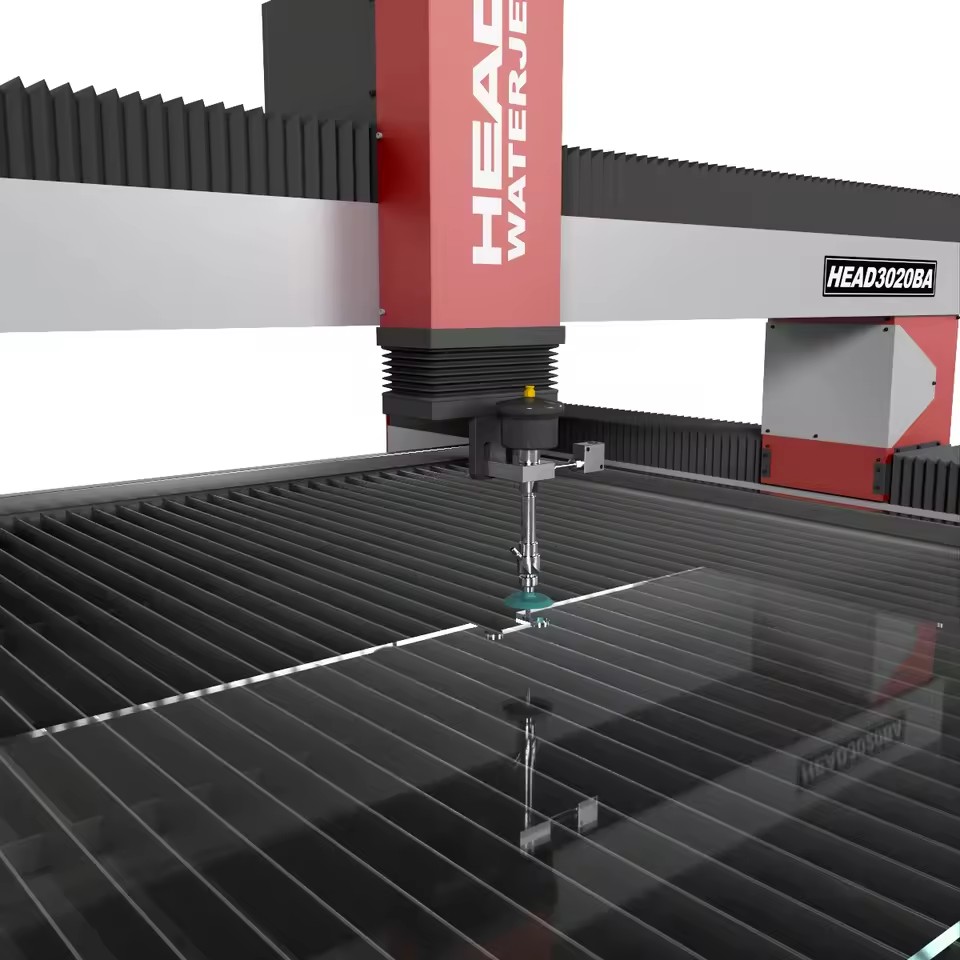

Water jet laminated glass cutting machine prices
Waterjet cutting is a fast growing machine tool process, due to its versatility and capability to cut most types of materials, manufacturers are realizing that there are virtually no limits to what waterjets are capable of cutting. Major benefits of waterjet cutting include; no heat generated structural changes, cold cutting process, virtually burr free cut edges, reduces finishing operations and no material distortion or discolouration.
SPECIFICATIONS FOR WATER JET CUTTING MACHINE
Max. pressure
420MPA/60000psi
Max. flow rate
3.7L / min
Electrical source voltage
3 phases 220/380 Voltage, 50/60Hz, 37KW, 50HP
Max. diameter of nozzle / orifice
1.02mm / 0.33mm
Max. delivery capacity of oil pump
106L / min
Max cutting
1-10 cutting (1 for standard machine)
IGEMS brand from Europe, the most famous 5 axis water jet software around the world.The 5 axis water jet software is.The software can achieve auto-changing cutting angle when we are using the 5 axis. It can also control cutting speed when we cut line or corner to ensure cutting quality
IGEMS CAD: A software built in module allowing to create and modify drawings. Enables importing of drawings from various file formats, including *.cdr files. Clear interface and intuitional handling, similar to leading 2D CAD software. DATA Exchange:A tool enabling import of files originating from different external software, without the need of their additional conversion. Useful particularly when using files with extensions different than *.DWG and *.DXF. CAM Tools:This module includes 14 tools designed for optimisation of imported objects in terms of creating a working path for the tool. In several simple steps it is possible to erase hidden/duplicated contours, elimination of gaps in the contours or changing splines to vector lines. AWJ: Add-in enabling optimisation of cutting speed for machines equipped with the abrasive cutting system. Bevel:2 & 3D cuttingFrom now on you can import 3D files into IGEMS and place toolpaths on the contour of the model. This feature is something we've been working on for the past year and is something we are really proud of.There are plenty of settings in a 3D software, and we believe in things that are easy to use. So we stripped it down as much as possible to give you a light and fast 3D software for applying toolpaths.The module includes functions for defining surfaces/edges, adding toolpaths and customise leads, collision control etc. It's included in the regular Bevel module and can be downloaded by anyone with an update subscription.
The cutting table adapts latest loading design, the max overturn angle is 85,the distance between loading material and ground is only 100 mm, max load-bearing is 1000 KG, hydraulic lifting and some other designs can meet the requirement of marble cutting. The situation many personnel are needed for loading material is changed, nowadays only 1 person is needed for the whole loading process. simple,convenient,greatly reduce the labor cost and minimize the marble breakage. This cutting table structure is 1st time adapted in domestic. It gains high praise once used by lots of marble processing clients.
A. Press the green button to start the turning of the system, at this time, the hydraulic station is supplying the hydraulic oil to the hydraulic cylinder. B. Press the up button, the hydraulic cylinder begin to move, and the loading system begin to turn up C. Press the red button to stop the loading system, when it stay in a certain angle level. Then you can put your cutting material on the system. D. After you load your material, then press the down button, the loading system will go down and back to the water tank
Designed & manufactured to perfection, we are one of the well known and leading manufacturers and exporters of Water Jet Cutting Machinery. At our premises, we are manufacturing the cutting machinery utilizing premium quality of raw materials and components. In addition to this, the cutting machinery is best known in the market due to its remarkable features such as high performance, easy operation and durability. This Machinery finds usage in many application such as automotive, aerospace and electronics for cutting metals and non metals.
Our Service
1. Maintenance free of charge for 12 months. 2. We will provide the consumable parts at an agency price. 3. 24 hours online service, free technical support. 4. Machine has been adjusted before delivery, operation disk is included in the delivery. If there is any other questions, pls kindly tell me. 5. We have manual instruction and Videos for software Installation, operation and machine's using and maintenance; We will send professional technician to customers' factory, provide them two-weeks training, including working principle of machine, Auto CAD drawing, common problems and solution, etc.

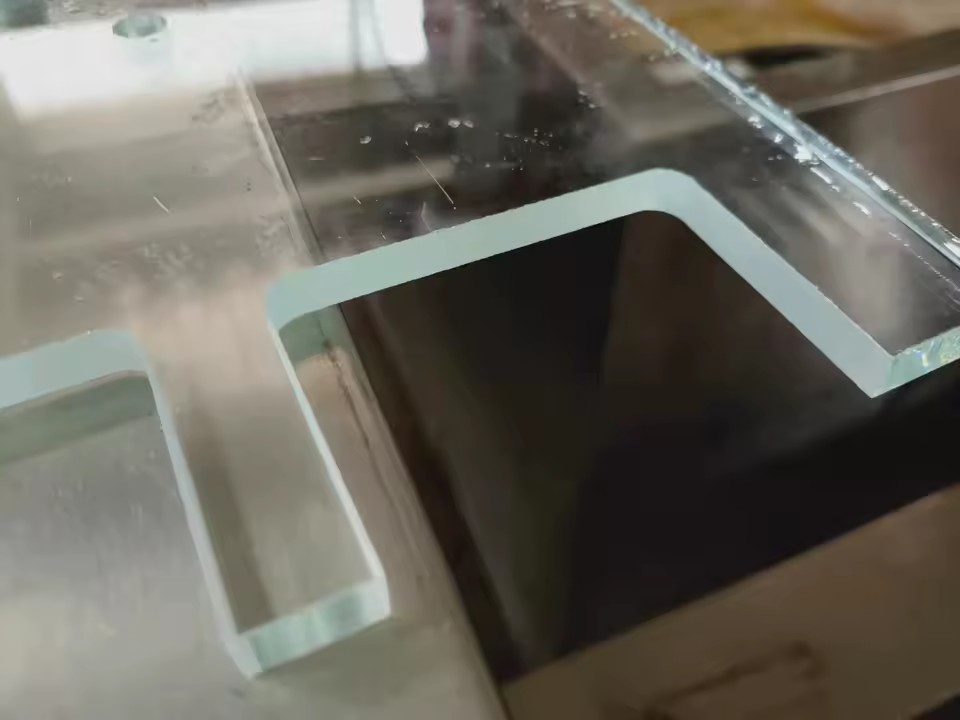

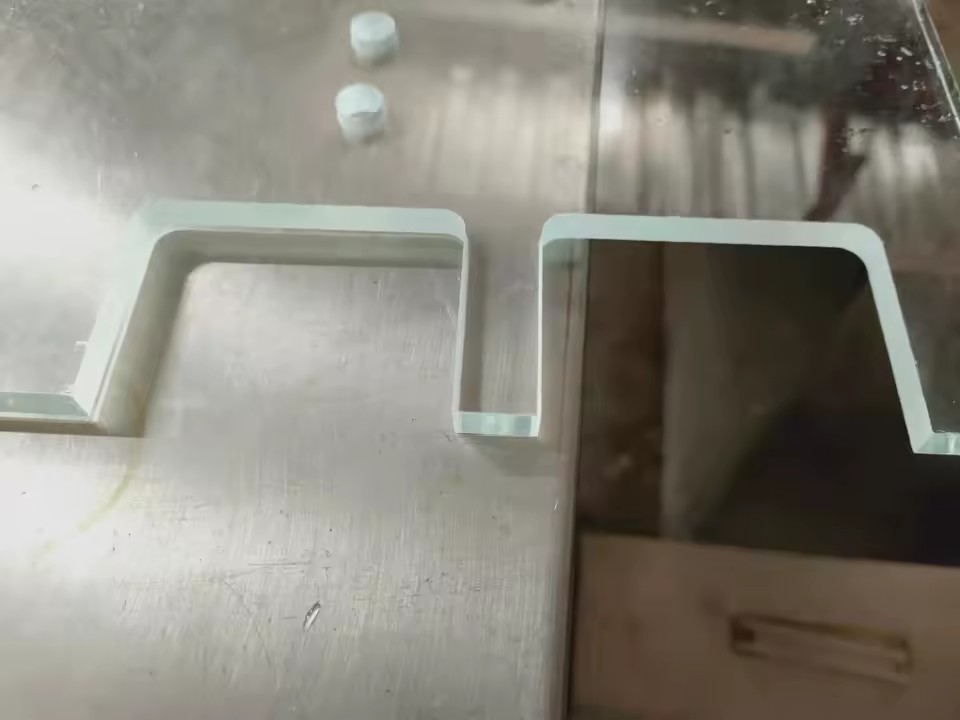

FAQ Q1: Does This Machine Pass CE Certificate? A2: Yes, this machine passed European CE certificate and meet Safety Standard. Q2: How much of cutting thickness? A2: Marble is 0-120mm; granite is 0-110mm; tiles are 0-40mm; glass and mosaic is 0-80mm; steel, stainless steel, copper is 0-60mm; aluminum is 0-80mm; plastic, acrylic, foam is 0-200mm. With our double-pressures system, it can cut 0-160mm steel sheet, 0-200mm stones. It is good for customers cut thicker materials. Q3: How fast of speed? A3: Speed depends on cutomers' materials and cutting requirement, and customers can adjust speed parameters.
Our Package Advantage: 1. Our Wooden Case is after fumigation treatment. Needn't timber inspection,saving shipping time. 2. All the spare parts of the machine were bovered by some soft materials,mainly using Pearl Wool. Avoiding all damages that could happen in the delivery process.Then we'll covered plastic wrap out it tightly, make sure intact of the covered soft materials,also avoiding Waterproof and rust proof. 3. The outmost is Wooden Case With Fixed Formwork. 4. The bottom of the wooden case has firm iron jack,convenient to Handling and transport.
Before delivery, we would do the test about 20-30 working hours for machine, and use standard packing to each configuration. We choose famous export company and transport company, making shipment more convenient and safer.
Product Description
IGEMS CAD
A software built in module allowing to create and modify drawings. Enables importing of drawings from various file formats, including *.cdr files. Clear interface and intuitional handling, similar to leading 2D CAD software.
DATA Exchange
A tool enabling import of files originating from different external software, without the need of their additional conversion. Useful particularly when using files with extensions different than *.DWG and *.DXF.
CAM Tools
This module includes 14 tools designed for optimisation of imported objects in terms of creating a working path for the tool. In several simple steps it is possible to erase hidden/duplicated contours, elimination of gaps in the contours or changing splines to vector lines.
AWJ
Add-in enabling optimisation of cutting speed for machines equipped with the abrasive cutting system.
Bevel
2 & 3D cuttingFrom now on you can import 3D files into IGEMS and place toolpaths on the contour of the model. This feature is something we've been working on for the past year and is something we are really proud of.There are plenty of settings in a 3D software, and we believe in things that are easy to use. So we stripped it down as much as possible to give you a light and fast 3D software for applying toolpaths.The module includes functions for defining surfaces/edges, adding toolpaths and customise leads, collision control etc. It's included in the regular Bevel module and can be downloaded by anyone with an update subscription.
A
. Press the green button to start the turning of the system, at this time, the hydraulic station is supplying the hydraulic oil to the hydraulic cylinder.
B
. Press the up button, the hydraulic cylinder begin to move, and the loading system begin to turn up
C
. Press the red button to stop the loading system, when it stay in a certain angle level. Then you can put your cutting material on the system.
D
. After you load your material, then press the down button, the loading system will go down and back to the water tank

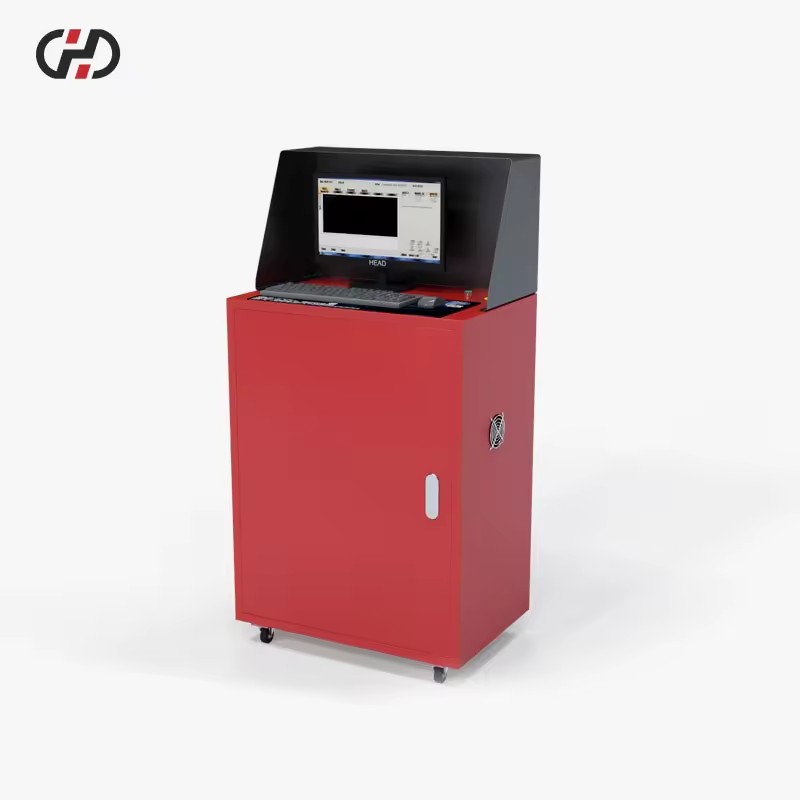

* To control all the cutting process
* Shanghai "WEIHONG"brand
* Easy to operate in just 8 hours to learn
The largest water cutting machine
Waterjet independently developed 4500*10000mm large-scale water cutting equipment, which is the largest water cutting platform. The most important reason for customers to choose us is that has the strongest R&D and design team. The perfect delivery of customized cutting equipment
Quality Testing
WATERJET has the complete produce and fabrication system, which has over 4000CBM factory and office, which can meet the Standardized 5s process Modular Production request, and can guarantee Quality and Quantity. Safe and Civilized according to Specifications, Process Operation,and Standard Acceptance.
Certificate
Our company has the complete organizational structure, we have over 70 employees+30 global cooperative agents and engineers, and has the complete marketing, service, research and develop and production system which can supply the complete and on time service. We have ISO/EAC/CE/SGS/ Golden Supplier Certificate.
Double Protection
Double water and dust proof: pvc covers ( inner ) and stainless steel covers for both X and Y axis
Quality Inspections
has 120 quality inspections and 80 durability test, which can guarantee the complete process technology and quality control. Heavy base body with vibration aging treatment after welding, in order to pretent the machine from shape out after Long working time. Milling by CNc Without vibration during machine working
Laser Interfere Compensator
Machine's X,Y lead screw's accuracy is calibrated and compensated by Renishaw Laser Interferometer system.
Service & FAQ
1. Maintenance free of charge for
12 months.
2. We will provide the consumable parts at an agency price.
3.
24 hours online service
free technical support.
4. Machine has been adjusted before delivery, operation disk is included in the delivery. If there is any other questions, pls kindly tell me.
5. We have manual instruction and
Videos for software Installation
operation and machine's using and maintenance; We will send professional technician to customers' factory, provide them two-weeks training
including working principle of machine, Auto CAD drawing, common problems and solution, etc
FAQ
Q1: Does This Machine Pass CE Certificate?
A2: Yes, this machine passed
European CE
certificate and meet
Safety Standard.
Q2: How much of cutting thickness?
A2: Marble is 0-120mm; granite is 0-110mm; tiles are 0-40mm; glass and mosaic is 0-80mm; steel, stainless steel, copper is 0-60mm; aluminum is 0-80mm; plastic, acrylic, foam is 0-200mm. With our double-pressures system, it can cut 0-160mm steel sheet, 0-200mm stones. It is good for customers cut thicker materials.
Q3: How fast of
speed
?
A3: Speed depends on cutomers' materials and cutting requirement, and customers can adjust speed parameters.
About our company
Packing & Delivery
Our Package Advantage
1. Our
Wooden Case
is after fumigation treatment. Needn't timber inspection,saving shipping time.
2. All the spare parts of the machine were bovered by some soft materials,mainly using Pearl Wool.
Avoiding all damages that could happen in the delivery process.Then we'll covered plastic wrap out it tightly, make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.
3. The outmost is Wooden Case With Fixed Formwork.
4. The bottom of the wooden case has firm iron jack,convenient to Handling and transport.
Before delivery
we would do the test about
20-30
working hours for machine, and use standard packing to each configuration. We choose famous export company and transport company, making shipment more convenient and safer.
