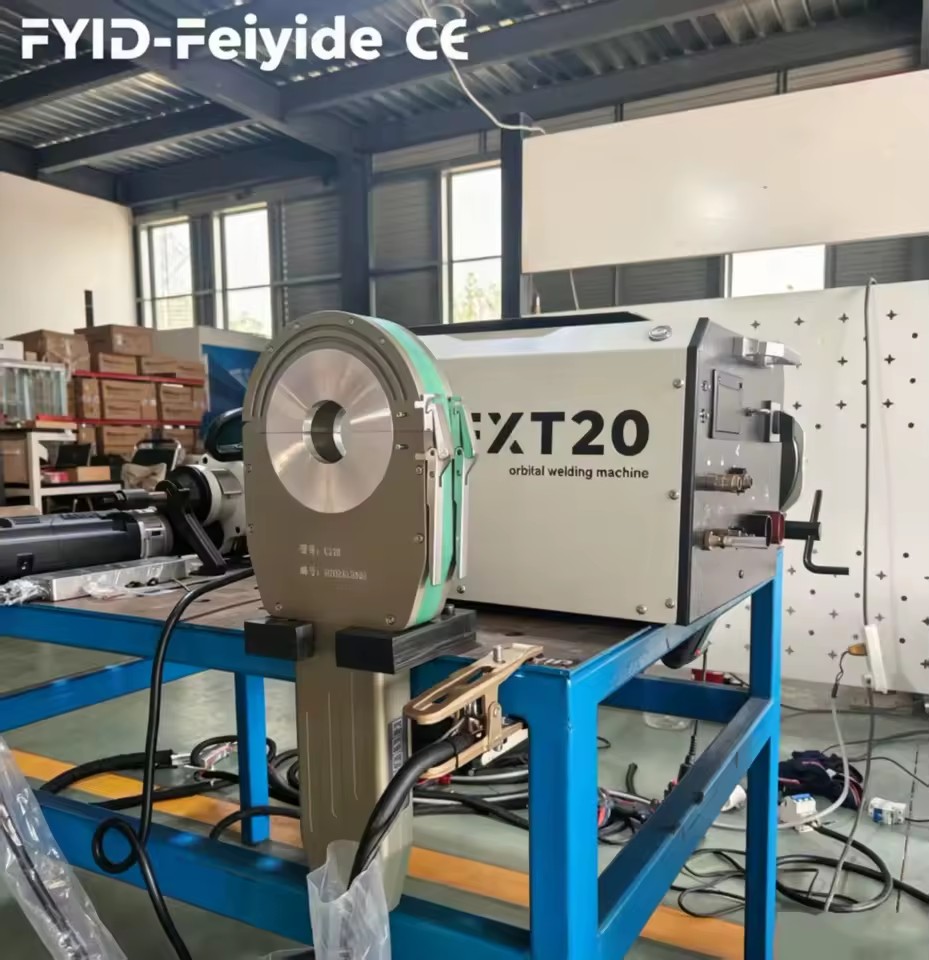

Orbital Tube Welding Machine for Stainless Steel and Copper Pipe Automatic Welder Factory Price Industrial Equipment

Product Importer Gallery 01 · 50ba59cde0

Product Importer Gallery 02 · add8085a2a

Product Importer Gallery 03 · c96937d66e

Product Importer Gallery 04 · b177b41cbf

Product Importer Gallery 05 · 888afaeca5

Product video

Certifications CE

Orbital Tube Welding Machine for Stainless Steel and Copper Pipe Automatic Welder Factory Price Industrial Equipment

Name: Orbital Tube Welding Machine for Stainless Steel and Copper Pipe Automatic Welder Factory Price Industrial Equipment
SKU: TJ37-HVKV-53F7
Price: 4810.0 USD
Availability: PreOrder

Available for enquiry 0.0 · 0 reviews

USD

$ 4,810.00 4810.0 USD $ 4,810.00

Minimum order quantity: 1 Units

Key attributes

View all

Voltage

220 V, 110 V, 175--240V

Condition

New

Frequency

50 Hz, 60 Hz

Warranty

2 Years

Tube Diameter

50mm---315mm

Place of origin

China, Hubei

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Ocean + Express via FLY Logistics · Approx. shipping fee: $ 96.32 for 1 set · Transit time: Est. 16-23 days

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

Product Details

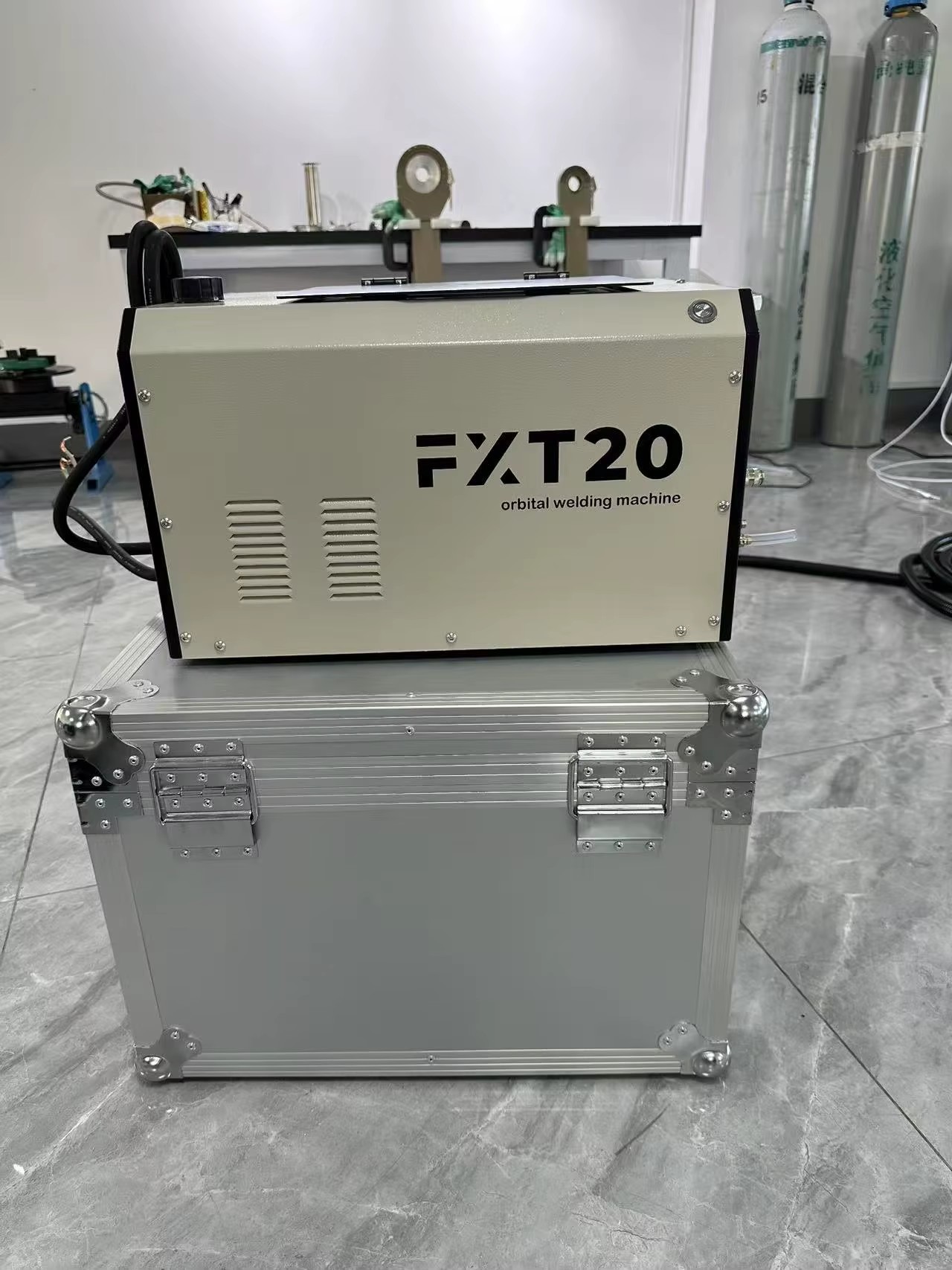

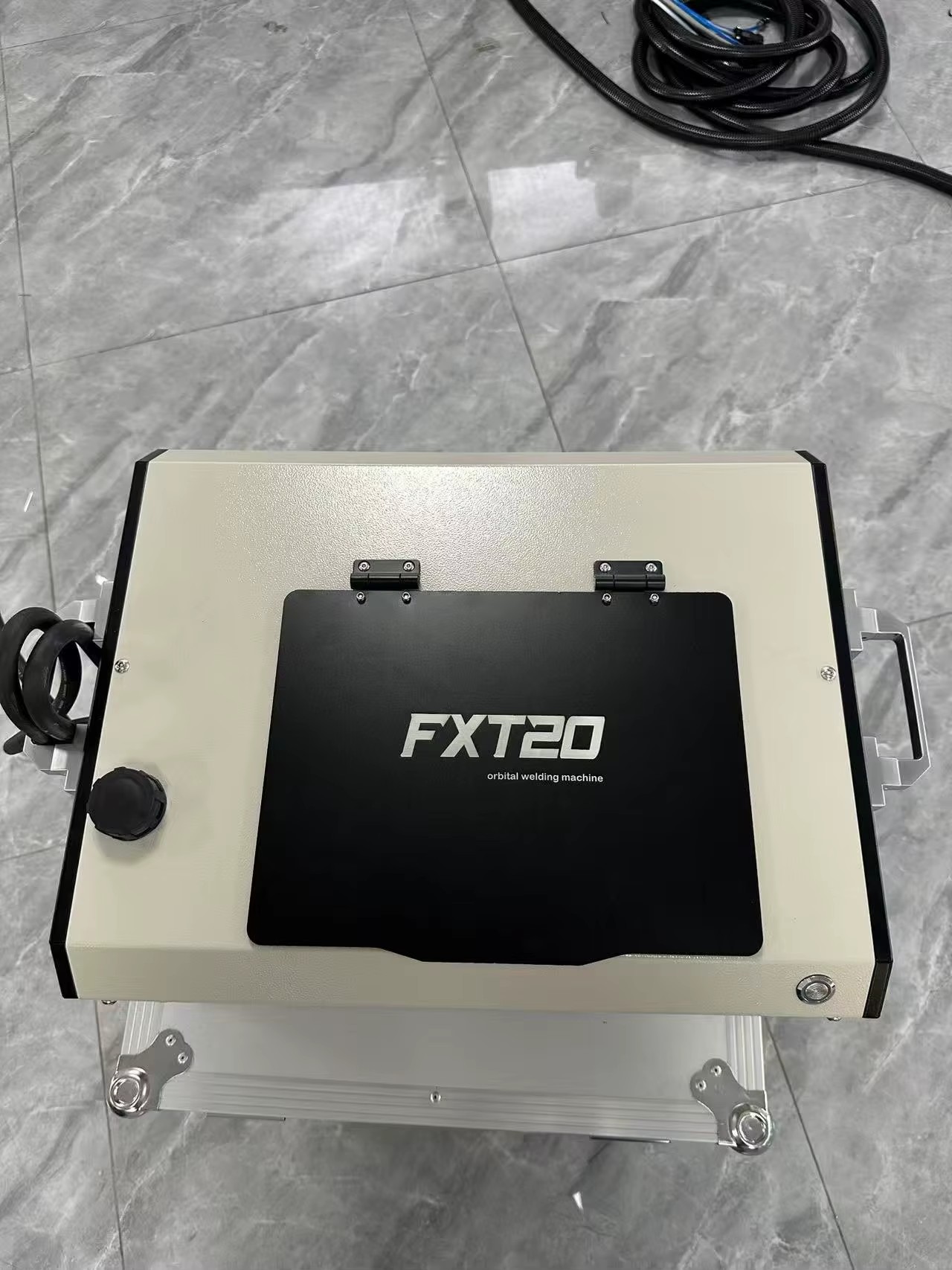

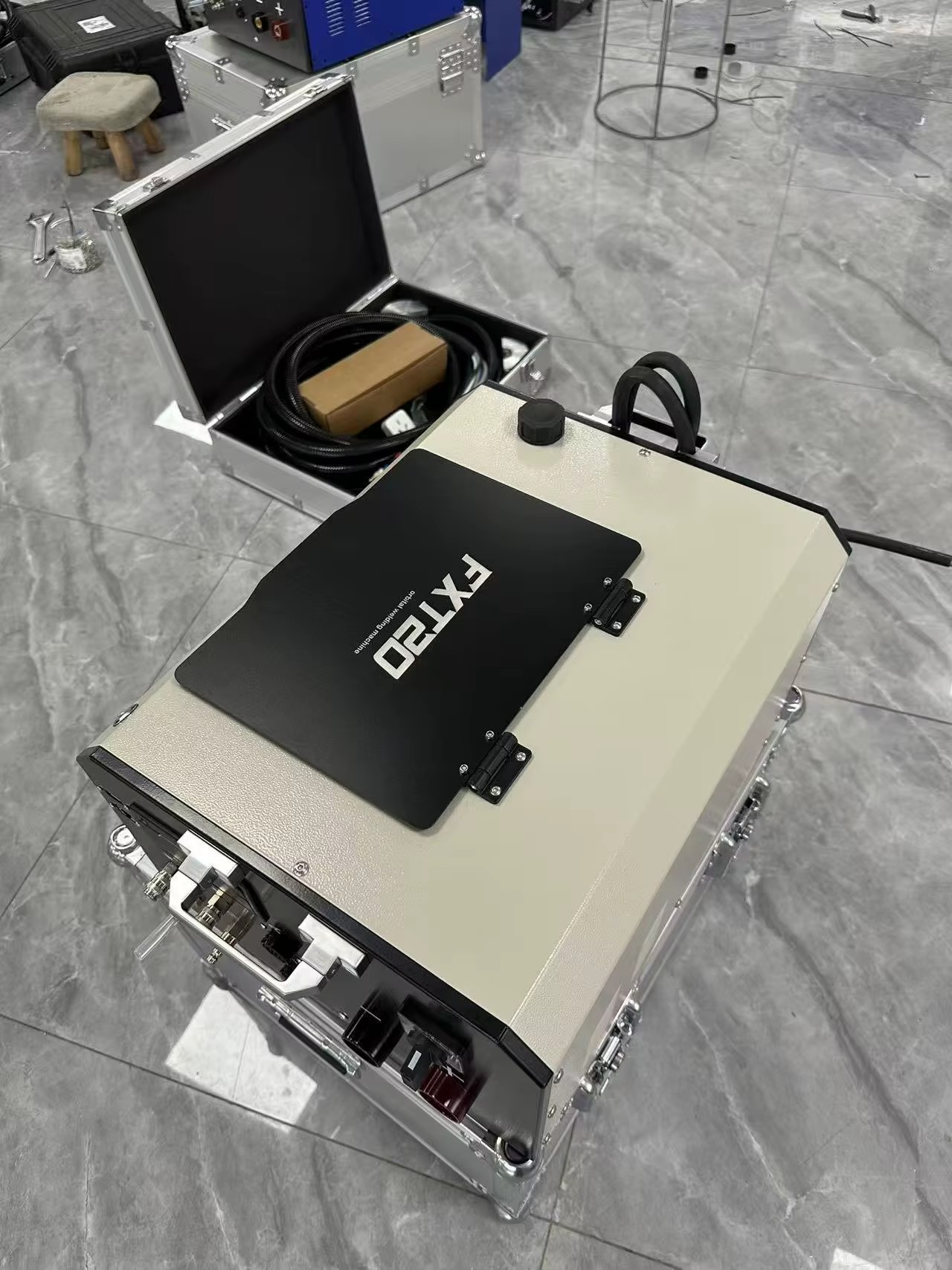

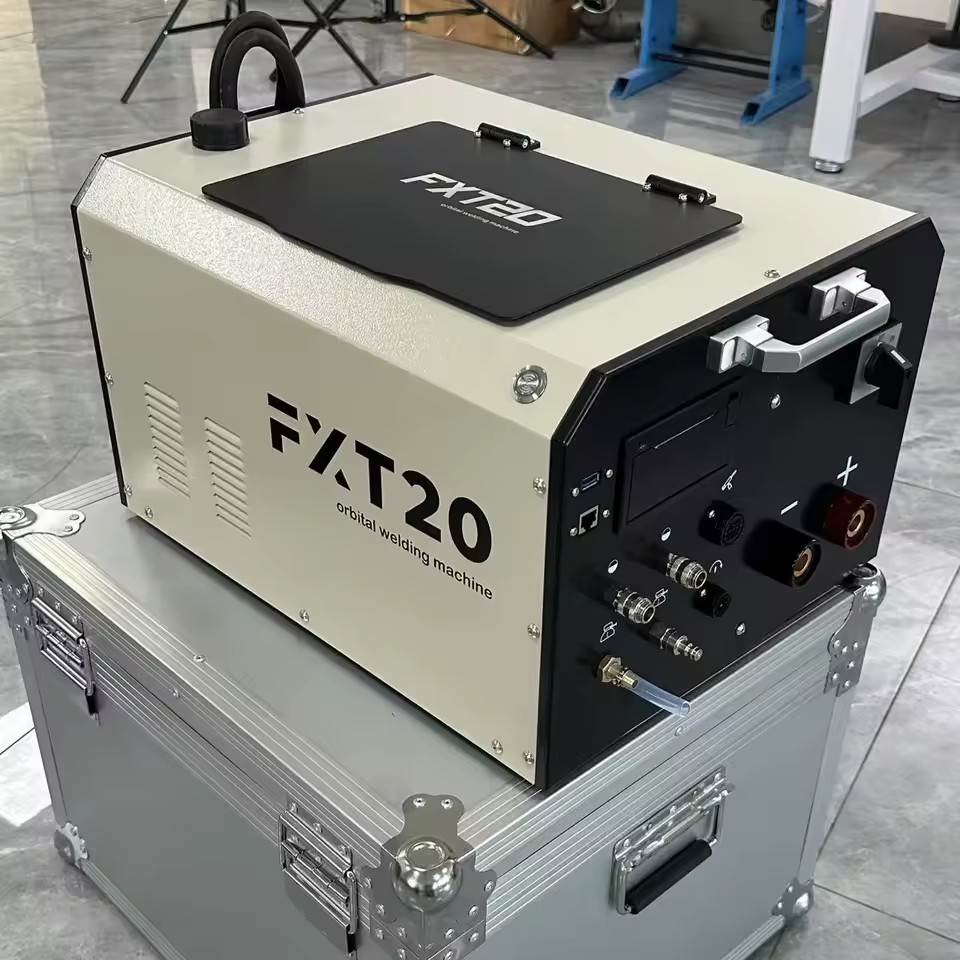

Model	FXT20 Digital programmable power supply
Current input(V)	220V ± 10% (AC)	Current output (A)	5-200A(DC)
No-load voltage (V)	65	Power(KVA)	4.5
Temporary load rate
Current input	Average output	Temporary load rate
220V/16A	200A	60%
220V/16A	150A	100%
Other
Protective gas	Argon	Cooling method of welding torch	Water-cooling
Overall dimension(mm)	500x380x300	Weight (KG)	27 (Including 2.2L cooling water)

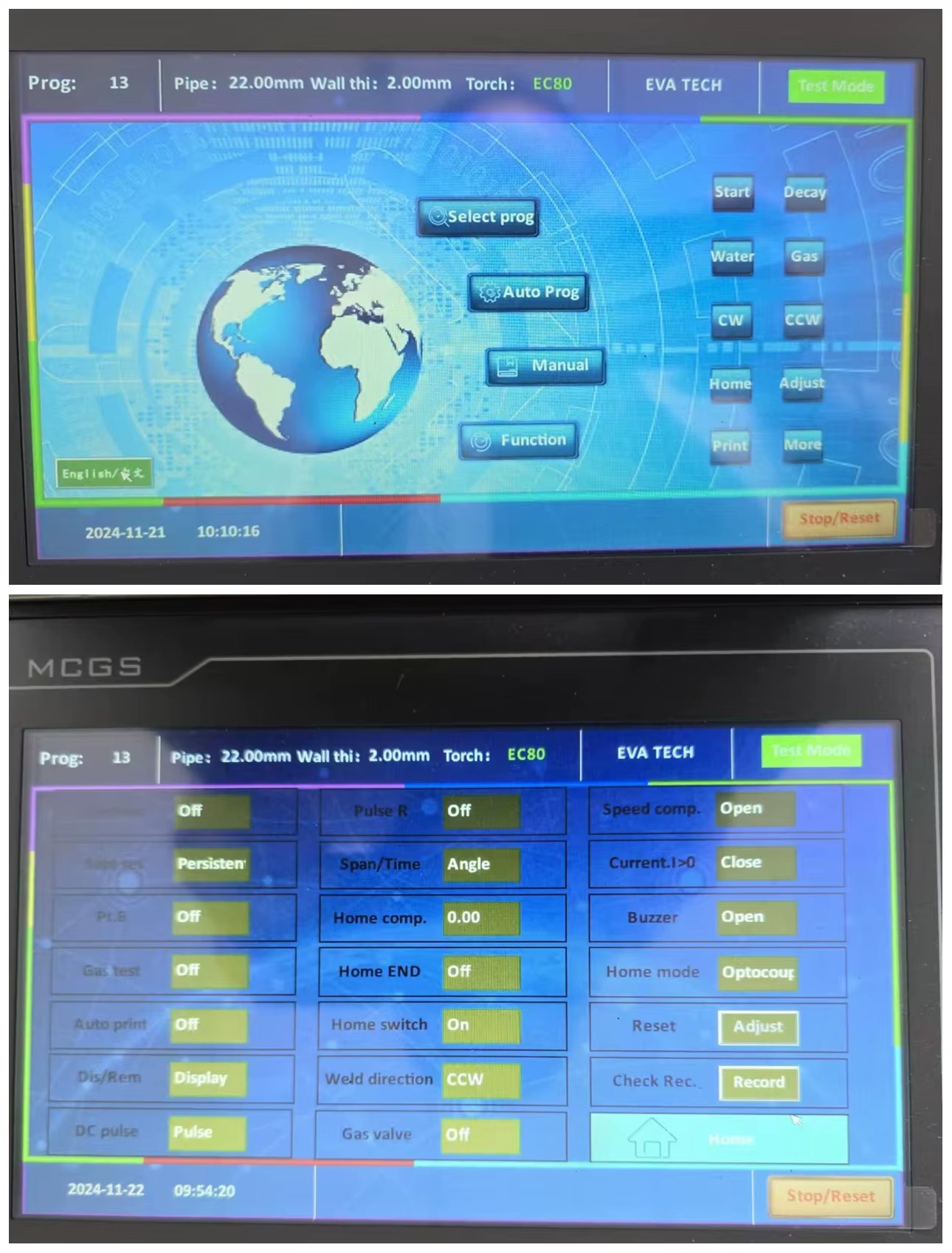

control mode	PLC	Store parameters	200 Groups
Welding section	Optional 12	Protection class	IP21
Function control	Current Control, Gas Control, Rotary Control,Printing control, Water cooling control
Safety functions	Over-voltage, overload, leakage, arc failure, tungsten pin short circuit protection, and defect detection

Performance characteristic

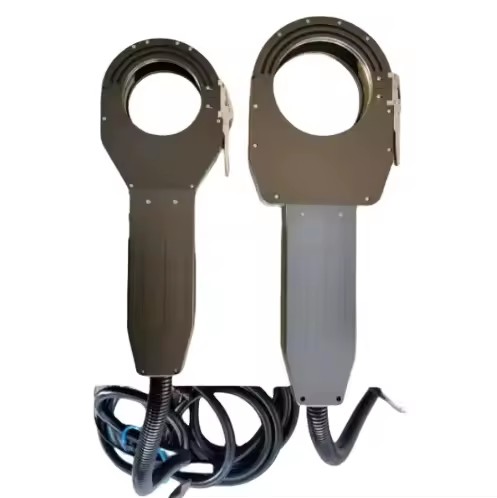

Torch Model	C5	C10	C40	C80	C120	C170
Matching Power Supply	FXT20
Welded pipe diameter range (mm)	3.175-15.88	6.35-25.4	6.35-38.1	10-76.1	19-114.3	38-165.2
Wall Thickness (mm)	0.5-1.5	0.5-2	0.5-2.5	0.5-3	0.5-3	0.5-3
Weldable materials	Stainless steel, carbon steel, titanium alloy, etc.
Cooling method	Water cooling
Weight (kg)	1.3	1.8	3.5	5	6.5	9.5
Outline Size Dimension (mm)	1557050	17010055	377x129x42	438x155x44	540x195x54	62029065

Certifications & compliance

Complies with EU standards

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

31 days
Step 3

Packaging and dispatch

Ocean + Express via FLY Logistics · Approx. shipping fee: $ 96.32 for 1 set · Transit time: Est. 16-23 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 21 fields

Voltage

220 V, 110 V, 175--240V

Condition

New

Frequency

50 Hz, 60 Hz

Warranty

2 Years

Tube Diameter

50mm---315mm

Place of origin

China, Hubei

Dimensions

640*460*380mm

Usage

Welded Tubes

Weight

42.5

Weight (kg)

42.5

Welded pipe diameter range (mm)

3.175-165.2

Wall thickness (mm)

0.5-3.0

Weldable material

Stainless steel, carbon steel, titanium alloy, etc

Core components

Motor

Key selling points

Automatic

Selling Units

Single item

Single package size

64X45X56 cm

Single gross weight

56.0 kg

Model number

FXT20

Power(W) (Product option)

4.5KVA

Certifications & Compliance
