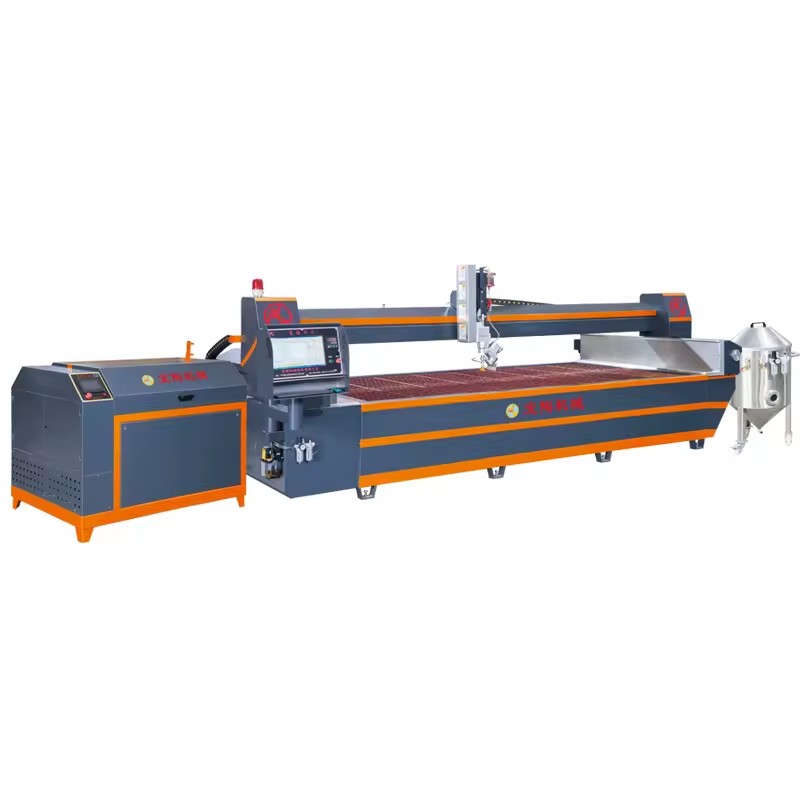

5 Axis Waterjet Cutting Machine 500Mpa Pump 4000X2000mm AC Dynamic Water Jet Cutter Bridge Saw Granite Stone Cutting Machine

1200mm Automatic Tile Chamfering Machine for Rock Slabs Marble Granite Ceramic Tiles Cutter Tool with Core Motor PLC Components

Model

BT-4020

Structure

Bridge

Cutting table size

4000x2000mm

Stroke

X-axis

4000mm

Y-axis

2000mm

Z-axis

130m

CNC Controller

AC Servo System

Accuracy

±0.1mm

Repeat ability

±0.05mm

Traverse speed

6000/15000 mm/min

Power source

380VAC, 50Hz, 3Phase

Weight

5000KG

Application

Marble Stone,Sintered stone

VR

product name

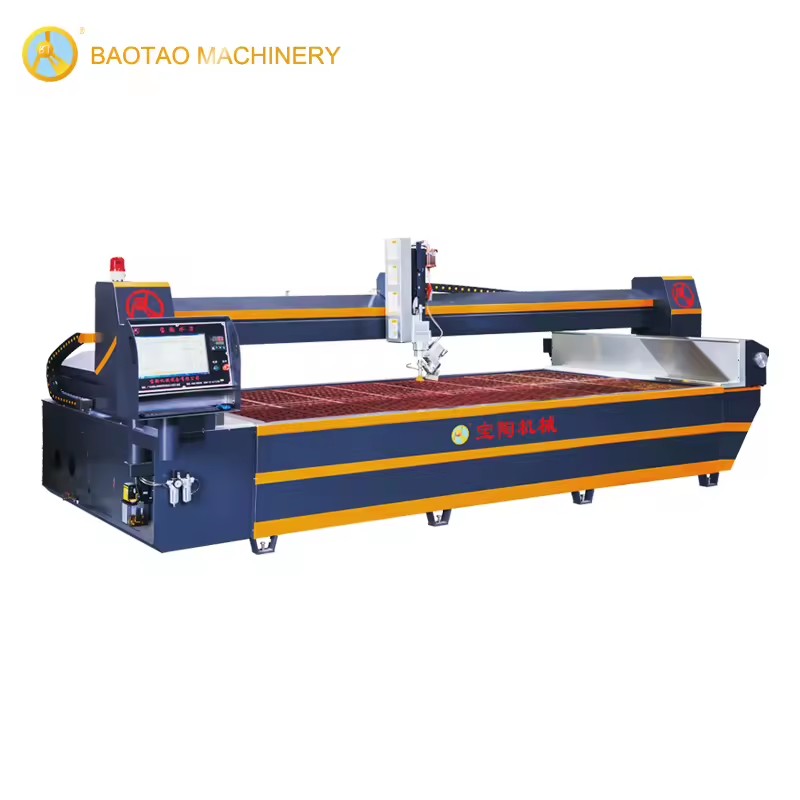

5 Axis Waterjet Cutting Machine 500Mpa Pump 4000X2000mm AC Dynamic Water Jet Cutter Bridge Saw Granite Stone Cutting Machine

Recommended by seller

$4,200

set

$14,999-17,999

$16,999

BT4020 AC Waterjet

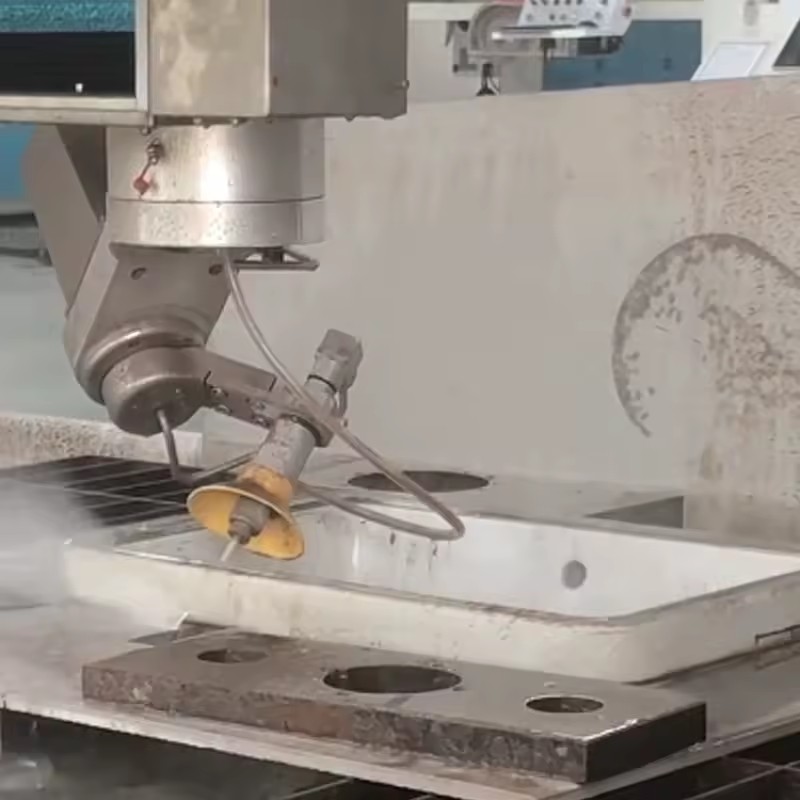

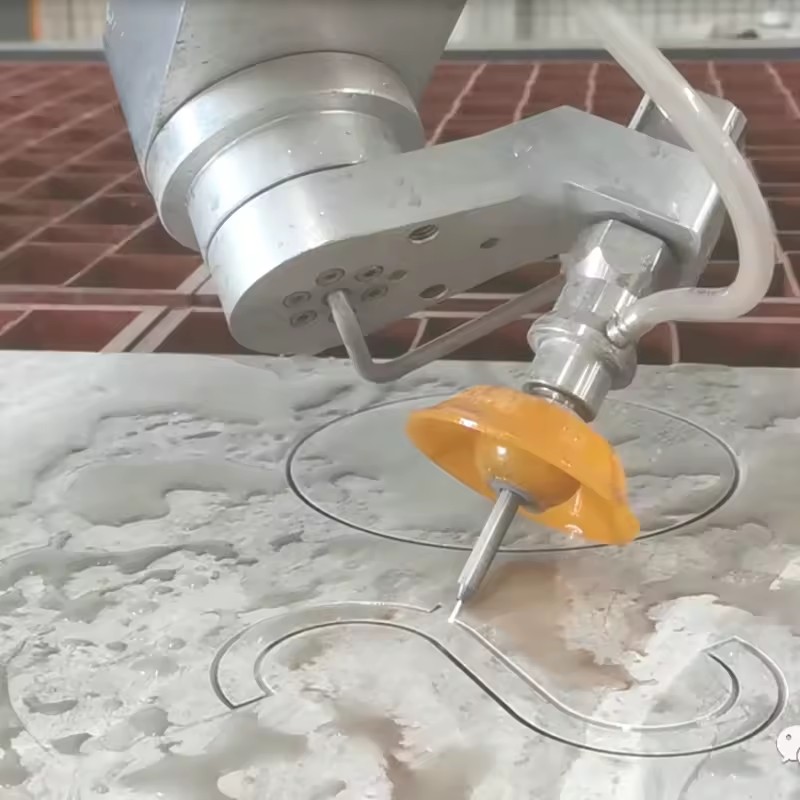

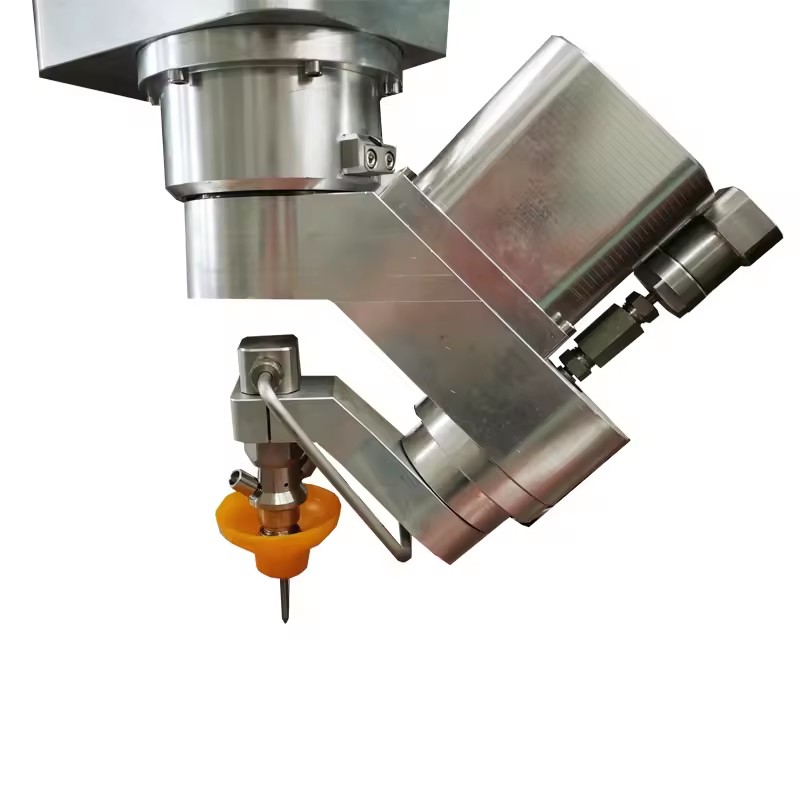

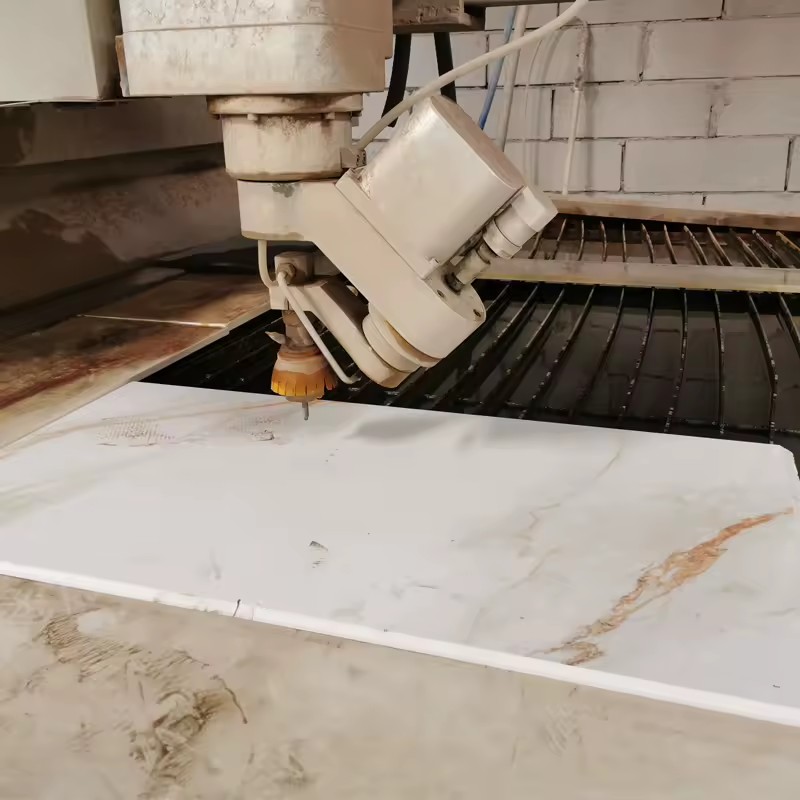

In five axis CNC system, coordination of X, while Y, Z and A, B of the two axis of rotation, the water jet cutting head can swing

in any direction. When cutting, the computer according to the real-time calculation of the density and thickness of materials by

cutting the workpiece, and control the cutting head along the cutting path and operation, to achieve three-dimensional complex

shape of the workpiece cutting, such as surface slope cutting, chamfering and cutting high precision conical surface circular

surface complex. The water jet and achieve higher performance and bring better benefits.

Product Paramenters

Company Profile

Certifications

Exhibition

FAQ

1)Our advantage

Over 18years experience on ceramics and stone processing field.

Advanced manufacturing technology and equipments.

BAOTAO have professional AFTER-SALES team, with full experience on installation, training and maintenance.

2)How can I place order

A:You can

3)How can I pay for you

A:After you confirm our PI,we will request you to pay.T/T(HSBC BANK), online payment on are the most usual ways we are

using.
