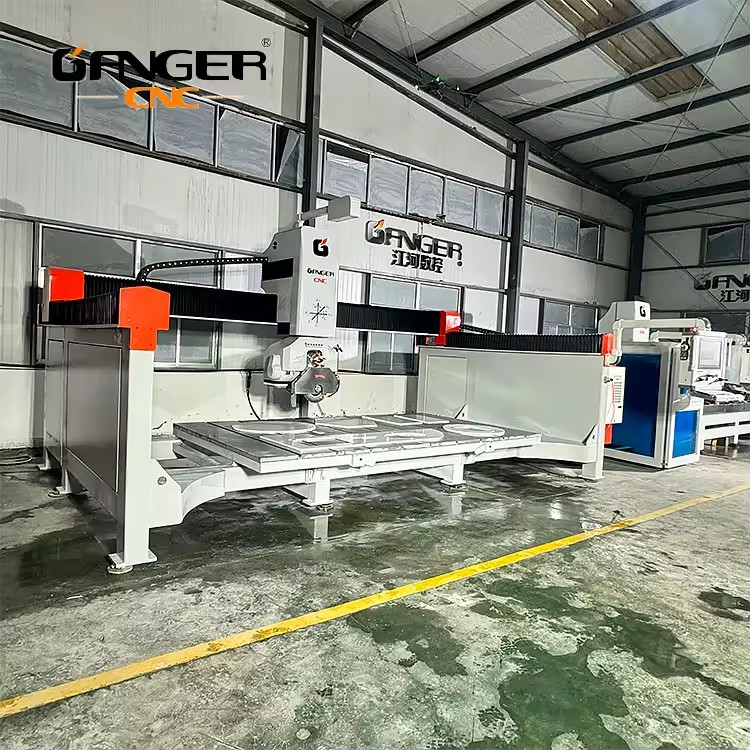

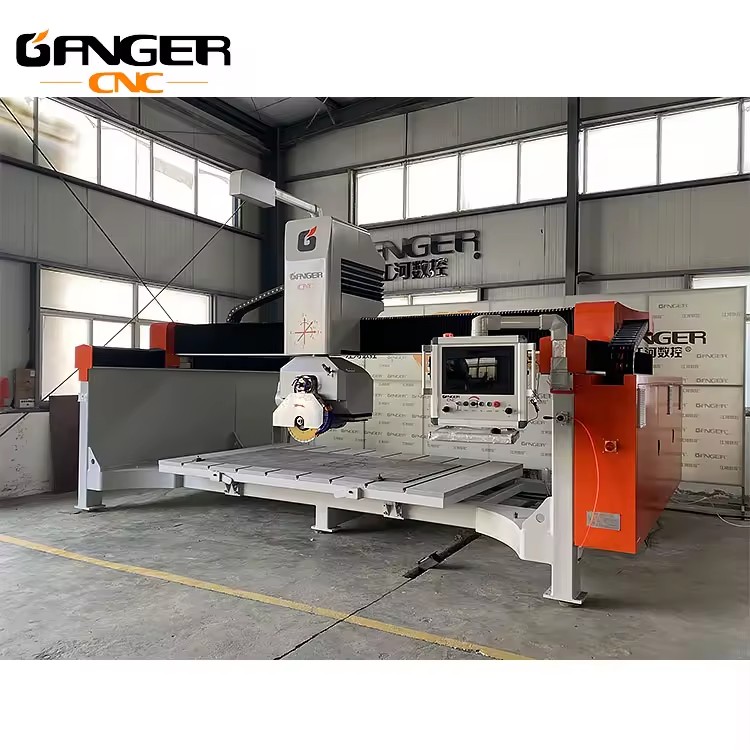

5 Axis CNC Bridge Saw Cut Machine for Quartz Marble Granite Block Competitive Price-Natural Stone Machinery

20+

Model

GQ-3220DSM

X/Y/Z Axis working size

3200*2000*500mm

Diameter of blade

400~500mm

Working table size

3200x2000mm

Blade Motor power

15KW

Rotation speed of blade

3000~6000rpm

Spindle power

5.5 KW

Max spindle speed

18000r/min

Total power

29KW

A axis rotation angle

0°-90°

C axis rotation angle

0°-360°

Table Tilting angle

85°

Control system

Camera

YES

Gross weight

4500KGS

Our company has been established for 20 years

Our company has 20 years of export experience

The machineries are exported to more than 90 countries and regions in the world

50 Patents and certificates.

Professional technical team of over 300 persons.

High-level professional factory with over 45,000㎡.

Products Description

Purpose

Diamond, shaped cut and four-sided chamfer, seamless cut, horse belly, round, sector, oval, rectangular basin hole.

Drain groove milling,Rear round bottom water stop polish,Countertop,Countertop Drain Grooves,Edge Profiling/polishing,Backsplash &Side Splash.

Technical Parameters

Product Details

A axis 0 to 90 degree automatic rotation.

C axis 0 to 360 degree automatic rotation.

Multiple shapes cut.

Profile

Sink cut. Edge polish.

Professional with CAM software

Read DXF, NC file Keep upgrading

Read slab size. Draw on slab photo directly.

Suction moving

Prevent overcutting

Details Images

Applicable industry

sintered stone application industry, fabricated building materials industry, home

decoration materials industry, cutting marble, artificial stone, quartz stone and other materials.

Applicable material

sintered stone, ceramic plate, quartz stone, marble, etc.

Machine Features

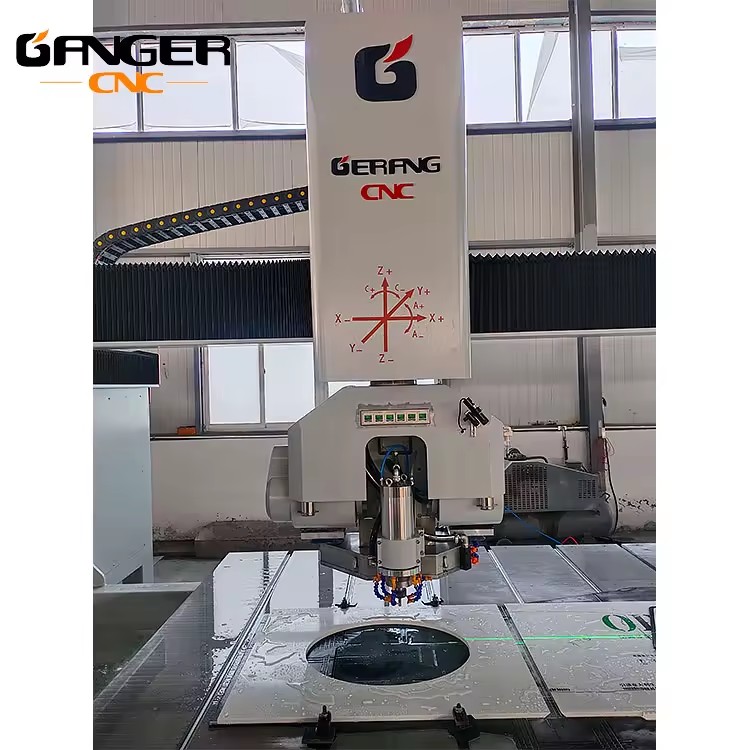

AC five axis, A axis 0-90 degree, C axis 0-360 degree.

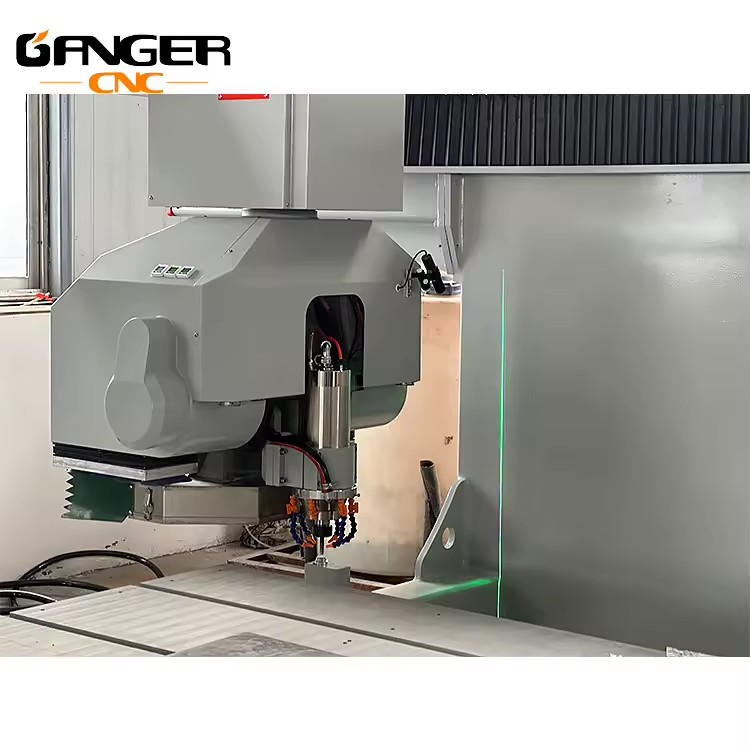

2.With a separate spindle 5.5KW, 18000rpm

3.Cutter bits, Contouring, Vacuum moving.

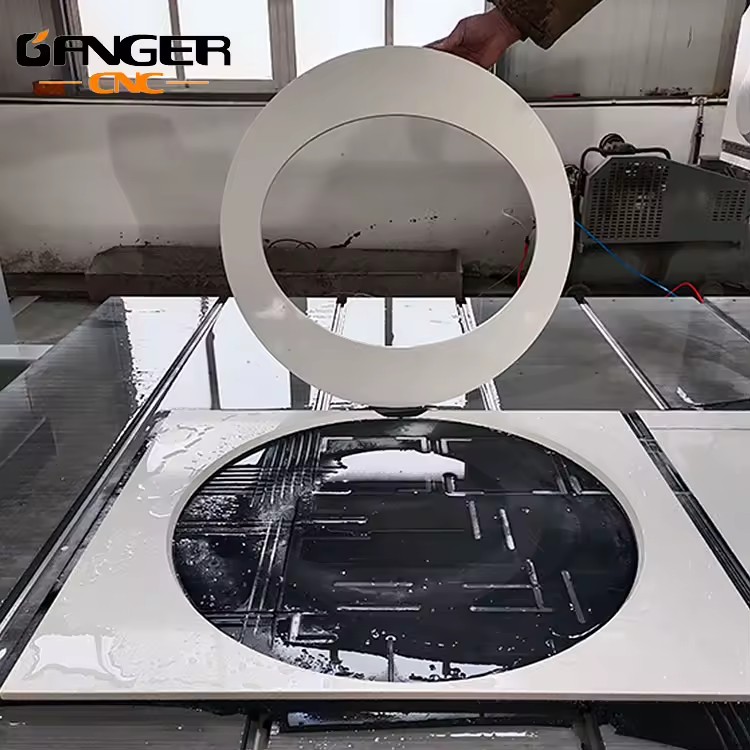

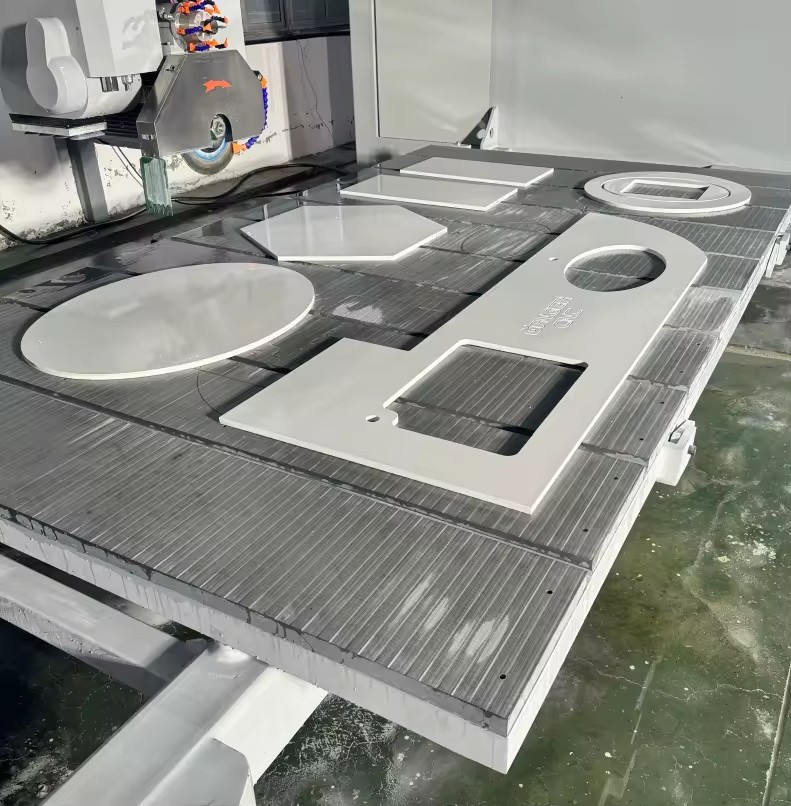

4.Cutting circle, Ellipse, Sector, L-tops, Sink cut-out, Arc, etc.

5.Vertical and horizontal cutting, multi-angle diagonal cutting.

6.Table tilts 85 degree to load slabs easily.

telligent control system.

8.With camera.

Cutting function：

Countertop,Table 85°flip(front),Table 85°flip(back),Horizontal cutting,Vertical cutting,Dlamond cutting-45°,Miter 45°chamfer cutting,Circular cutting,Sector cutting,Are cutting,Sink cut-out,Hexagon cutting,Curve cuting,Ellipse cutting,Suction Function,L-shaped table cutting,CAD Input,NC Code Input,Contouring cutting,Cutter bits,Edging Function,Horse belly,Drilling/polishing.

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Group since 2005 Participate Canton Fair every year, Focus on exporting to the US and European markets, Professional focus in custom-made special stone machine for you.

Outstanding advantages

●Latest automatic Monoblock Bridge saw. ●For horizontal, vertical and diagonal cutting. ● Four-axis, 11kw motor for blade, total power 25kw. ●PLC control, simple and intuitive operation. ●Tilting table 0- 85° automatic for load materials. ●Monoblock delivery, shipped 98% assembled, convenient installation. ●Stable struction, high precision, clean cutting, no chipping. ●Applicable material: Dekton, sintered stone, quartzstone, granite, ceramic plate and all stone stuffs. ●Option 4 axis 45 degree miter cutting, 5 axis bridge saw.

FAQ

QUALITY CONTROL

●Our professional technical engineers inspect the processing to ensure the quality of products ●Each machines will run around 24 hours and tested 8 hours before delivery to ensure normal using in your workshop.

GUARANTEE &AFTER SALE SERVICES

● Free training available here or online teaching video ●12 months guarantee under normal use & Lifetime maintenance free of charge ●Spare parts shall be free of charge if any problem during the warranty periode ●Consumable parts will be offered at agency price when replacement needed

OEM SERVICE AVAILABLE

●XYZ working size customized according to your requirement ●Main spare parts: motor,system,inverter choose as your choice ●Machine brand and oil painting customized (agent available or MOQ 10 sets

DELIVERY

●Standard model: 10-20 working days ●Customized model: Depends on special spare parts delivery time

PAYMENT TERMS

●T/T in advance ●West union: Available when amount less than 1000$, banking charges paid by buyer ●LC draft should be sent to confirm before Original LC made.

Diamond, shaped cut and four-sided chamfer, seamless cut, horse belly shape cut(saw+mill bit), round, sector, oval, rectangular basin hole,Horizontal cutting,Vertical cutting,Rectangular cutting,45° diagonal cutting,135° diagonal cutting,Parallelogram,Grid,Miter 45° chamfer cutting,Curve cutting,Sector cutting,Hexagon cutting,Sink cutout,Countertop,Trapezoid,Ellipse cutting,Suction function,Square plate,Drilling/Polishing,Table 85° flip,Contouring cutting,Profiling,Camera,DXF/NC,Sink cut/drill hole(CAD/NC),Saw cut+mill inside corner,3D Profiling(Saw),Miter/chamfer cut(any degree)/4 edges,Nesting line cut(with vacuum moving),Sector/Triangle(any angle)cut,Round(saw)/L shape cut(saw+mill),Arc cutting,Specification sheet,Arbitrary Line,Regular polygon,Countertop,Suction moving,Circle.
