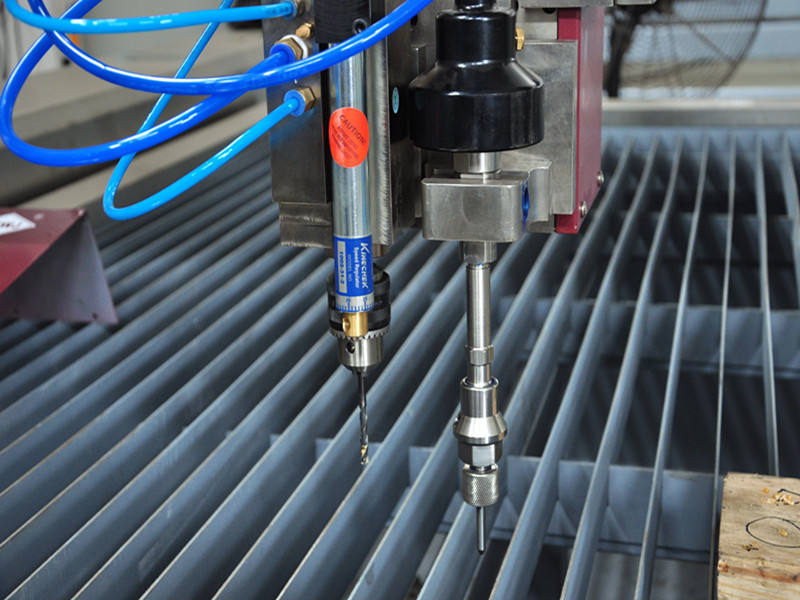

Industrial CNC Waterjet Cutter with 5 Axis and Drilling System for Advanced Composite Manufacturing CE ISO

Available for enquiry 0.0 · 0 reviews
USD

$ 44,210.00 44210.0 USD $ 44,210.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Type
Water Jet Cutters
Voltage
380/220/400VAC, 50Hz ,3 phase
Rated power
30kw/40hp or 37kw/50hp
Warranty
1 Year
Core components
PLC, Motor, Pressure Vessel, Gear, Pump, Gearbox
Key selling points
High-Accuracy
Product description

1. Water jet cutting platform

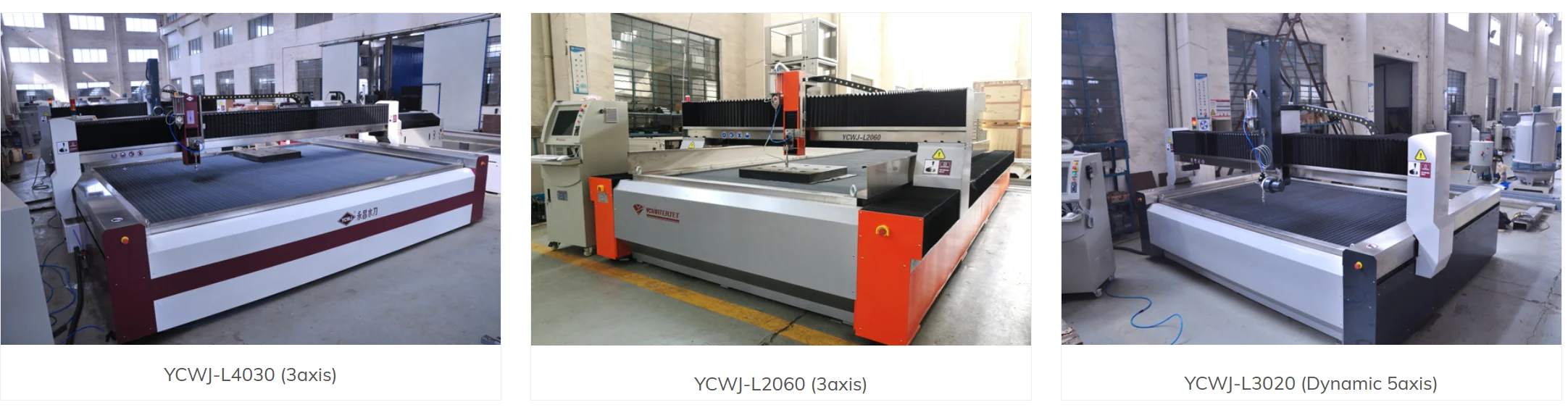

CNC Water Jet Cutting Machine P arameter (L=Gantry type)
ParametersUnitYCWJ-L1010YCWJ-L2015YCWJ-L3015YCWJ-L3020YCWJ-L2060
Efficient Cutting Areamm1000×10002000×15003000×15003000×20002000×6000
Axis TravelXmm10002000300030002000
Ymm10001500150020006000
Zmm150-180150-180150-180150-180150-180
X axis and Y axis adopt HIWIN or I+F ball screw and guideway;The servo motor to drive we adopt MITSUBISHI or Yaskawa
Cutting Accuracymm±0.1
Positioning Accuracymm±0.025
X,Y Dry-run Speedm/min0-15 (if need 30m/min speed,we can do as request )
Cutting Speedm/minas to detail material and thickness

2. Water jet high pressure system

Main Feature: Control: PLC Shifting: electro-hydraulic Control Cooling: cooler/oil heat exchanger Inlet water filter accuracy: ≤0.45μm Oil-return filter accuracy: 20 μm Working temp: 0-50°c Outlet: UNF 3/8" Cooling in/out-let: NPT1" Max orifice size: 0.33mm

High Pressure Pump
ModelYCG-3038YCG-3742SYCG-7542S
Max Pressure3800Bar/55,000Psi4137Bar/60,000Psi4137Bar/60,000Psi
Max Water Flow3.7L/min3.7L/min7.4L/min
Max Orifice/Nozzle0.011/0.030.013/0.040.016/0.05
Power30KW/40HP37KW/50HP75KW/100HP
Description images

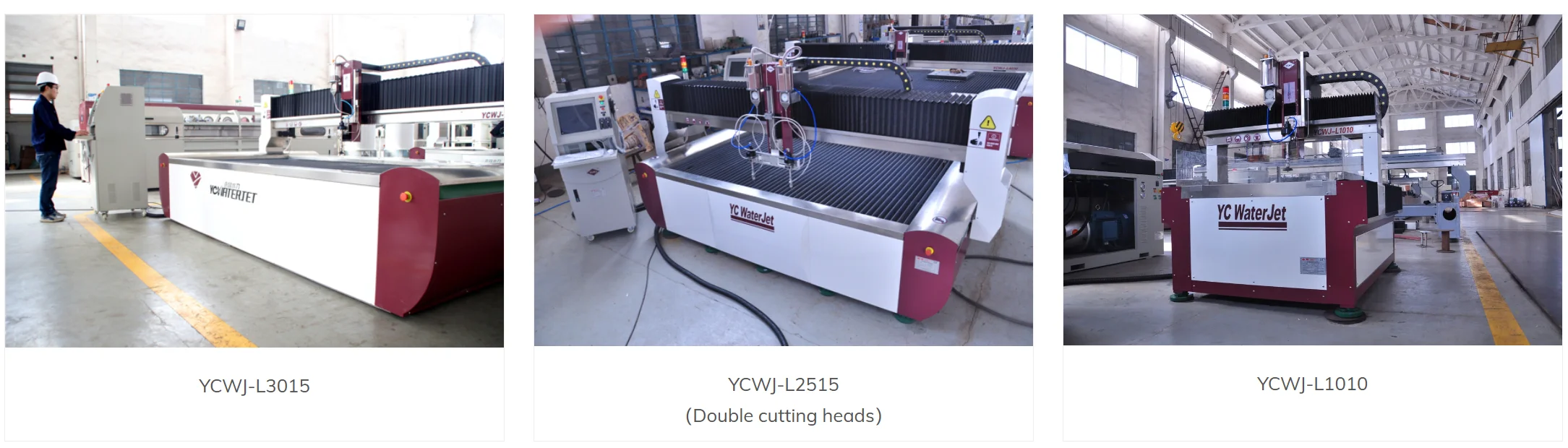

Product detail
Product detail
Product detail
Product detail
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    30 days

  • Step 3

    Packaging and dispatch

    Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Key attributes 20 fields
Type
Water Jet Cutters
Voltage
380/220/400VAC, 50Hz ,3 phase
Rated power
30kw/40hp or 37kw/50hp
Warranty
1 Year
Core components
PLC, Motor, Pressure Vessel, Gear, Pump, Gearbox
Key selling points
High-Accuracy
Machinery test report
Provided
Video outgoing-inspection
Provided
Place of origin
China, Jiangsu
Weight (kg)
2500
Dimension(L*W*H)
according to the model of machine
After-sales Service Provided
Engineers available to service machinery overseas
Cutting materials
Stainless steel, brass, aluminum, glass.etc
Max. operating pressure
380mpa or 420mpa
Cutting accuracy
0.1mm
Max. water flow
3.7 L/Min
Max. Orifice diameter
0.33mm(0.013'')
AC servo control system
MISUBISHI
Ball screw
HIWIN
Intensifier assembly
Accustream, H2O
Packaging and delivery 3 fields
Selling Units
Single item
Single volume
0 cm3
Single gross weight
0.0 kg
Product options 1 field
Model number
YCWJ-L2015/L3015/L4020/L2060
Lead time
30 days
Minimum order
1 Units
