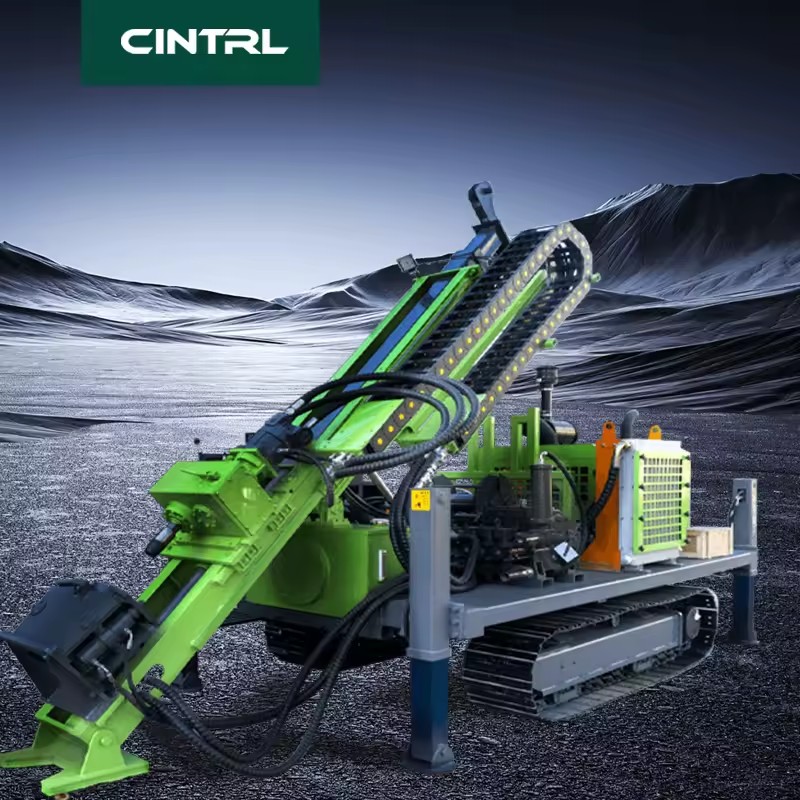

Product Importer Gallery 05 · 2545aa4506

Product video

High Torque Dth Hand Held Hydraulic 500m Used Tractor Borehole Mine Rock Drilling Rig

Name: High Torque Dth Hand Held Hydraulic 500m Used Tractor Borehole Mine Rock Drilling Rig
SKU: SZZX-TDKX-WGYA
Price: 6680.0 USD
Availability: PreOrder

Available for enquiry 0.0 · 0 reviews

USD

$ 6,680.00 6680.0 USD $ 6,680.00

Minimum order quantity: 1 Units

Key attributes

View all

Usage

mine

Type

Core Drilling Rig

Drilling Depth

Max.1400m

Drilling Diameter

NTW(73.3mm), HTW(91.3mm), BTW(57mm)

Power Type

Diesel

Core components

Motor, Pressure Vessel, Engine, Hydraulic

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Shipping fees and delivery dates are confirmed with your quotation.

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

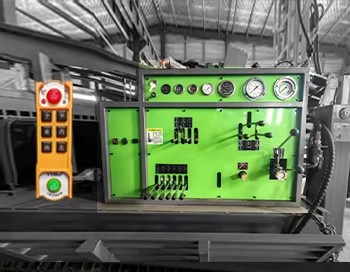

Centralized Console The Control.

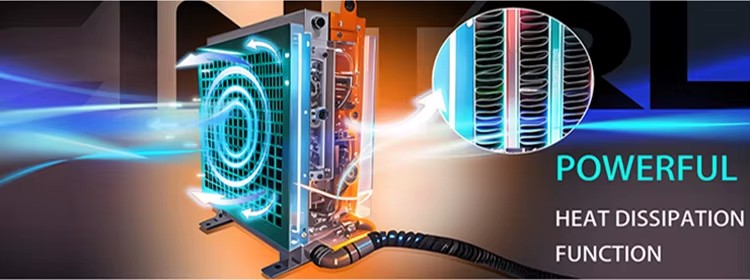

Bigger And Stronger Hydraulic Oil Radiator

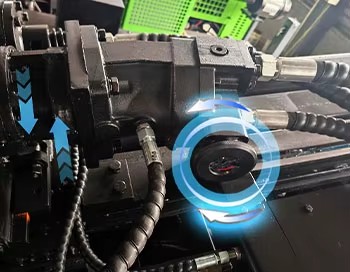

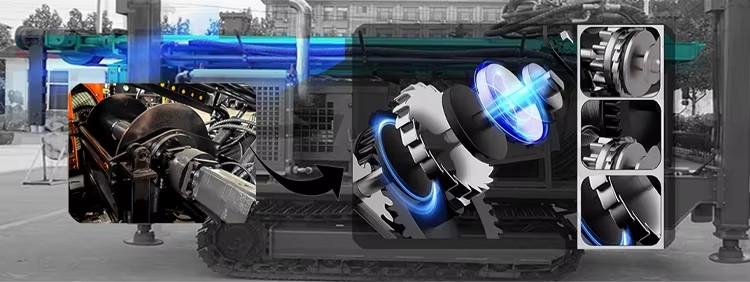

Hoister - Bidirectional self-locking anti-reversal

Drilling Capacity
Type	Value	Measurement Unit
BTW （60）	1400	m
NTW （75）	1200	m
HTW（95）	1000	m

Dynamic System
Type	Value	Measurement Unit
Engine Model	Wechai / Cummins	Optional
Rated Power	129	kw (Yucha)
Rated Speed	2200	rpm

Hydraulic System
Type	Value	Measurement Unit
Control Form	Multi-pump confluence, constant flow distribution
System Pressure	32 + 25	MPa
Max Flow	115	ml/r
Cooling Mode	Water Cooling / Air Cooling

Rotary System
Type	Value	Measurement Unit
Drive Mode	Hydraulic Drive
Max Speed	1400	rpm
Max Torque	1800	N.m
Driing Angle	0 - 90	deg
Cylinder Stroke	1800	mm
Lifting Power	300	kN
Feed Force	180	kN

Mud Pump
Type	Value	Measurement Unit
Pump Model	BW100 / BW160	Optional
Max Flow	100 - 160	L/min
Max Pressure	7 - 10	Mpa

Mast Data
Type	Value	Measurement Unit
Mast Height	6.6	m
Sliding Listance	1200	mm

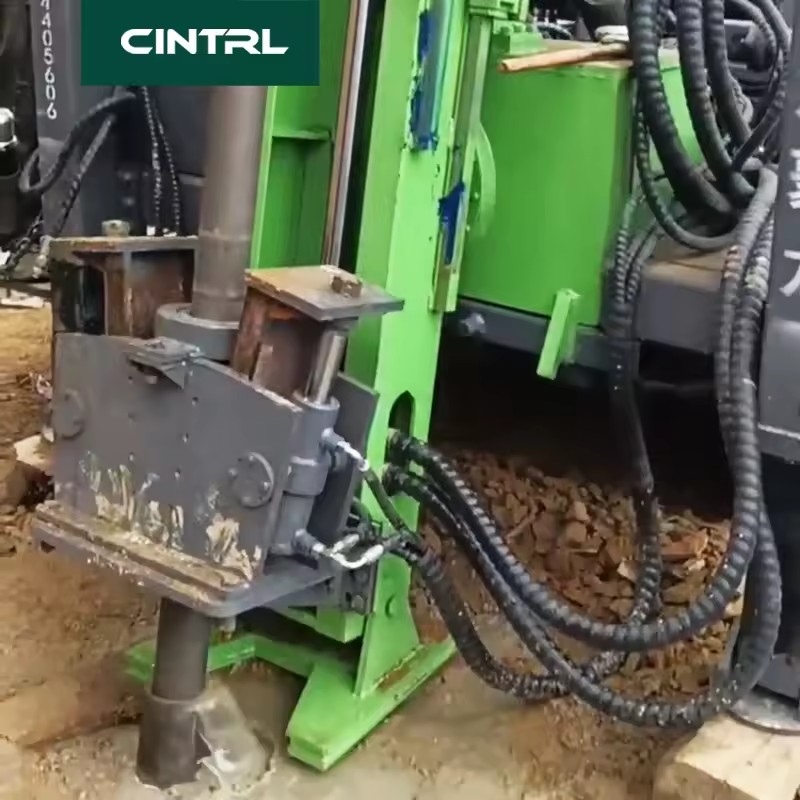

Rod Clamp
Type	Value	Measurement Unit
Max Through-hole Diameter	146	mm

Wireline Hoist
Type	Value	Measurement Unit
Drive Mode	Hydraulic Drive
Capacity	1200m / φ6mm
Max Lifting Force	24	kN
Pulling Speed	110	m/min

Dimension & Weight
Type	Value	Measurement Unit
Climbing Angle	25	deg
Driving Speed	2	km/h
Dimension	590021002800	mm
Weight	8.3	t

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

15 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 19 fields

Usage

mine

Type

Core Drilling Rig

Drilling Depth

Max.1400m

Drilling Diameter

NTW(73.3mm), HTW(91.3mm), BTW(57mm)

Power Type

Diesel

Core components

Motor, Pressure Vessel, Engine, Hydraulic

Warranty

1 Year

Machinery test report

Provided

Video outgoing-inspection

Provided

Key selling points

High Productivity

Place of origin

china mainland

Weight

8300 KG

Dimension (L*W*H)

5900*2100*2800 mm

Mobility

Steel Crawler Chassis

Selling Units

Single item

Single package size

630X210X250 cm

Single gross weight

8300.0 kg

Model number

HY1000

Power (W) (Product option)

129KW

Lead time

15 days

Minimum order

1 Units
