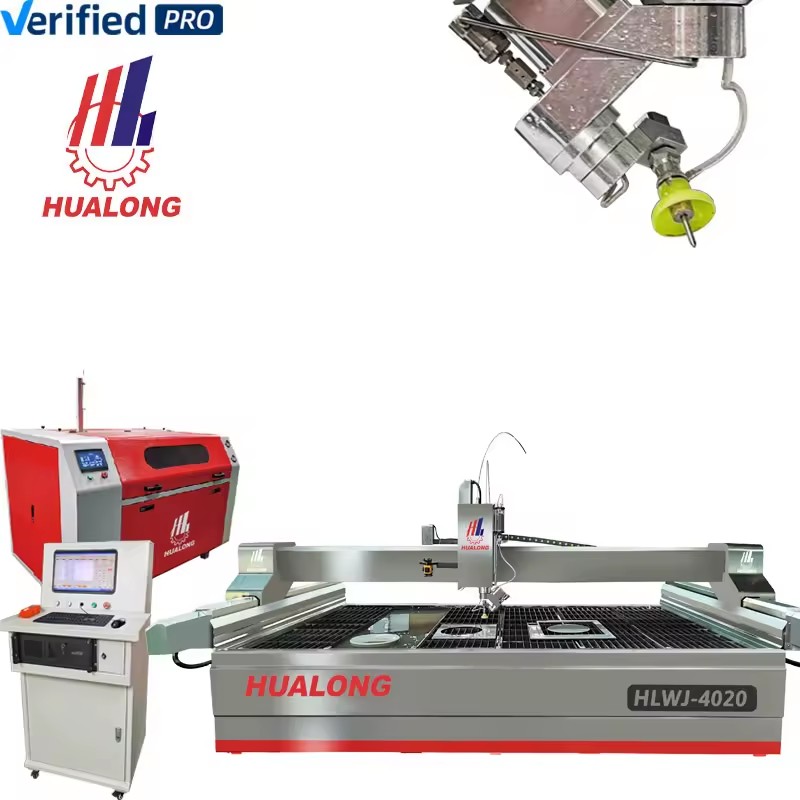

Name: Stone Machinery HLWJ-3020 Best Affordable High Pressure Abrasive 5 Axis Waterjet Water Jet Cutting Machine for Granite
SKU: B2B-2613
Price: 47110.0 USD
Availability: PreOrder

Product description

CNC Waterjet Cutting Machine

TECHNICAL DATA

Model No.

HLRC-3020

HLRC-4020

Working area

330*210

410*210

X-axis stroke

3200

4000

Y-axis stroke

2000

Z-axis stroke

80-130

Max. angle of C axis rotation

+/- 360

Max. anglel of A axis swing

+/- 60

Cutting accuracy

+/- 0.1

Repeatablbe accuracy

+/- 0.05

Traverse speed

mm/min

5000/15000

Main motor power

Dimensions (L x W x H)

443x278x220

540x283x210

HLWJ-4020

which using a very high-pressure jet of water and abrasive (typically garnet) to erode a narrow line in the stock material, is an industrial tool capable for cutting almost any material while maintaining high precision.

This 5 axis waterjet cutter can cut any angle within +60°, it solves the traditional problem of water cutting inclination, and achieves 2D/3D cutting easily.

The line cutting accuracy is +0.1mm, angle cutting accuracy is +0.1°. Our machine is applied to cut bevel surface, straight surface, conical surface, circular surface, rotating surface, groove, chamfer, and arbitrary surface.

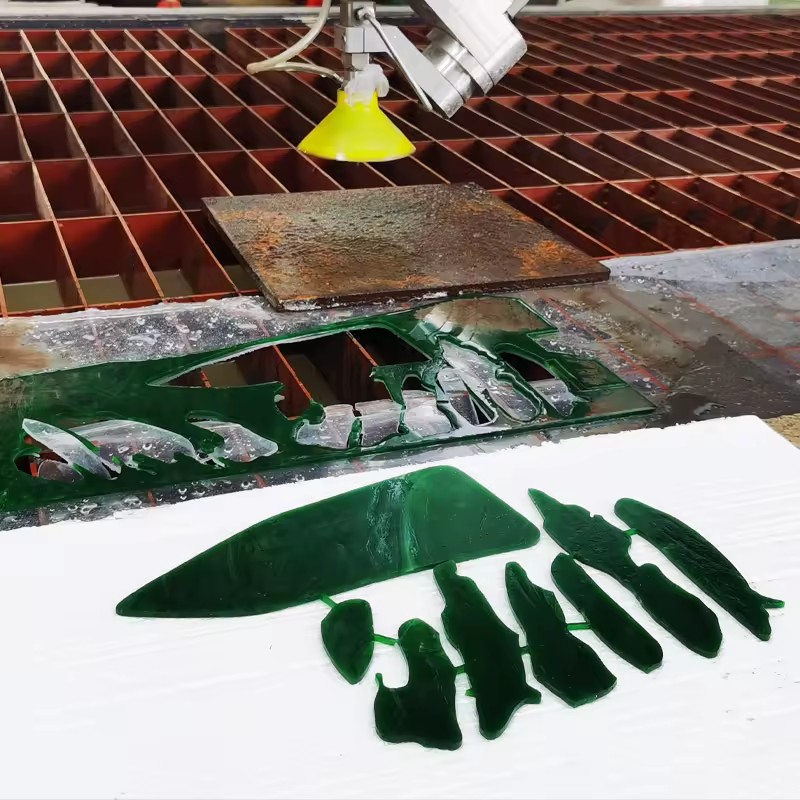

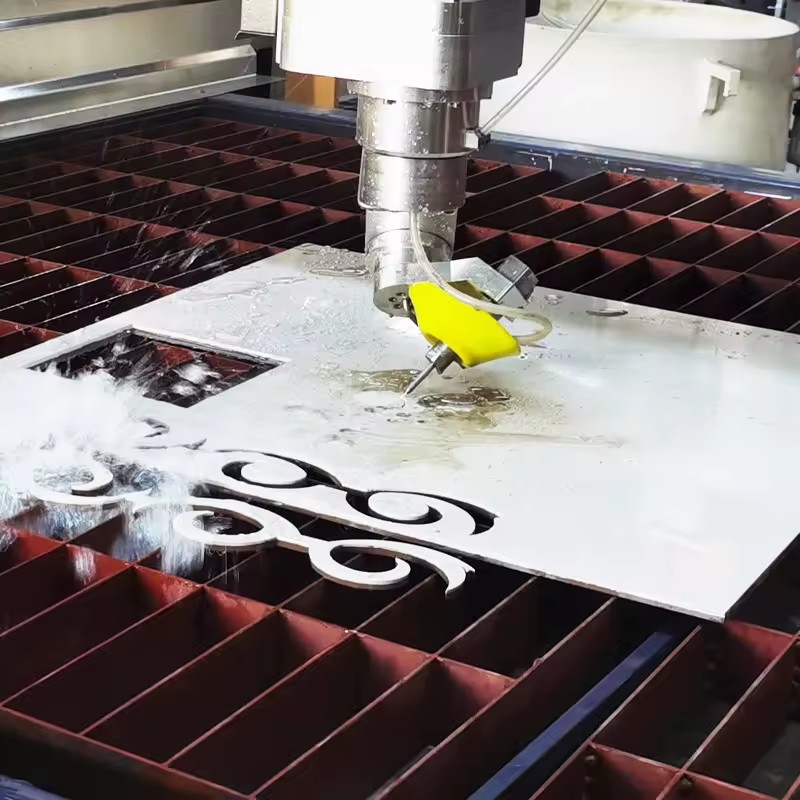

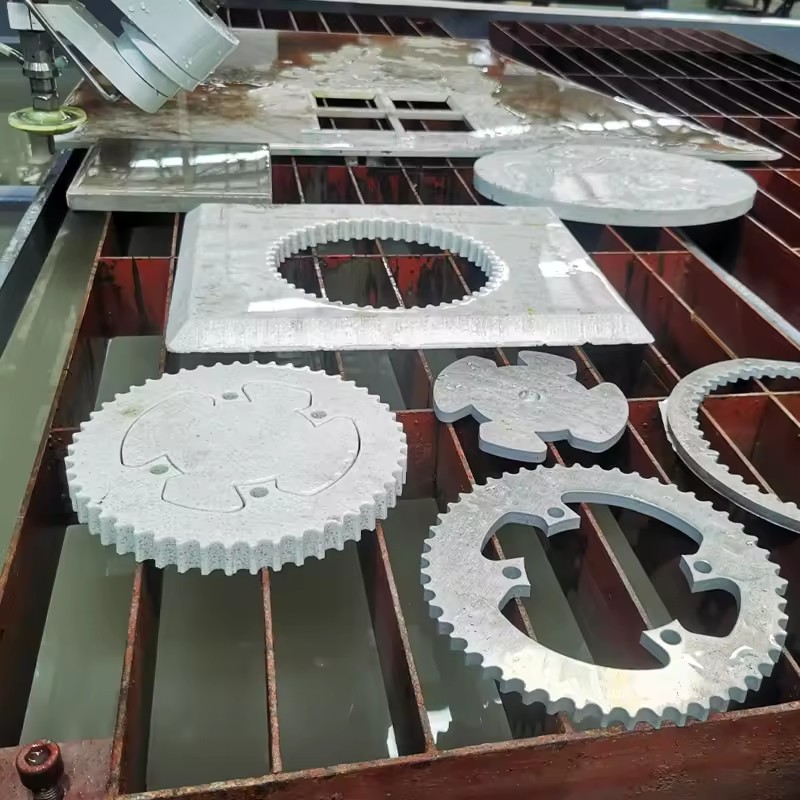

It is able to cut steel, stainless steel, aluminum titanium, marble, granite, ceramic, glass, rubber, foam and many other materials.

Main Features

1) Processable any curve cutting, flexible

convenient

and versatile.

2) Notch is fast and smooth, no dust, no thermal deformation and no pollution.

Tension-free processed parts due to minimal cutting force.

3) Narrow kerf – The amount of material removed by the water jet stream is typically about 0.5-1.0 mm wide. Cut width optimizes material use, increasing cost effectiveness.

Cut Recovery - Pick back up where Jet stopped.

Programmable Z axis height. Z axis retracts between pierces.

Servo motor, linear sledge and vehicles, helical rack and pinions is used for providing a rapid and smooth axial movement.

High-Performance drive system, which permit high-precision production of parts as well as the highest processing speed.

8) Driver system sealed against water,dust and grit. Long working life.

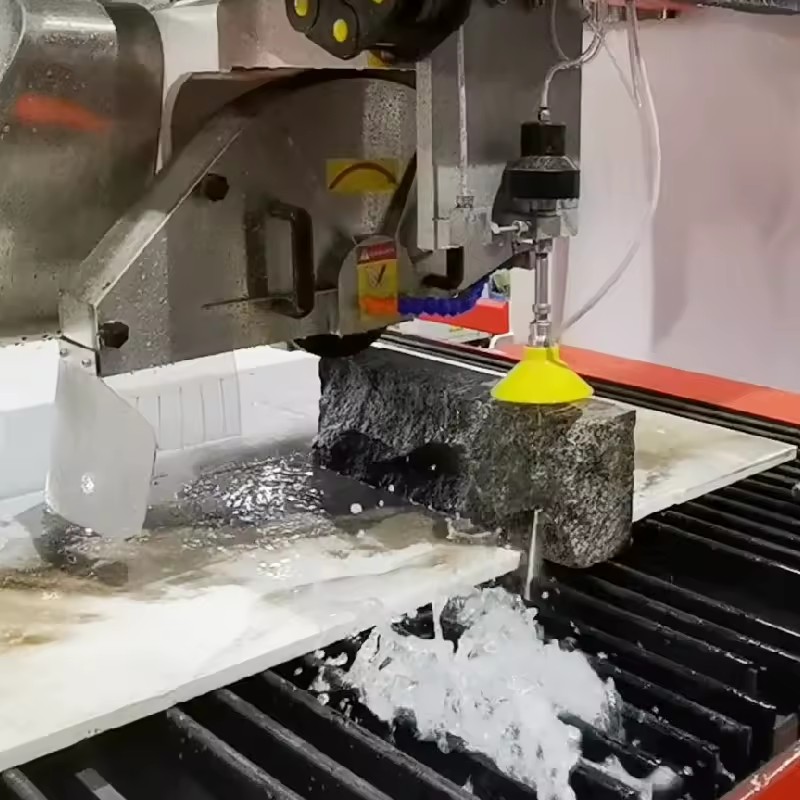

Stone/Ceramic industries such as used for countertops, art puzzles, flooring

Inlays and mosaics.

* G

lass industry, such as bathroom glass, shop window glass, automotive glass and appliance glass.

Metal industries such as Decoration, decoration in the stainless steel and other metal cutting process, equipment cover cutting, Cutting of metal parts.

Gasket Cutting

Foam Product Cutting

Different sizes and configuration are customizable

Adopt imported core parts, durable and safe, pressurize water and continuously output water, so as to convert into supersonic water jet at cutting head.

Maximum output pressure up to 4137bar(60000psi)400MPa, Sustainable cutting pressure up to 380MPa.

Transfers the abrasive to the abrasive regulator.

Air valve to prevent jams and breakages

Auto control with CNC auxiliary function

Self sealing

Slightly adjust the flow

A less mantained, more stable and better working chiller.

It cool and guarantee the hydraulic system can be used in a stable

circular manner at 42-45°C，while at 55-57°C if by water chiller.

Movable Operator Station

The station comes equipped with NcStudio V10 Waterjet cutting CNC system, 19" LCD, pump interface,keyboard and mouse.

Compatible G code, PLT, DXF file generated by CAD/CAM software of UG, Mastercam, Casmate, Art Cam, Autocad, CorelDraw etc.

Remote Control (optional)

For operating the movement of 5 axises conviniently.

Abrasive Screening System (optional)

Last Chance Sifter Assy - Purifying waterjet abrasive, virtually eliminates abrasive feed tube and mixing tuble clogs due to foreign particles /debris entering into the main abrasive hopper when loading the cutting media.

Save time, money, material, reduce the amount of scrap/reworked parts and reduce machine downtime.

Water Jet Software

Brand: Weihong

Original

A mature motion control solutions, to solve the high pressure water jet taper, towing and other technical problems, and realize perfect

dynamic five-axis cutting

Easy to operate and to learn.

Produced

Original

Power: 37 kw

Efficiency: 93.9%

To generate motion energy throught electtical energy for high pressure pump

Intensifier

To produce high pressure water continuously.

Main parts come from Ashcroft,.

Stable performance and operation

Elec-magnet Valve

Brand: Hytek

Indicate and change advantage

Servo Motor

Nr of revolutions: 0-1500 rpm

Drive X axis moving accuracy and reposefully.

Laser Sensor

Automatic scanning precision altimeter function, ensure the knife head distance workpiece surface constant

Linear Guide

* Linear sledge and vehicles, helical rack and pinions is used for providing a rapid and smooth axial movement.

* The linear slides and rails, helical rack and pinions in all systems are protected with automatic greasing pump in order to prevent rust and to continue sensibility.

Recommended by seller

$33,500-36,000

set

$43,000-46,000

$85,000-115,000

$35,500-38,500

$11,000-12,000

$35,000-39,800

$13,000-14,000

$25,002-26,854

$22,000-25,000

$16,500-18,000

$5,000-6,500

$3,000-4,300

Q: What is the MOQ?

A: 1 set.

Q: When will you ship my order?

A: Normally 25-35 days after deposit received, If urgent, it can be negotiated further.

Q: What’s the warranty time?

A: One year.

Certifications & compliance

Complies with EU standards

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

35 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 30 fields

Type

CNC machine

Use

Stone processing

Voltage

AC380V/50Hz

Cutting thickness (max)

200 mm(7.87in)

Power(w)

41.5 KW(55.65hp)

Core components

Bearing, Motor, Gear, Gearbox

Key selling points

Automatic

Warranty

1 Year

Machinery test report

Provided

Video outgoing-inspection

Provided

Production Capacity

high

Place of origin

China, Fujian

Weight

5000 kg(11023.11lb)

Dimension(L*W*H)

5200x2300x2200mm(204.72x90.55x86.61in)

Control system

CNC

Max.working pressure

4137bar(60000psi) 400MPa

Sustainable operating pressure

380MPa(7000psi)

Max. flow rate

3.6 L/min

Main motor power

37 kw

Max. diameter of orifice

0.33 mm

Cooling type

water cooling

Driving system

AC servo

Rail guide

Linear bearing

Transmit way

Ball screw

Selling Units

Single item

Single package size

540X283X210 cm

Single gross weight

5000.0 kg

Working Area

3300*2100mm(129.92*82.68in)

Model number

HLWJ-3020, HLWJ-2015

Certifications & Compliance

Lead time

35 days

Minimum order

1 Units
