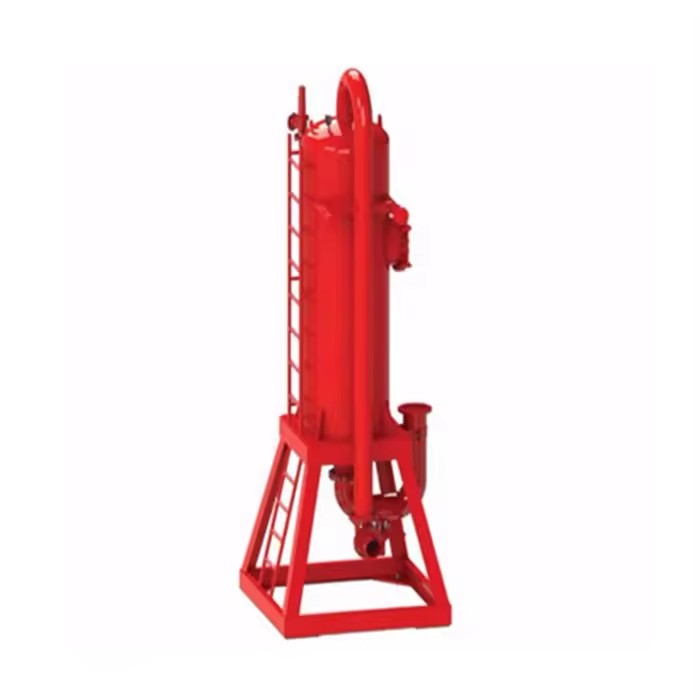

Oilfield Solid Control Equipment Mud Gas Separator with High Manganese Steel Forging for Well Drilling

Oilfield Solid Control Equipment Mud Gas Separator with High Manganese Steel Forging for Well Drilling

Available for enquiry 0.0 · 0 reviews
USD

$ 7,820.00 7820.0 USD $ 7,820.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Type
solid control equipment
Material
High Manganese Steel
Use
Well Drilling
Processing Type
Forging
Machinery test report
Provided
Machine type
Drilling Equipment, Centrifugal Solid- Liquid Separator
Product description

1.Product Description

M ud gas separator is the special equipment to treat the gas cut drilling mud. The gas cut drilling mud will cause density and viscosity of drilling mud deviate from normal parameter, it can not meet the requirement of drilling will cause of kick and blowout accident occurred. Mud gas separator combined with flare ignition device can process the gas-cut drilling mud effectively and timely.

M ud gas separator is divided into manual-control and auto-control according to the operation method.

2.The Advantage

1. Material: SS304 or Q345 for body.

2. The whole body: The mud gas separator with the process of the grinding, sand blasting,the 3 layers of painting: epoxy zinc painting as the primer, the epoxy painting as the middle coating, and the polyurethane for the final painting.

3. Separates and discharges the enormous free gas from drilling fluids, including poisonous gases like H2S.

4. Separated gas is carried by discharge lines to a safe area for combustion.

5. The unit is ruggedly built and coated with anti - corrosion epoxy so as to ensure long service life when processing hazardous and toxic gases.

nical Parameters for ZYQ series Mud/Gas separator

Subject ModelCapacity (m3/h )Inlet (mm)Outlet (mm)Air Discharge Pipe (mm)Weight (Kg)Dimension (mm)
ZYQ-800200~250Ø 125(5”)Ø 200(8”)Ø 150(6”)15001900×1900×5756
ZYQ-1000200~280Ø 125(5”)Ø 200(8”)Ø 200(8”)20002000×2000×5960
ZYQ-1200240~300Ø 125(5”)Ø 150(6”)Ø 200(8”)28002200×2200×6634
ZYQ-1400280~340Ø 125(5”)Ø 250(10”)Ø 200(8”)35002390×2390×6593
Description images
Oilfield Solid Control Equipment Mud Gas Separator with High Manganese Steel Forging for Well Drilling
Oilfield Solid Control Equipment Mud Gas Separator with High Manganese Steel Forging for Well Drilling
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    30 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Key attributes 14 fields
Type
solid control equipment
Material
High Manganese Steel
Use
Well Drilling
Processing Type
Forging
Machinery test report
Provided
Machine type
Drilling Equipment, Centrifugal Solid- Liquid Separator
Warranty
1 Year
Video outgoing-inspection
Provided
Weight (kg)
300
Place of origin
China, Shandong
Application
solid control system
Color
Customized
Standard
ISO 9000
Delivery Time
Within 30 Days
Lead time
30 days
Minimum order
1 Units
