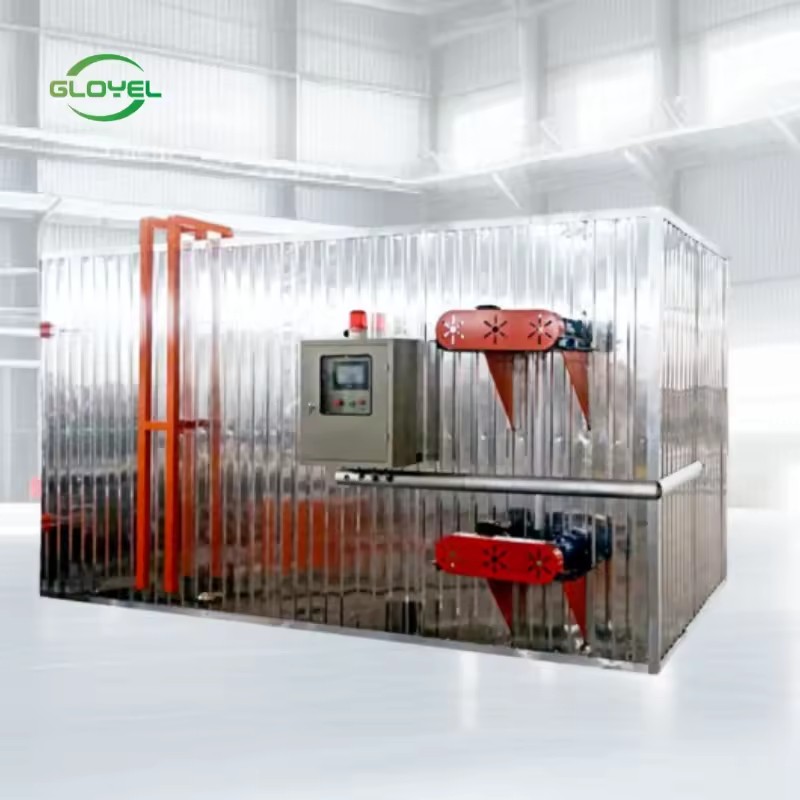

10m³m Automatic Stainless Steel Electric Heating Log and Lumber High-temperature Processing Equipment

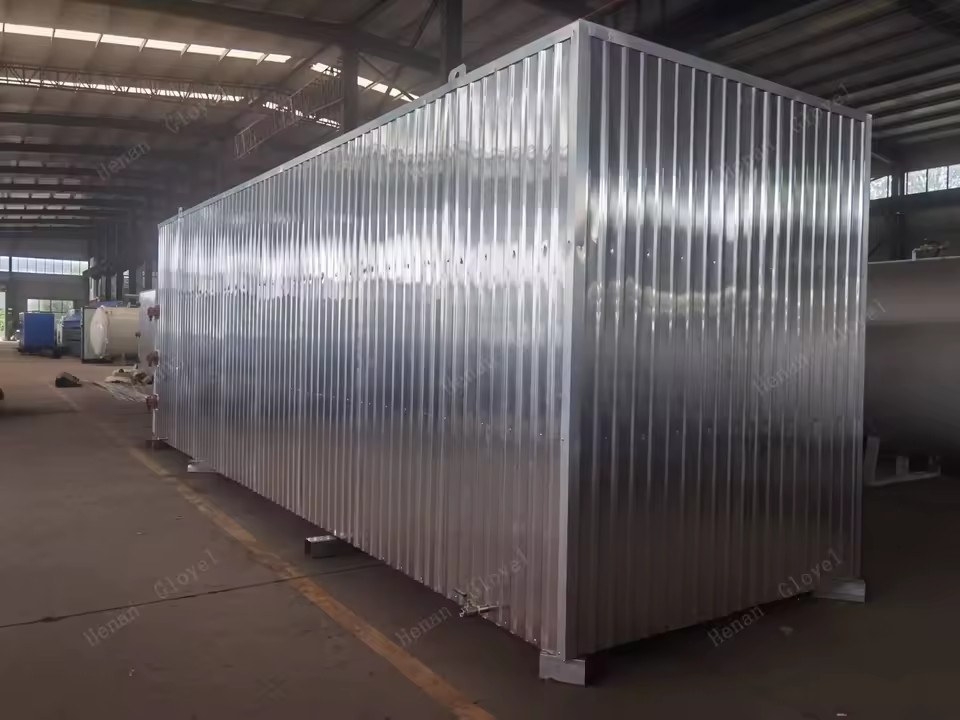

Product Importer Gallery 01 · 5033ae9b8c

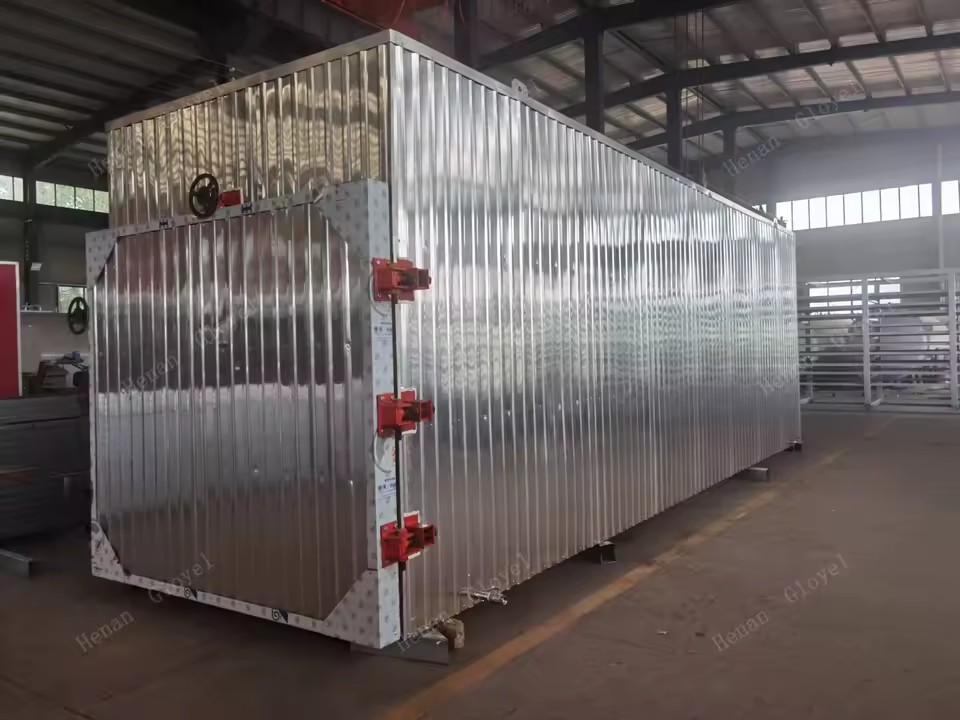

Product Importer Gallery 02 · 656b88eca0

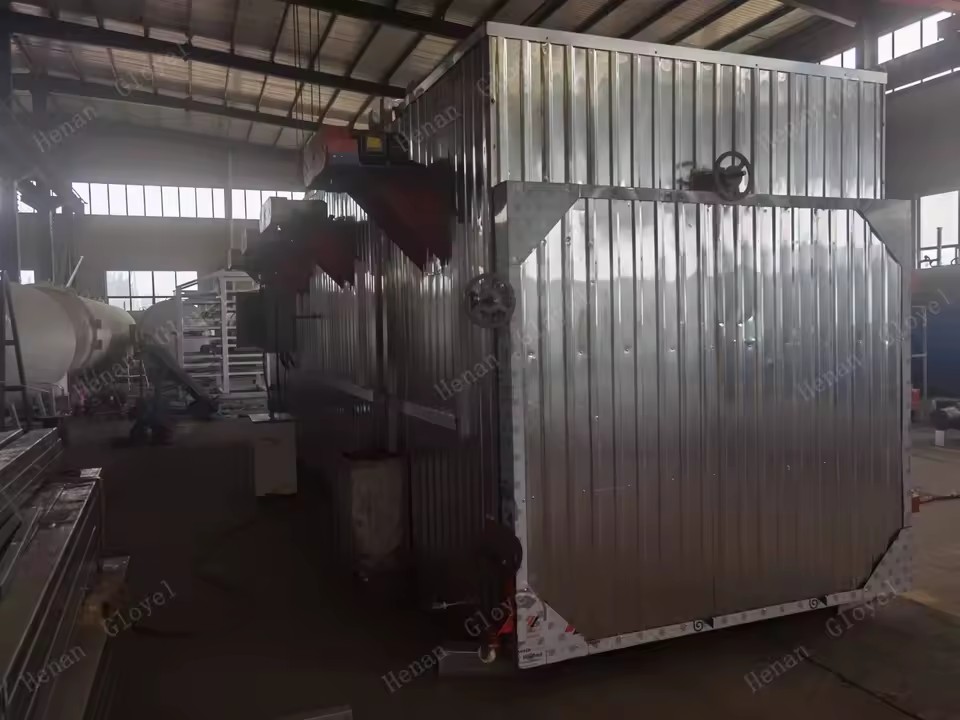

Product Importer Gallery 03 · 4851848bf7

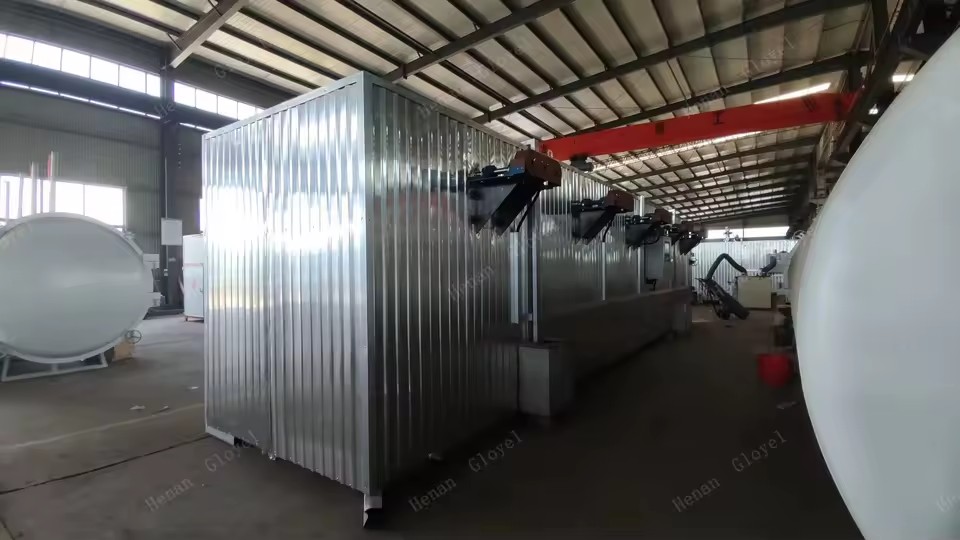

Product Importer Gallery 04 · b4ec7ba98e

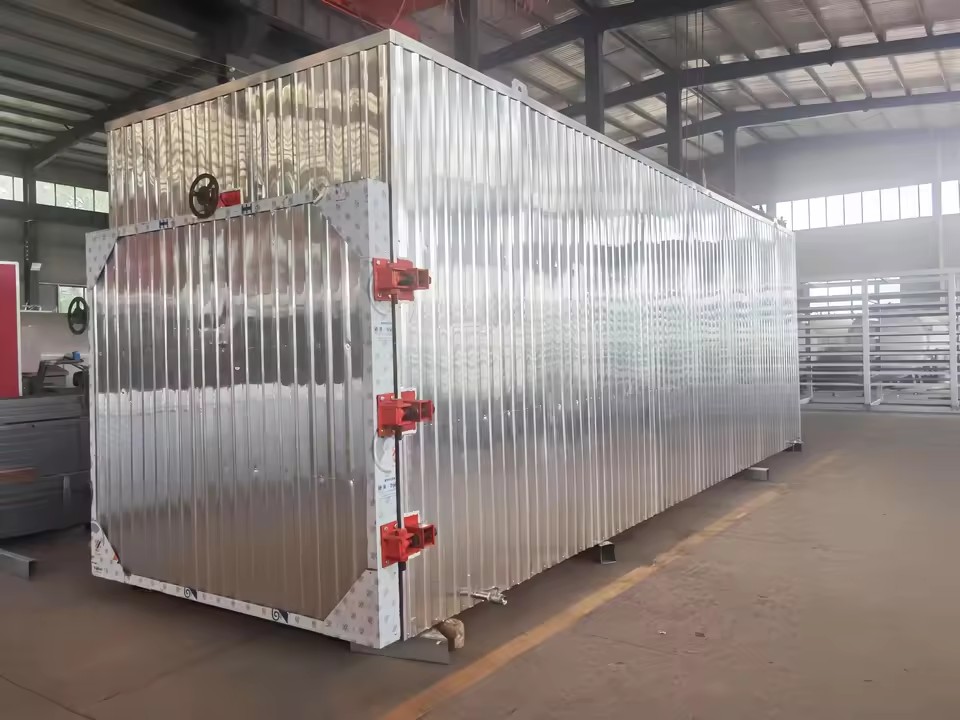

Product Importer Gallery 05 · 790a53e43e

Product video

10m³m Automatic Stainless Steel Electric Heating Log and Lumber High-temperature Processing Equipment

Name: 10m³m Automatic Stainless Steel Electric Heating Log and Lumber High-temperature Processing Equipment
SKU: SR65-29SP-MBCP
Price: 17960.0 USD
Availability: PreOrder

Available for enquiry 0.0 · 0 reviews

USD

$ 17,960.00 17960.0 USD $ 17,960.00

Minimum order quantity: 1 Units

Key attributes

View all

Type

10m3 Wood Carbonization Kiln

Voltage

220 V

Heating method

Oil Heating, Electric Heating

Material

Stainless Steel

Power(w)

10kw(13.41hp)

Application

Wood Processing

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

No.	Name	QTY
1	Carbonization kiln: 6.60 meters long, 2.40 meters high, 2.30 meters wide	1pc
2	Fully automatic P2C touch screen microcomputer control cabinet	1pc
3	High temperature carbonization special high temperature fan 1.5KW	2pcs
4	Deflector	1pc
5	Draught board	1pc
6	Baffle bracket	1pc
7	Windshield support	1pc
8	Automatic exhaust pipe	2pcs
9	Priming box	2pcs
10	Automatic drain valve	1pc
11	High-temperature wire	1set
12	Closed line	1set
13	Moisture meter for wood	1pc
14	Stainless steel probe	8pcs
15	Hand valve	1pc
16	Heating system 45KW	2sets
17	Rail car	1pc
18	Temperature sensor	1set
19	Electric control box bracket	1set
20	Thermometer	1pc
21	Rail car bracket	1set
22	Drain	1set

No.	Name	Description	QTY
Model: GYZCM-100
1	Box	1. Drying products: suitable for drying and drying of all kinds of wood, as well as wood sterilization, insecticide and wood heat treatment. 2. Headroom length: 10.00 meters, width: 7.00 meters, height: 5.00 meters. 3. Material of drying box: The inner wall is all aluminum for corrosion resistance and high temperature resistance. The outer wall is colored steel plate, and the middle is insulated by fiber cotton.	1pc
Heat source system
1	Boiler	1)1 million kcal boiler heating (special for wood or coal). 2)The material is: special steel plate welded into wood special hot air drying furnace (forced type, furnace outlet temperature 180°-200°, the main fuel is: wood or coal. Thermal insulation boiler material: all steel boiler special steel plate). 3)The steel plate wall thickness of the furnace body is 8cm, and the seamless steel pipe wall thickness is 10mm.	1pc
2	Steam generator	1.Material is: special steel plate welded. 2.Thickness: 8mm.	1set
3	Chimney	1.Material: special steel plate welded. φ240mm, length: 6700mm, each section 3350mm. 2.Diameter 280mm, wall thickness 2mm.	2sections
4	Automatic exhaust steam raft	Material: special cast iron.	1pc
5	Glass tube	φ20mm, length: 450mm.	2pcs
6	Priming box	The thickness is 8.0mm and the water capacity is 200L. Material is: special steel plate welded.	1set
7	Faucet	Material: cast steel type.	1pc
8	Steam valve	Material: Cast iron type.	1pc
9	Water bucket	Material: steel plate type.	1pc
Piping system
1	Air inlet duct	Φ398mm. Material: all steel welded.	1set
2	Return air duct	Φ398mm. Material: all steel welded.	1set
3	Recycle one	Φ398mm. Material: all steel welded.	1set
4	Bend	Φ398mm. Material: all steel welded.	4pcs
5	Tuyere iron plate	Φ398mm. Material: all steel welded.	1set
6	Air inlet duct flange	Φ398mm. Material: all steel welded.	1set
7	Return air duct flange	Φ398mm. Material: all steel welded.	1set
8	Heat dissipation pipe inside the box	Φ398mm. Material: all steel welded.	1set
Fan system
1	High temperature main fan	1. Power 11.00KW. 2. Material: all carbon steel. 3. High quality volute blower.	1pc
2	High temperature and high humidity axial flow fan	1. Power 2.20KW. 2. Material: all aluminum. 3. High quality axial fan diameter 850 mm.	3pcs
Prosecution system
1	Air outlet temperature gauge	Material: stainless steel, temperature at 300C°.	1pc
2	Thermoelectric couple	Stainless steel.	1pc
3	thermometer	Stainless steel.	1pc
4	Electric control cabinet	Fully automatic control.	1pc
Tide drainage system
1	Tide window	Material: all steel welded φ300mm.	6sets
2	Tide drainage machine	Material: Automatic model.	6sets
Two layers in kiln
1	deflector	Material: All aluminum.	1set
2	Draught board	Material: All aluminum.	1set
3	Baffle frame	Material: All steel.	1set
4	Windshield frame	Material: All steel.	1set
Insulated door
1	Insulated door	Material: The inner wall is all aluminum for corrosion resistance and high temperature resistance. The outer wall is colored steel plate, and the middle is insulated by fiber cotton.	1set
2	Door opener	Material: All steel.	1set
3	Door member	Material: All steel.	1set
4	Gate hinge	Material: All steel.	1set

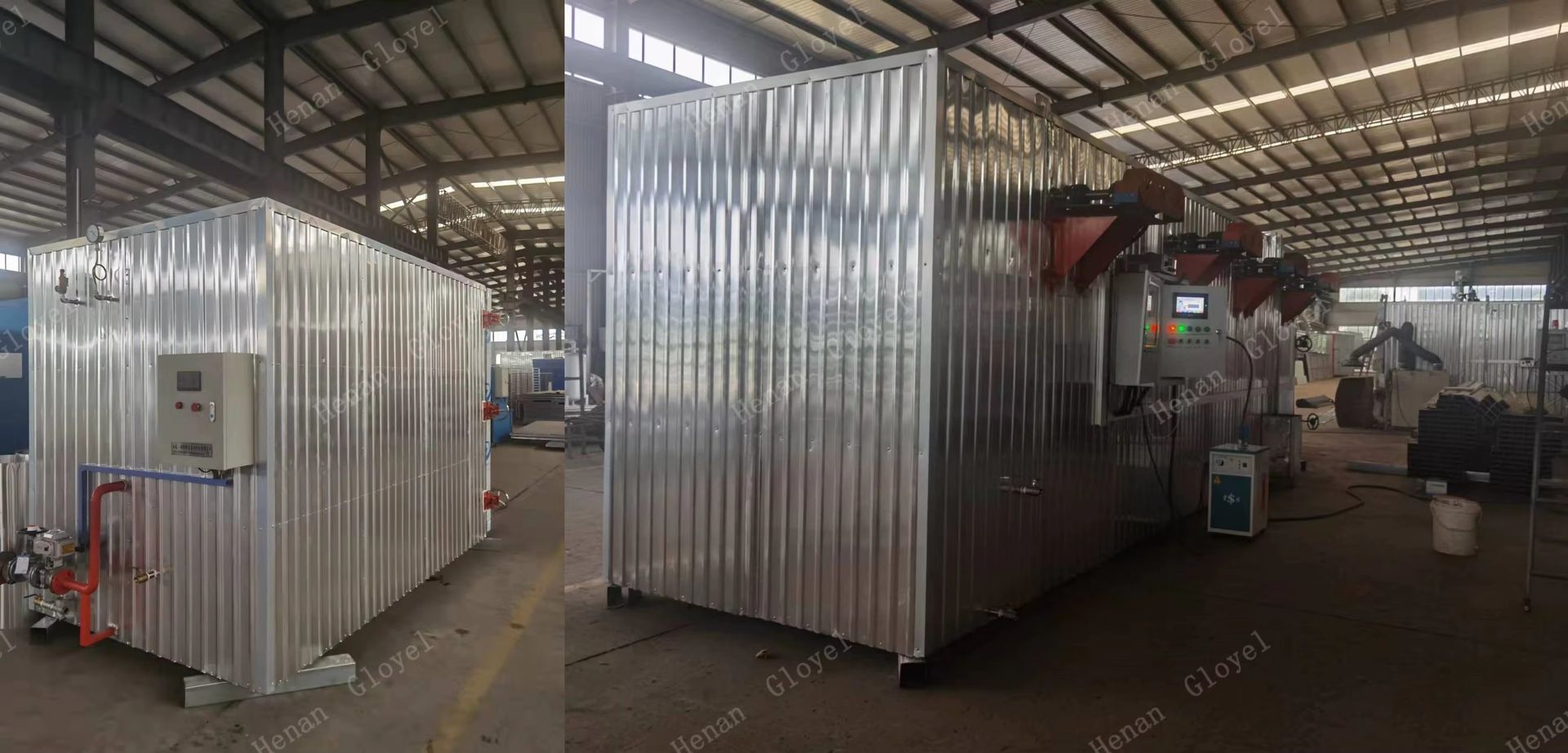

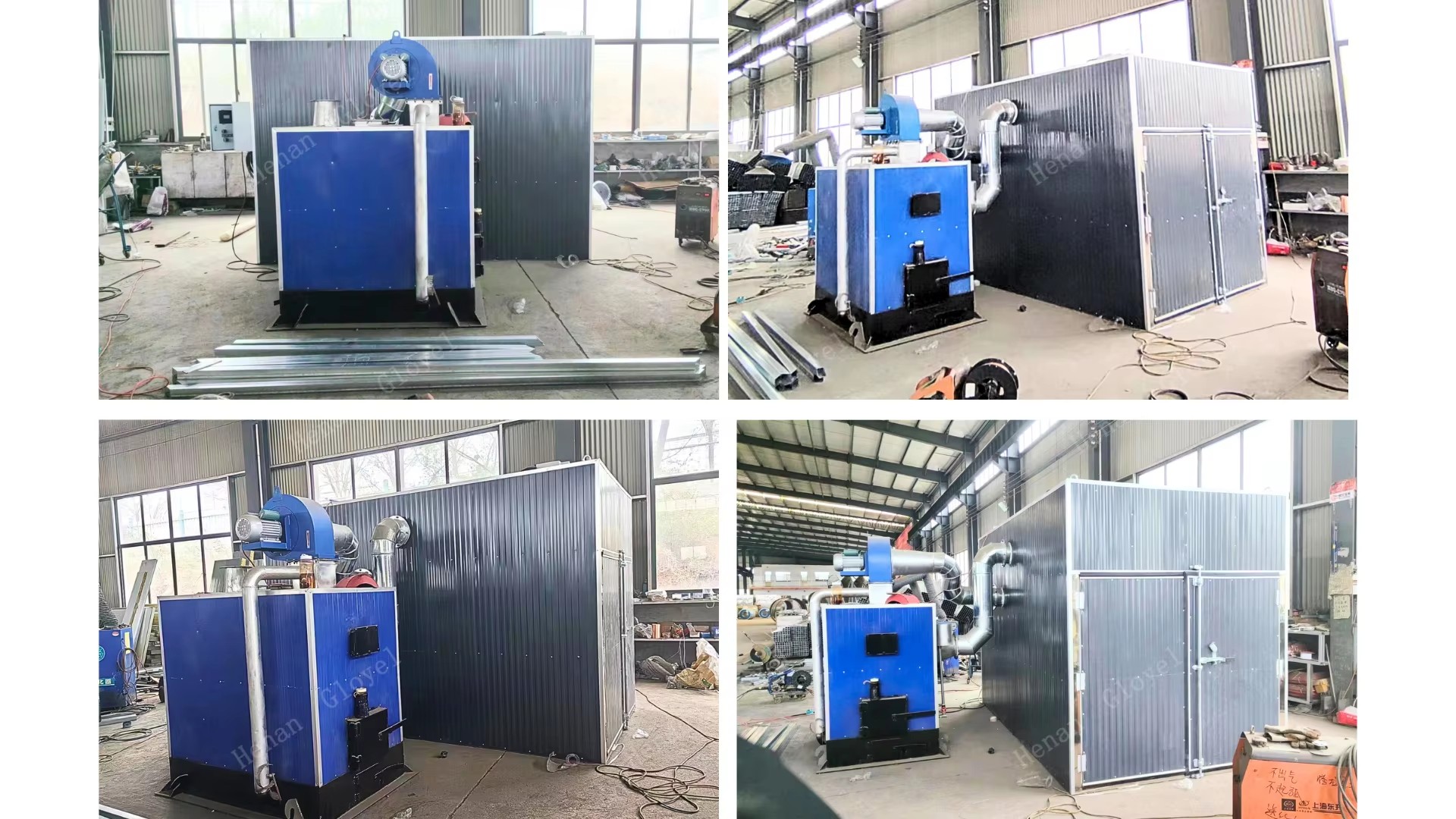

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

30 days
Step 3

Packaging and dispatch

Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 28 fields

Type

10m3 Wood Carbonization Kiln

Voltage

220 V

Heating method

Oil Heating, Electric Heating

Material

Stainless Steel

Power(w)

10kw(13.41hp)

Application

Wood Processing

Core components

Box, Heat source system

Key selling points

Automatic, High Productivity, High Safety Level, Energy Saving, Low Noise Level

Warranty

1 Year

Machinery test report

Provided

Video outgoing-inspection

Provided

Operating System Language

English

Place of origin

China, Henan

Weight (kg)

650

Dimension(L*W*H)

6.6*2.4*2.3m(21.65*7.87*7.55ft)

Model

10m3 Wood Carbonization Kiln

Dimension

6.6*2.4*2.3

Features

Fully automatic P2C touch screen

Advantage

safety moisture resistance dimensional stability

Special high temperature fan

1.5KW

Automatic exhaust pipe

2pcs

Priming box

2pcs

High-temperature wire

1set

Heating system 45KW

2sets

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Model number

10m3 Wood Carbonization Kiln

Lead time

30 days
