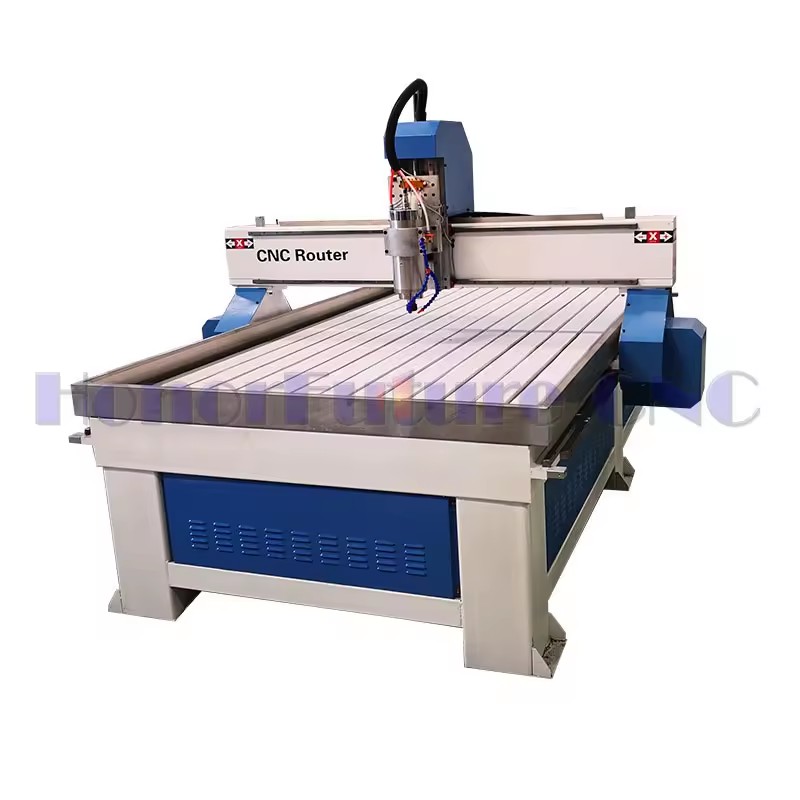

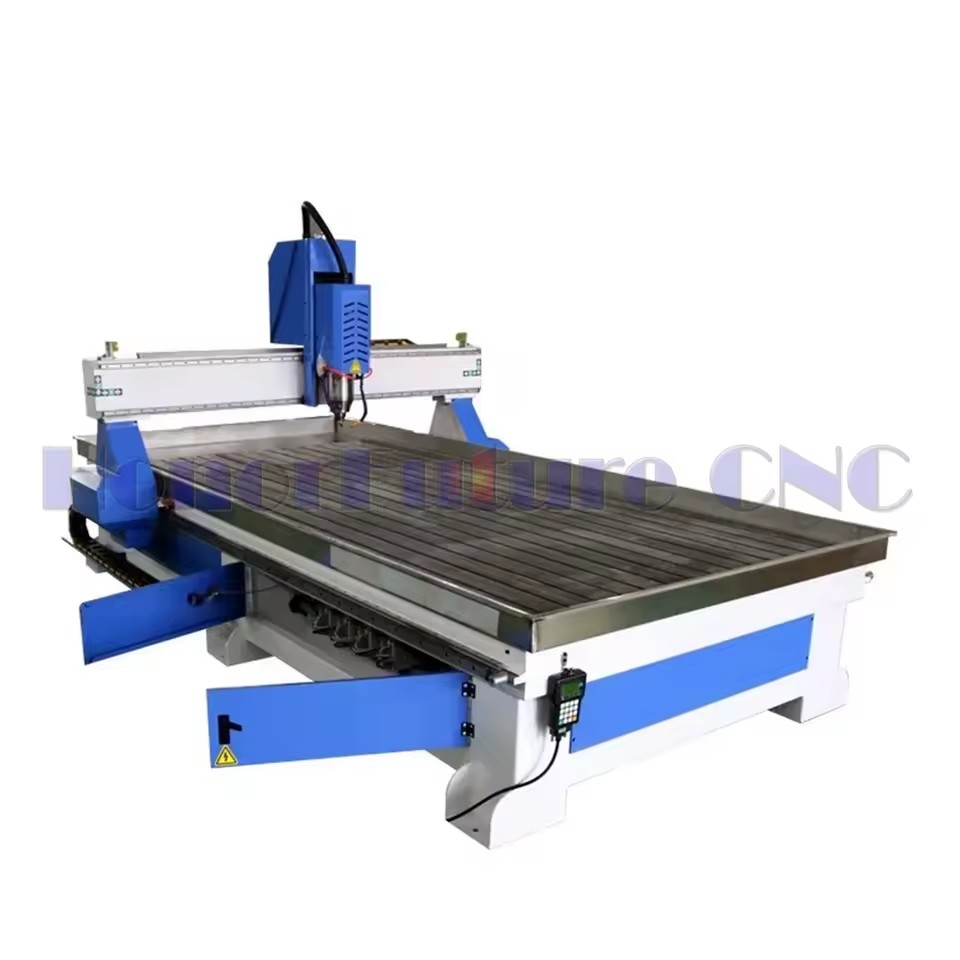

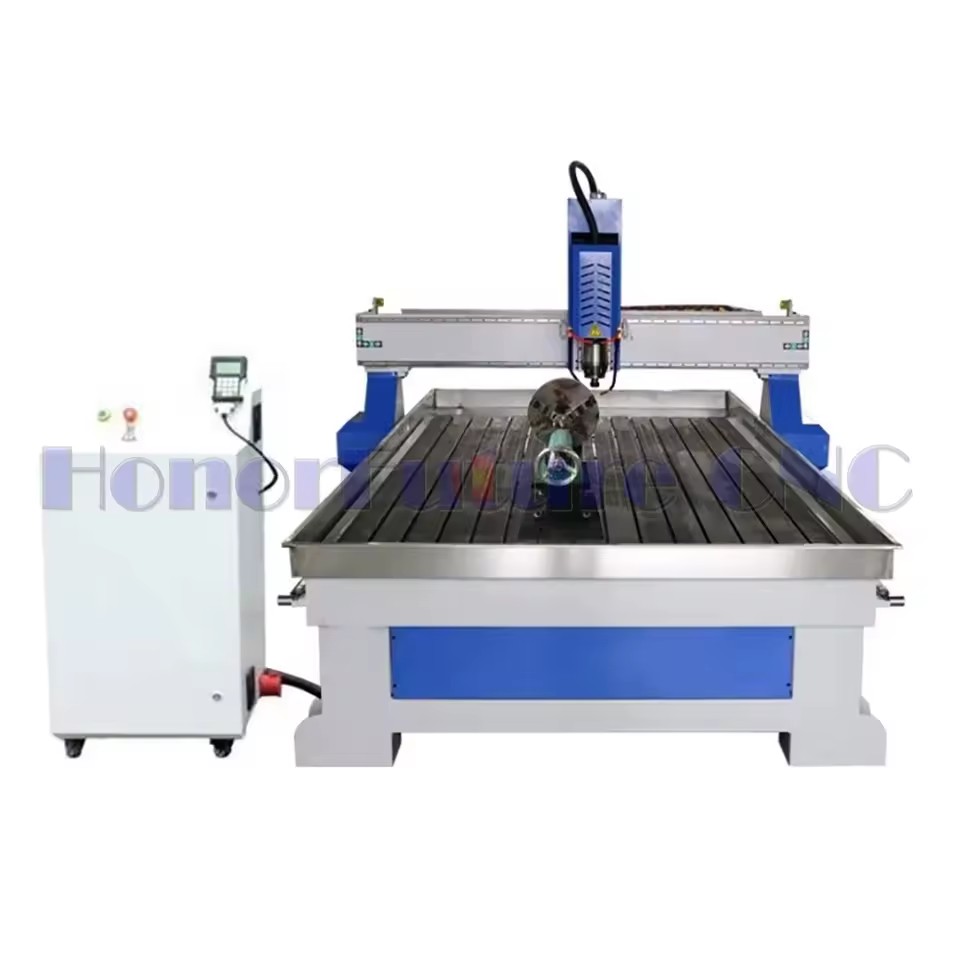

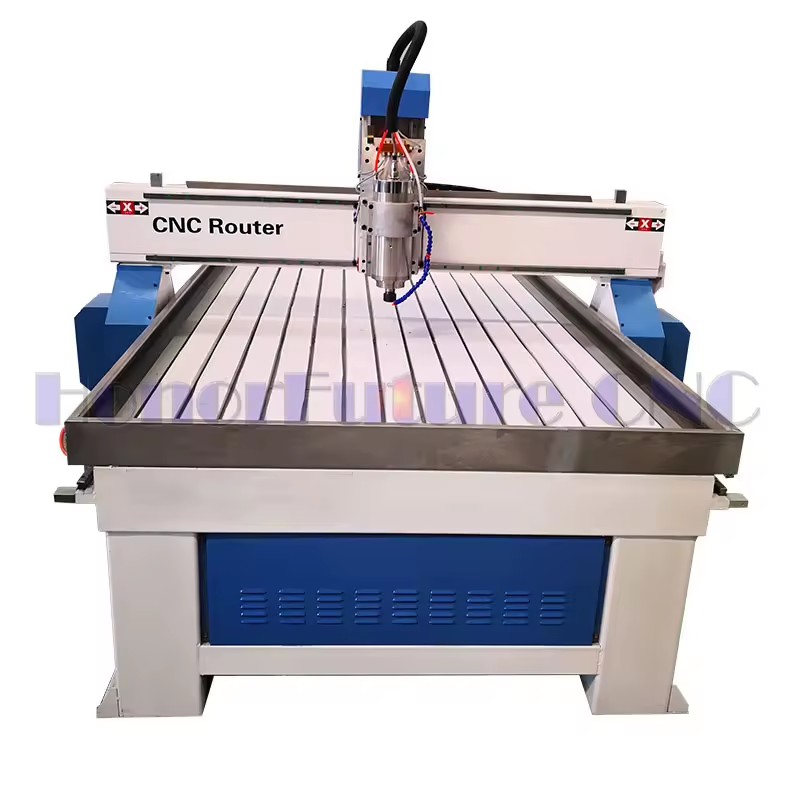

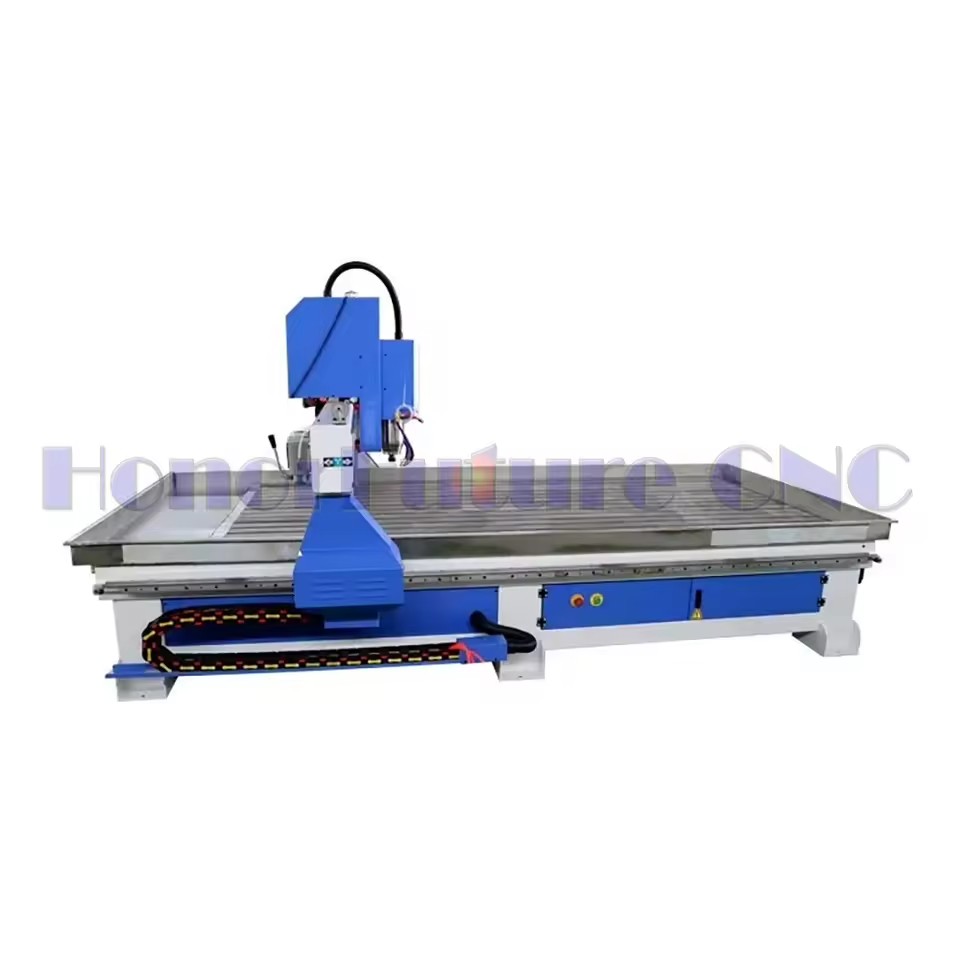

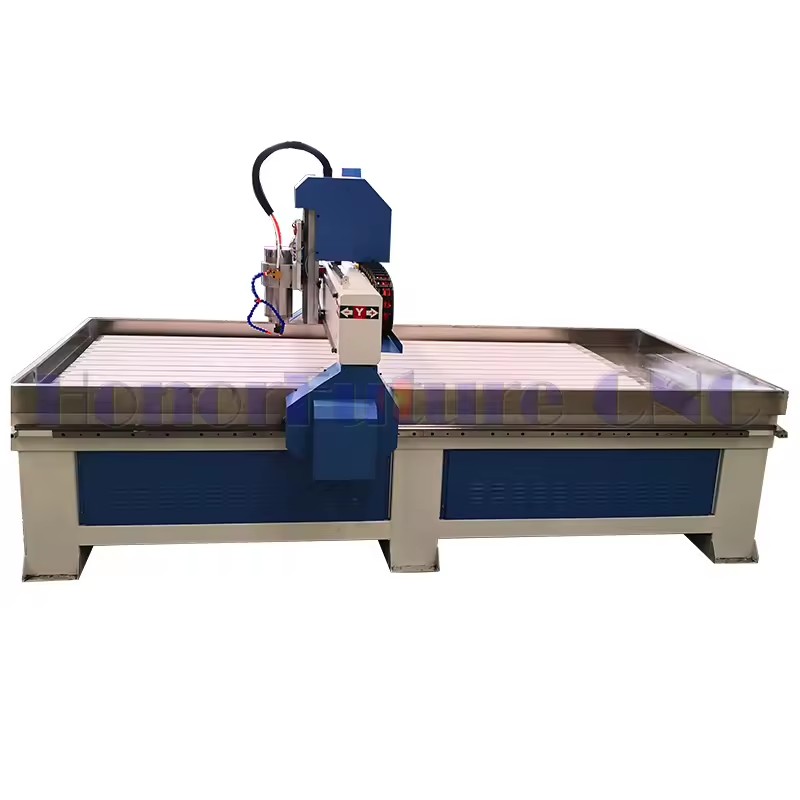

1325,5.5Kw Light Stone Engraving CNC Router Machine Stone Cutter Water Jet Machine With NCstudio Control System

Technical Parameters

1325,5.5Kw Light Stone Engraving CNC Router Machine Stone Cutter Water jet Machine With NCstudio Control System

Feature

1. This model is one of classic and best selling cnc router, made of thickness square tube welded bed, imported square rail and high speeding stepper motor & driver. It can do cutting and engraving many materials, such as MDF, Acrylic, wood, PVC, etc. It's widely used in advertising and woodworking industries.

2.With Well-known brands stepper motors and drivers, Hiwin linear guide rail, XY axis gear and rack transmission,Z axis TBI higher precision Ball Screws, ensure fast speed, big loading capacity, low noise, and longer time working.

3. Professional NC-Studio / Richauto Panel control system, Air cooling spindle 3.2KW or 5.5KW, long working life, low noise, strong cutting ability.

4.T-slot worktable can fix small materials by clamps.Optional vacuum worktable.

5. Electronic control components from famous brand such as CHNT / DELIXI company.

6. Manual oil filling system for gularly maintenance (lubricating) is so convenient to use.

Model

HFS1325

HFS1530

Working Size

1300*2500*200mm (Z axis 300mm height optional )

1500*3000*200mm (Z axis 300mm height optional )

Felm

Welded structure

Guide rail

Square Rails Hiwin 20mm

Transmission

X Y Rack gears Z TBI Ball screw

Motor and driver

CW450B motor,CW860 Driver

Cabinet

Independent Cabinet

Control system

Rich Auto A11/A18 DSP panel/ NC-Studio /Mach 3

Moving Speed

Max25m / min

Engraving Speed

Max20m/min

Spindle

5.5 KW water cooling

Spindle speed

0-24000 rpm

Table

Aluminum t-slot

Lubrication

Centralized Lubrication

Software

ARTCAM

Working Voltage

220V/380V ±10%, 50Hz/60Hz

1. Wood industry: Wood furniture making, 3d wood relief carving, wooden craftwork production Speakers, game consoles cabinets, computer tables, sewing machine table etc.

1. Wood industry

Wood furniture making, 3d wood relief carving, wooden craftwork production Speakers, game consoles cabinets, computer tables, sewing machine table etc.

2. Advertising products industry: 3D letters sign making, acrylic cutting and engraving.

2. Advertising products industry

3D letters sign making, acrylic cutting and engraving.

3. Board processing industry: Insulation piece, acrylic board, plastic chemical products, PCB, compact grade laminate, ABS, PP, PE and other cementitious mixtures's milling process.

3. Board processing industry

Insulation piece, acrylic board, plastic chemical products, PCB, compact grade laminate, ABS, PP, PE and other cementitious mixtures's milling process.

4. Decoration industry: Folding screen, wave plates, advertising boards, sign making and logo's processing.

4. Decoration industry

Folding screen, wave plates, advertising boards, sign making and logo's processing.

5. Arts & Crafts industries: Engrave on artificial stones, woods, bamboos, marbles.

5. Arts & Crafts industries

Engrave on artificial stones, woods, bamboos, marbles.

6. Processing material: Engraving, milling and cutting processing for acrylic, PVC, artificial stones plastics and soft metal sheets and so on.

6. Processing material

Engraving, milling and cutting processing for acrylic, PVC, artificial stones plastics and soft metal sheets and so on.

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

*More than 95% of the timely response rate, timely response to customer questions

After-Sales Service

* Training how to install the machine, training how to use the machine.

* Engineers available to service machinery overseas.

* Use online

<< Price can Discuss! >>>
