Product video
Certifications CE

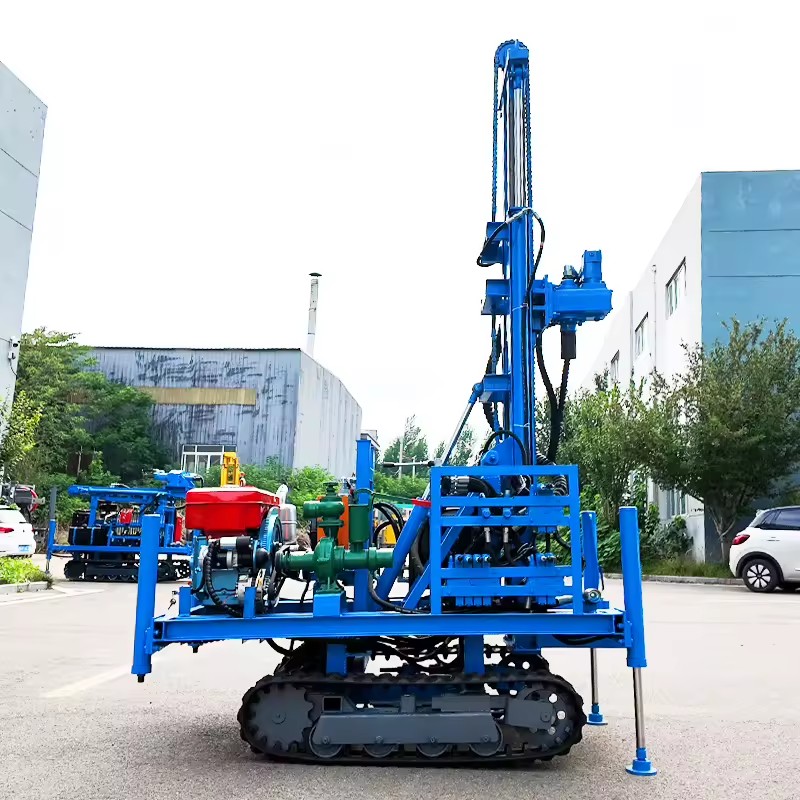

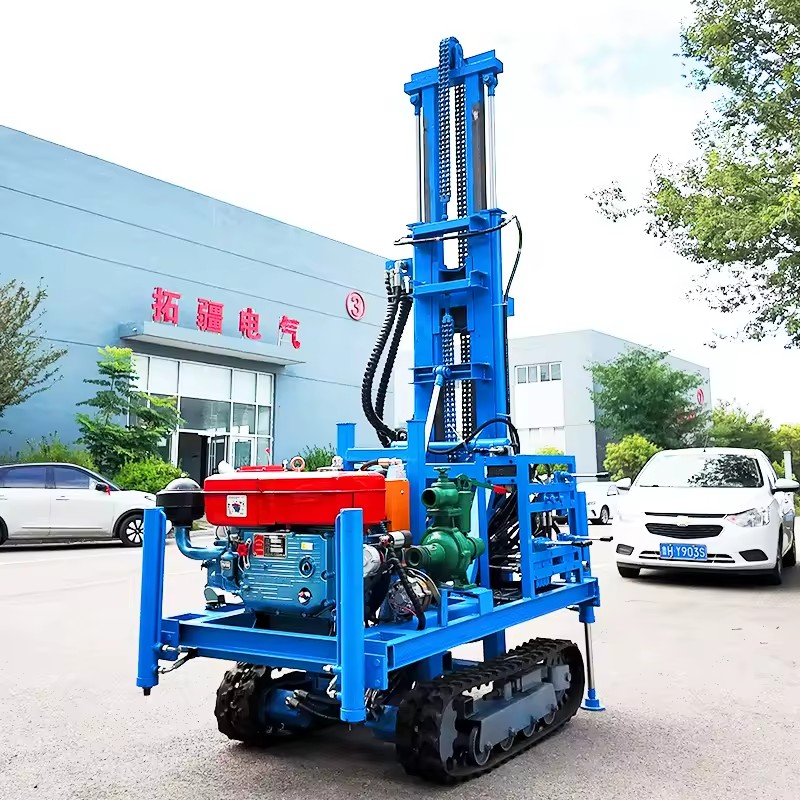

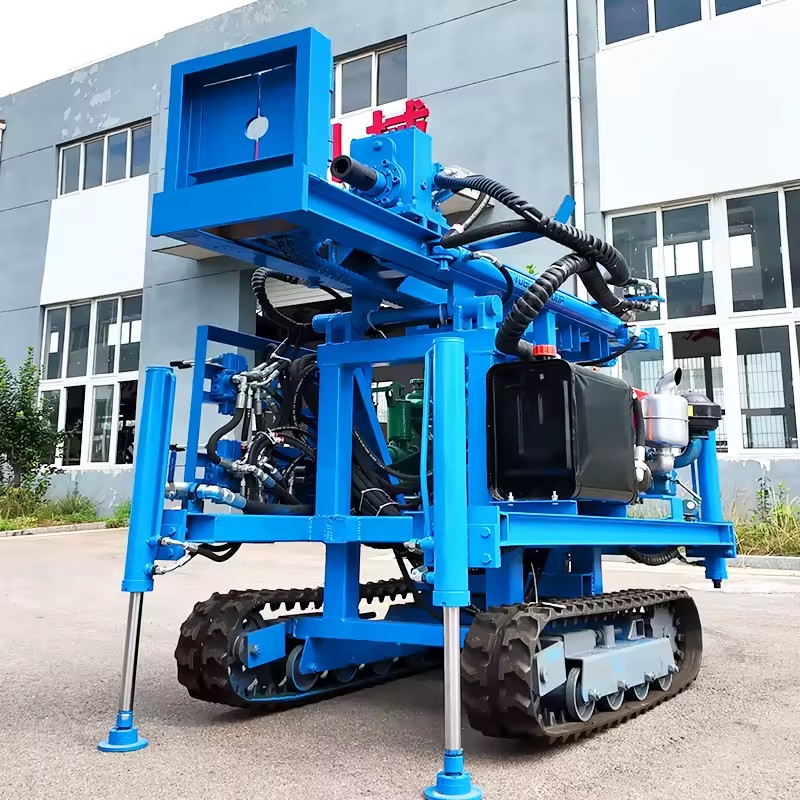

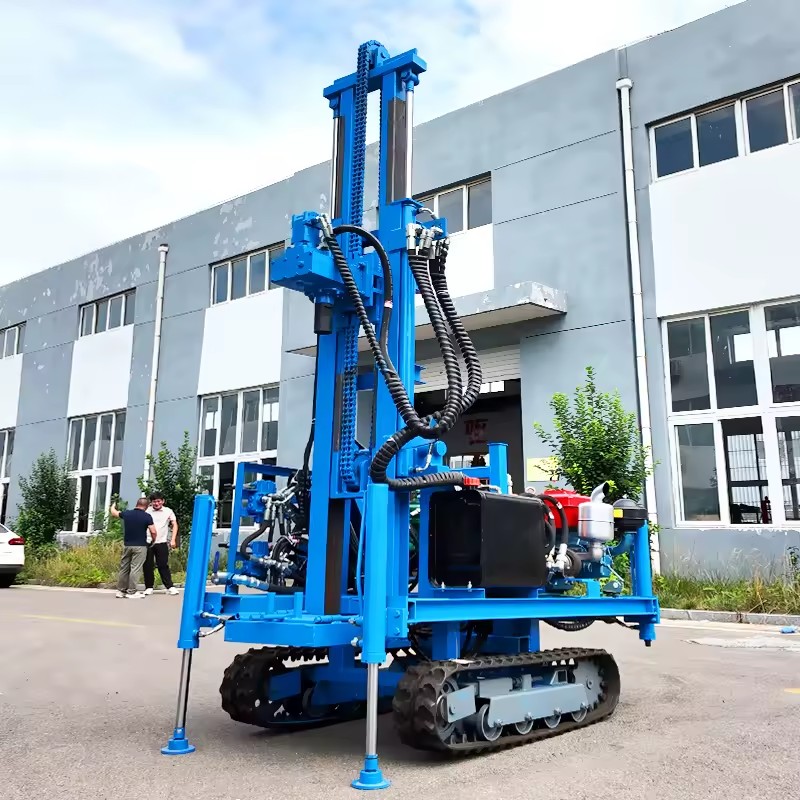

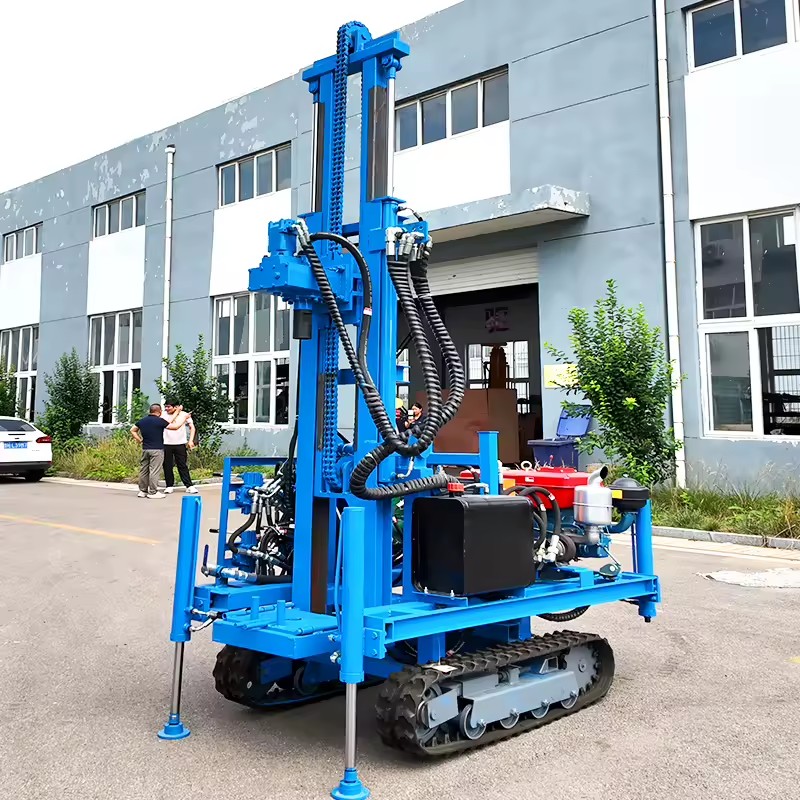

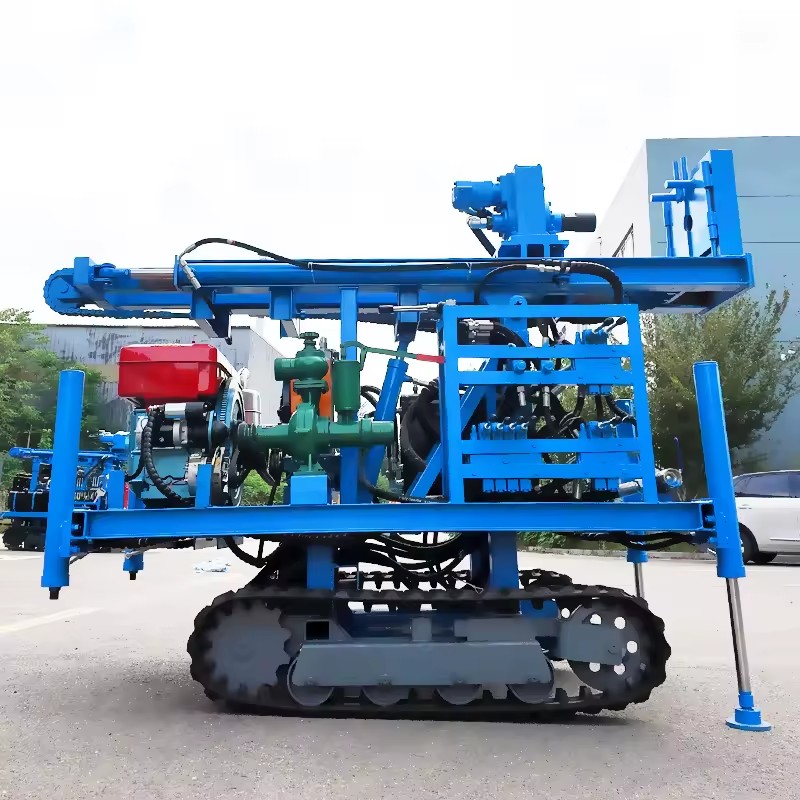

Splendid Durable Water Well Drilling Rig Water Drilling Machine for Mine Drilling Pump Engine Motor Gear Gearbox Core

Available for enquiry 0.0 · 0 reviews
USD

$ 4,890.00 4890.0 USD $ 4,890.00

Not Available For Sale

Minimum order quantity: 1 Units
  • Usage
  • Type
  • Drilling Depth
  • Drilling Diameter
  • Power Type
  • Voltage
  • Core components
  • Warranty
  • Machinery test report
  • Video outgoing-inspection
  • Key selling points
  • Place of origin
  • Weight
  • Mobility
  • Name
  • Drill pipe length
  • Air Consumption(m3/Min)
  • Drilling Rod Diameter(mm)
  • Max. Torque
  • Rated power/speed
  • Mud Pump
  • Lifting Capacity (Specification)
  • Engine model
  • Selling Units
  • Single volume
  • Single gross weight
  • Power (W) (Product option)
  • Model number
  • Certifications & Compliance

This combination is unavailable.

Key attributes

View all
Usage
Water Well
Type
water well drilling rig
Drilling Depth
Max.1200m
Drilling Diameter
60 mm(2.36in)
Power Type
Diesel
Voltage
220V/380V
Product description

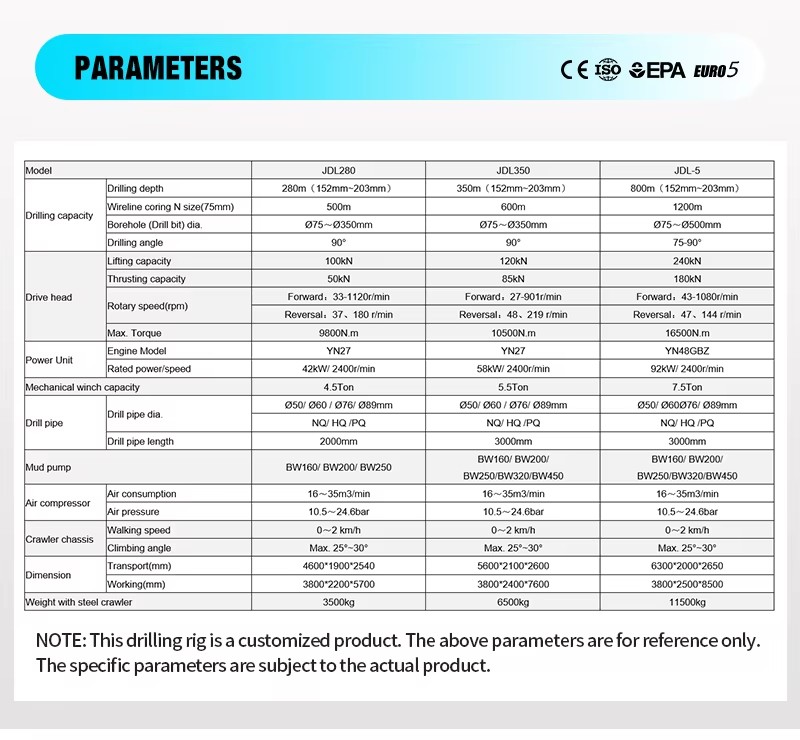

ModelJDL280JDL350JDL-5
Drilling capacityDrilling depth280m（152mm~203mm）350m（152mm~203mm）800m（152mm~203mm）
Wireline coring N size(75mm)500m600m1200m
Borehole (Drill bit) dia.Ø75～Ø350mmØ75～Ø350mmØ75～Ø500mm
Drilling angle90°90°75-90°
Drive headLifting capacity100kN120kN240kN
Thrusting capacity50kN85kN180kN
Rotary speed(rpm)Forward：33-1120r/minForward：27-901r/minForward：43-1080r/min
Reversal：37、180 r/minReversal：48、219 r/minReversal：47、144 r/min
Max. Torque9800N.m10500N.m16500N.m
Power UnitEngine ModelYN27YN27YN48GBZ
Rated power/speed42kW/ 2400r/min58kW/ 2400r/min92kW/ 2400r/min
Mechanical winch capacity4.5Ton5.5Ton7.5Ton
Drill pipeDrill pipe dia.Ø50/ Ø60 / Ø76/ Ø89mmØ50/ Ø60 / Ø76/ Ø89mmØ50/ Ø60Ø76/ Ø89mm
NQ/ HQ /PQNQ/ HQ /PQNQ/ HQ /PQ
Drill pipe length2000mm3000mm3000mm
Mud pumpBW160/ BW200/ BW250BW160/ BW200/ BW250/BW320/BW450BW160/ BW200/ BW250/BW320/BW450
Air compressorAir consumption16～35m3/min16～35m3/min16～35m3/min
Air pressure10.5～24.6bar10.5～24.6bar10.5～24.6bar
Crawler chassisWalking speed0～2 km/h0～2 km/h0～2 km/h
Climbing angleMax. 25°~30°Max. 25°~30°Max. 25°~30°
DimensionTransport(mm)4600*1900*25405600*2100*26006300*2000*2650
Working(mm)3800*2200*57003800*2400*76003800*2500*8500
Weight with steel crawler3500kg6500kg11500kg
Certifications & compliance
CE
Complies with EU standards

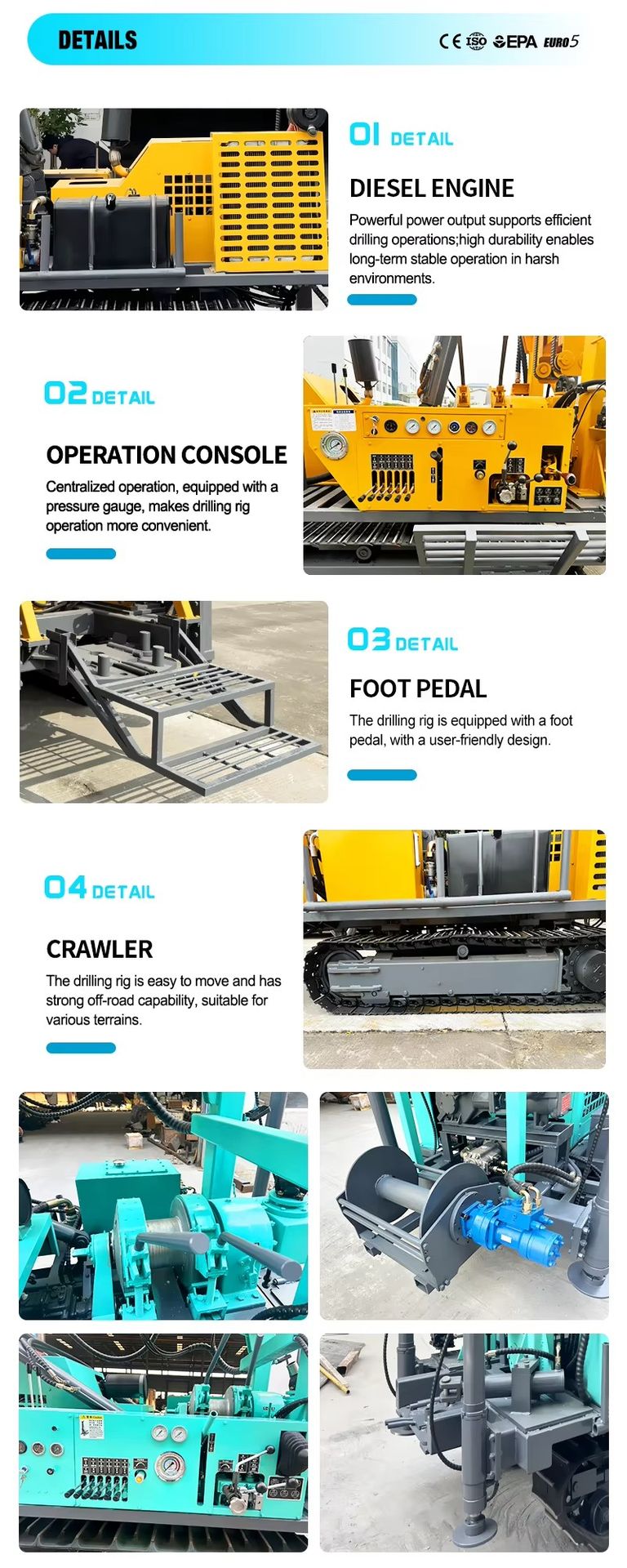

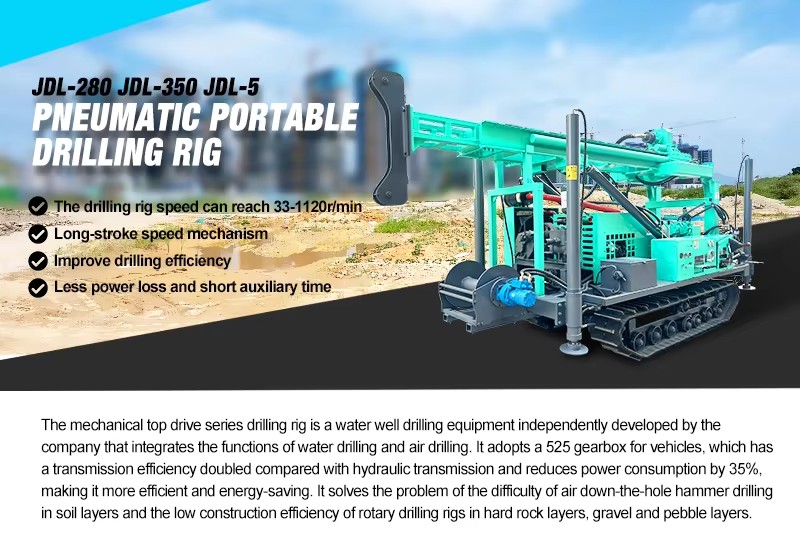

Description images
Product detail
Product detail
Product detail
Product detail
CE
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    15 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 29 fields
Usage
Water Well
Type
water well drilling rig
Drilling Depth
Max.1200m
Drilling Diameter
60 mm(2.36in)
Power Type
Diesel
Voltage
220V/380V
Core components
Bearing, PLC, Motor, Pressure Vessel, Gear, Engine, Pump, Gearbox, Other
Warranty
1 Year
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
Competitive Price
Place of origin
China, Shandong
Weight
6500 KG(14330.05lb)
Mobility
Movable
Name
JDL Water Well Drilling Rig
Drill pipe length
2000mm/3000mm
Air Consumption(m3/Min)
16~35m
Drilling Rod Diameter(mm)
50/60/76/89
Max. Torque
9800N.m/10500N.m/16500N.m
Rated power/speed
42kW/ 2400r/min | 58kW/ 2400r/min | 92kW/ 2400r/min
Mud Pump
BW160/ BW200/ BW250/BW320/BW450
Lifting Capacity (Specification)
100kN/120kN/240N
Engine model
YN27/YN48GBZ
Selling Units
Single item
Single volume
0 cm3
Single gross weight
0.0 kg
Power (W) (Product option)
Depend on model
Model number
JDL-5, JDL280, JDL350
Certifications & Compliance
CE
Lead time
15 days
Minimum order
1 Units
