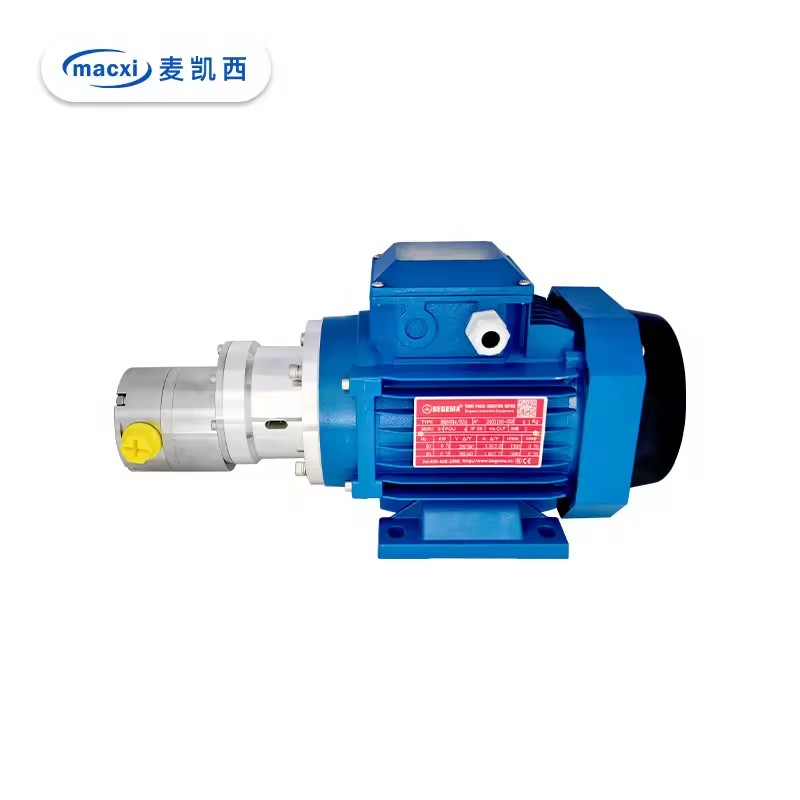

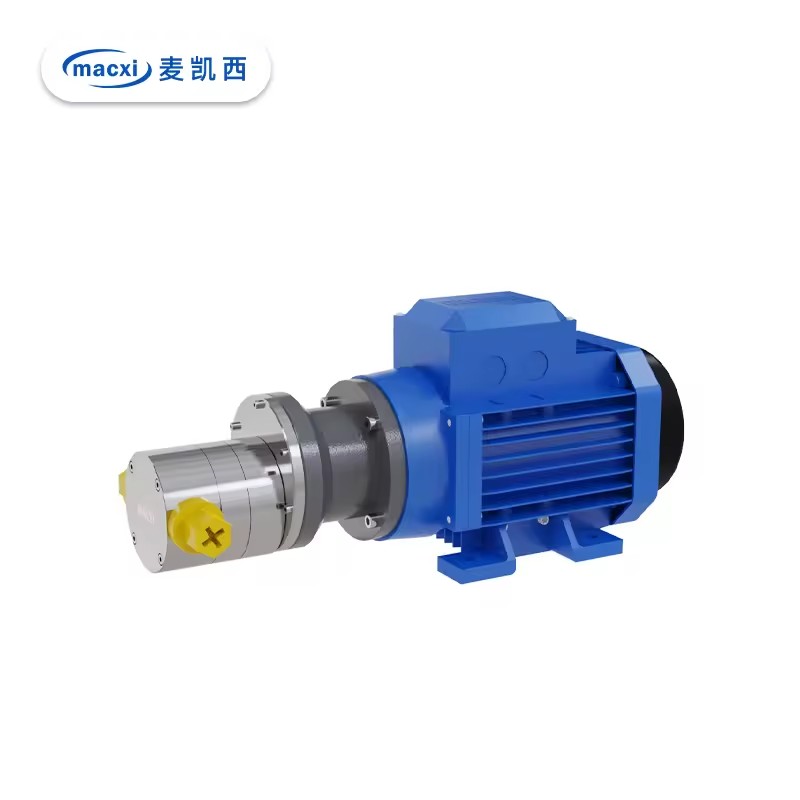

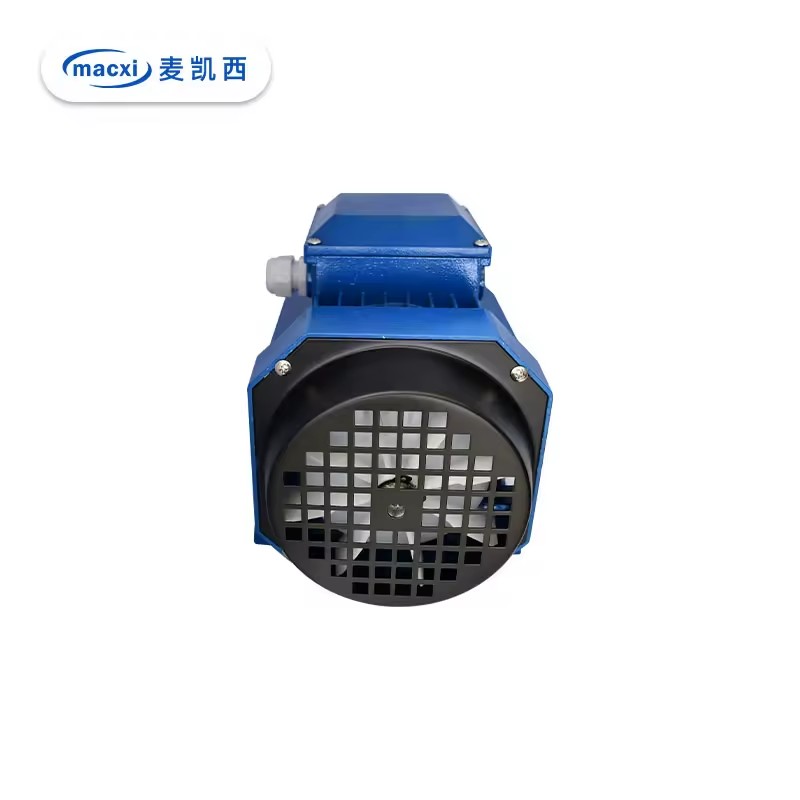

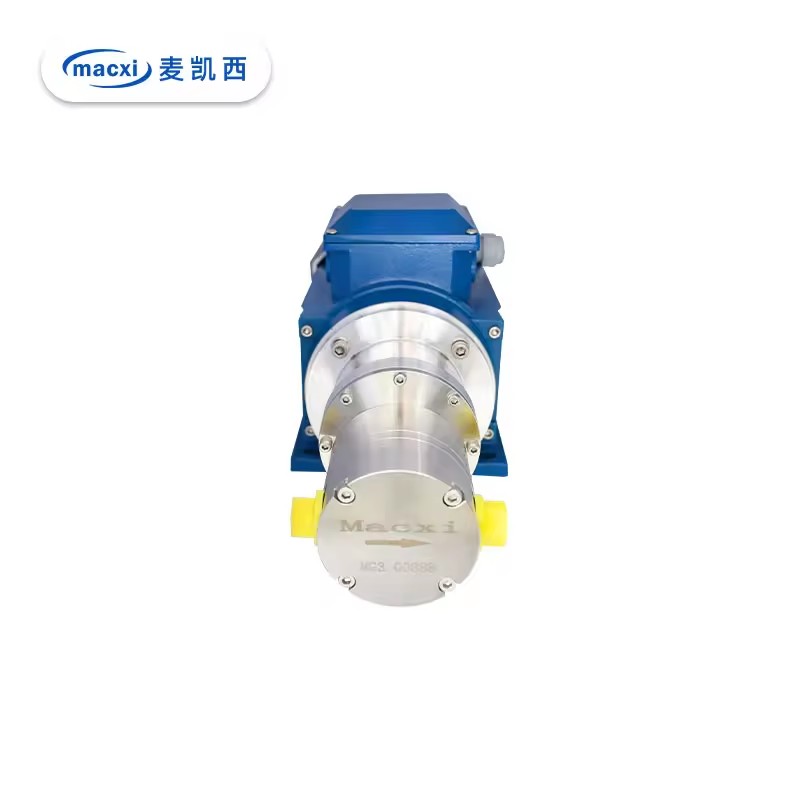

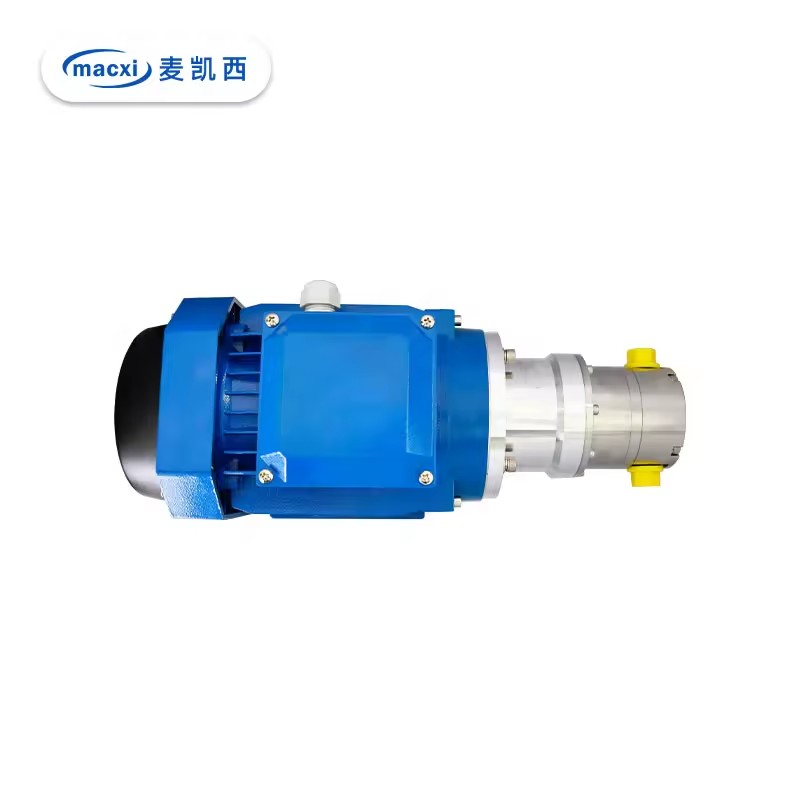

Special metering dosing pump for transporting dimethyl silicone oil in cooling cycle

• Application
  • Chemical Industry
• Structure
  • Gear Pump
• Max flow rate
  • 1.79 - 4.48 L/min(0.47-1.18gpm)
• Max pressure
  • 30 Bar(435.11psi)
• Power source
  • Electric
• Chemical Compatibility
  • Water
  • oils
  • Alcohol
  • Diesel
  • Kerosene
  • Gasoline
  • Other
• Sealing Material
  • PFA
• Applicable temperature
  • 40-70°C
• Outlet size
  • RP1/2
• Import Size
  • RP1/2
• Discharge Pipe Size
  • RP1/2
• Material
  • Stainless Steel
• Control Method
  • Fully Automatic Control
  • Manual Control
  • Semi-Automatic Control
• Motor
  • Three-Phase Motor
• Warranty
  • 1 years
• Customized support
  • OEM
  • ODM
  • OBM
• Horsepower
  • 750W
• Pressure
  • Other
• Flow Meter Specification
  • 1.79 - 4.48 L/min(0.47-1.18gpm)
• Model number (Specification)
  • MGH3.2S88Y0.75KW4P
• Place of origin
  • China
  • Jiangsu
• Voscosity range
  • 0.2- 5000 cps
• Rated frequency
  • 50Hz
• Meshing form
  • External Engaged
• Rev. range
  • 560-1400 rpm
• Gear material
  • PEEK and shaft 316L
• Working System
  • Continuous operation
• Flow(ml/Rev)
  • 3.2ml/rev
• Life Cycle
  • 20000 hours
• Certification
  • CE / ISO 9001
• Protection Level
  • IP55
• Selling Units
  • Single item
• Single package size
  • 50X30X22 cm
• Single gross weight
  • 15.0 kg
• Type (Product option)
  • Booster Pumps
  • Circulating Pumps
  • Jet Pumps
  • Chemical Pumps
  • Grinder Pumps
  • Positive Displacement Pumps
  • Fuel & Oil Transfer Pumps
  • Filling and dispensing equipment
  • Mask making
  • liquid filling pump
  • Lubrication systems
  • Aerospace and Aircraft
  • cooling pump
  • Inkjet printer pump
  • Paints and Inks
  • Transportation of online coating
  • micro delivery pump
  • Chemical Processing
• Flow Rate (Product option)
  • 4.48 L/min(1.18gpm)
• Maximum head
  • 60m@1450rpm
• Voltage (Product option)
  • 380 V
