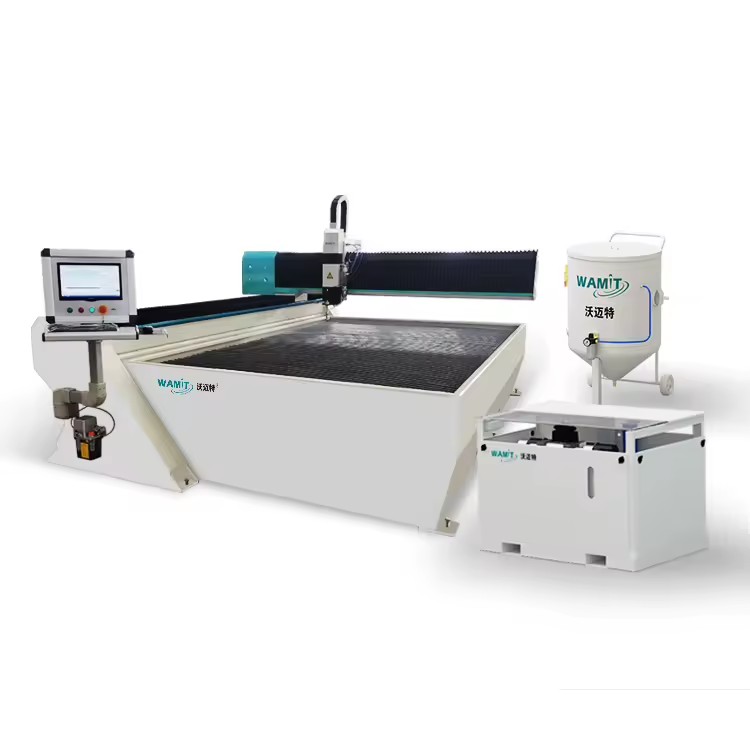

Superior Quality Water Jet Cutter 3axis 5axis for Stone Glass Tile Cutting Machine

Max Pressure

600mpa / 420mpa

Max Cutting Thickness

300mm

CNC System & Software

WEIHONG / ECS

Servo Motor

YASKAWA / INOVANCE

Electrical Components

Schneider

PLC

SIEMENS

Linear Guide & Ball Screw

HIWIN

Rack & Pinion

YYC

Auto-lubrication System

HERG

Certification

CE & ISO

Servo Direct Drive Pump Parameter Table

Model

WMT SDD I

WMT SDDⅡ

WMT SDD I10

WMT SDD I15

WMT SDD I20

WMT SDD I24

WMT SDD Ⅱ24

WMT SDD Ⅱ40

Horse Power/KW

10HP/7.5KW

15HP/11KW

20HP/15KW

24HP/17.5KW

Orifice Size

0.009" [0.23 mm]

0.012" [0.30 mm]

0.012" [0.33 mm]

0.013" [0.33 mm]

0.017" [0.43 mm]

Flow Rate

0.42 gal/min [1.58L/min]

0.62 gal/min [2.33L/min]

0.70 gal/min [2.65L/min]

0.83 gal/min [3.14L/min]

0.86 gal/min [3.25L/min]

1.48 gal/min [5.6L/min]

Max Generated Pressure

50,000 psi [345Mpa]

60,000 psi [415Mpa]

63,000 psi [435Mpa]

Max Operating Pressure

46000 psi [317Mpa]

55000 psi [380Mpa]

60000 psi [415Mpa]

Product Parameter

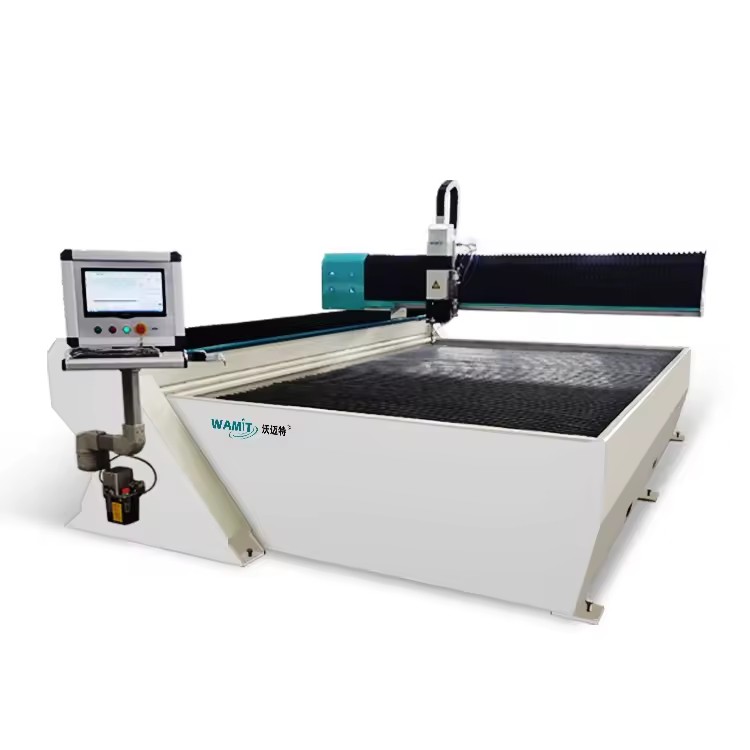

Product Display

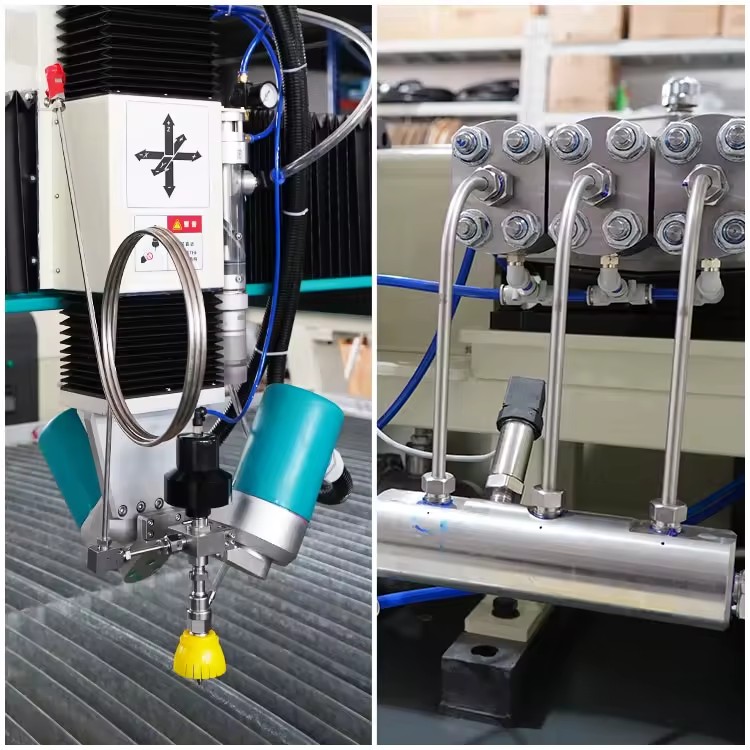

CUTTING PLATFORM

1. X/Y axis adopts 's high-quality guide rail and ball screw. 2.Heavy-duty machine tools, high-tem- perature forging, so that the machine will not be deformed during use. 3.The cantilever design allows the cut- ting head to be suspended above the workbench, providing more space for loading and unloading, and greater processing flexibility.

ABRASIVE DELIVERY SYSTEM

1. Provide abrasives for waterjet cutting

machine.

2. It can improve the automation of the

machine and reduce the labor intensi

ty of the operator.

reliable and maintenance-free operation.

3. High-precision sensor reminds the

operator when to replenish the abrasive material.

4. No need for electric control, simple

0.009"

[0.23 mm]

0.012"

[0.30 mm]

[0.33 mm]

0.013"

0.017"

[0.43 mm]

0.42 gal/min

[1.58L/min]

0.62 gal/min

[2.33L/min]

0.70 gal/min

[2.65L/min]

0.83 gal/min

[3.14L/min]

0.86 gal/min

[3.25L/min]

1.48 gal/min

[5.6L/min]

Max Generated

Pressure

50,000 psi

[345Mpa]

60,000 psi

[415Mpa]

63,000 psi

[435Mpa]

Max Operating

46000 psi

[317Mpa]

55000 psi

[380Mpa]

60000 psi

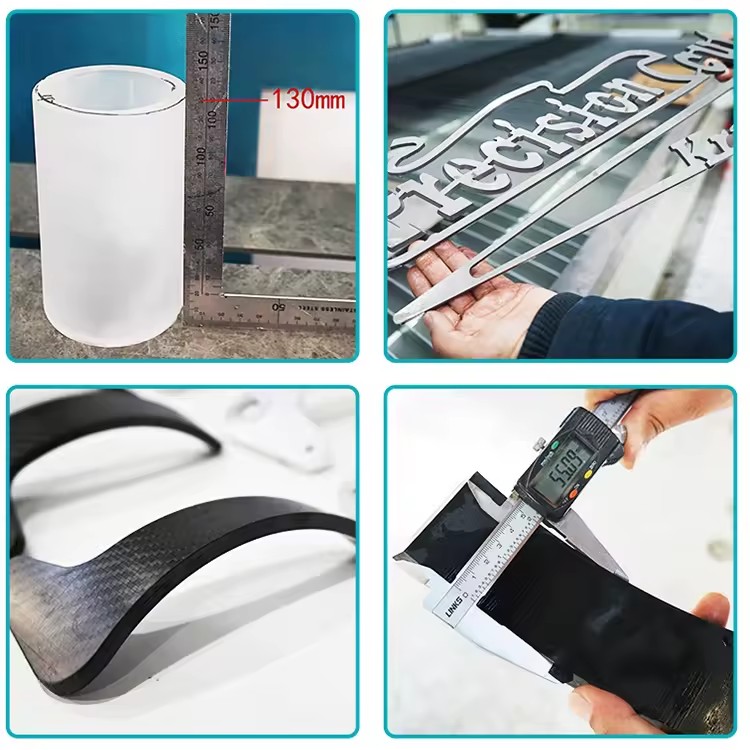

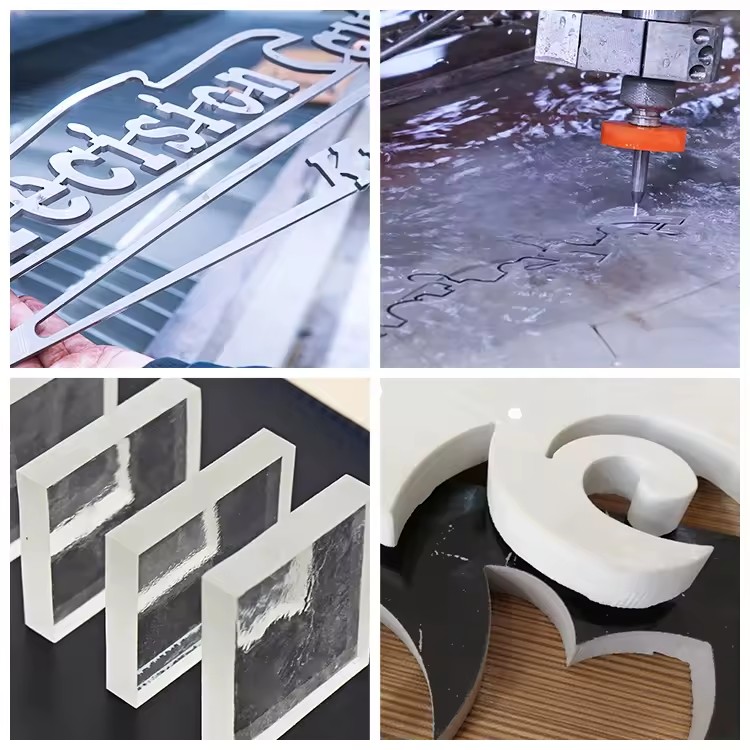

Cutting Samples

Company Profile

Packing&Shipping

FAQ

Q: What is the advantage of water jet cutting machine?

A:Cold processing, no heat reaction zone. no deformation; strong cutting ability, pure water jet can cut soft materials, abrasive waterjet can cut hard materials; can cut flammable and explosive objects; cutting precision is high, edge is neat no secondary processing is required. Waterjet also has the title of universal cutting machine.

Q: How to choose the cutting table?

A:You need to offer the size of the materials you want to process or the size of the cutting table.

Q:How to solve the incision problem of water cutting?

A:It is not a vertical cutting for a waterjet cutter. This is due to the physical characteristics of waterjet. If it is required

precise vertical angle cutting, we will provide you with a five-axis dynamic cutting system.

Q:Is the equipment easy to operate?

A:Wonlean intelligent waterjet cutting machine is easy to operate. You could upload the electronic images file of DXF format to the operating system via USB or network. The system will automatically program, and only need to set a few simple parameters, it can automatically complete the cutting operation.
