HYDX-2 Full Hydraulic Portable diamond core drilling rig Exploration Rig for coal gold copper iron mining project low cost

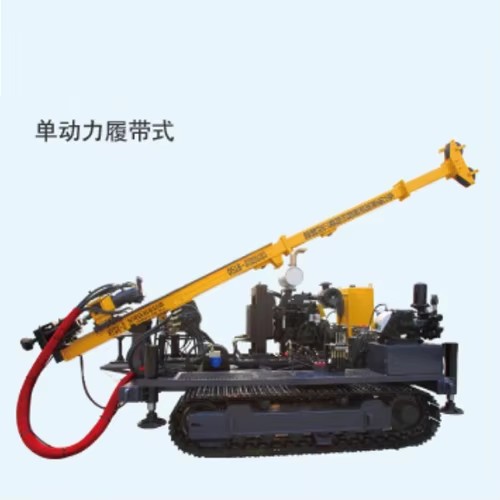

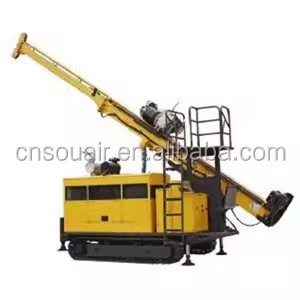

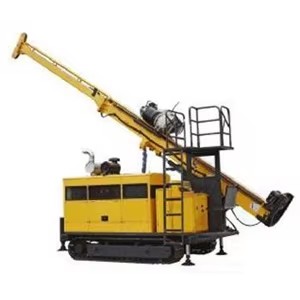

HYDX-2 Full Hydraulic Portable Drill Rig
I. General Overview HYDX-2 full hydraulic portable drill rig is a kind of light rig designed for geological exploration in remote area difficult to enter. This portable drill rig is mainly suitable for diamond drilling with wireline coring technique. The rig consists of diesel power unit, hydraulic system, control panel, mast, and main winch, wire line winch, drill head, feed system, foot clamp, etc. The HYDX-2 hydraulic drilling rig is completely hydraulic driven for all its surface coring function. Fission style design makes the rig in good assimilability and disassemblability, facilitating transportation to most inaccessible areas. Robust structure plus exact control system ensures high penetration rate and outstanding reliability. Ⅱ. Main Technical Features: 1. Full hydraulic and drill head model. The drill head rotation is realized with four hydraulic pumps driven by five diesel engines; this also makes the feeding hydraulic cylinder system realize its full stroke feeding in both higher and lower speed. 2. With Good dismantlability. The portable drill rig is adopted fission style in design, including power unit, hydraulic oil tank, manipulation platform and operation mechanism, i.e. the drilling section. So they are in light weight and can be carried by man power or animal power. The hydraulic drilling rig can be applied and performed in narrow space for drilling of hole at 45°- 90° with stronger adaptability. 3. Strong techniques adaptability. Besides diamond drilling with wire line coring technique, this portable drill rig is in strong techniques adaptability. HYDX-2 hydraulic drilling rig is applicable for the drilling and feeding requirement of any other stratum. Ⅲ. Specifications
| Drill Capacity (m) | BQ | 350 |
| NQ | 230 |
| HQ | 120 |
| Rated Power(KW)/ Rotational Speed(r/min) of Dynamical System | Five sets of R2V870 duplex cylinder air-cooled diesel engines | 11/2,500 |
| Two sets of Yuchai YC2108 diesel engines | 33/2,400 |
| A set of Cummins 4BTA3.9-C100 diesel engine | 74/2,200 |
| Unit Head | Torque Range (Nm) | 334-930 |
| Speed Range (rpm) | 0-900 |
| Feed Mechanism | Oil cylinder feed, Lift Stroke (mm) | 1700 |
| Lifting Capacity (KN) | 50 |
| Feed Capacity (KN) | 25 |
| Main Winch | Max. lifting Capacity (KN) | 18 |
| Lifting Speed (m/min) | 84 |
| Coiling Length (m) | 30 |
| Diameter of Wirerope (mm) | φ12 |
| Rope Coring Winch | Lifting Capacity (KN) | 8.4 |
| Lifting Speed (m/min) | 90-240 |
| Coiling Length (m) | 500 |
| Diameter of Wirerope (mm) | φ6 |
| BW-100A Mud Pump | Dimension: L×W×H (mm) | 3500×1500×1300 |
| Max. Weight of Components (dynamical system excluded) (kg) | 100 |
HXY-8 HXY-6BII Core Drilling Rig surface diamond core drilling rig Exploration Rig for coal gold copper iron mining project low cost

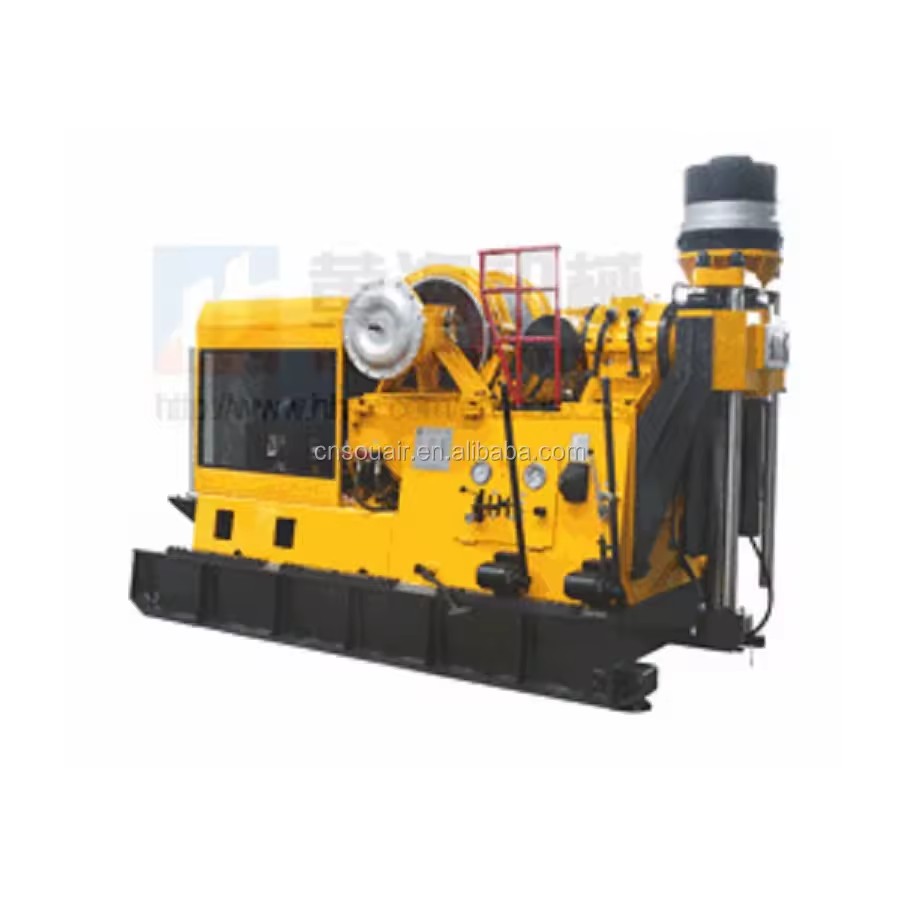

HXY-8 Core Drilling Rig
Description The HXY-8 spindle type core drilling rig is hydraulic-fed equipped with hydraulic brake. And its hoister is in horizontal arrangement. It is mechanical transmission and spindle rotation.
Application The spindle core drilling rig is used widely in geology, metallurgy, coal, hydrogeology, hydrological well and engineering and other industries fields. It also applies to metallic and non-metallic solid mineral deposits prospecting, shallow oil and natural gas exploration.
Specifications of HXY-8
| Drilling depth | 1000—3000 m (3280—9840 feet) |
| Rotate peed (rpm) | Clockwise rotation rates | 79,136,121,363,220,379,589,1011 |
| Anti-clockwise rotation rates | 51,142 |
| Diameter of drilling rod of core drilling rig | 50,60,71,89,114 mm (1.97,2.36,2.80,3.50,4.49 inch) |
| Spindle stroke | 1000 mm(39.4 inch) |
| Shift range of core drilling rig | 690 mm(27.2 inch) |
| Max. hoisting force | 300 KN(67440 lbf) |
| Max. pressuring force | 141 KN(31697 lbf) |
| Max. single-wire hoisting force | 125 KN(28100 lbf) |
| Max. content of winding drum | 120 m(394 feet) |
| Steel wire size of core drilling rig | 21.5 mm(0.85 inch) |
| Hoisting speed | 0.663,1.09,1.693,2.90,1.761,3.034,4.713,8.803m/s (2.17,3.58,5.55,9.51,5.78,9.95,15.46,28.87 feet/s) |
| Electromotor model for core drilling rig | Y2-280M-4 |
| Electromotor output | 90 kw(122HP) |
| Electromotor rotation rate | 1480 r/min |
| Diesel engine model | Cummins 6BTA5.9-C180 |
| Diesel engine output | 132 kw (180HP) |
| Diesel engine rotation rate | 1900 r/min |
| Dimensions of core drilling rig | With electromotor 3905×1692×2603 mm (153.7×66.6×102.5 inch) |
| With diesel engine 4105×1892×2803 mm (161.6×74.5×110.4 inch) |
| Weight | 8200 kg(18080 lb) |
HXY-6BⅡ Core Drilling Rig
Description
The HXY-6B core drilling rig is driven by hydraulic pressure. It has large range of rotary speed and great hoisting force. It is equipped with water brake. It is convenient in low-position lift.
Application
The HXY-6B spindle type core drilling rig can be applied in the fields of geology, metallurgy, coal mine, hydrological and engineering drilling including the drilling of both inclined and vertical hole. It is used to the exploit of superficial-zone petroleum and natural gas, ventilation of mines and water discharge for tunnel drilling, too. Besides, the core drilling rig is suitable for exploration of metal or non-metal solid mineral ore bed and large diameter foundation piling.
HXY-TL Crawler Drill Rigs surface diamond core drilling rig Exploration Rig for coal gold copper iron mining project low cost

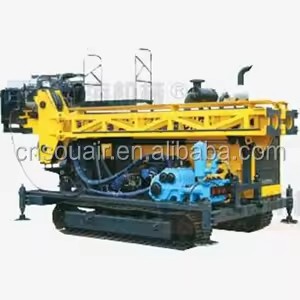

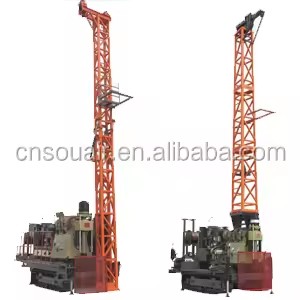

HXY-TL Crawler Drill Rigs
Description: HXY-TL crawler drill rigs are new types of rigs developed on the basis of our rich experience of rig manufacturing. They are mainly output in models of HXY-4TL, 42TL, 44TL, 5TL, 6TL and 6BTL crawler-type drill rigs, which can meet multiple needs of drill techniques, mainly on diamond drilling. They also can be applied in the fields of engineering geological exploration, hydro geological exploration, water well and large diameter piling works.
Features: 1.As a traditional geotechnical drilling equipment, HXY-TL crawler drill rig is simple in structure, easy for operation and convenient for maintenance; is a perfect integration of full-hydraulic system with traditional mechanical drill technology; 3.Equipped with auxiliary hydraulic hoister and hydraulic mud pump, HXY-TL crawler drill rig has compact structure; 4.Due to the rational design, it is convenient for installation and operation; 5.Adopting hydraulic lifting drill tower, HXY-TL crawler drill rig is flexible in operation; has perfect stability due to its four hydraulic outriggers; 7.Equipped with crawler, HXY-TL crawler drill rig offers easy and flexible movement between worksites.
Parameters of HXY-TL Crawler Drill Rigs
