Portable water cutting machine features
It adopts permanent magnet adsorption method, which can be adsorbed on plates, round pipes and large tanks to realize linear cutting in various spatial positions in longitudinal and lateral directions. It has automatic compensation function of grid voltage. (The guide rail can be equipped according to the actual cutting requirements)

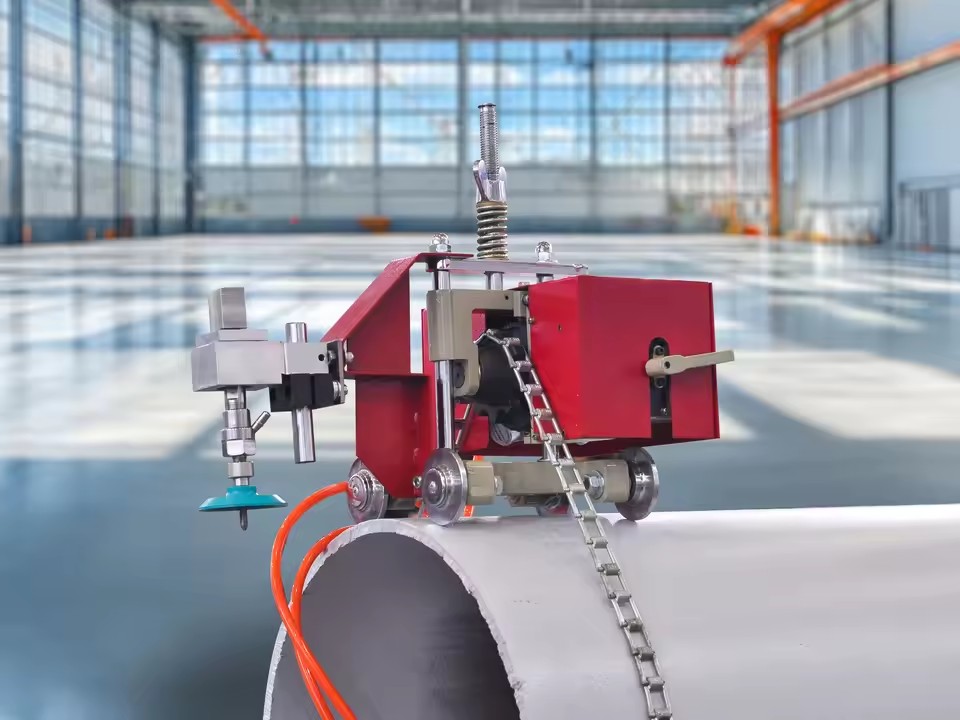

And a composite track using a chain running gear, to ensure that the cutting path starting and ending points coincide chain by using novel design slipknot, replace the traditional chain joints, be adjusted according to the diameter of pipe, connecting a few seconds to complete the chain
A flexible track, a rail adapted to a variety of diameters, pneumatic motor mode to drive mode, to ensure the safety of the cut in explosive environments.
SPECIFICATIONS FOR WATER JET CUTTING MACHINE
Max. pressure
420MPA/60000psi
Max. flow rate
3.7L / min
Electrical source voltage
3 phases 220/380 Voltage, 50/60Hz, 37KW, 50HP
Max. diameter of nozzle / orifice
1.02mm / 0.33mm
Max. delivery capacity of oil pump
106L / min
Max cutting
1-10 cutting (1 for standard machine)
>>>Try to Read This · Our Service
1. Maintenance free of charge for 12 months. 2. We will provide the consumable parts at an agency price. 3. 24 hours online service, free technical support. 4. Machine has been adjusted before delivery, operation disk is included in the delivery. If there is any other questions, pls kindly tell me. 5. We have manual instruction and Videos for software Installation, operation and machine's using and maintenance; We will send professional technician to customers' factory, provide them two-weeks training, including working principle of machine, Auto CAD drawing, common problems and solution, etc.
>>>Try to Read This · FAQ Q1: Does This Machine Pass CE Certificate? A2: Yes, this machine passed European CE certificate and meet Safety Standard. Q2: How much of cutting thickness? A2: Marble is 0-120mm; granite is 0-110mm; tiles are 0-40mm; glass and mosaic is 0-80mm; steel, stainless steel, copper is 0-60mm; aluminum is 0-80mm; plastic, acrylic, foam is 0-200mm. With our double-pressures system, it can cut 0-160mm steel sheet, 0-200mm stones. It is good for customers cut thicker materials.
Why Choose Waterjet The advantages of waterjet are the reason promoting the development of waterjet. Although there are a lot of advantages, they almost can come down to "versatility". By using a waterjet, we can efficiently and cost-effectively create a wide range of parts by using widely different materials.
Keep safety Although anything can be cut through, waterjet is still very safe. It is because we don't need to put any body parts under the waterjet cutting while it is on, obviously. If there is a leak in a high-pressure water system will tend pressure rapidly drop to safe level. Water itself is safe and non-explosive and the garnet abrasive is also inert and non-toxic. So using waterjet to cut material is very safety. Environmentally friendly As long as we are not machining a material that is hazardous, the spent abrasive and waste material become suitable for land fill. The garnet abrasive is inert and can be disposed of with our other trash.If we are machining lots of lead or other hazardous materials, we will still need to dispose of our waste appropriately, and recycle the water. Keep in mind, however, that very little metal is actually removed in the cutting process. This keeps the environmental impact relatively low, even if we do machine the occasional hazardous most areas, excess water is simply drained to the sewer. In some areas, water treatment may be necessary prior to draining to sewer. In a few areas, a "closed loop" system that recycles the water may be required.
>>>Brief Introduction Of waterjet company
Quality and credit goes all the way., a company surviving fierce market competition, has very strong national culture, and develops shoulder by shoulder with the world and this Era. We are determined to achieve our dreams step by step with the advantages of high technology.
>>View of Company honor
Our Package Advantage: 1. Our Wooden Case is after fumigation treatment. Needn't timber inspection,saving shipping time. 2. All the spare parts of the machine were bovered by some soft materials,mainly using Pearl Wool. Avoiding all damages that could happen in the delivery process.Then we’ll covered plastic wrap out it tightly, make sure intact of the covered soft materials,also avoiding Waterproof and rust proof. 3. The outmost is Wooden Case With Fixed Formwork. 4. The bottom of the wooden case has firm iron jack,convenient to Handling and transport.
Before delivery, we would do the test about 20-30 working hours for machine, and use standard packing to each configuration. We choose famous export company and transport company, making shipment more convenient and safer.
WATER JET MAKES CUTTING IS NO LONGER PROBLEM!
Please
Product Description
1. Safety: cold cutting, no heat effect in the cutting process
2. Compatibility: Only one set of high-pressure water generating equipment can be equipped with a variety of walking tooling, which can cut the pipe, plate and tank.
3. Portability: No need for the cutting platform and control system of the standard water cutting machine, no volume, easy to move and assemble.

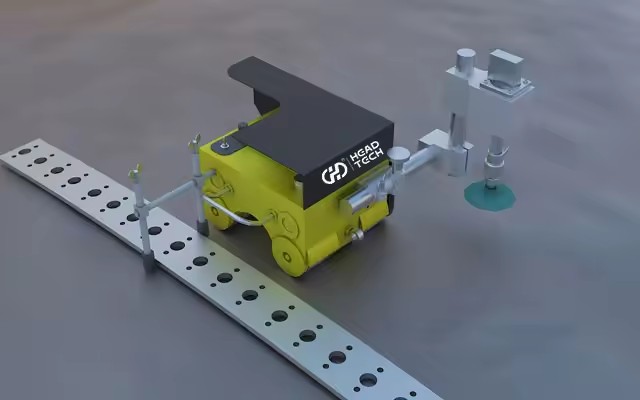

It adopts permanent magnet adsorption method, which can be adsorbed on plates, round pipes and large tanks to realize linear cutting in various spatial positions in longitudinal and lateral directions. It has automatic compensation function of grid voltage.
(The guide rail can be equipped according to the actual cutting requirements)

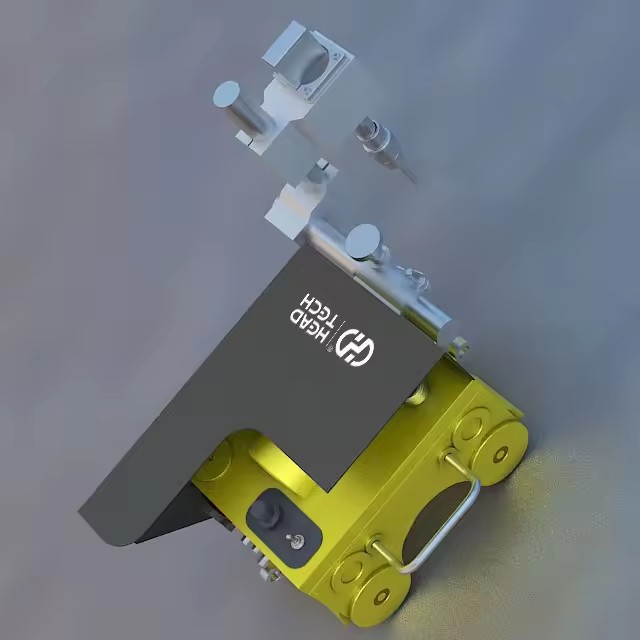

Portable magnetic car
The roller under the magnetic vehicle is attached with magnetism, so that the vehicle is adsorbed on the magnetically attracted pipe by magnetism. The magnetic roller is driven by an electric motor or pneumatic motor to drive the water jet cutting to cut the side wall of the pipe at a uniform speed.

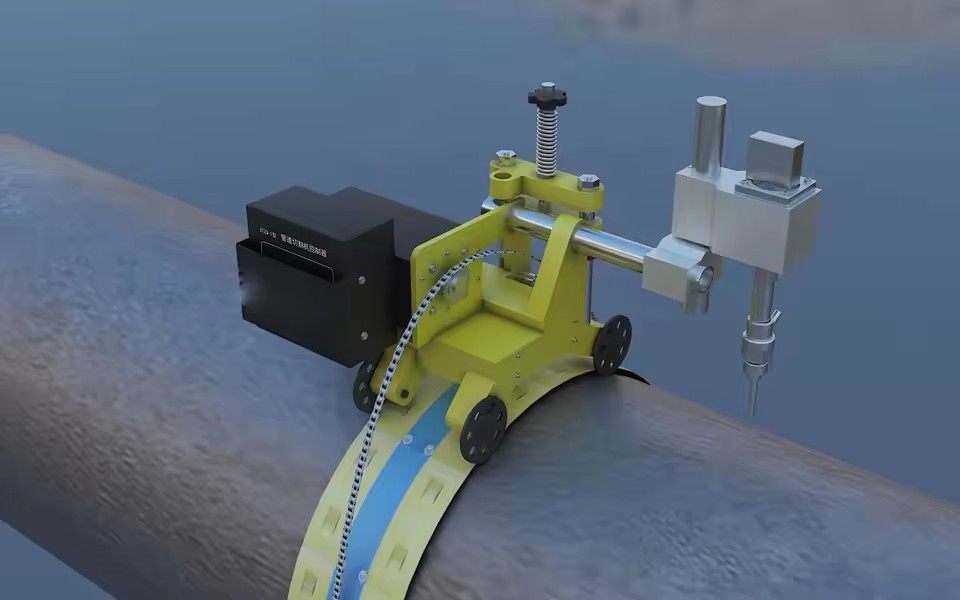

Portable magnetic track car
The magnetic track is adsorbed on the magnetic tank body, and the trolley is fixed and guided by the magnetic track. When the rollers on the trolley are driven by an electric motor or a pneumatic motor, the trolley goes around the magnetic track and the outer wall of the pipe and drives the water cutting to cut the side wall of the pipe at a uniform speed.
Portable pipe hole opener
The portable frame is fixed on the outer wall of the round pipe by magnets or other fixing methods. After adjusting the rotation radius of the water jet cutting machine and the automatic up and down lifting distance of the cutter, when the rotating shaft on the trolley is driven by an electric motor or a pneumatic motor, the rotating mechanism drives the water jet cutting to cut round holes on the pipe at a uniform speed, and can open a groove within 45° at the same time.

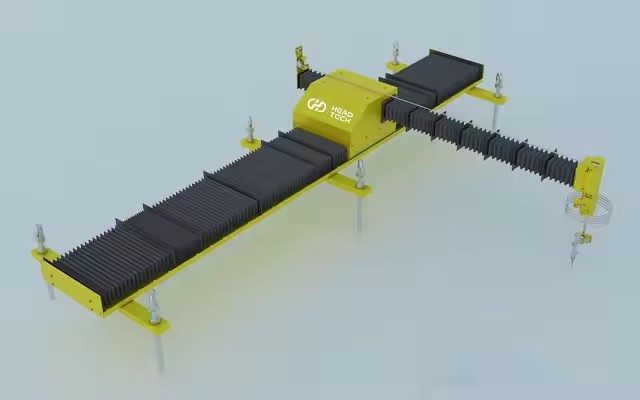

Portable CNC cutting platform
The portable platform has three motion axes, namely X, Y, and Z (left and right, front and back, up and down). The portable CNC cutting platform can be fixed to the top, bottom, and plane of the tank through magnets or other fixing methods (if the plane is not flat, it is necessary to adjust the cutting platform feet. At the same time, a camera can be added during cutting to detect the cutting area, and the operator can manually adjust the up and down height of the Z axis to avoid it).

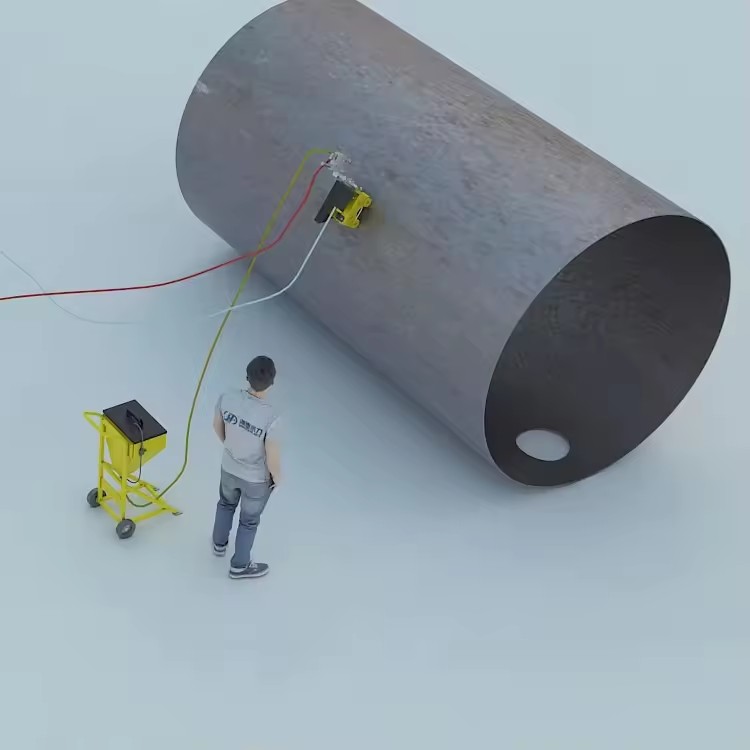

Customer application
Service & FAQ
1. Maintenance free of charge for 12 months.
2. We will provide the consumable parts at an agency price.
3. 24 hours online service, free technical support.
4. Machine has been adjusted before delivery, operation disk is included in the delivery. If there is any other questions, pls kindly tell me.
5. We have manual instruction and Videos for software Installation, operation and machine's using and maintenance; We will send professional technician to customers' factory, provide them two-weeks training, including working principle of machine, Auto CAD drawing, common problems and solution, etc.
>>>Try to Read This · FAQ
Q1: Does This Machine Pass CE Certificate?
A2: Yes, this machine passed
European CE
certificate and meet
Safety Standard.
Q2: How much of cutting thickness?
A2: Marble is 0-120mm; granite is 0-110mm; tiles are 0-40mm; glass and mosaic is 0-80mm; steel, stainless steel, copper is 0-60mm; aluminum is 0-80mm; plastic, acrylic, foam is 0-200mm. With our double-pressures system, it can cut 0-160mm steel sheet, 0-200mm stones. It is good for customers cut thicker materials.
Why Choose Waterjet
The advantages of waterjet are the reason promoting the development of waterjet. Although there are a lot of advantages, they almost can come down to "versatility". By using a waterjet, we can efficiently and cost-effectively create a wide range of parts by using widely different materials.
Keep safety
Although anything can be cut through, waterjet is still very safe. It is because we don't need to put any body parts under the waterjet cutting while it is on, obviously. If there is a leak in a high-pressure water system will tend pressure rapidly drop to safe level. Water itself is safe and non-explosive and the garnet abrasive is also inert and non-toxic. So using waterjet to cut material is very safety.
Environmentally friendly
As long as we are not machining a material that is hazardous, the spent abrasive and waste material become suitable for land fill. The garnet abrasive is inert and can be disposed of with our other trash.If we are machining lots of lead or other hazardous materials, we will still need to dispose of our waste appropriately, and recycle the water. Keep in mind, however, that very little metal is actually removed in the cutting process. This keeps the environmental impact relatively low, even if we do machine the occasional hazardous most areas, excess water is simply drained to the sewer. In some areas, water treatment may be necessary prior to draining to sewer. In a few areas, a "closed loop" system that recycles the water may be required.
About our company
00:00
water jet is an independent technology research and development, high-tech, promote high-quality, high credibility of the focus on large-scale ultra-high pressure water cutting machine manufacturer. Has been engaged in water jet cutting research, manufacturing, is one of the most professional water jet manufacturers in the stone parquet, glass parquet, metal shaped cutting, aerospace, and other fields of research and manufacturing. We are a manufacturing and trading combo for water jet cutting machine in Liaoning, with more than 15 years full experience and a professional sales team.
water jet, so cutting is no longer a problem!
