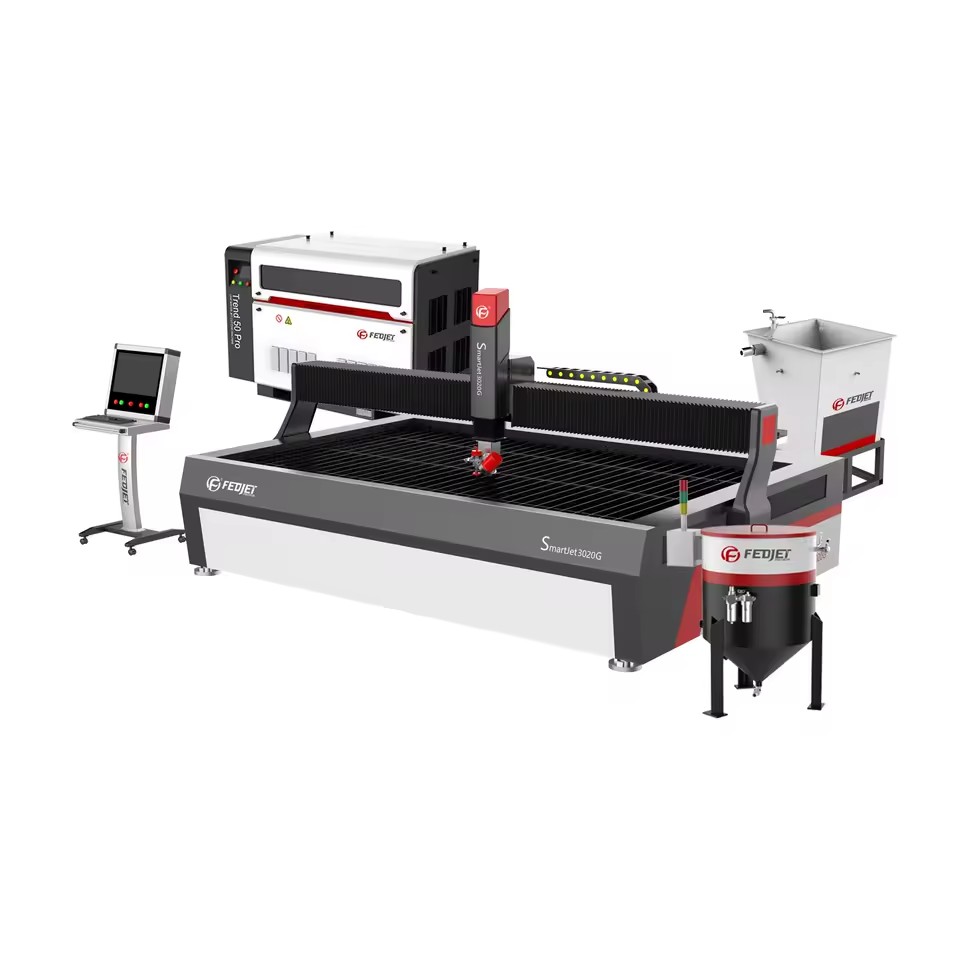

Professional Automatic Abrasive CNC 5-Axis High-Precision Industrial Waterjet Cutting Machine

UHP ON/OFF VALVE

Linear Accuarcy

±0.05mm/m

Max Rapid Traverse

20000mm /min

Repeatability

±0.01mm

Work Envelope

Customized

X-Axis Travel

2.5m/3.0m/4.0m/5.0m

Y-Axis Travel

1.5m-20.0m

Z-Axis Travel

150mm/200mm

3/AB/AC

3/5Axis waterjet cutting head

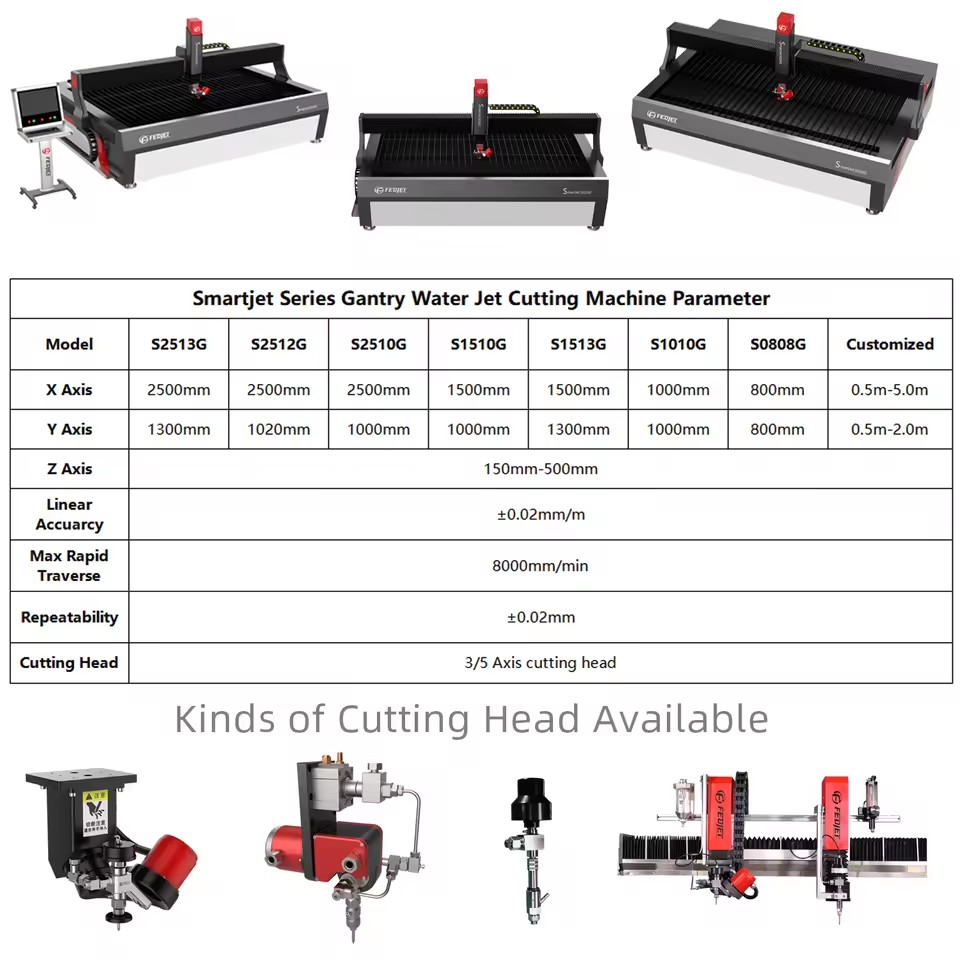

Stadard Dimension of Fedjet® Waterjet Cutting Machine

MODEL

DIMENSION

X AXIS TRAVEL

Y AXIS TRAVEL

Z AXIS TRAVEL

SmartJet1010G

1000*1000mm

1000mm

150/200mm

SmartJet1313G

1300*1300mm

1300mm

SmartJet1515G

1500*1500mm

1500mm

SmartJet2015G

2000*1500mm

2000mm

SmartJet2515G

2500*1500mm

2500mm

SmartJet3015G

3000*1500mm

3000mm

SmartJet3515G

3500*1500mm

3500mm

SmartJet4015G

4000*1500mm

4000mm

SmartJet3020G

3000*2000mm

SmartJet4020G

4000*2000mm

SmartJet2060G

2000*6000mm

6000mm

SmartJet3060G

3000*6000mm

Other dimension also accepted.

Q: Are you trading company or manufacturer?

A: We are factory and located in Nanjing, Jiangsu.

Q: How long is your delivery time for Waterjet Cutting Machine?

A: Generally it is 25~25 days for machine ship from our factory. or it is 15-20 days if the goods are not in stock, it's according to quantity.

Q: Do you provide samples? is it free or extra?

A: Yes, we could offer the samples for your testing purpose

Q: What is your terms of payment?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance,balance before shippment. If you have another question, pls feel free to

Q: Do you accept OEM & ODM service?

A: We accept and welcome your OEM & ODM requirment

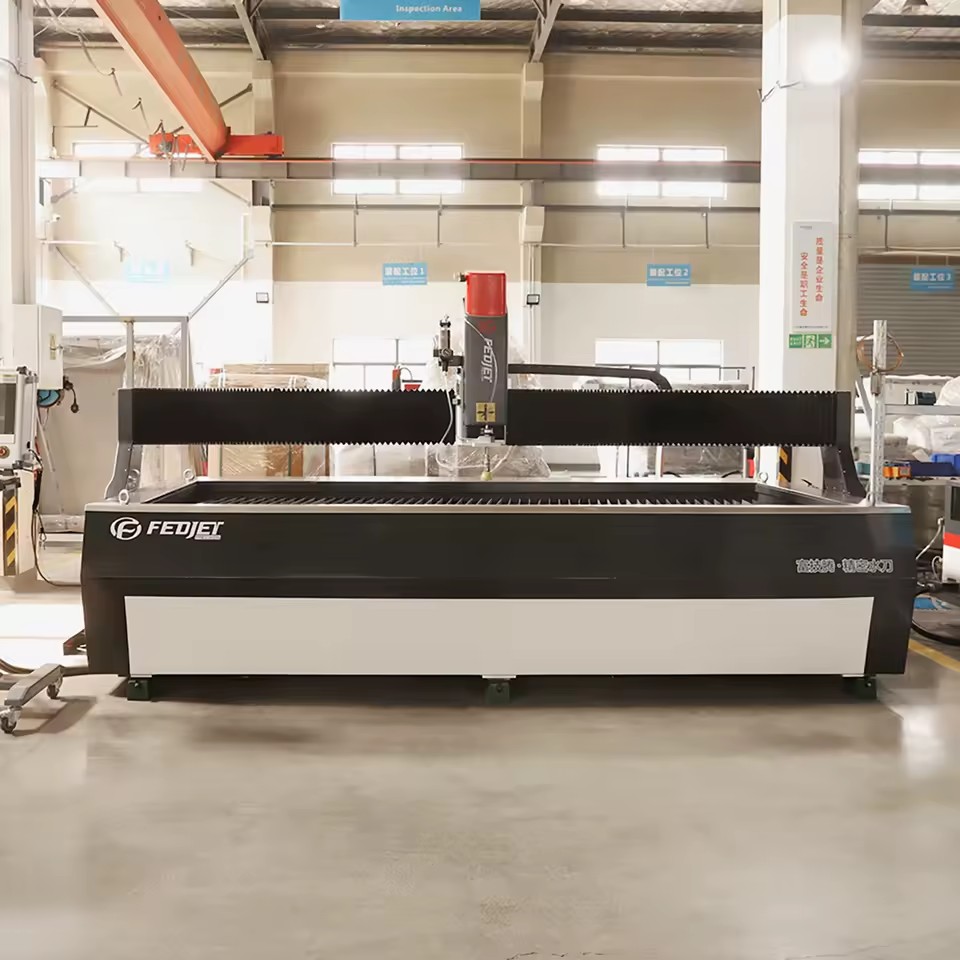

High Precision 5 Axis Gantry Water Jet Cutting Machine

Fedjet Ultra-High Pressure Waterjet Cutting Machine Series

The Smartjet G Series Water jet Cutting Machine is a unique, fully enclosed waterjet solution with a

compact

footprint and

5-axis

cutting capabilities. This system is intentionally engineered to reduce noise, contain spray, and enhance operator efficiency, allowing added flexibility for placement on your floor and protection for the surrounding environment.

The i-Telli PC control system based on

PC-Based

operating system is highly reliable and easy to operate.and the pallet-type workbench is convenient for placing different tooling fixtures. Equipped with 5A-Taper10 5-axis cutting system. Finally, wireless remote control handwheel is optional.

You're welcome to inquiry.

Free

Sample Testing.

Waterjet Insight

20000mm

/min

Pneumatic Valve Working Pressure:0.6MPa

Integrated Cutting Head Body Long Life Mix Chamber Max.Orifice Size 0.33(0.013”) Nozzle Size:1.02(0.02”)

Pneumatic Valve and Transparent visible abrasive hopper. Precision Adjustment of Multi-stage with Waterproof design

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

For different materials, the Abrasive Cutting System (ACS) and the Only Water Cutting System (OWCS) are available

Fedjet® unique high precision 5axis waterjet cutting head

5A-Taper10 (±10°) five axis cutting system copensates for these inherent erros

Fedjet® patented product.

5A-Bevel60 is a high precision and large angle (±60°) five axis cuting system. The bevel cutting is worked by auto wrist move

view more >>

Recommended by seller

$40,000

set

$52,300

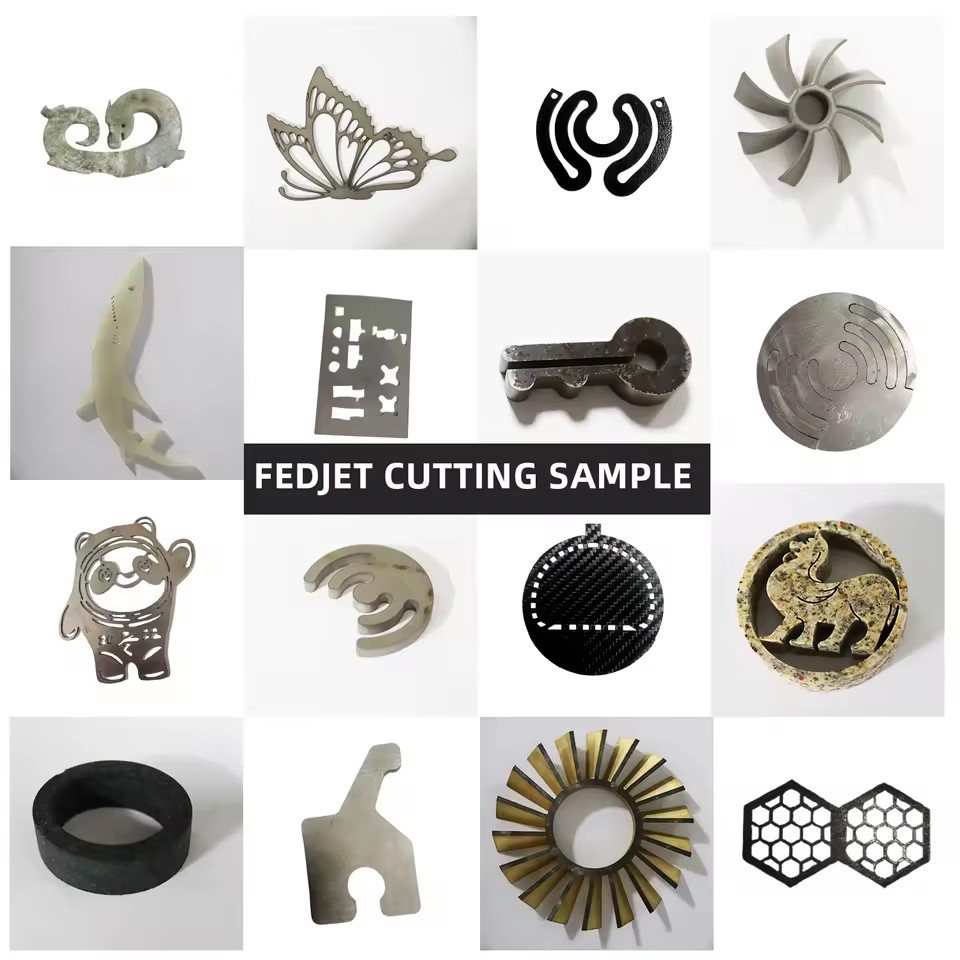

Sample Cutting

Can Water Cut It?

There are major advantages to cutting with waterjet, like the fact that it’s a cold cutting process, virtually eliminating secondary processing and delivering smooth edge quality. And how any setup changes are minimal when pivoting between parts, as well as how easy waterjets are to program and operate. Yet, the #1 advantage of waterjet technology is its ability to cut all types of materials, on the very same system. Virtually any material, virtually shape. Waterjet can cut it.

Product Advantages

1.Cutting accuracy is up to 0.1mm.

2.The main core components of Intensifier is.

3.The guide screw with oil-immersed structure different from the traditional dry structure. The linear guide rail and ball screw are immersed in the oil tank,which can fully lubricate the guide screw and further isolate the water and abrasive,so as to maintain the cutting accuracy.

4.The high-power servo motor and the guide screw are connected directly by flexible coupling, which eliminates the gap of traditional belt connection and improves the cutting precision.

Company Profile

00:00

established in Oct

2012

located in Nanjing, Jiangsu, It is national high tech industry focused on the research, production, sales and customer service of ultra-high pressure water jet technology products, take water blaster machine for example. always insists on the method of "customer-eccentric and innovation for customers" to enhance factory's core competence, and provide suitable solutions for customers for various industries, like

petrochemical industrial, shipyard, energy plant, airport, transport infrastructure, electronic plant, marine platform and steel work so on

. has professional R&D team contribute themselves into developing water jet technology 100KPsi ultra-high pressure water jet testing center, advanced UHP water jet assembly line, and advanced UHP water jet online inspection system. has deeply collaborated with lots of excellent enterprises, who place a leading position in the field of ultra-high pressure, to build a professional service platform and push the development of this industry. Till now we have 2000+cleaning customers all around the world, serve them more than 10+years, gaining rich experiences in assembly, training, problem shooting, and customized special solutionsfor their projects.

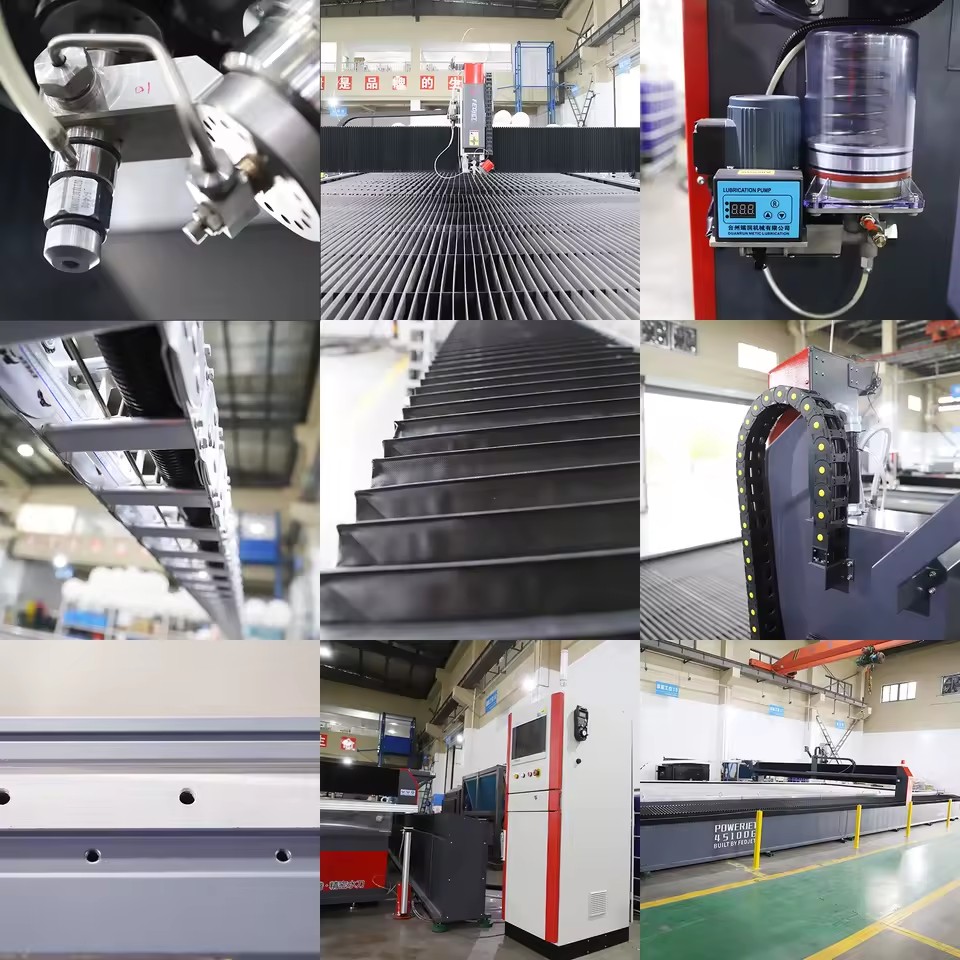

Production Assembly and Professional Quality Testing Process

Our pursuit of product quality is consistent. High-quality production processes and comprehensive product testing are our guarantee for the delivery of customer orders.

Why Choose Us

Customer Partner

100%

worry-free partner.

Customer Recognition

Customer satisfaction is our greatest encouragement, and remains consistent in its pursuit of quality and customer service.

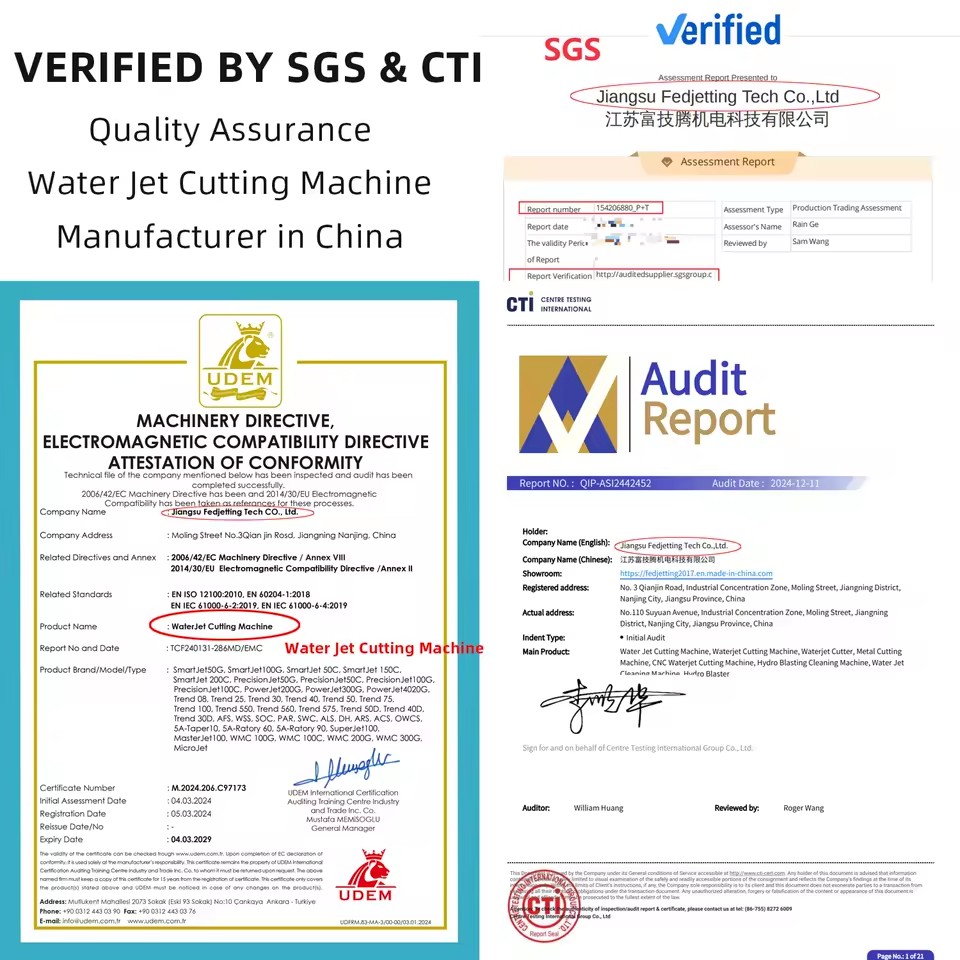

Certification and Cooperation Agency Certificate

We're confident with our products, so the passed cert is perfect for customer's satisfation, Also gain the agency ceftificate

for reference.

Shipment & Payment

Container Shipment Package

Normally shipped by sea with container package, to make sure delivery well.
