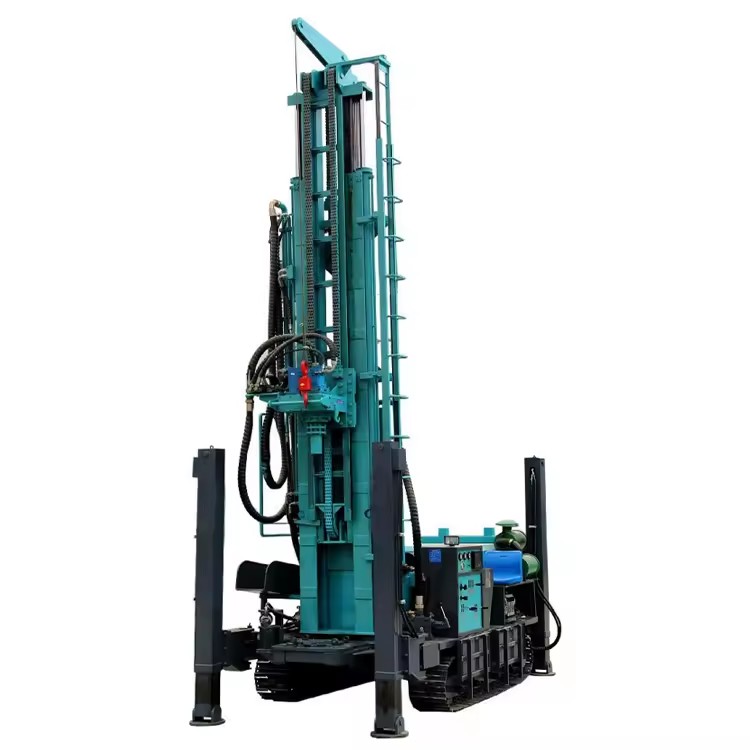

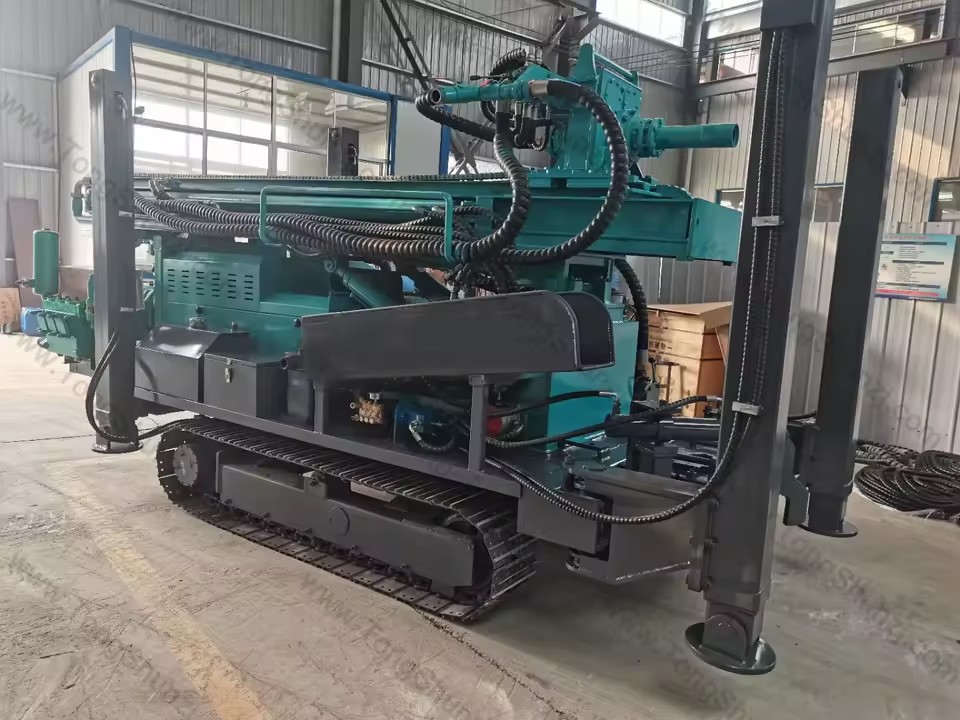

Name: Second Hand Portable Percussion Drilling Rig Borehole Mine Drilling Rig Water 400m 800 Meter Drilling Rig
SKU: B2B-39037
Price: 52690.0 USD
Availability: PreOrder

Product description

Drilling Machine More

Intergrated operation

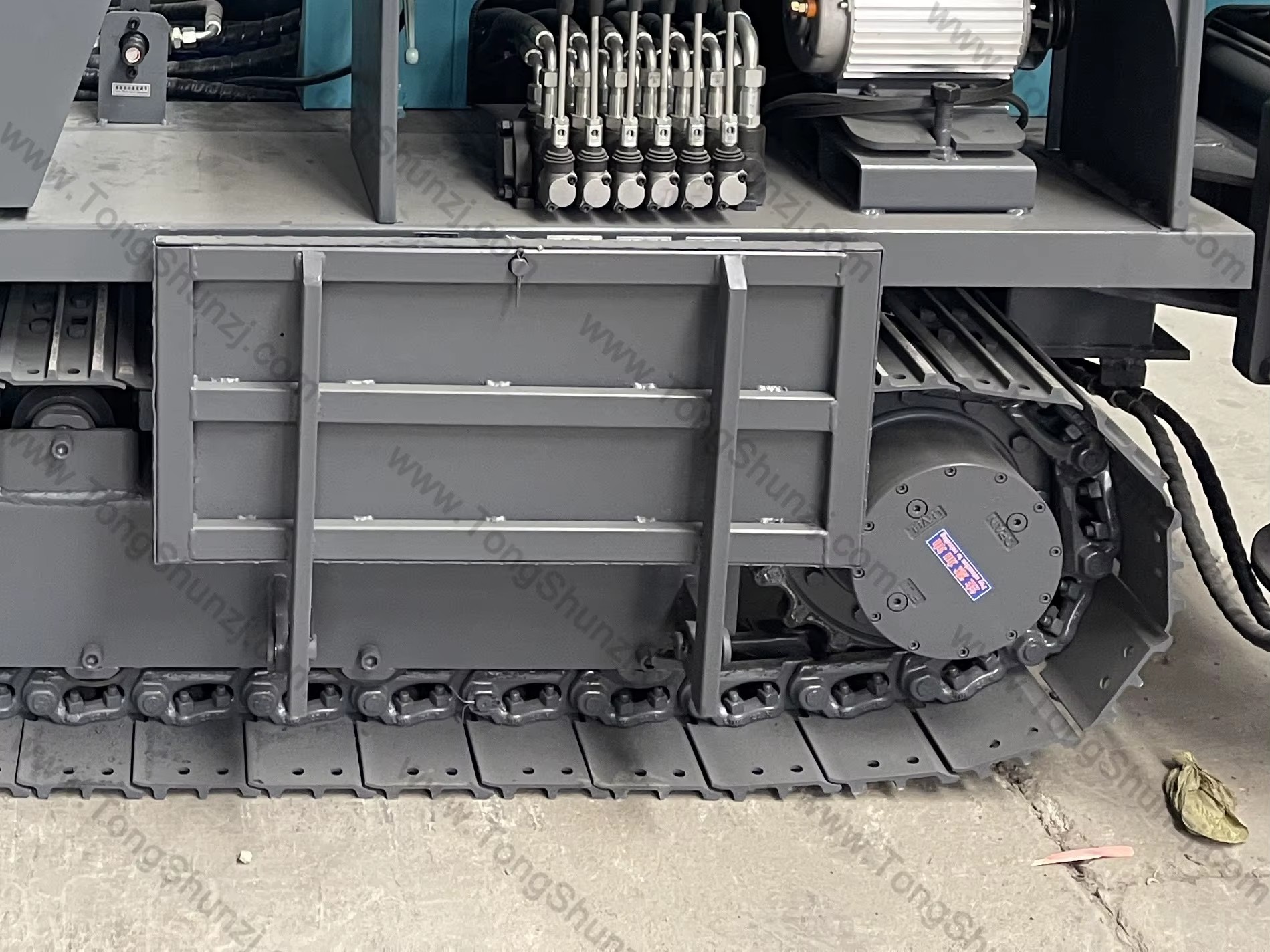

Tracked chassis

Modular design

Modle	TSH-450	TSH-500	TSH580	TSH680	TSH800
The weight（kg/set）	9400	11500	12000	13000	13000
The hole diameter（mm）	140-305	140-350	140-350	140-400	140-400
Drilling depth（m）	450	500	580	680	800
One-time advance length（mm）	6600	6600	6600	6600	6600
Walking speed（km/h）	2.5	2.5	2.5	2.5	2.5
Climbing angles（Max.）	30	30	30	30	30
Equipped capacitor（kW）	103	118	132	153	194
Using air pressure（MPA）	1.7-3.5	1.7-3.5	1.7-3.5	1.7-3.5	1.7-3.5
Air consumption （m³/min）	17-36	17-42	17-42	17-42	17-42
Swing speed（rpm）	50-135	40-130	45-140	45-140	45-140
The penetration efficiency（m/h）	15-35	15-35	15-35	15-35	15-35
The engine brand	Yuchai engine	Yuchai engine	Cummins engine	Cummins engine	Cummins engine
Drill pipe diameter（mm）	89mm/102mm	102mm/108mm/114mm	102mm/108mm/114mm	102mm/108mm/114mm	102mm/108mm/114mm/117mm
Drill pipe length（m）	1.5m/2.0m/3.0m/6.0m	1.5m/2.0m/3.0m/6.0m	1.5m/2.0m/3.0m/6.0m	1.5m/2.0m/3.0m/6.0m	1.5m/2.0m/3.0m/6.0m
Rig lifting force（T）	25	26	28	30	36
Rapid rise speed（m/min）	20	20	20	20	20
Fast feeding speed （m/min）	40	40	40	40	40
Width of loading（m）	2.8	2.85	2.85	2.95	2.95
Hoisting force of winch（T）	2	2	2	2	2
Swing torque（N.m）	7000-9500	7500-10000	8500-11000	8850-13150	9000-14000
Dimension（mm）	595021002550	620022002650	620022002650	630023002650	630023002650
Equipped with hammer	Medium and high wind pressure series	Medium and high wind pressure series	Medium and high wind pressure series	Medium and high wind pressure series	Medium and high wind pressure series
High leg stroke（m）	1.6	1.7	1.7	1.7	1.7

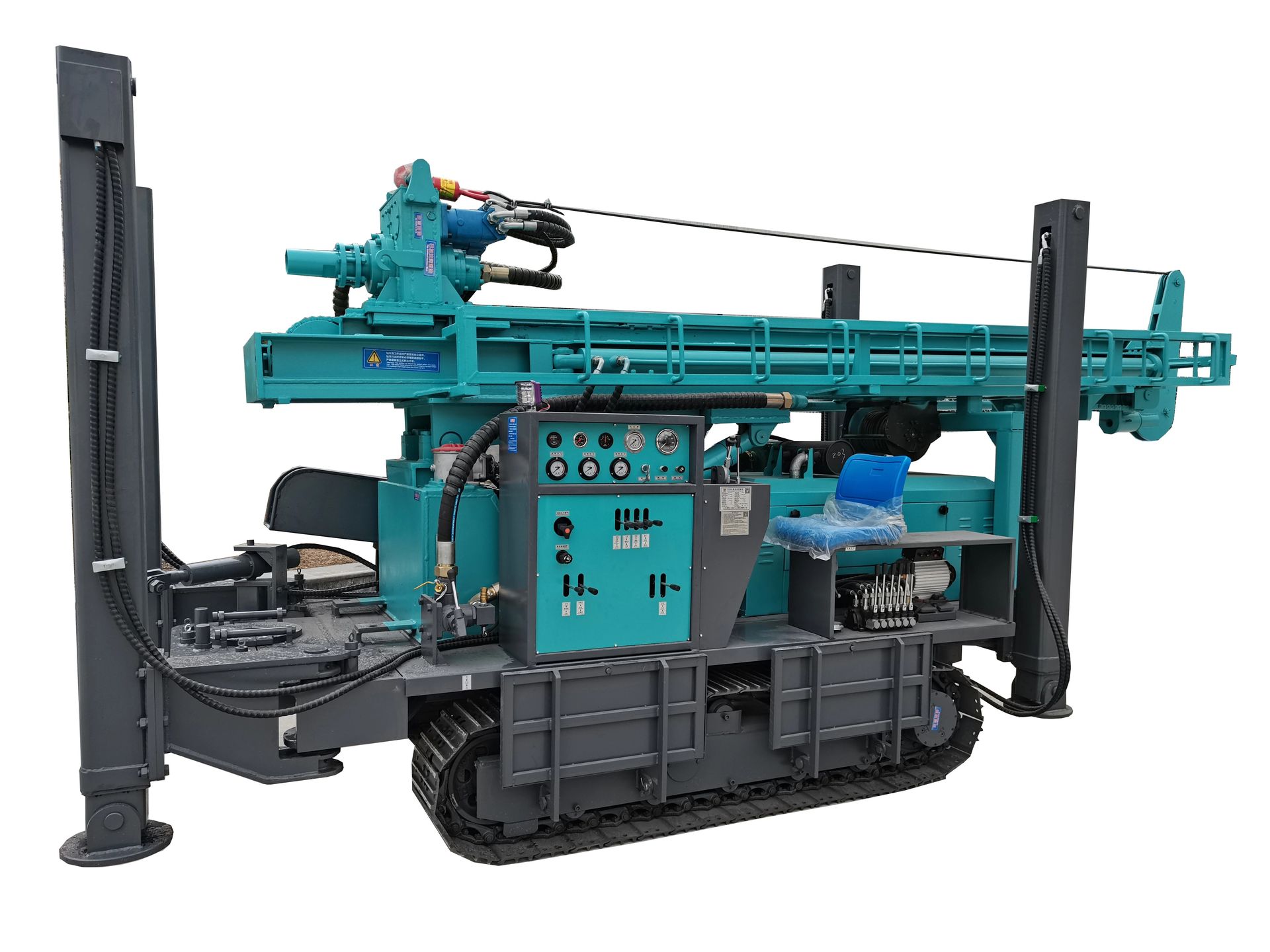

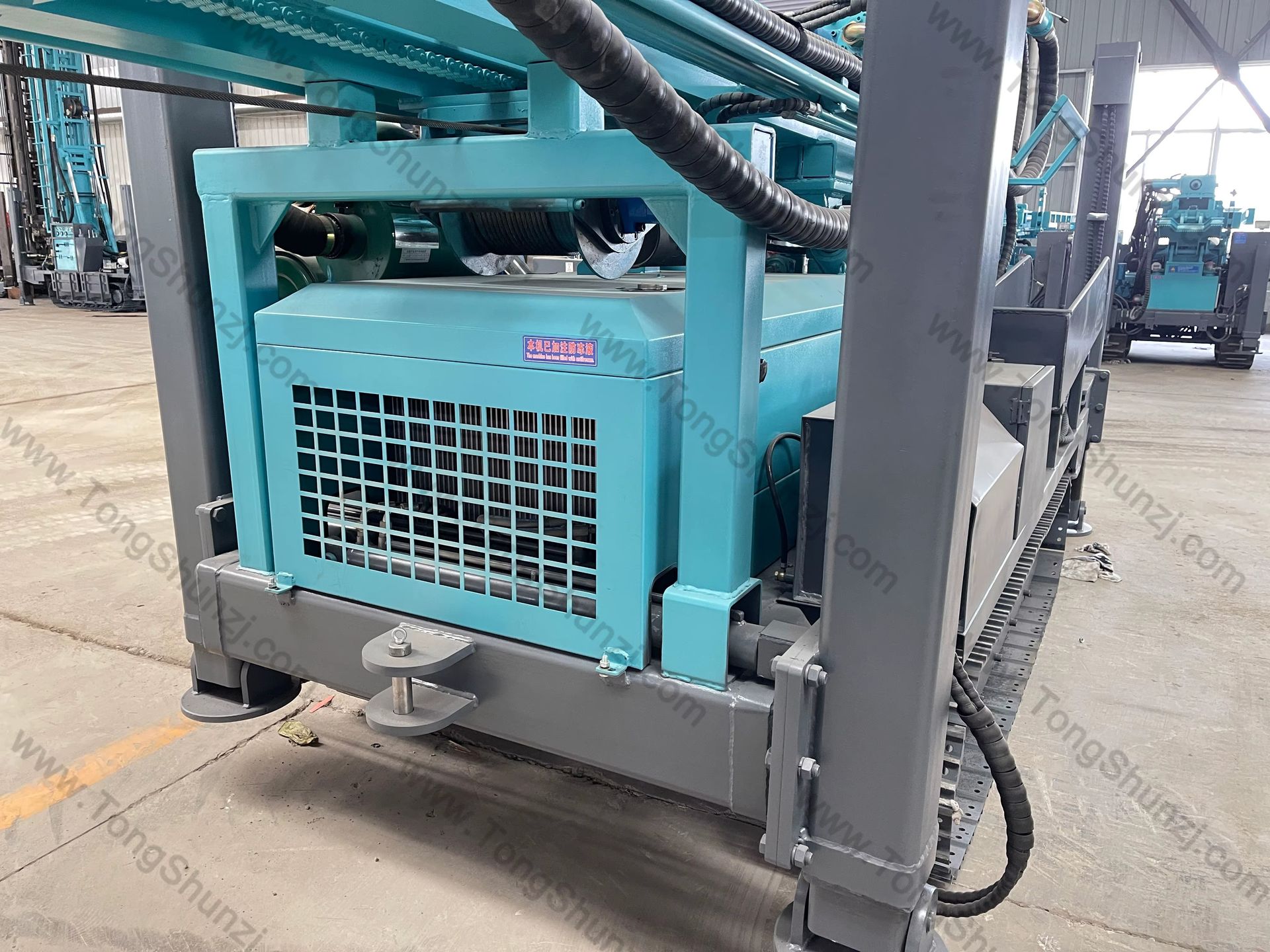

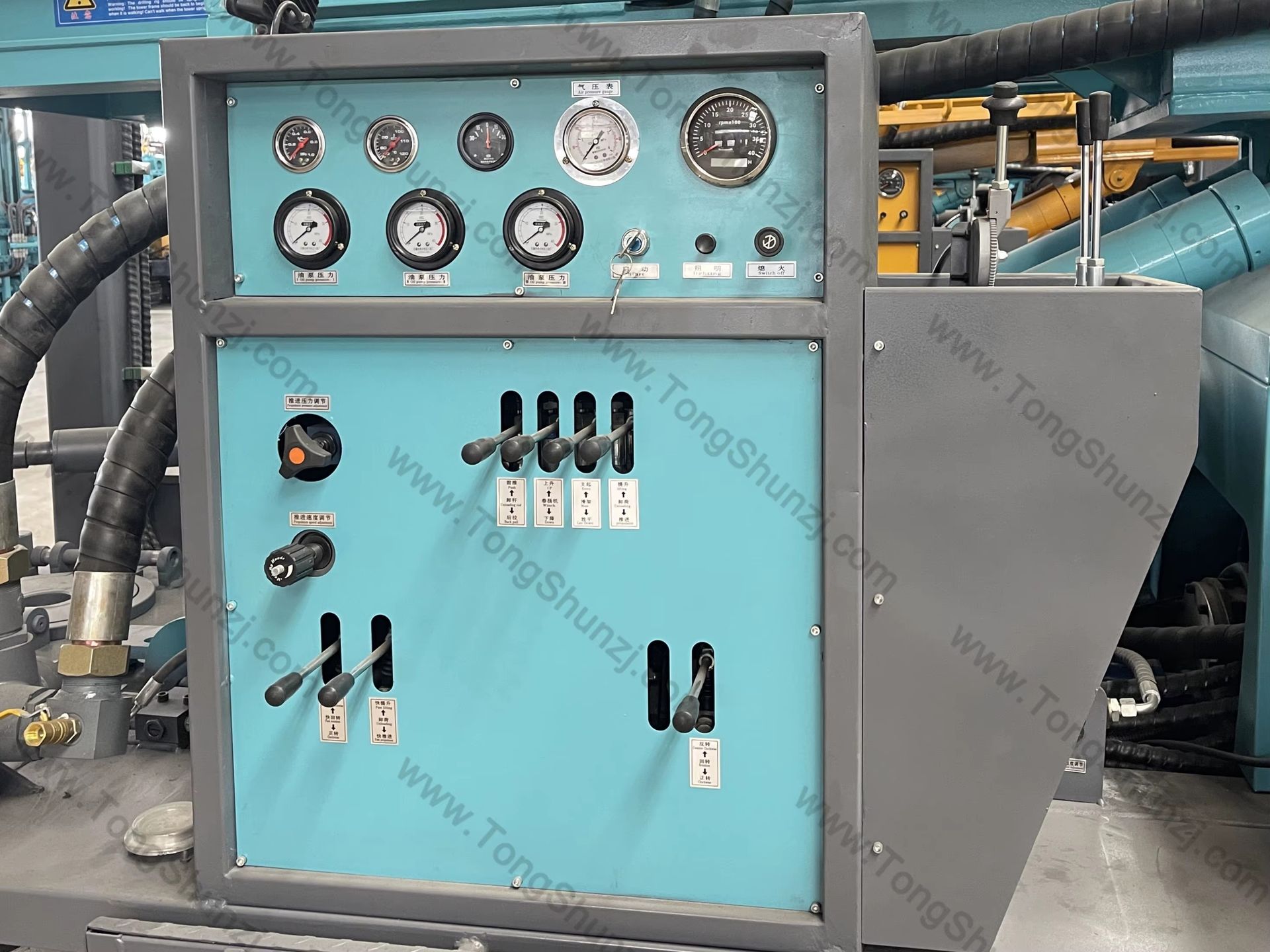

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

3 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 24 fields

Usage

Well Drilling

Type

Rotary Drilling Rig

Drilling Depth

Max.800m

Drilling Diameter

140mm-400mm

Power Type

Diesel

Core components

Motor, Engine, Pump, Gearbox

Warranty

1 Year

Machinery test report

Provided

Video outgoing-inspection

Provided

Key selling points

Competitive Price

Place of origin

Hebei

Weight

9200 KG

Application

Well drilling

The engine brand

Yuchai/Cummins engine or as your require

Equipped with hammer

Medium and high wind pressure series

Drill pipe length

1500mm/2000mm/3000mm/6000mm

Drill pipe diameter

89mm/102mm

Port of dispatch

Tianjin port of China

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Supply Ability

100 sets per Month

Model number

TSH450, TSH500, TSH680, TSH800, TSH580

Power (W) (Product option)

132kw, 194KW, 118KW, 103KW, 153kW

Lead time

3 days

Minimum order

1 Units
