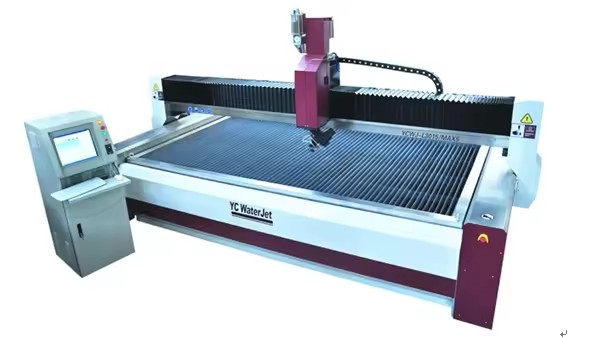

W aterjet cutting machine
A high pressure water jet cutting machine is a tool which slices into metal and other materials, using a jet of water at high velocity and pressure. Because of its advantages of low noise, no pollution, high precision and good reliability, it has been widely used in mining, automobile, paper-making, food, art, construction and other industries.Waterjet can cut almost every thing, including metal,glass,plexiglass,ceramic,marble, granite, rubber and compound material etc.
Cutting accuracy: +/- 0.1mm
Repeat accuracy: +/- 0.05mm

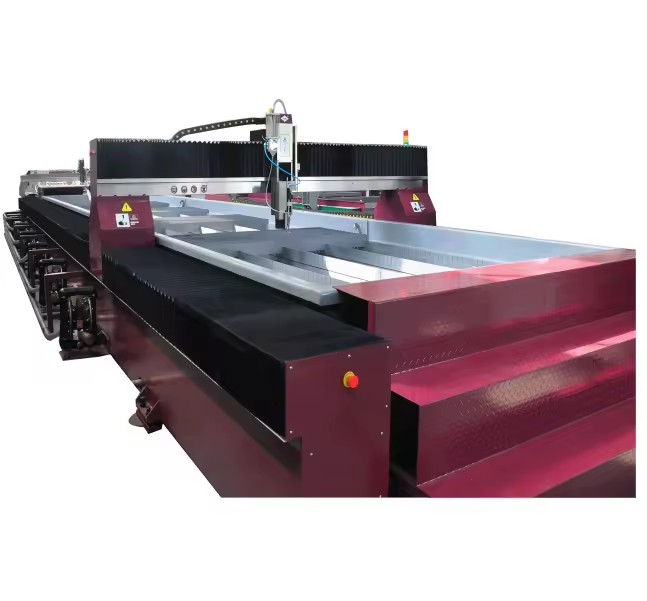

CNC Water Jet Cutting Machine P arameter (L=Gantry type)
Parameters
Unit
YCWJ-L1010
YCWJ-L2015
YCWJ-L3015
YCWJ-L3020
YCWJ-L2060
Efficient Cutting Area
mm
1000×1000
2000×1500
3000×1500
3000×2000
2000×6000
Axis Travel
X
1000
2000
3000
Y
1500
6000
Z
150-180
X axis and Y axis adopt HIWIN or I+F ball screw and guideway;The servo motor to drive we adopt MITSUBISHI or Yaskawa
Cutting Accuracy
±0.1
Positioning Accuracy
±0.2
X,Y Dry-run Speed
m/min
0-15 (if need 30m/min speed,we can do as request )
Cutting Speed
as to detail material and thickness
Main Feature: Control: PLC Shifting: electro-hydraulic Control Cooling: cooler/oil heat exchanger Inlet water filter accuracy: ≤0.45μm Oil-return filter accuracy: 20 μm Working temp: 0-50°c Outlet: UNF 3/8" Cooling in/out-let: NPT1" Max orifice size: 0.33mm

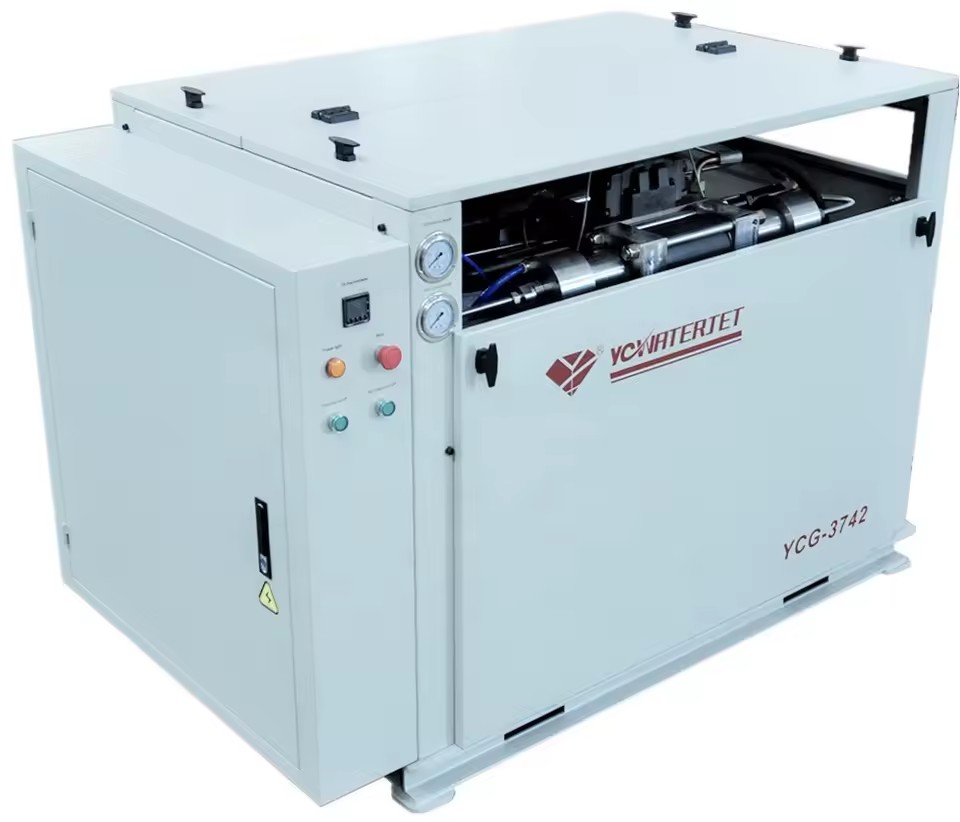

High Pressure Pump
Model
YCG-3038
YCG-3742S
YCG-7542S
Max Pressure
3800Bar/55,000Psi
4137Bar/60,000Psi
Max Water Flow
3.7L/min
7.4L/min
Max Orifice/Nozzle
0.011/0.03
0.013/0.04
0.016/0.05
Power
30KW/40HP
37KW/50HP
75KW/100HP
（Bevel Cutting 0-±10°）
3 axis Waterjet Cutting Machine
Max5 axis
Water Jet Cutting Machine
（Bevel Cutting 0-±45°）
1999, was established by Mr. Min, mainly engaged in manufacturing large production line.
2019,YC has sold the products to more than 50 countries.
We are engaged in machinery manufacturing since the year 1999,there are more than 20% workers with more than 8 years experience in water jet cutting field.
Our chief engineer Mr. Tian who started research of water jet when he was a university student has 20 years experience in water jet cutting field, and other technical persons have over 10 years experience. YC is the partner of Accustream/Hyperthem, every year we have technical meetings with engineers.
For different customers in different industries we will provide different solutions, Your water jet is tailored based on your individual needs. Our Engineers go to many countries for installation and debugging every year.
Product Details

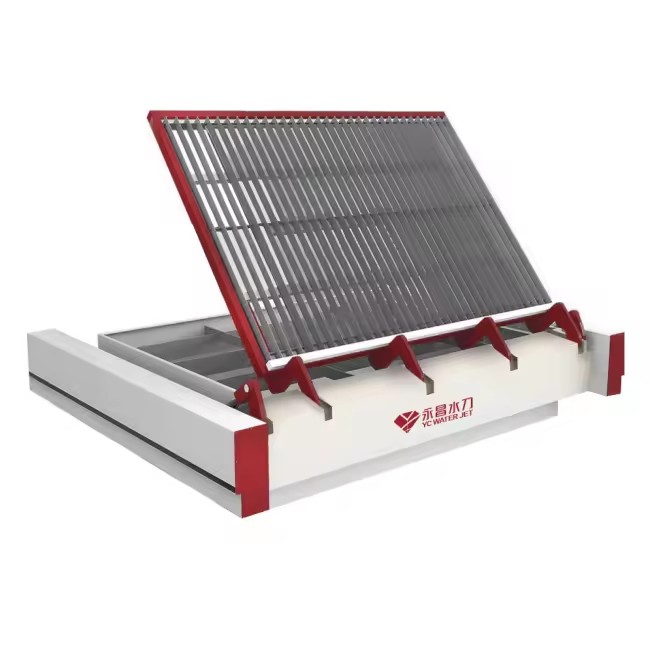

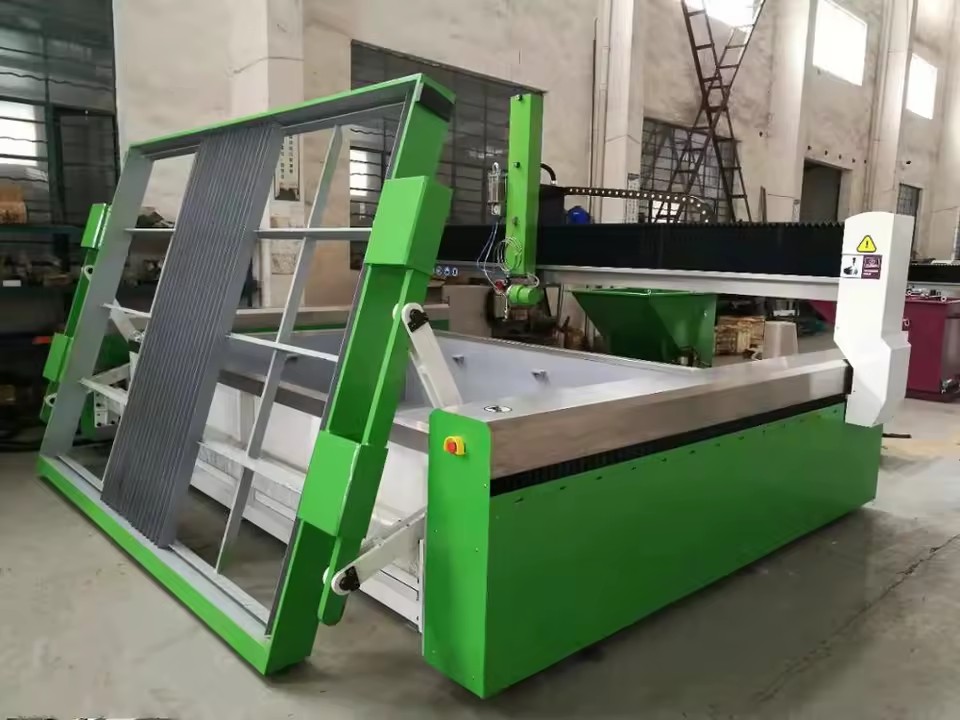

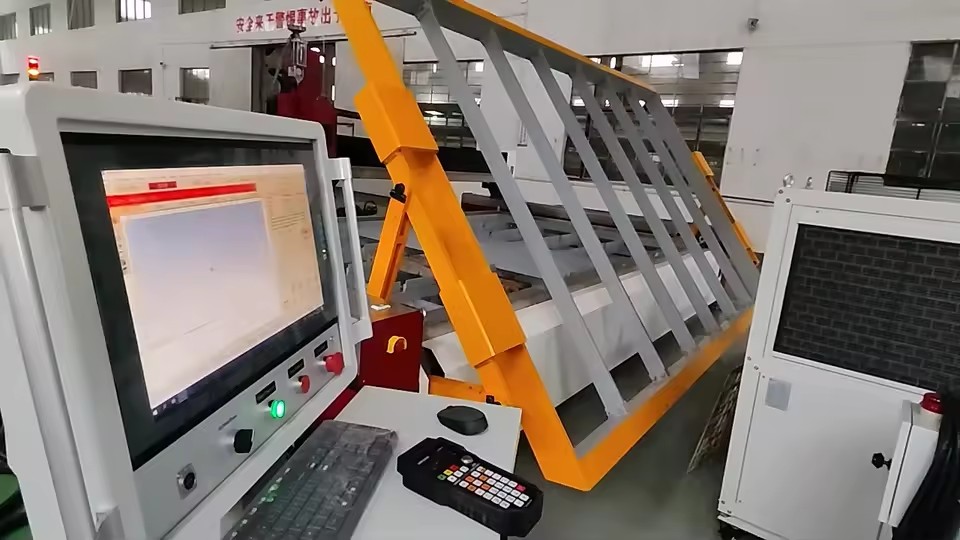

HYDRAULIC LOADING SYSTEM
DESCRIPTION OF THE HYDRAULIC LOADING SYSTEM：
1. Overturn angle: 70°(measured up from the horizon)
2.
Max. overturning moment load capacity: 350KG
3. The large cutting platform is hydraulically operated to overturn, which enables this hydraulic loader to load or unload an entire
piece of stone while ensuring a minimum material loss and a high level of efficiency when the stone loading unit is running.
W
aterjet cutting machine
Cutting accuracy
+/- 0.1mm
Repeat accuracy
+/- 0.05mm
CNC Water Jet Cutting Machine P
arameter
(L=Gantry type)
Main Feature
Control: PLC
Shifting: electro-hydraulic
Control Cooling: cooler/oil heat exchanger
Inlet water filter accuracy: ≤0.45μm
Oil-return filter accuracy: 20 μm
Working temp: 0-50°c
Outlet: UNF 3/8" Cooling in/out-let: NPT1"
Max orifice size: 0.33mm
Hypertherm HP Pump
KMT HP Pump
BFT HP Pump
Optional Accessories
Related Products
Dynamic 5axis Waterjet Machine
Cut with drill
Waterjet Cutting Machine
Robotic
Waterjet
Cutting Samples
Packing&Delivery
Company Information
2005, YC started to research and developed UHP water jet cutting equipment and cooperated with German KMT as well.
2008, YC started to cooperate with the agent.
2009, YC started to cooperate with Accustream whom is specialized in water jet parts and pumps.
2015, YC WATERJET started to cooperate with RU agent.
Our chief engineer Mr. Tian who started research of water jet when he was a university student has 20 years experience in water jet cutting field, and other technical persons have over 10 years experience.
YC is the partner of Accustream/Hyperthem, every year we have technical meetings with engineers.
For different customers in different industries we will provide different solutions, Your water jet is tailored based on your individual needs.
Our Engineers go to many countries for installation and debugging every year.
Customer reviews
FAQ
Q
Can you provide your
certifications
?
A
Yes, our products comply with CE, ISO,SGS and other standards. We ensure all certifications remain valid (the renewal process takes approximately one month).
How about the
delivery time
Standard Motors (380V, 50Hz, 3-Phase): 3-Axis Standard Models: Approximately 25-30 days. AC 5-Axis Models: Approximately 35 days. G-Series Large Gantry Models: Approximately 45 days. Non-Standard Motors (e.g., 220V/50Hz/3-Phase, 380V/60Hz/3-Phase, 400V/50-60Hz/3-Phase): Approximately 50 days, as custom motor procurement takes about 45 days.
Q: How to choose a standard cutting table?
A: You need to offer the size of the materials you want to process or the size of the cutting table.
Q: How to solve the incision bevel problem by 3 axis water cutting?
A: It is not a vertical cutting for a waterjet cutter. This is due to the physical characteristics of waterjet. If it is required precise vertical angle cutting, we will provide you with a five-axis dynamic cutting system. It can make a small angle compensation in the software.
Can I
customize products
Yes, we can customize the branding based on client requirements. For instance: If a client acts as a middleman, we can affix their company's logo instead. For domestic trading companies handling export, if they wish to prevent end-clients from directly identifying our factory, we can omit any YC-related logos entirely. In addition, you can customize the color, size, cutting range, etc. of the machine. Please send your detailed customized requirements to us.
What
logistics company
do you use?
For courier services, we offer options such as FedEx, DHL, and UPS for shipping the spare parts and wear parts of water jet cutting machines. We also have ocean freight forwarding companies available, and we support pricing based on Incoterms CIF and DAP, depending on your delivery location. Door-to-door service is also available.
What is your
payment terms
Option 1: 30% deposit by T/T after signing the contract, with 70% balance payable by T/T before shipment. Option 2 (Subject to approval): 30% deposit by T/T after signing the contract, with 70% balance payable by L/C upon presentation of shipping documents.
Do you offer
after-sales service
Yes, we provide comprehensive after-sales support: 1. A one-year warranty covers the machine (excluding consumable parts). Free replacement parts are shipped for non-manual defects. 2. Remote guidance (with manual and video support) is provided. On-site engineer assistance (e.g., for split type waterjets) is available, with costs (travel, visa, accommodation, fee) borne by the client. 3. Each unit undergoes rigorous pre-delivery testing. We provide prompt responses to ensure
reliable
technical support.
