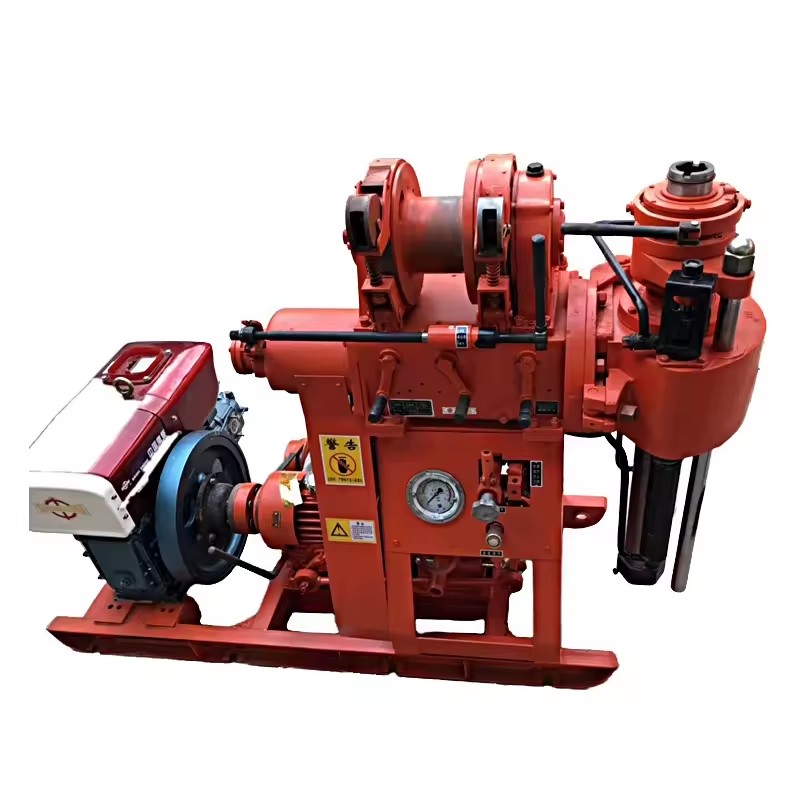

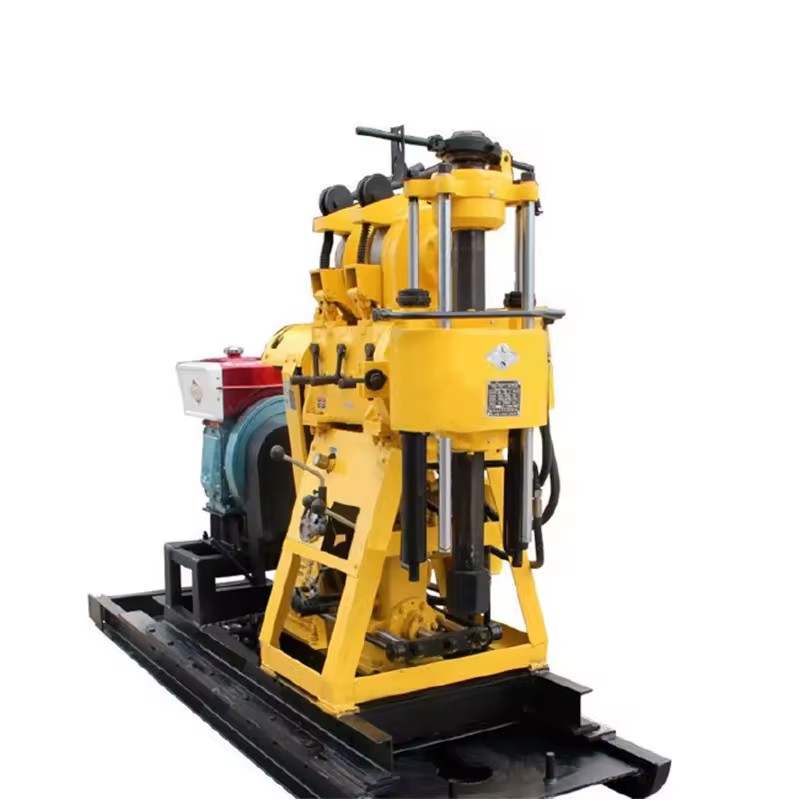

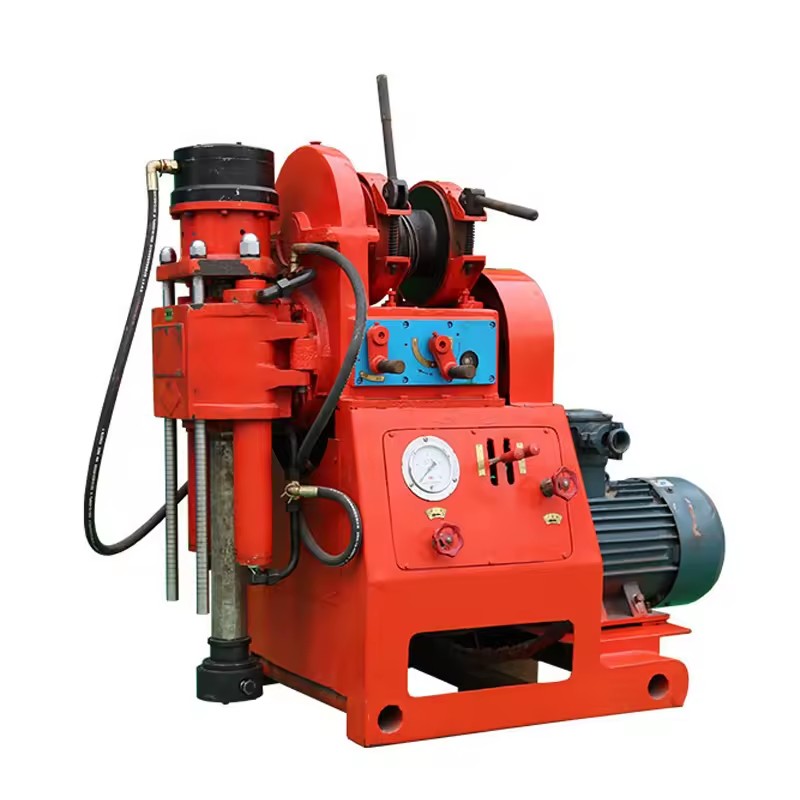

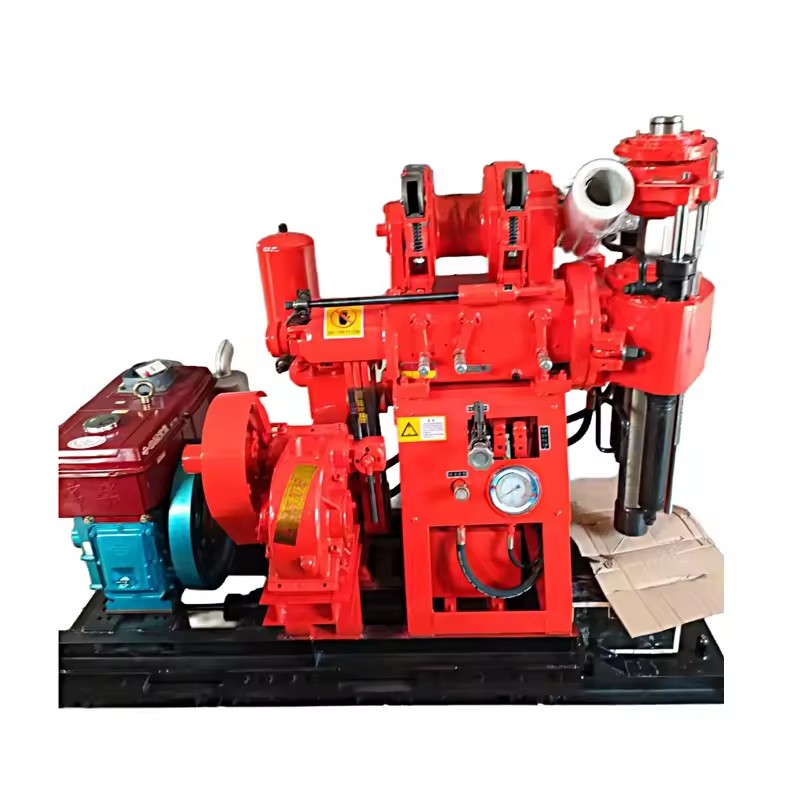

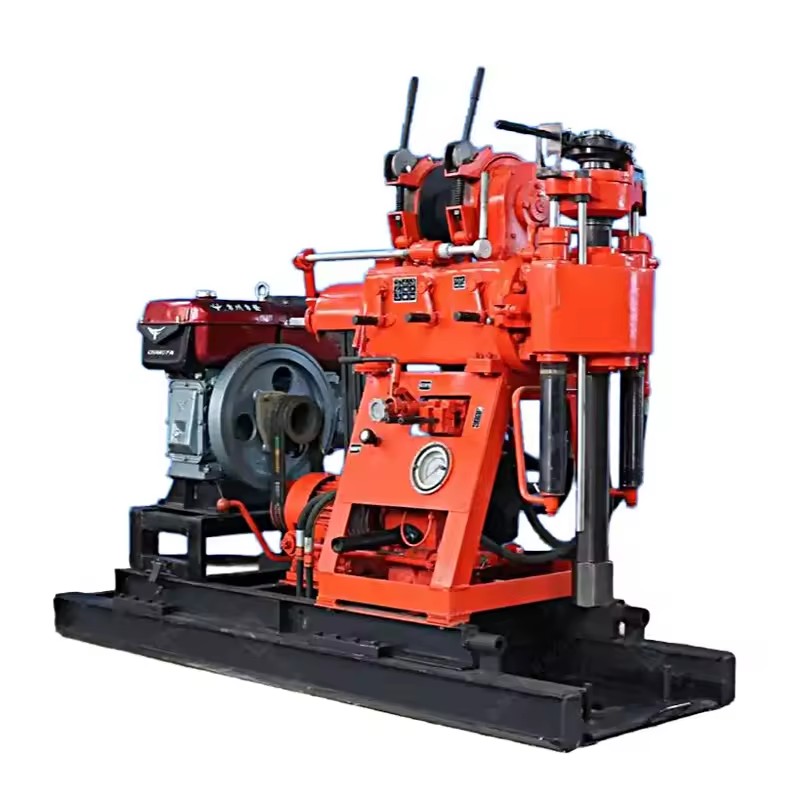

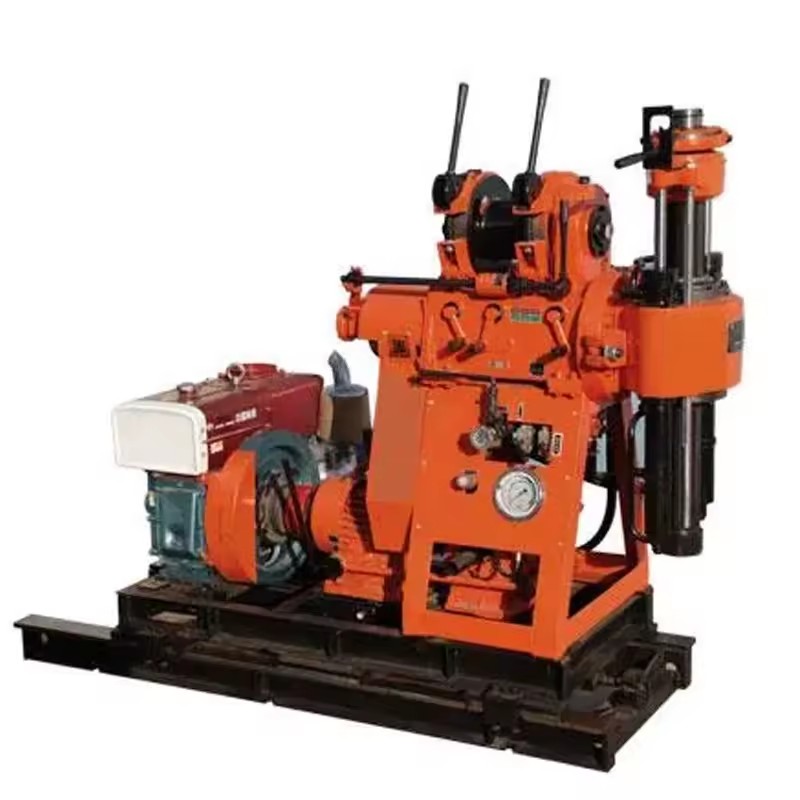

Factory Price 200m Hydraulic Mine Drill Rig Machine Good Water Well Borehole Drill 220v Rotary Hole for Farm Industries

Available for enquiry 0.0 · 0 reviews
USD

$ 2,540.00 2540.0 USD $ 2,540.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Usage
Water Well
Type
Rotary Drilling Rig
Drilling Depth
Max.300m
Drilling Diameter
110MM(4.33in)
Power Type
Diesel
Voltage
220v
Product description

Factory Price 200m Hydraulic Mine Drill Rig Machine Good Water Well Borehole Drill 220v Rotary Hole for Farm Industries

Main parameterDrilling depth100m
Finally hole diameter75mm
Drilling rod diameter42mm/50mm
Dimensions (L*W*H)1640*920*1240mm
Weight (excluding engine)500Kg
Swivel headSpindle speed (three speed)142,285,570rpm
Spindle stroke450mm
Spindle pull-down max15000N
Spindle lifting capacity max25000N
HoistMax. lifting capacity (one speed single rope)10000N
Circumference linear velocity of roller0.42,0.81,1.68m/s
Steel rope capacity27m
Steel rope diameter9.3mm
Water pumpTypeHorizontal reciprocating single-acting piston pump
Bore80mm
Stroke100mm
Displacement(L/min)100 matched with diesel engine(1800/min)
83 matched with motor:(1500r/min)
Pressure1.5Mpa Max make and break allowable pressure
Oil PumpTypegear pump
ModelYBC-12/125
Rated speed1500r/min
Rated pressure8Mpa
Max pressure12.5Mpa
Displacement12L/min
Power EngineDiesel engine modelZS1105BN
Rated speed2200r/min
Rated Power13.1KW
Weight155kg
Motor engine modelY132M-4-B3
Rated speed1440r/min
Rated Power11KW/15KW
Description images

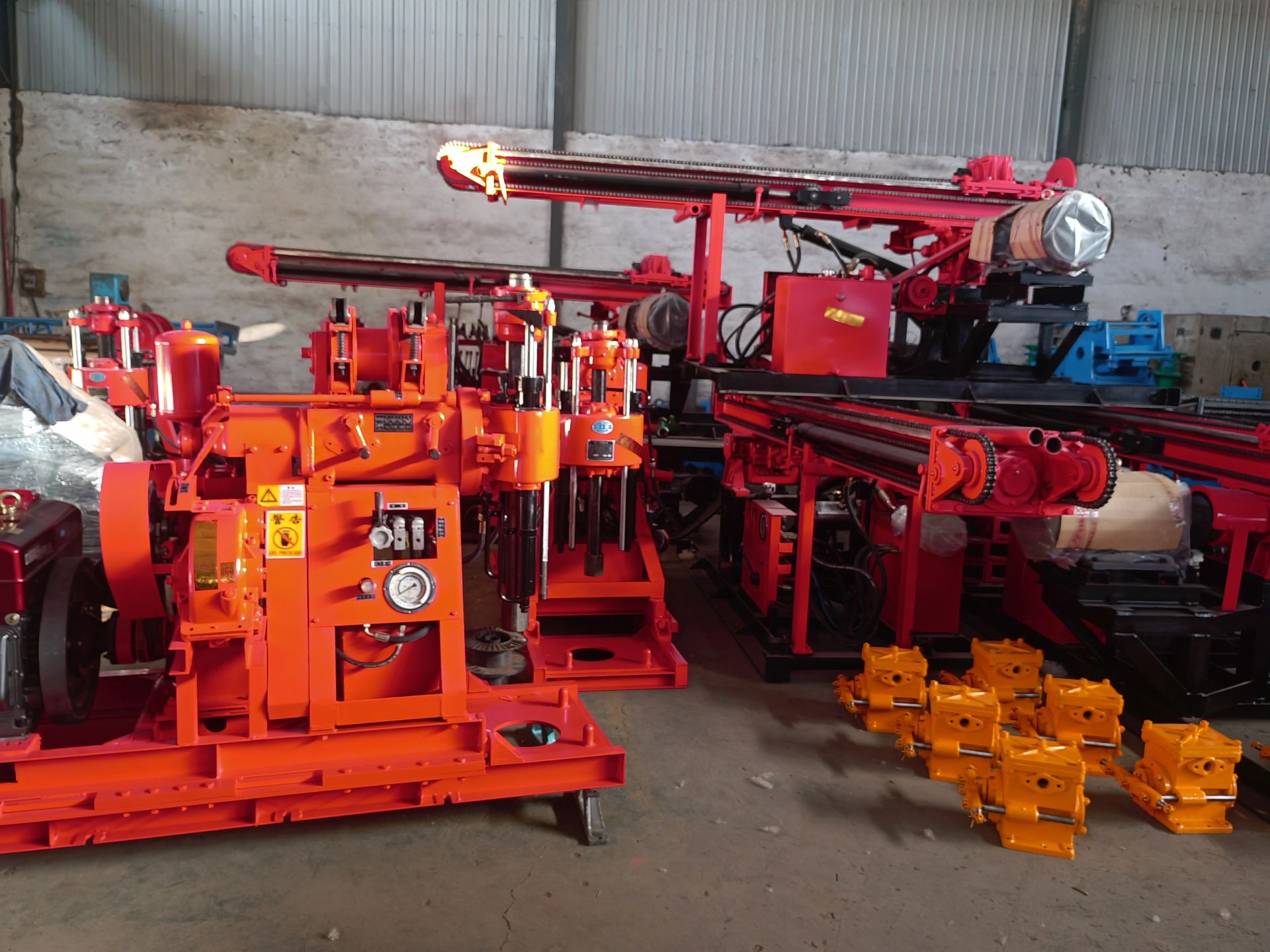

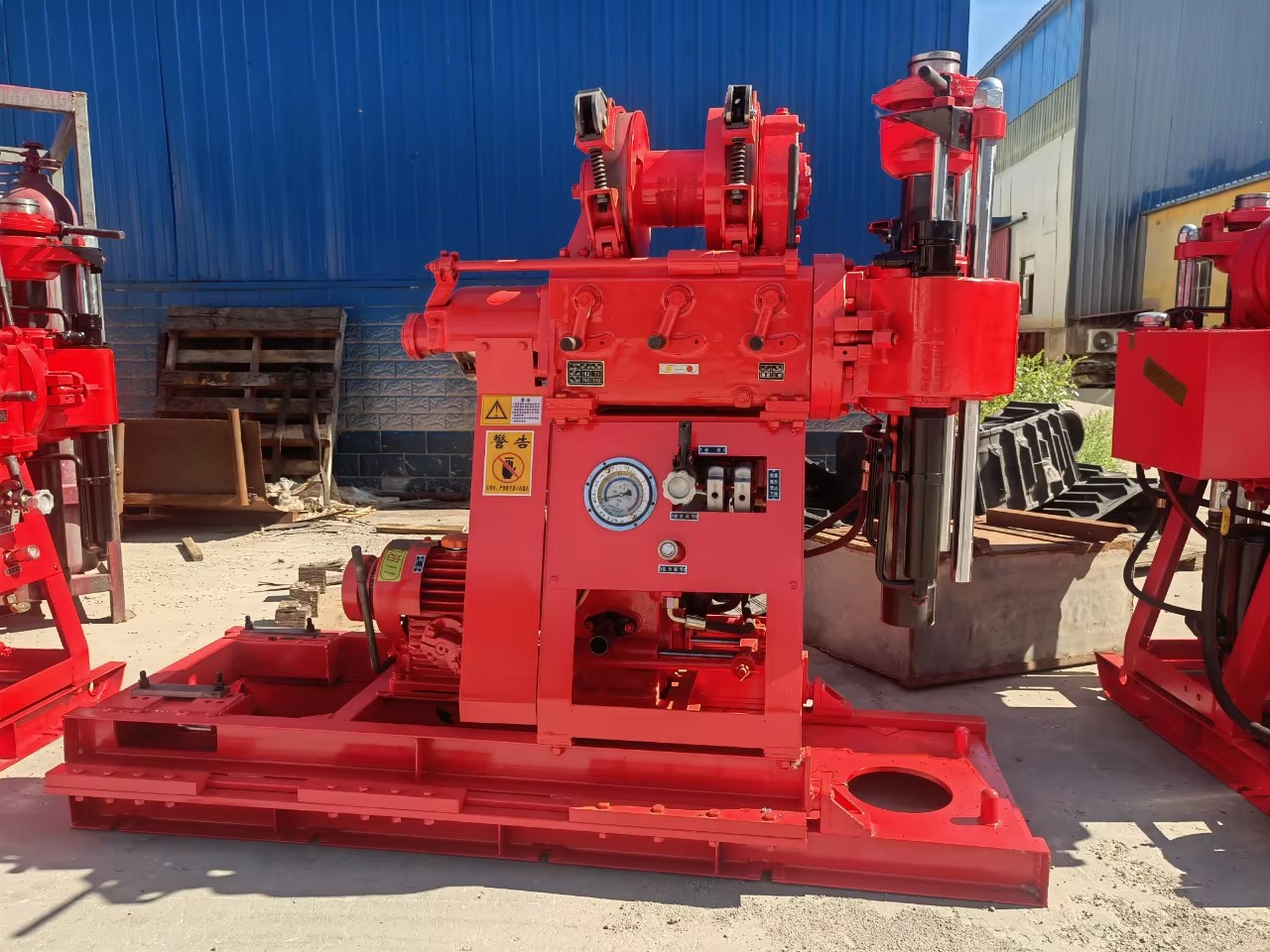

Product detail

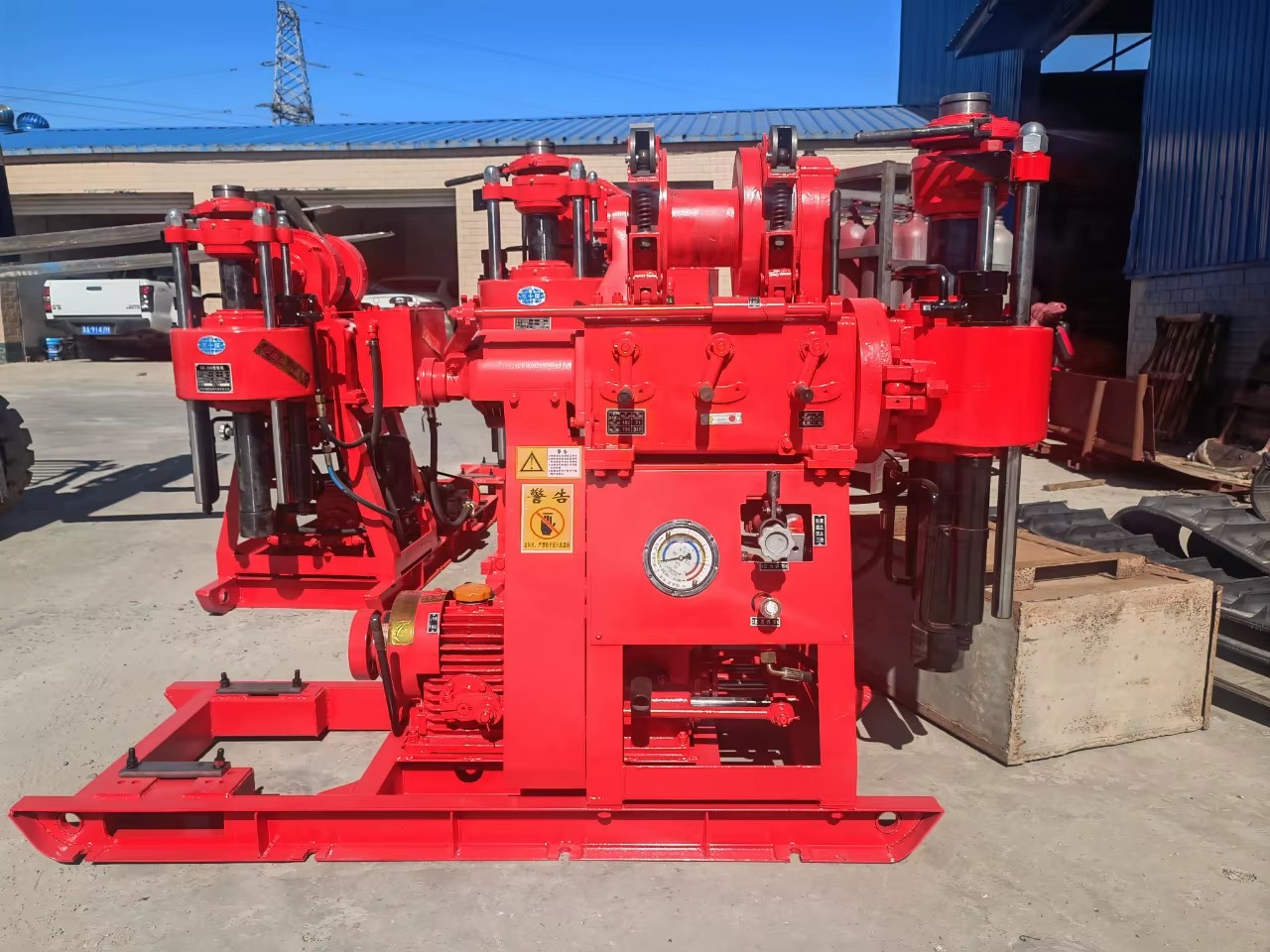

Product detail

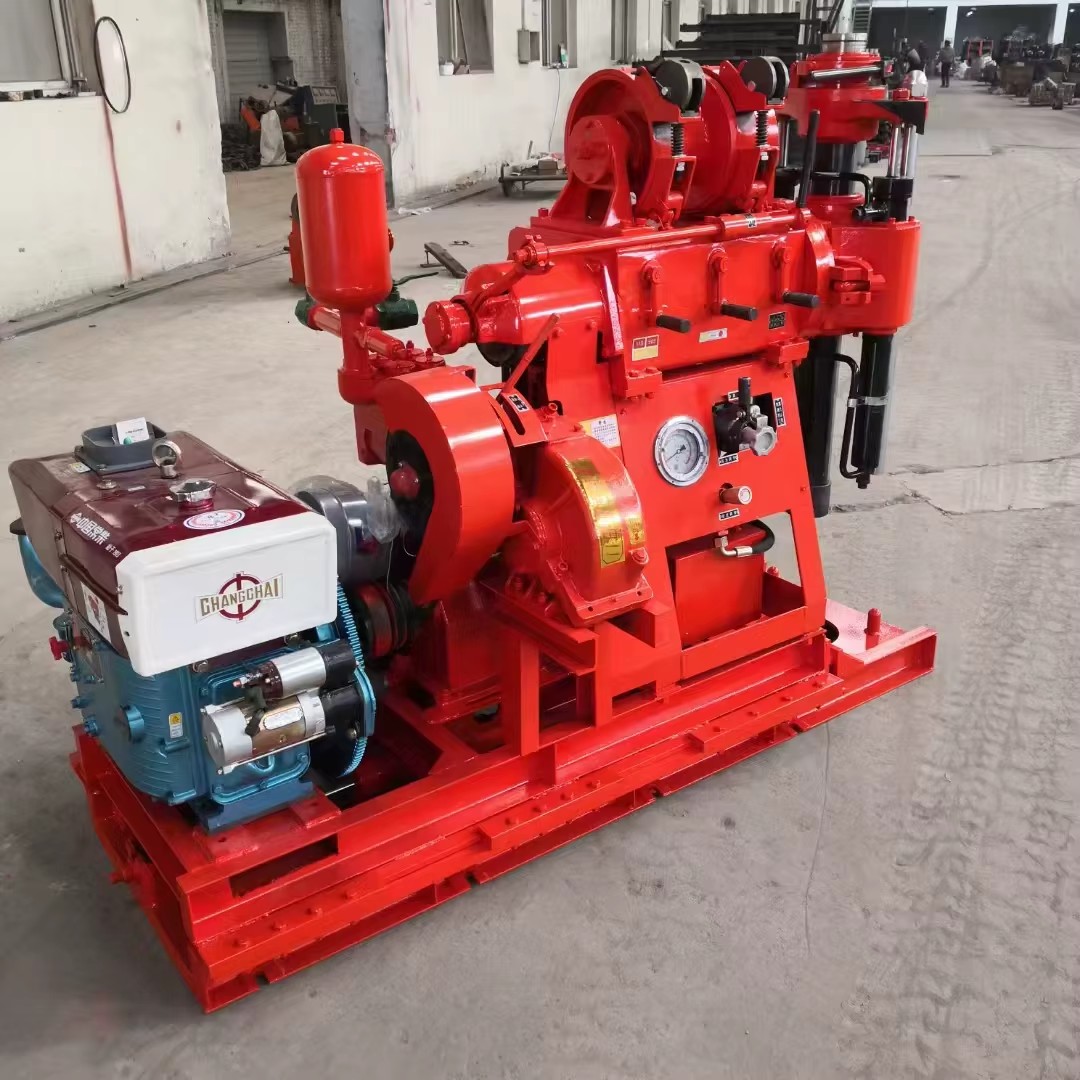

Product detail
Product detail
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    30 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 27 fields
Usage
Water Well
Type
Rotary Drilling Rig
Drilling Depth
Max.300m
Drilling Diameter
110MM(4.33in)
Power Type
Diesel
Voltage
220v
Core components
Motor, Pump
Warranty
1 Year
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
Competitive Price
Place of origin
China, Zhengzhou
Weight
480 KG(1058.22lb)
Dimension (L*W*H)
1960*850*1340mm(77.17*33.46*52.76in)
Mobility
first-rate
Color
Customer Required
MOQ
1 Set
Moving stroke
350mm
Pipe diameter
42mm
Hole dip Angle
90°-75°
Vertical shaft speed
142,285,570r/min
Diesel engine type
zs1105
Selling Units
Single item
Single package size
1960X850X1340 cm
Single gross weight
480.0 kg
Model number
XY1
Power (W) (Product option)
7.5kw(10.06hp)
Lead time
30 days
Minimum order
1 Units
