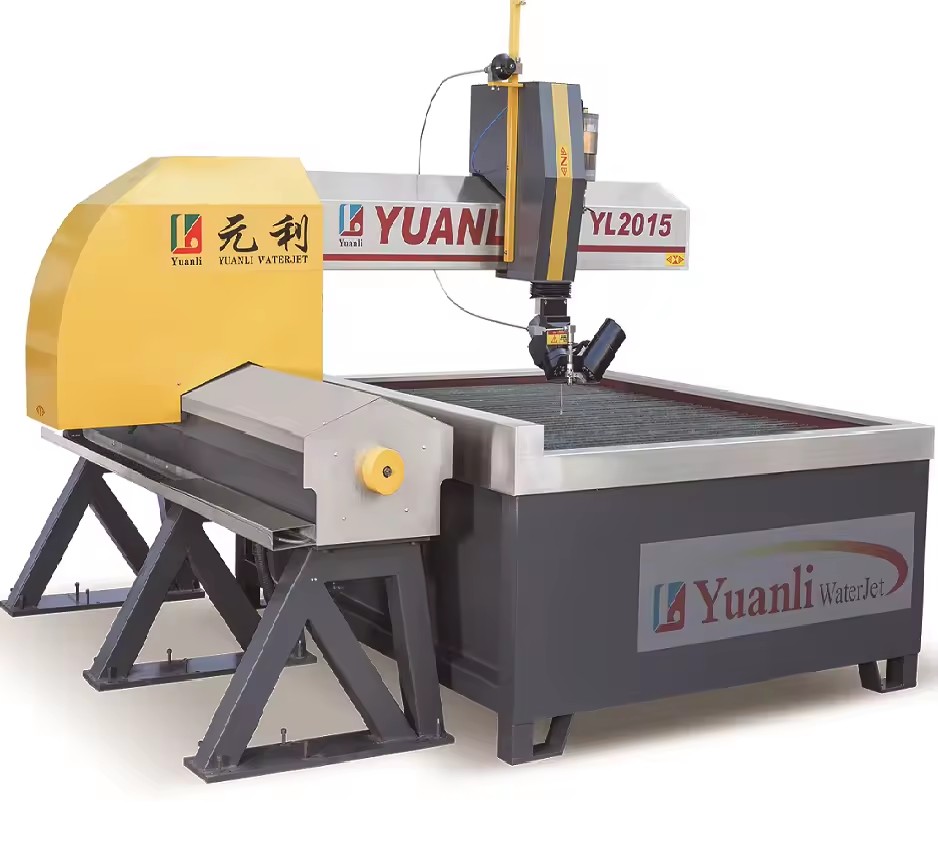

High Quality Waterjet Cutting Harga Mesin

Product Introduction: 3 axis traditional water jet is a part of can not be ignored during the process of water jet, and it is one of the products about the fastest speed and the most stable for all kinds of water jet. Its maintenance is easy and the technology is stable, and it is the necessity for lots of users in the cutting industry. It is mainly used in cutting ceramics, stones, glass, metal, plastic, titanium, carbon, industrial electronic products, etc.

Features Of Product

has the cutting ability of full direction, can carry out any plane curve cutting; 2.The structure of platform is specially reinforced, it will not be shaking when the cutting head is running. And the cutting speed is fast and the precision of machining is strong

3.The screw mandrel and the lead rail are provided by ’s manufacturers, the X axis and the Y axis with the oil-immersed, it has the effect of lubricating, with the structure of water-proof and dust-proof, can make sure the machining precision of cutting platform, and improve the lifetime of the screw mandrel and lead rail.

4. The cutting head is equipped with the pneumatic water switch that can improve the productive efficiency

5.The design of sand valve is special, the structure is simple, making the flow more smoothly and the repairing more convenient, and can prevent the phenomenon of water leakage

6.The stainless steel protection cover is dust-proof, waterproof, rustproof, erosion proof, making the platform bright all year.

After-Sale Services

1. Installation and training: we can send technician to your place for the complete installation and training. The b uyer must paid in advance for all the expense include travelling, visa, hotel, and meals etc.

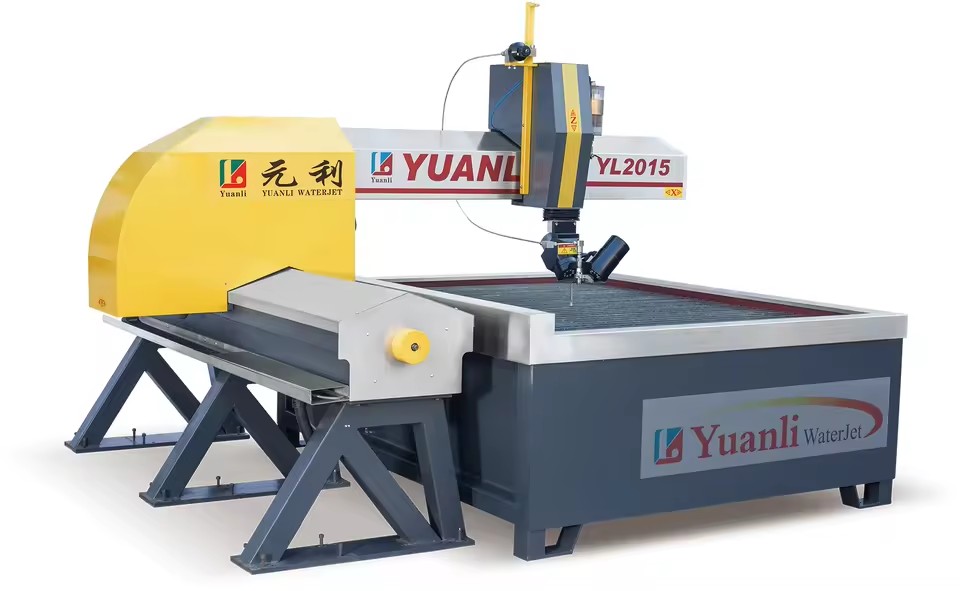

Parameters For 3Axis

Item

Water jet cutting machine

Model

YL2015

Structure

Cantilever

Cutting table size

2600*1600mm

Stroke

X-axis

2500mm

Y-axis

1500mm

Z-axis

150mm

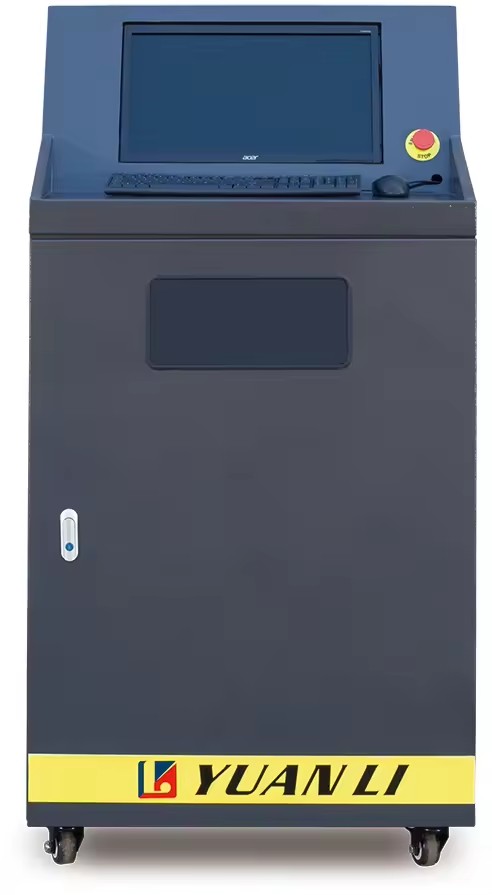

CNC Controller

Step System / AC Servo System

Accuracy

±0.1mm

Cutting

Repeatability

±0.05mm

Traverse speed

6500/15000 mm/min

Power supply

220V/380V/415V AC,50Hz

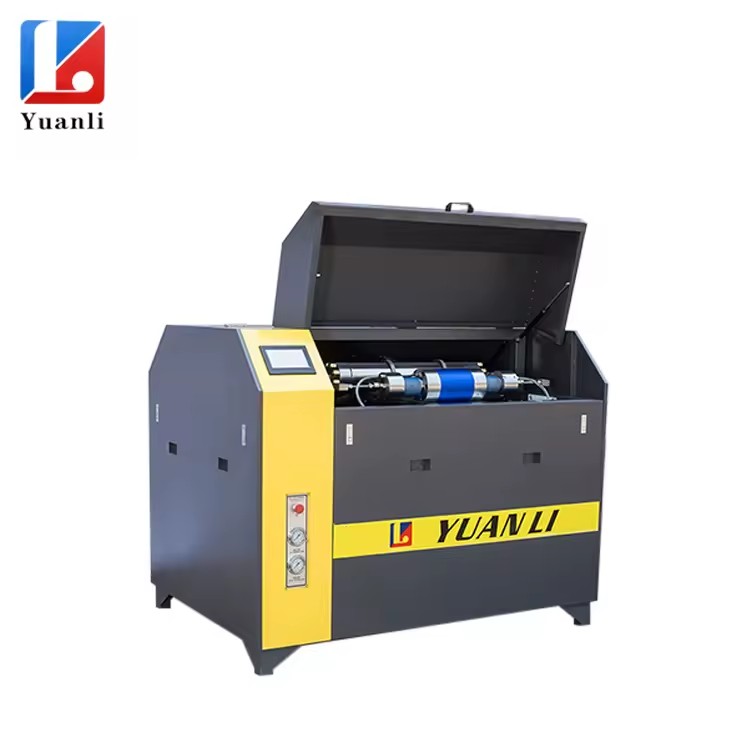

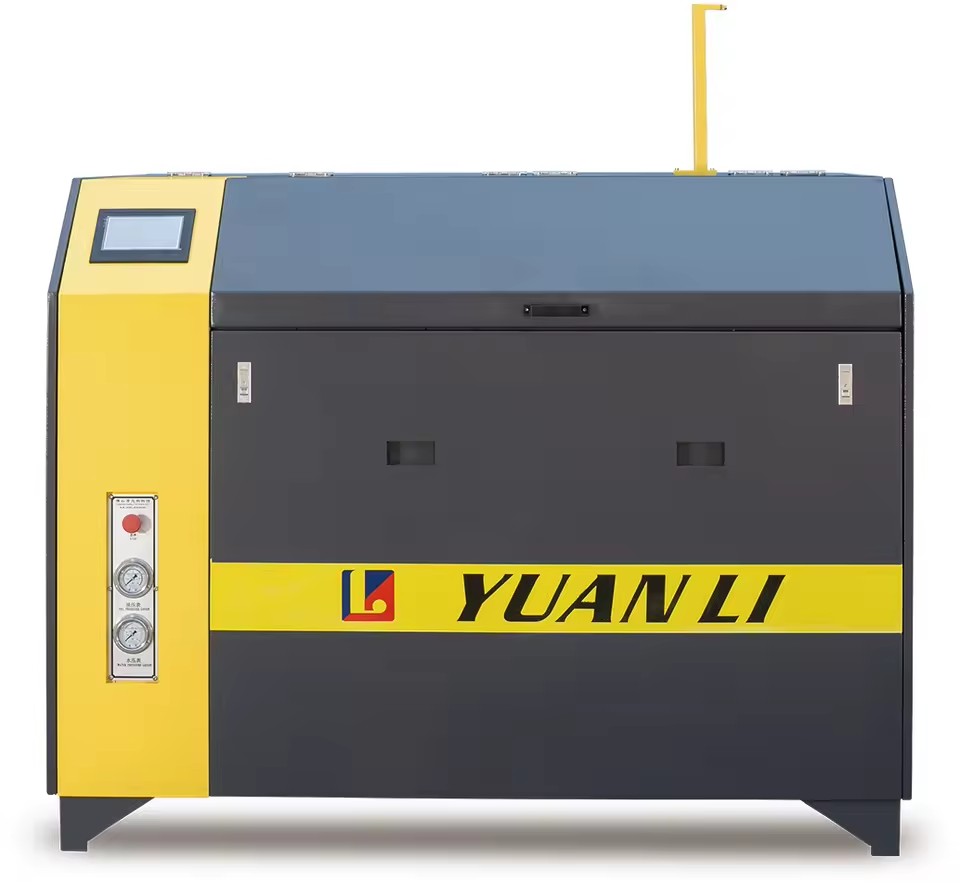

Turbocharger parameters

Waterjet cutting machine

Maximum pressure

450Mpa

Normal operating pressure

350-380Mpa

Main motor power

37KW /30KW

Gantry

Variable

Cooling

Wind/Oil/Water

High-pressure cylinder

Imported

Inlet valve

Ceramic rod

Accumulator

Single taper

415/380/220V AC 3P

High Quality Waterjet Cutting Harga Mesin

Product Introduction

3 axis traditional water jet is a part of can not be ignored during the process of water jet, and it is one of the products about the fastest speed and the most stable for all kinds of water jet. Its maintenance is easy and the technology is stable, and it is the necessity for lots of users in the cutting industry. It is mainly used in cutting ceramics, stones, glass, metal, plastic, titanium, carbon, industrial electronic products, etc.

has the cutting ability of full direction, can carry out any plane curve cutting

2.The structure of platform is specially reinforced, it will not be shaking when the cutting head is running. And the cutting speed is fast and the precision of machining is strong

1.

Installation and training: we can send technician to your place for the complete installation and training.

The b

uyer must paid in advance for all the expense include travelling, visa, hotel, and meals etc.
