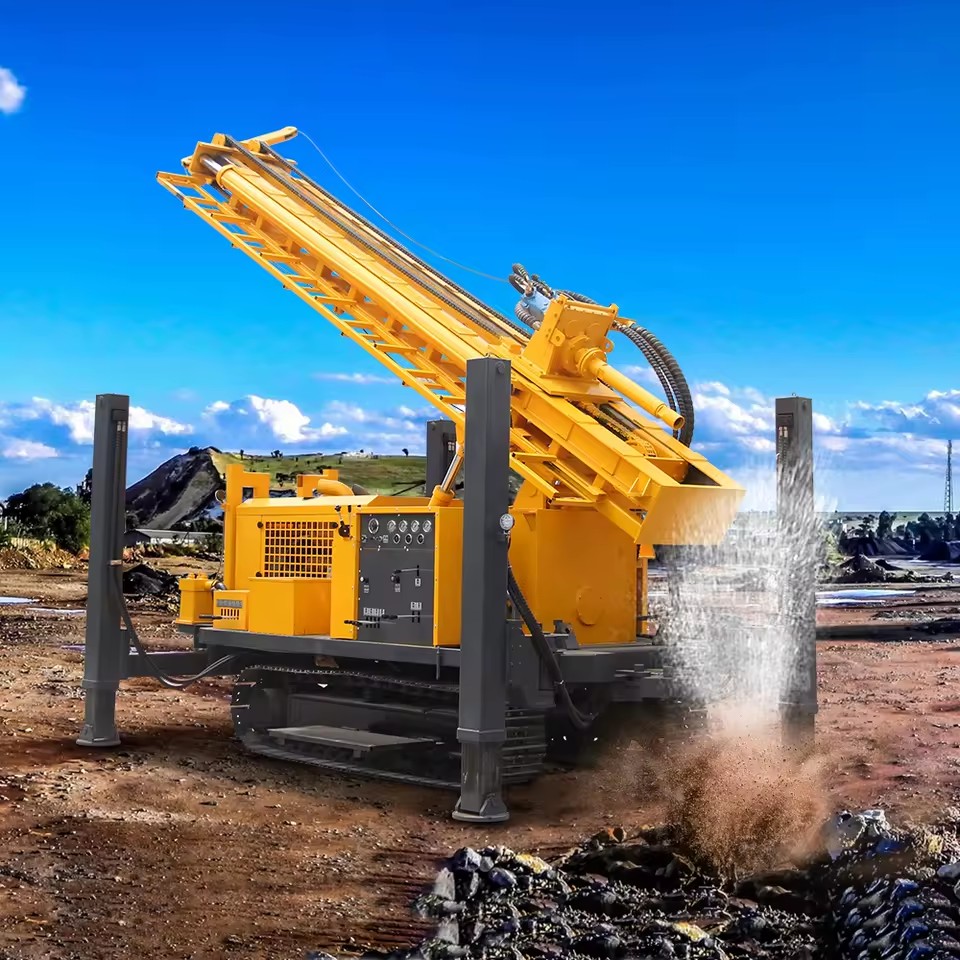

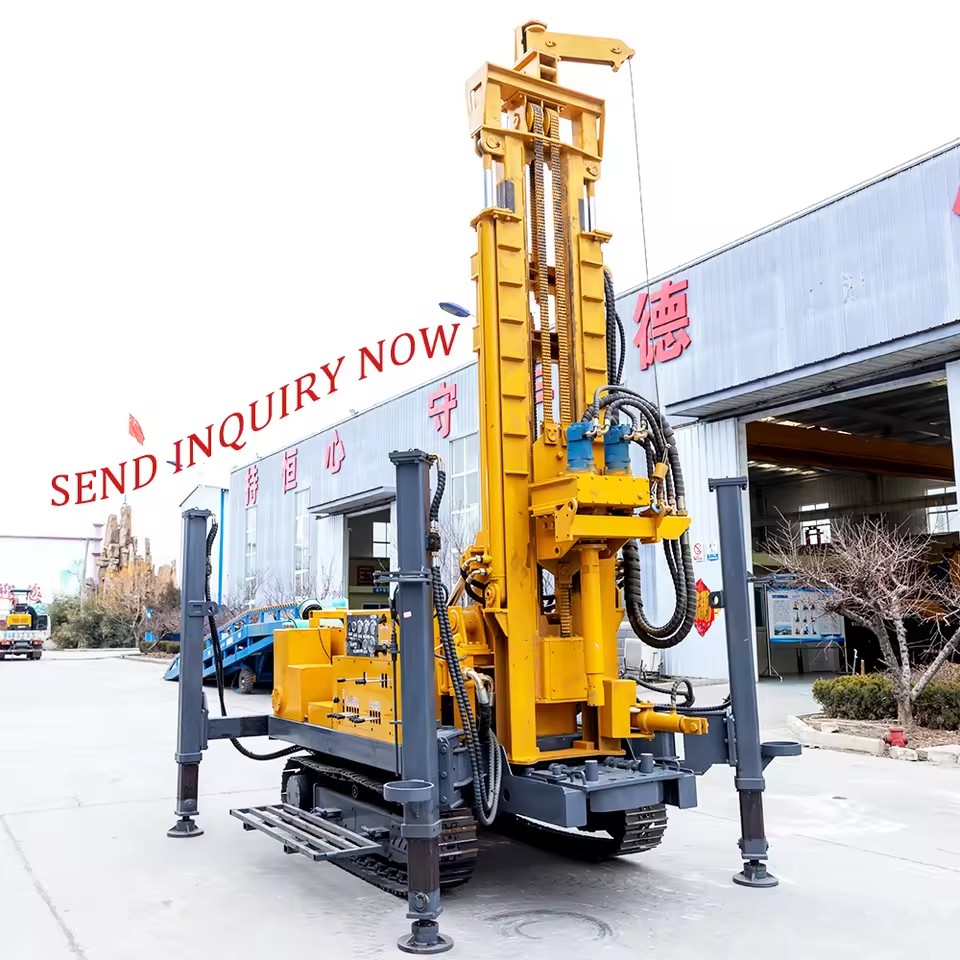

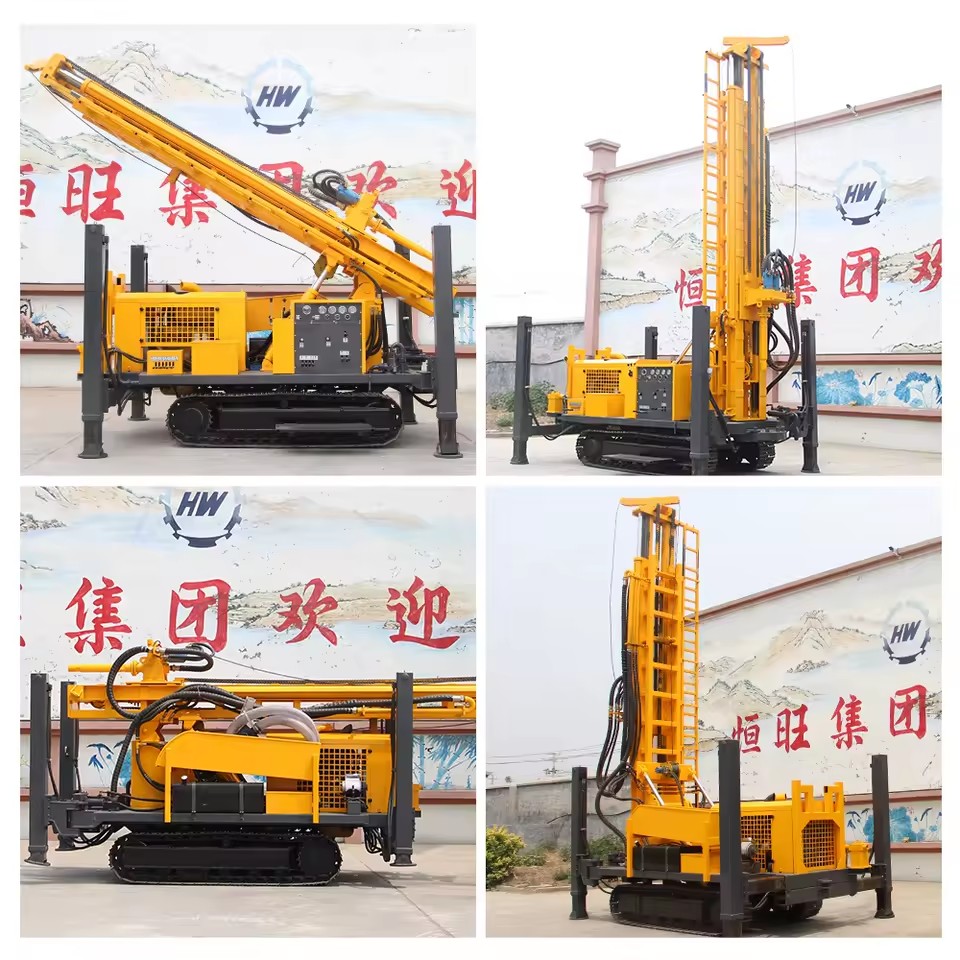

Well Drilling Rig 300 Meter Borewell Drilling Machine Bole Hole Drilling Machine

Available for enquiry 0.0 · 0 reviews
USD

$ 11,460.00 11460.0 USD $ 11,460.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Usage
Water Well
Type
Rotary Drilling Rig
Drilling Depth
Max.300m, 260m
Drilling Diameter
75mm, 300 mm, 100 mm, 200 mm, 50 mm, 60 mm
Power Type
Diesel
Voltage
380V
Product description
Main technical parameters
ModelHQZ220LHQZ220LHQZ260LHQZ260LHQZ320LHQZ320L
Drill Mast3m3m3m6m3m6m
ChassisRubber trackSteel trackRubber trackRubber trackSteel trackSteel track
Drilling dia.（mm）130-254130-254130-305130-305130-325130-325
Drilling depth（m）220220260260320320
One-time push length（m）3.63.63.66.63.66.6
Travelling speed（km/h）2.52.52.52.52.52.5
Climbing ability(°)303030303030
Engine brandYunneiYunneiYunneiYunneiYuchaiYuchai
Engine power60kw60kw76kw76kw85kw85kw
Working pressure（mpa）1.45-2.51.45-2.51.7-3.01.7-3.01.7-3.01.7-3.3
Air consumption（m³/min）17-3117-3117-3117-3117-3517-35
Drill rod dia.（mm）76/8976/8976/8976/8976/89/10276/89/102
Drill rod length（m）1.5/2.0/3.01.5/2.0/3.01.5/2.0/3.03.0/6.01.5/2.0/3.03.0/6.0
Lifting force（T）151517171824
Rotary speed（rpm）45-6545-6545-6545-6540-7055-115
Rotary torque（N.m)4000-46004000-46004500-47005500-60006000-75008500-9000
Dimension（mm）3800*1700*22503800*1700*22503900*1850*23505200*1850*23505300*2200*28005300*2200*2800
Overall weight（T）4.54.54.85.879
Description images

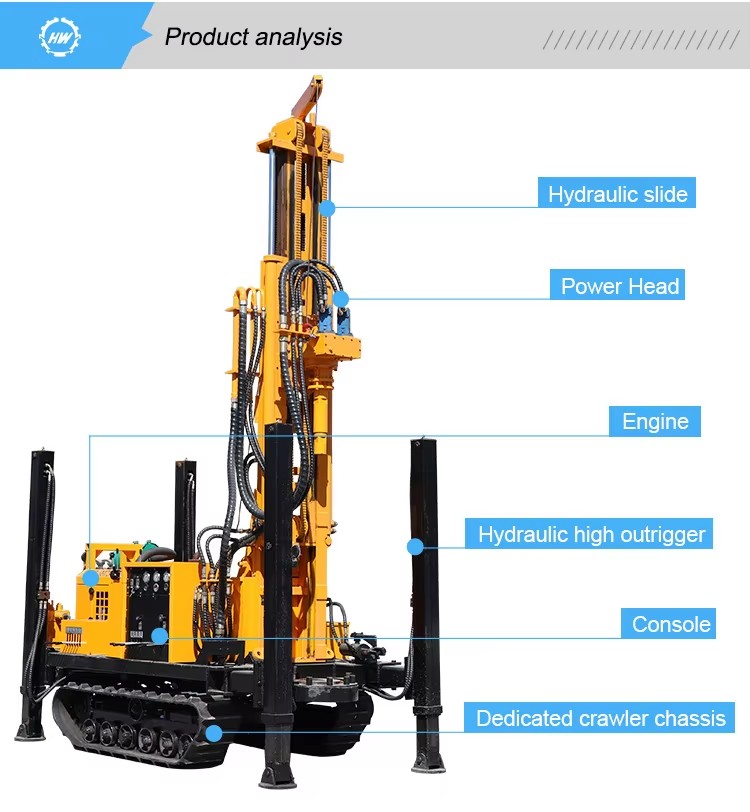

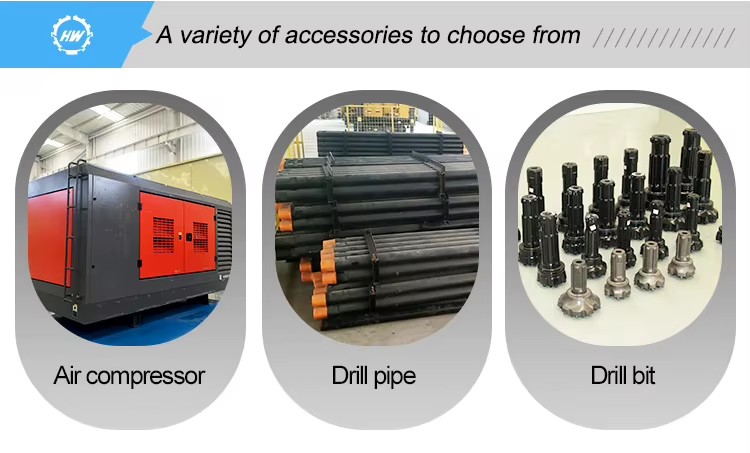

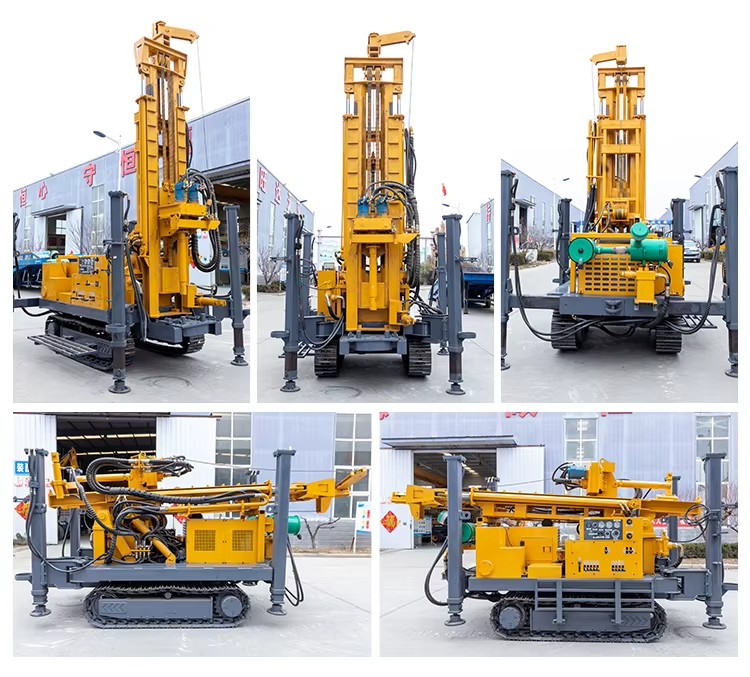

Product detail

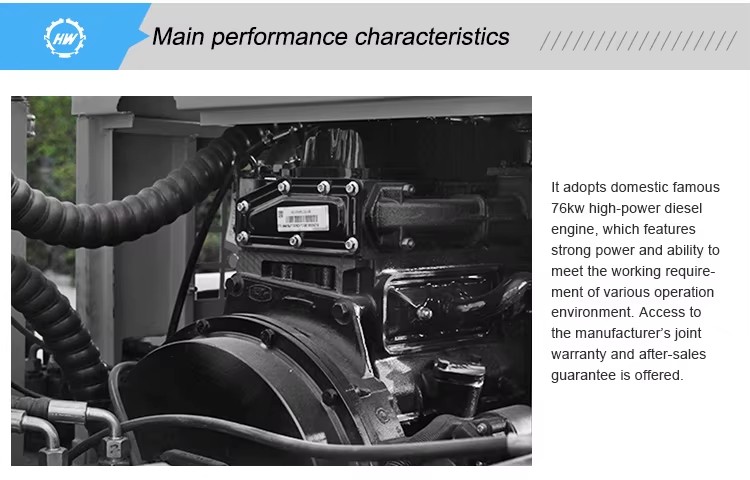

Product detail
Product detail
Product detail
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    10 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 36 fields
Usage
Water Well
Type
Rotary Drilling Rig
Drilling Depth
Max.300m, 260m
Drilling Diameter
75mm, 300 mm, 100 mm, 200 mm, 50 mm, 60 mm
Power Type
Diesel
Voltage
380V
Core components
Motor, Engine, Pump
Warranty
1 Year
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
Automatic
Place of origin
China, Shandong
Weight
4800 KG
Dimension (L*W*H)
3900*1850*2350mm
Drill Mast
3m
Chassis
Rubber track
Drilling dia.
130-305mm
One-time push length
3.6m
Climbing ability
30°
Drill rod dia.
76mm/89mm
Drill rod length
1.5m/2m/3m
Lifting force
17T
Rotary Speed
45-65rpm
Applicable Industries
Construction works, Energy & Mining
Showroom Location
None
Condition
New
Marketing Type
Ordinary Product
Warranty of core components
1 Year
Packaging Details
Standard export package for well drilling rig 300 meter borewell drilling machine bole hole drilling machine
Port of dispatch
Qingdao, ShangHai, Dalian, tianjin
Selling Units
Single item
Single package size
390X185X235 cm
Single gross weight
4800.0 kg
Supply Ability
200 sets per Week
Model number
HQZ260L,3m
Power (W) (Product option)
76KW
Lead time
10 days
Minimum order
1 Units
