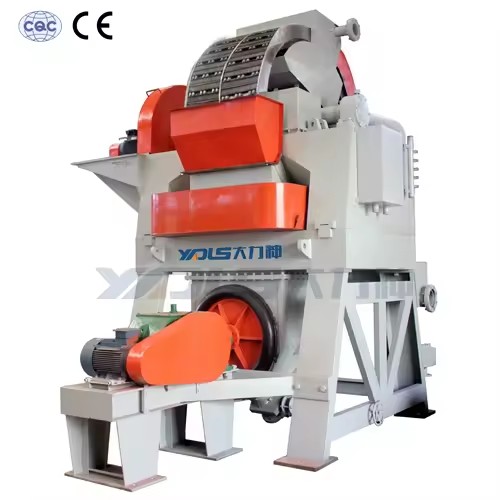

Magnetic Separator for Processing Minerals

Available for enquiry 0.0 · 0 reviews
USD

$ 29,920.00 29920.0 USD $ 29,920.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Type
Magnetic Separator
Voltage
Power grid
Core components
Bearing, PLC, Motor, Pressure Vessel, Gear, Engine, Pump, Gearbox, Other
Machinery test report
Provided
Warranty
2 Years
Video outgoing-inspection
Provided
Product description

High Gradient Magnetic Separator DLS Series

l Product introduction

DLS Series high gradient magnetic separator is a new product developed independently by Dalishen. It combines the characteristics of international advanced high intensity magnetic separators, which is so far the high intensity magnetic separator of best performance and most advanced technology. This product utilizes vertical ring rotation, pulsating beneficiation and high frequency vibrator, and it has no magnetic medium jam problem in flat ring high intensity magnetic separator and flat ring high gradient magnetic separator.

It has the advantages of large beneficiation ratio, high security and convenient operation etc. This product realizes both high beneficiation ratio and high recycle ratio in separating weak magnetic minerals.

l Application field

1. Updating Ferrous Metals: Martite, Hematite, Siderite, Chromite, Ilmenite, Manganese, Etc.

2. Separating Non-Ferrous Metals: Wolframite and Quartz, Pyrrhotite and Cassiterite, Wolframite and Cassiterite, Limonite Purifying, Scheelite, Wolframite and Garnet, Etc.

3. Recovering Rare Earth: Tantalum and Niobium, Lepidomelane, Monazite, Etc.

4. Brightening Non Metals: Quartz, Feldspar And Kaolin for Ceramics, Sillimanite, Cassiterite, Andalusite, Kyanite for Refractory, and Separating Impurities From Hornblende, Mica, Tourmaline, Garnet, Etc

l Technical features

1. Vertical Ring Rotation & Pulsating Beneficiation

2. High Frequency Vibration Mechanism

3. Wide Range of Feed Particle Size

4. Multi-Gradient Matrixes & Liquid Level Control System.

These technologies improve the grade of magnetic concentrate and recovery.

5. Frequency Conversion Step-less Adjustment for Rotary Speed & Vibrating Frequency.

6. No Stepper Phenomenon of Rotary Rings

l Technical data

Model PartDLS-50DLS-75DLS-100DLS-125DLS-150DLS-175DLS-200DLS-250
Ring diameter (mm)500750100012501500175020002500
Particles size mm (-200 mesh)1.0 ( 30-100 )1.0 ( 30-100 )1.3 (30 ~ 100)1.3 (30 ~ 100)1.3 (30 ~ 100)1.3 (30 ~ 100)1.3 (30 ~ 100)1.3 (30 ~ 100)
Slurry density (%)10 ~ 4010 ~ 4010 ~ 4010 ~ 4010 ~ 4010 ~ 4010 ~ 4010 ~ 40
Slurry throughput (m 3 /h)0.5 ~ 1.01.0 ~ 2.012.5 ~ 2020 ~ 5050 ~ 10075 ~ 150100 ~ 200180 ~ 450
Handling capacity (t/h)0.05 ~ 0.250.1 ~ 0.54 ~ 710 ~ 1820 ~ 3030 ~ 5050 ~ 8080 ~ 150
Rated back ground Field intensity (T)0~1. 10~1.10~1.10~1.10~1.10~1.10~1.10~1.1
Energizing current (A)0~12000~8500~6500~8500~9500~12000~12000~1400
Energizing voltage (V)0~8.30~130~26.50~230~280~310~350~45
Energizing power (KW)0~100~110~170~190~270~370~430~63
Ring motor power (KW)0.370.551.52.2445.511
Vibration motor power (KW)0.550.752.22.2447.511
Water supply pressure (MPa)0.1 ~ 0.20.1 ~ 0.20.2 ~ 0.40.15 ~ 0.30.2 ~ 0.40.2 ~ 0.40.2 ~ 0.40.2 ~ 0.4
Water consumption (m 3 /h)0.75 ~ 1.55 ~ 810 ~ 2030 ~ 4560 ~ 9080 ~ 120100 ~ 150200 ~ 300
Cooling water (m 3 /h)1.5~21.5~22~2.52.5~33~44~55~66~7
Main frame weight (t)1.53614203248105
Overall dimension (mm)1900*1580*13202000*1360*16802700*2200*25603045*2320*26403400*3060*31503900*3400*38004290*3610*43205800*5000*5400

The above-mentioned dried minerals is metallic minerals, and the handling capacity of non-metallic minerals is half of metallic minerals.

More details, please

l CE certificate

Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    30 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 21 fields
Type
Magnetic Separator
Voltage
Power grid
Core components
Bearing, PLC, Motor, Pressure Vessel, Gear, Engine, Pump, Gearbox, Other
Machinery test report
Provided
Warranty
2 Years
Video outgoing-inspection
Provided
Key selling points
High Productivity
Production Capacity
0.05-250 t/h
Place of origin
China, Hunan
Weight
15000 KG(33069.34lb)
Dimension (L*W*H)
Various sizes
Capacity (dry ore)
0.05-250 t/h
Max background field
18000GS (adjustable)
Max ore-feeding size
1.3 mm
Feeding concentration
10-40%
Diameter of ring
500-3500mm
Selling Units
Single item
Single volume
0 cm3
Single gross weight
0.0 kg
Model number
DLS
Power (W) (Product option)
10-105KW(13.41-140.81hp)
Lead time
30 days
Minimum order
1 Units
