waterjet cutting machine is the best choice for marble cutting, our team has rich experience on this filed, we are confident we will suppy you the best solution.
Processing product.
Waterjet cutting machine introduction
Tap water is impressed to 200-400Mpa by UHP Intensifier, and then a waterjet with high speed of 800-1000m/s is made through a small gem nozzle with bore size of 0.1-0.35mm. This waterjet has high energy and it can cut soft materials such as paper, rubber, sponge, etc. Furthermore, if mixed proper quantity abrasive, it can cut all kinds of soft and hard materials such as glass, marble, ceramics, stainless steel, etc.
TECHNICAL DATA
Main technical parameter of waterjet cutting machine

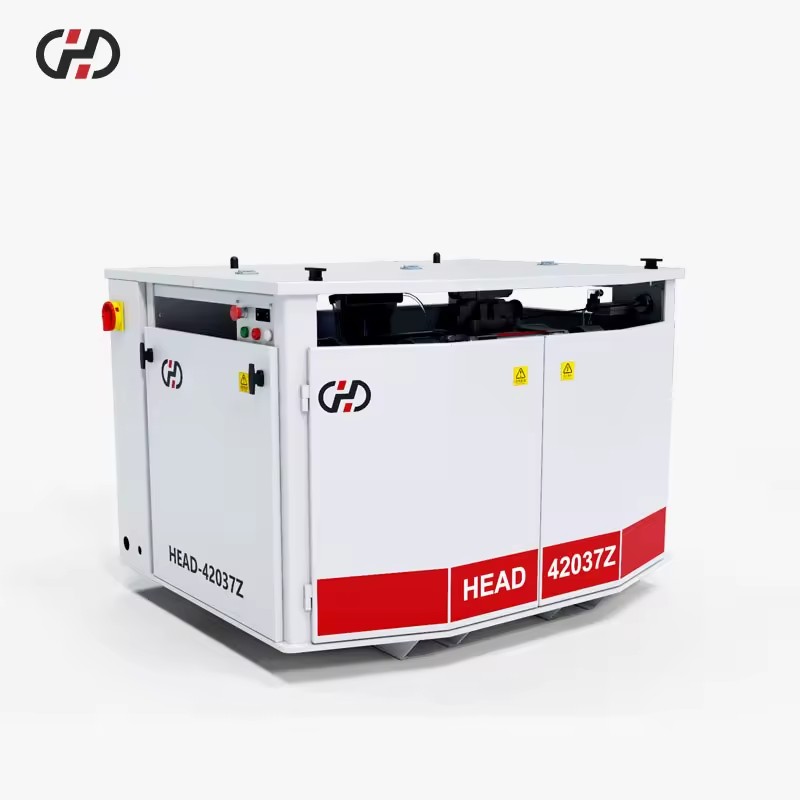

Intensifier Pump
Item
Parameter
Model
HEAD42037Z
Brand
Method of Direction Regulation
Electronic Direction Regulation
Pressure Range
300-420MPA
Maximum Flow of Hydraulic Pump
106L/min
Maximum Discharge Capacity
3.8L/min
Maximum Diameter of Gem Nozzle
0.33mm
Power of Master Motor
37KW(50Hp)
Power Source
380V/50HZ
Cutting Table
X axis characteristic
One-off extrusion forming aluminum alloy
Y axis characteristic
Cast iron used as foundation base
Z axis characteristic
double linear guide and four sliding block
Driving system
Z axis automatic controll,3axis association process
Ball screw,linear guide
ABBA
Table structure
Separated body
Driving way
Servo drive system
CNC system
Ncstudio,Fagor
Servo motor
YASKAWA/FUJI
Cutting
Casting structure and concrete structure
Sealing way
Whole piece sealing
Loading weight water tank
Wall thickness is 5mm,using fluorocarbon coating

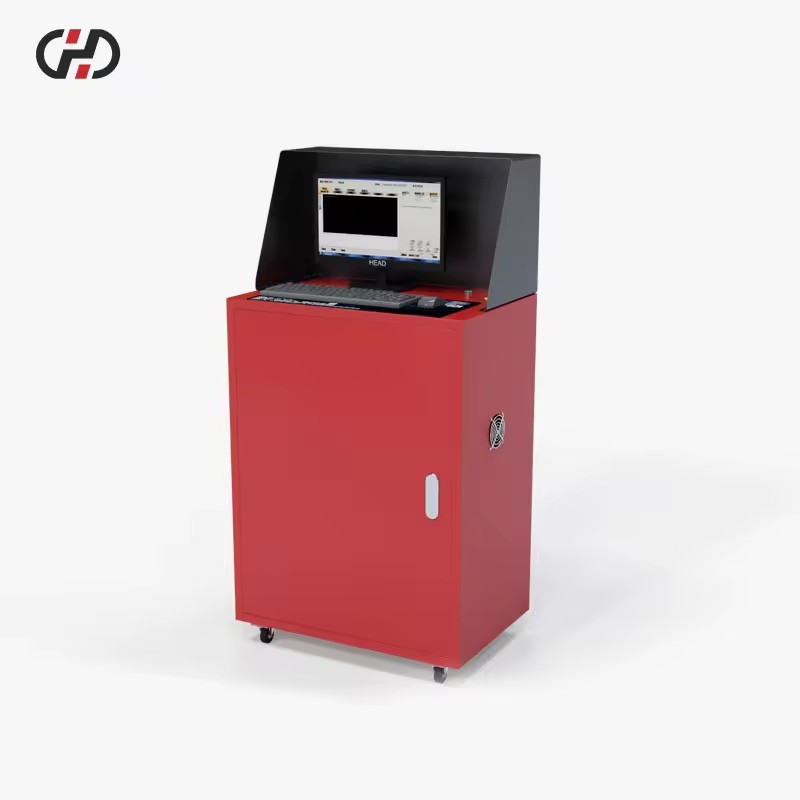

CNC Controller
Control Method
CNC
Display Size
19inch LCD
Model of Cutting Text
DXF
Model of Computer
Industrial Control Computer
Operating System
Windows XP/7
PLC
OMRON
Cutting software advantage
Auto save and transfer common parameter
Controller displace
Can be fit to suitable place at own will

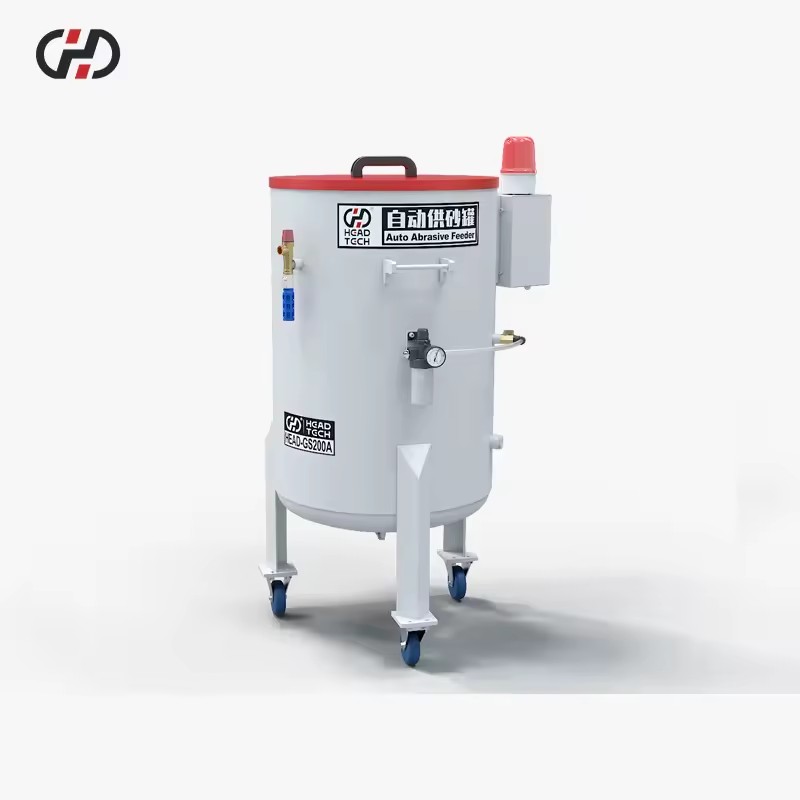

Automitic Abrasive Feeder
Founction
Sand storage and sand delivery
Operating
No need electrocnic control,sample operation
Capacity
200 liters for 8 hours
Pressure
Less than 0.2Mpa compresses gas pressure
Level
Standard equipment of waterjet
It can supply the sand quantity according to the adjustable sand level location tube in the sand bin, without any electrical connect units,more safe and reliable.
Deionization System
Softening water
Operation
Simple operation
advantage
Inmproving useful life of other parts
Groundwater,minerals contained is very high, will cause the problem of cutting accuracy after long time using.
Wireless Handel
Wireless controlling waterjet
Display
Real- time display condition of X,Y,Z axis
Settings
Zero point, on/off valve set, X,Y,Z axis moving
Technology
Advanced technology
Special designed for water jet control system, it could realise wireless controling water jet and it can control long-distance material processing,improving work efficiency.
Quality Control
To ensure high quality machine, our engineers will check every machine quality before delivery. Engineer is responsible for his checking machine quality. ONE MACHINE FOR ONE ENGINNER
ONE: UHP pump testing
1. every intensifier pump will be tested by our engineers including ultra high pressure stable, continuous pressure time etc.
2. Servo motor data adjustment to ensure machine to operate perfectly in our customer factory.
TWO: Cutting table accuracy testing
1. every detail including loadbearing table,liner guide accuracy etc will be checked by our engineers.
2. We introduced laser interferometer to ensure cutting table high accuracy.
Every machine will be strictly tested by our works and engineers before delivery.
Quality control device,we use different inspection device to test device during diffirent processing procedure.

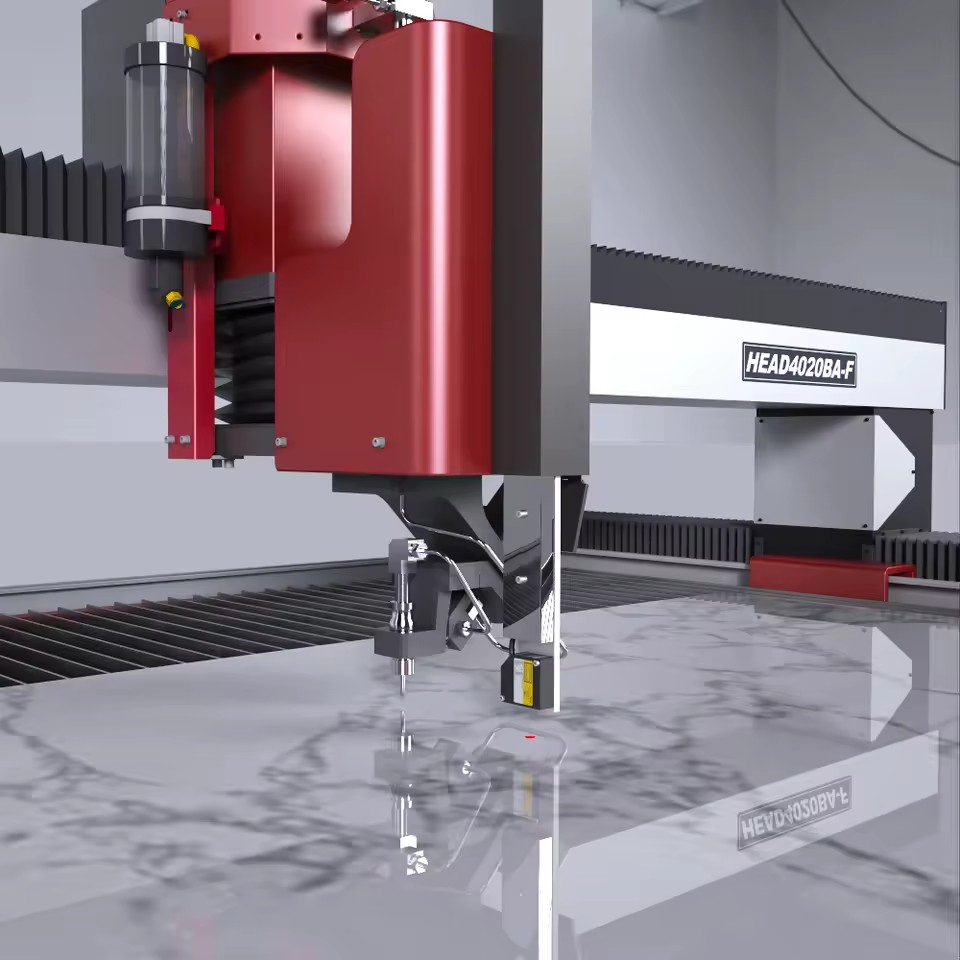

Advantage of marble waterjet cutting machine
ld cutting without thermal influences.
2.Flexible processing of virtually all materials with consistent high quality.
3.. Material-saving production due to reduced cutting width and the nesting of several parts on a single sheet.
4. Maximum degree of material utilization due to the smallest of part separation distances (partially free of burrs) and part-in-part production.
5. Tension-free processed parts due to minimal cutting force.

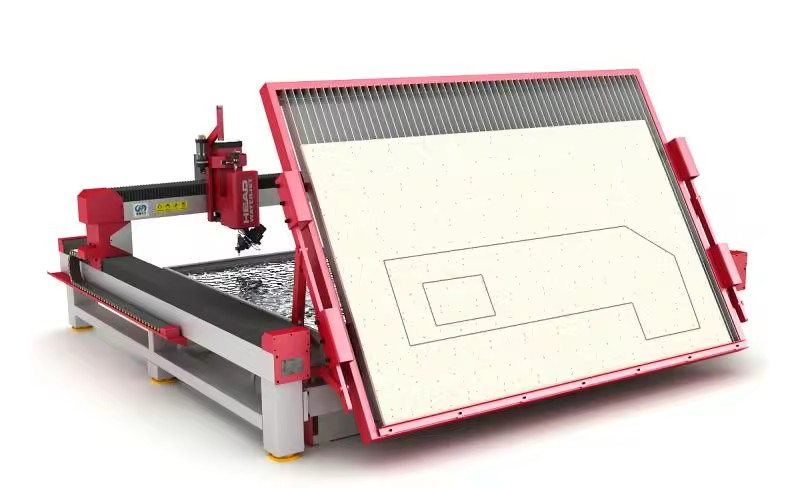

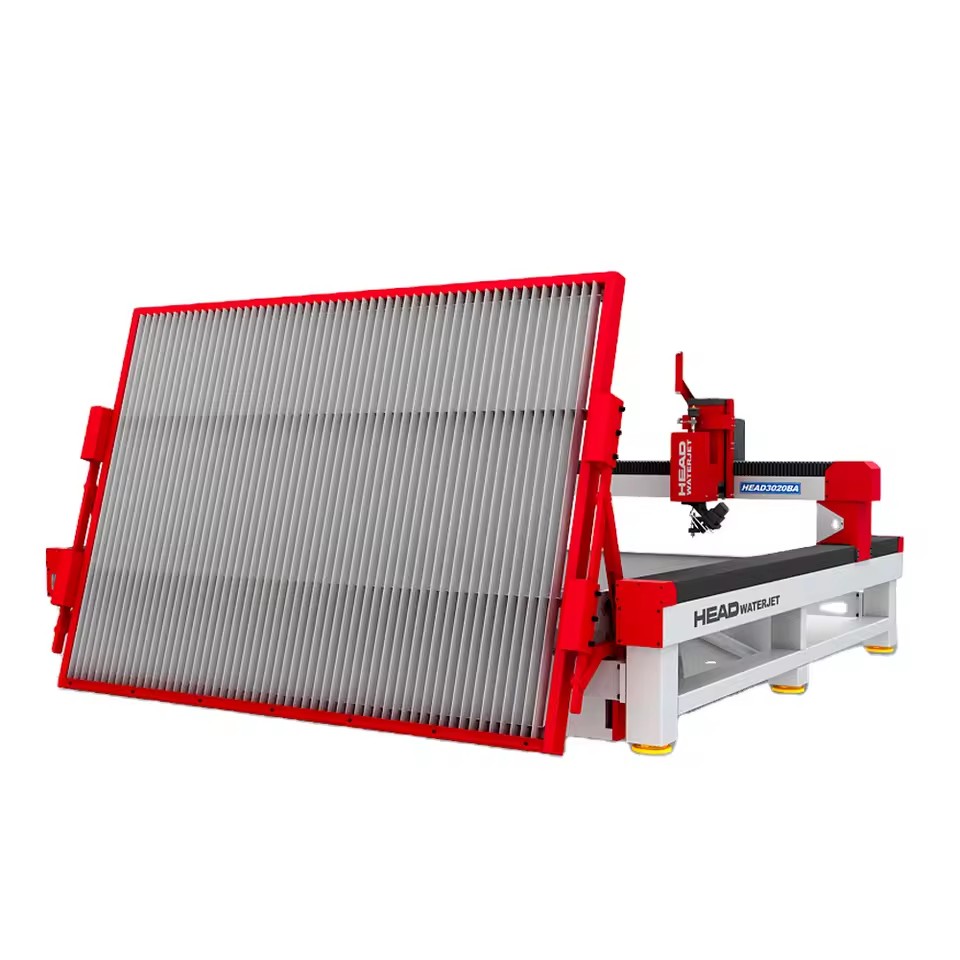

For the large granite format panel, we recommand our floor-type loading system.
The cutting table adapts latest loading design, the max overturn angle is 85,the distance between loading material and ground is only 100mm,max loadearing is 1000KG,hydraulic lifting and some other designs can meet the requirement of marble cutting.The situation many personnels are needed for loading material is changed, nowadays only 1 person is needed for the whole loading process.simple,convenient,greatly reduce the labor cost and minium the marble breakage.This cutting table structure is 1st time adapted in gains high praise once used by lots of marble processing clients.
marble waterjet cutting machine will be packed by Soft package in 20 feet container by FCL
Overseas service is avaiable. Our engineers will help you install and commision in your factory.
7 days per week, 24 hours per day, We are all here for you.
Technical Training
1. UHP Intensifier principle
2. Introduction of every parts
3. Wear parts replacement
4. Elimination of normal troubles
5. Table maintenance
6. On-off valve, cutting and abrasive controller maintenance.
7. Drawing designing and programming
8. Software operating, parameters setting and saving
9. Equipment operating
Any place, any time, you need us, our after-sales service will be there.
Our machine has exported to 28 countries and get rich experience including production, overseas after-sales service etc, please check our sales amount of 2013. We are confident that we will supply best machine and services to you.
WHY CHOOSE US?
1. High quality
The components we use is from high level suppliers, which can guarantee the stable working and long life use time.
The no troubleshorting working time can be over 1000 hours
Can guarantee the cutting accuracy
2. Easy operation
Professional water cutting machine software, no need G code program, you only need to know the use of AUTOCAD
3. New function development
We work to develop new products to update the function of machine, for short time, we reserch the loading system, height tracking system, wireless handle, four-axis cutting.
4. Favorable spare parts price and supply on time.
When your machine need spare parts to work, we will act quickly, and guarantte the machine work continuously.
5. After sale service
Professional service team and 24 hours online to solve your problems, give quick and professional guide.
