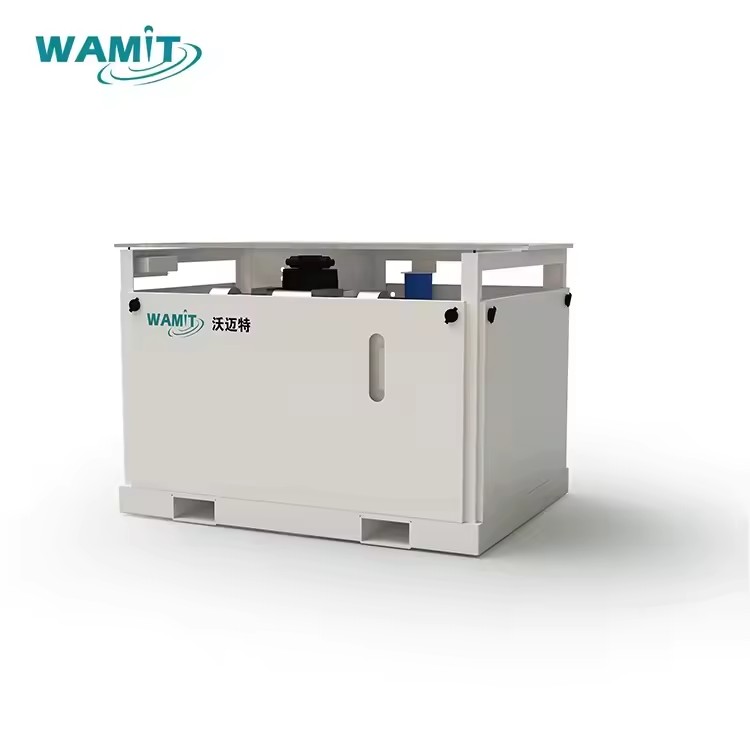

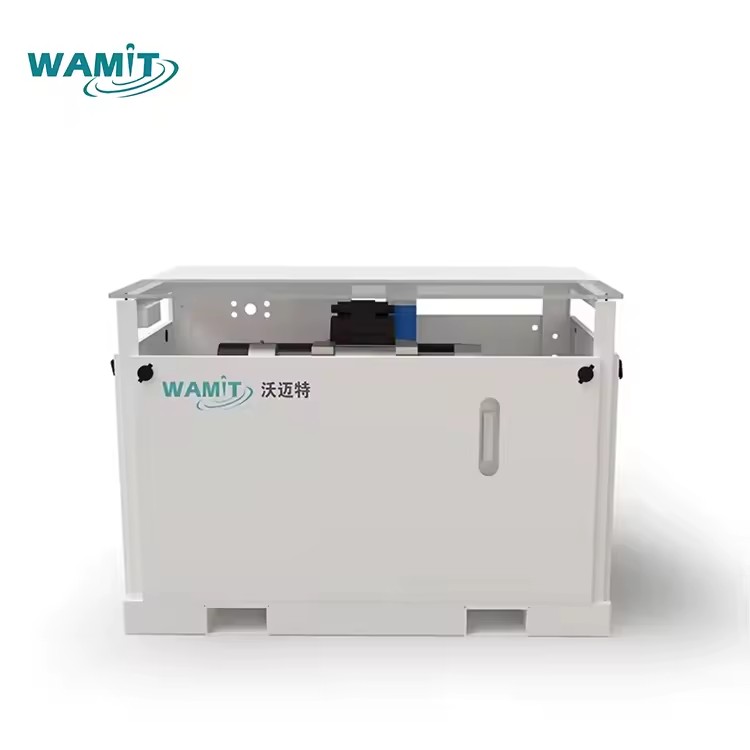

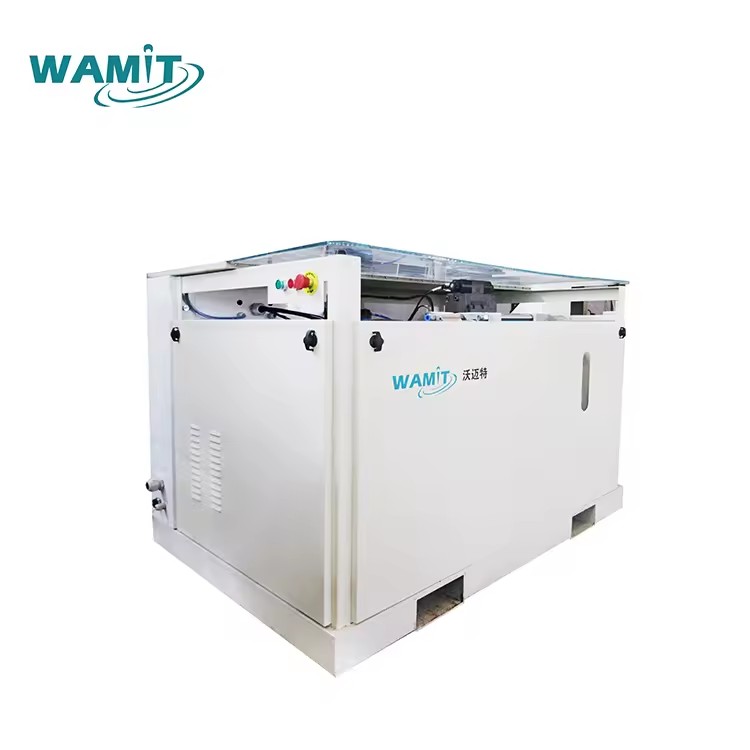

High Pressure Water Jet Cutter Hydraulic Intensifier Pump Waterjet Cutting Pump

Motor

SPECIFICATION

Model

WMT JET 50

WMT JET 100-40

Main Motor Power

37KW(50HP)

75KW(100HP)

Maximum Pressure

420Mpa

280Mpa

Continuous Working Pressure

300-380Mpa

220-260Mpa

Pressure Ratio

20:1

13:1

Maximum Orifice Size

0.33mm

0.45mm

Inlet Pressure

0.4Mpa

Maximum Displacement

3.7 L/min

11.0 L/min

Power Supply

380AVC 50HZ 3Phase

Products Description

WMT ultra-high pressure system.

Automatic shutdown for over-pressure.

Automatic protection for under pressure.

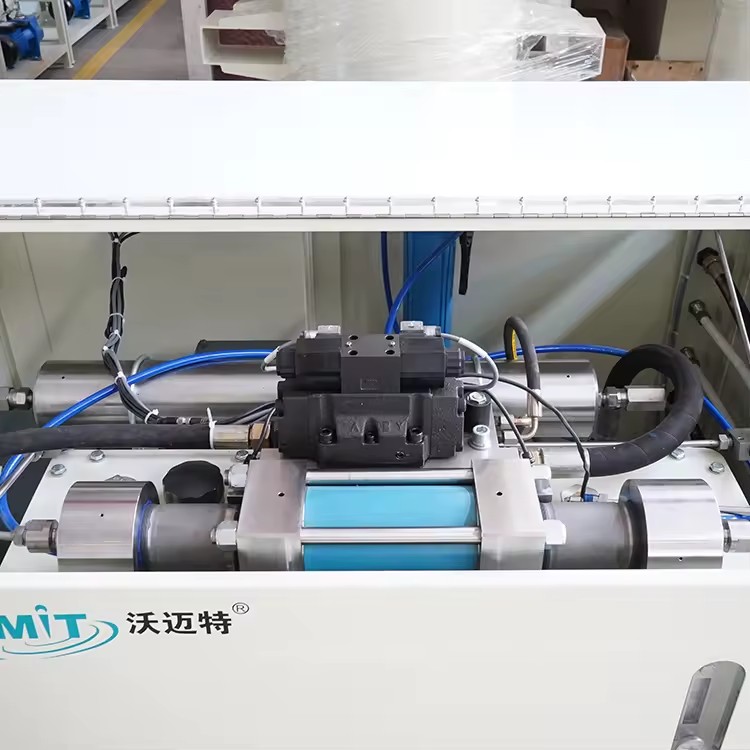

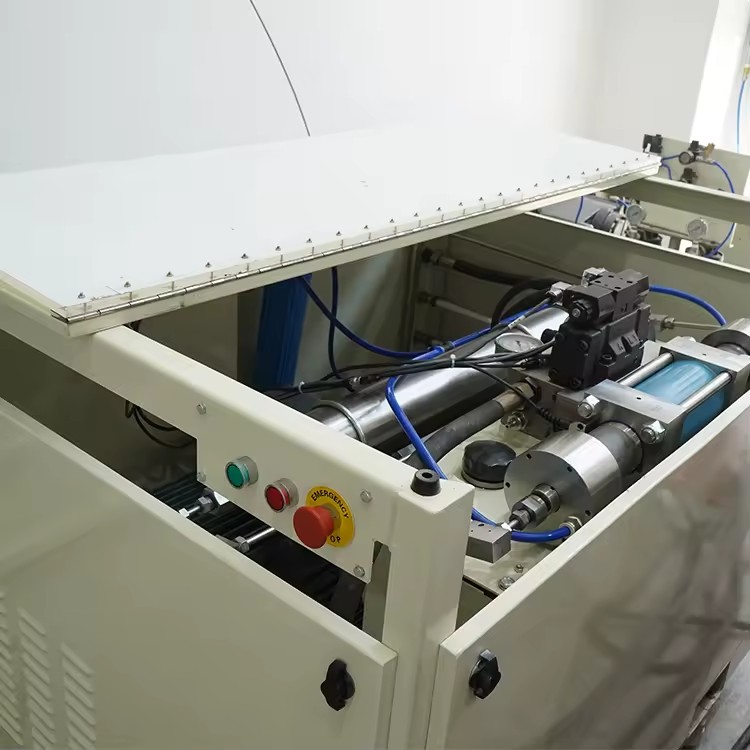

Boosting components and pipeline system (high-pressure cylinder, ceramic piston rod, high-pressure seal, low-pressure seal, high-pressure pipeline, one-way valve, etc).

Single-row water filtration system (5 Micron, 1 Micron, series connection).

Manual pressure regulation function.

Automatic shutdown for over pressure and automatic protection for under pressure.

A10V071 automatic variable oil pump, Schneider electrical components, with high performance.

Product Paramenters

Servo Direct Drive Pump VS Hydraulic Intensifier Pump

15KW servo motor

37kw asynchronous motor

The motor of servo direct drive pump drives the crankshaft connecting rod to directly generate water pressure, which basically does not generate excess heat and can maintain a constant pressure output water pressure. The cutting efficiency is 20%-30% higher than that of the hydraulic intensifier pump.

The asynchronous motor of hydraulic intensifier pump drives the plunger pump to generate oil pressure, which is converted into water pressure through the hydraulic system. Hydraulic boosting generates a lot of heat, and cooling the hydraulic oil consumes a lot of electricity. The booster pump pressurizes the oil through the reversing valve and then converts it into water pressure. The reversing valve will reduce the pressure at the moment of reversing, causing fluctuations in water pressure.

The fully intelligent soft starter completely avoids the impact on the power grid and reduces power consumption. The fully intelligent servo motor is used. The motor will only start working when high-pressure water is output, which reduces power consumption and plays a role in energy saving.

Through direct start or delta start, the starting current is as high as about 200A. The impact on the power grid and power consumption are very large. After starting, whether there is high-pressure water output or not, the motor will rotate constantly and power will be consumed.

About Company

is a high-tech enterprise specializing in the development, manufacturing, sales, and technical services of CNC ultra-high-pressure water jet technology products.

The company's independently developed new generation of ultra-high pressure generators - servo direct drive pumps, have been widely praised since their launch in 2016. Their advantages of energy saving, environmental protection, high efficiency, and flexibility have been fully utilized.

is dedicated to the innovation and application of ultra-high pressure water jet technology, creating a brand with high quality, high cost-performance, and excellent service.

focuses on developing ultra-high pressure water jet technology, establishing a water jet laboratory for in-depth research and promoting new water cutting equipment aimed at reducing customer costs. The goal is to expand the application of water cutting technology from metals, stone, glass, and rubber/plastics industries to the food and medical sectors.

Innovative R&D is the foundation for the company's long-term survival, and the application of technology ensures meeting customer needs and contributing to society.

Certificates

Production Process

Heat Treatment

620 degrees in the furnace for 5 hours, down to 300 degrees for 3 hours, then naturally cooled in the furnace.eliminate internal

stress in the welded frame.no deformation occurs during frame use,guarantee better cutting precision.

Shot Blasting and Powder Coating

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Test

Test the straightness and parallelism of linear guide rail with precision measuring instruments.

Guaranteed higher precision when the equipment is running after the linear guide rail is installed.

Calibration

Calibrating equipment precision with a laser interferometer.guaranteed more accurate cutting precision.

Our Customer

Packing&Delivery

FAQ

1. Are you a manufacturer or a trading company?

We are manufacturer of water jet cutting machine in Jinan, Shandong Province,. We have been established for more than 10 years, and have professional designers and R&D team, which can provide you with the best quality service.

2. What materials can your water jet cutting machine cut?

Our water jet cutting machine can cut many

materials, such as stone, ceramics, quartz, glass, foam, plastic, rubber, copper, brass, aluminum, mild steel, pre-hardened steel,titanium, nickel-chromium alloy and casting alloy.

3. What is the maximum cutting thickness of CNC water jet cutting machine?

Generally, if cutting steel, our water jet cutting machines can cut up to 240 mm thick, but we recommend cutting no thicker than 150 mm to ensure a smooth cut. Now our Z-axis distance is 170 mm and we can customize it for our customers. For regular thickness, please refer to: Marble 0-120mm; Granite 0-110mm; Tile 0-40mm; Glass and Mosaic 0-80mm; Steel, Stainless Steel, Copper 0-60mm; Aluminum 0-80mm; Plastic, Acrylic, Foam 0-200mm.

4. How do we provide after-sales service?

Some countries have after-sales service department, we will provide local service, if there is no local service, we will arrange engineers for overseas installation and training. The installation and training time is usually 7-10 days. We can also provide installation video.

5. What is your delivery time? Generally 7-15 working days if in stock, 30-40 working days for customized machine.
