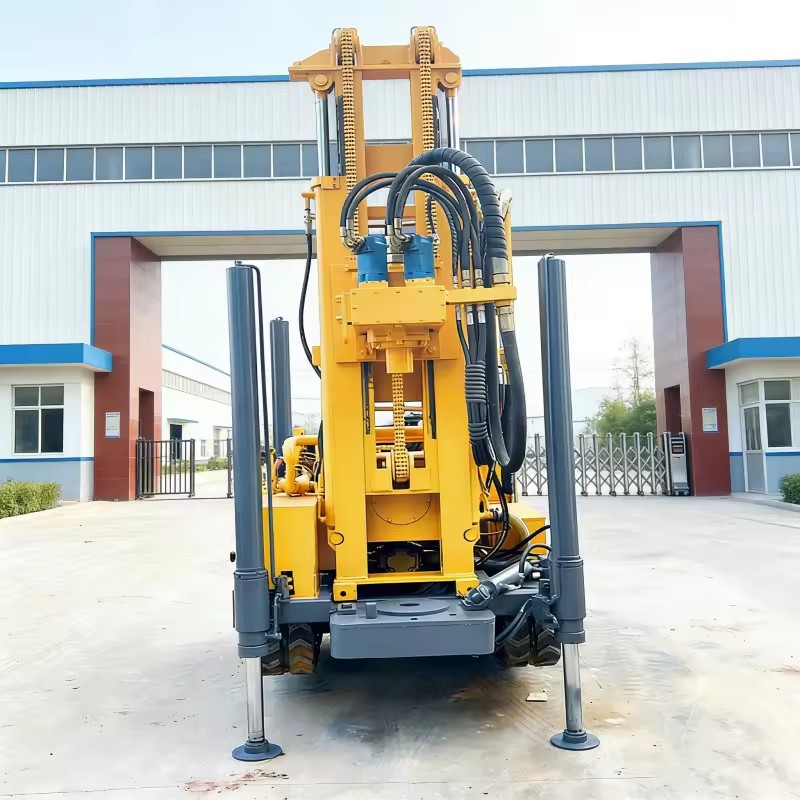

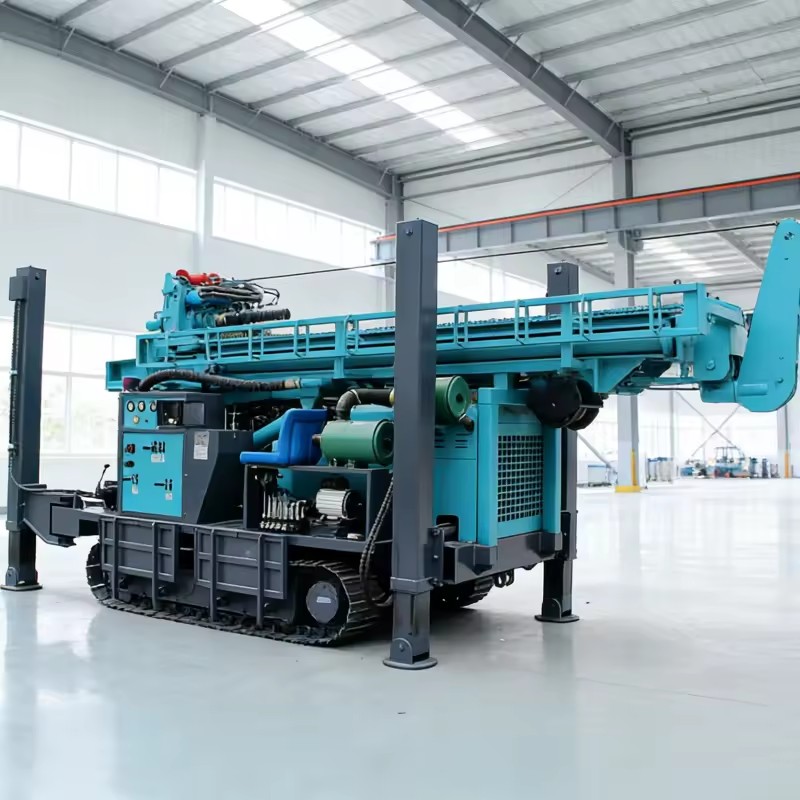

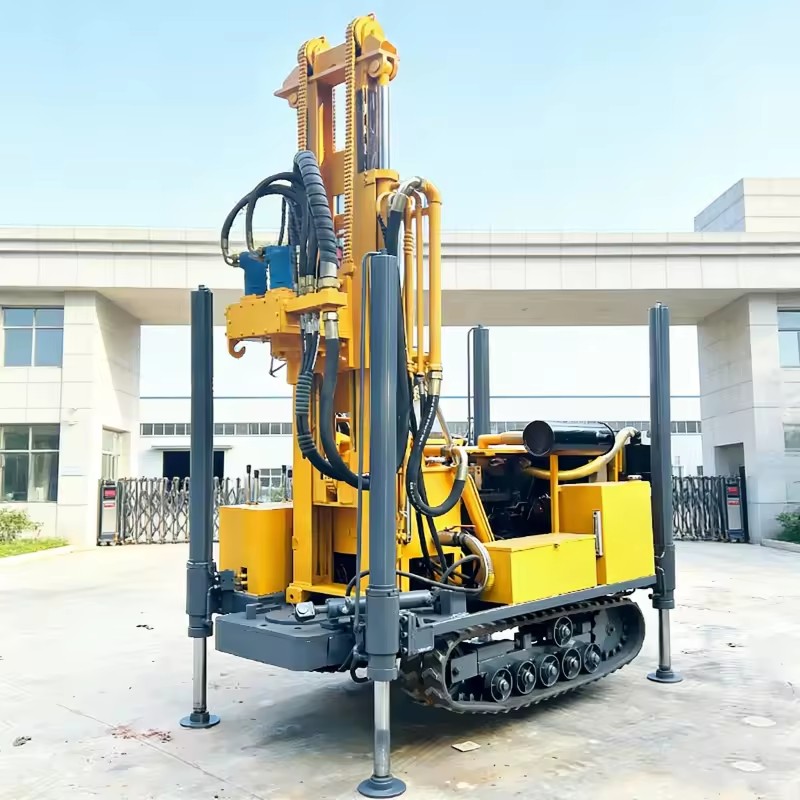

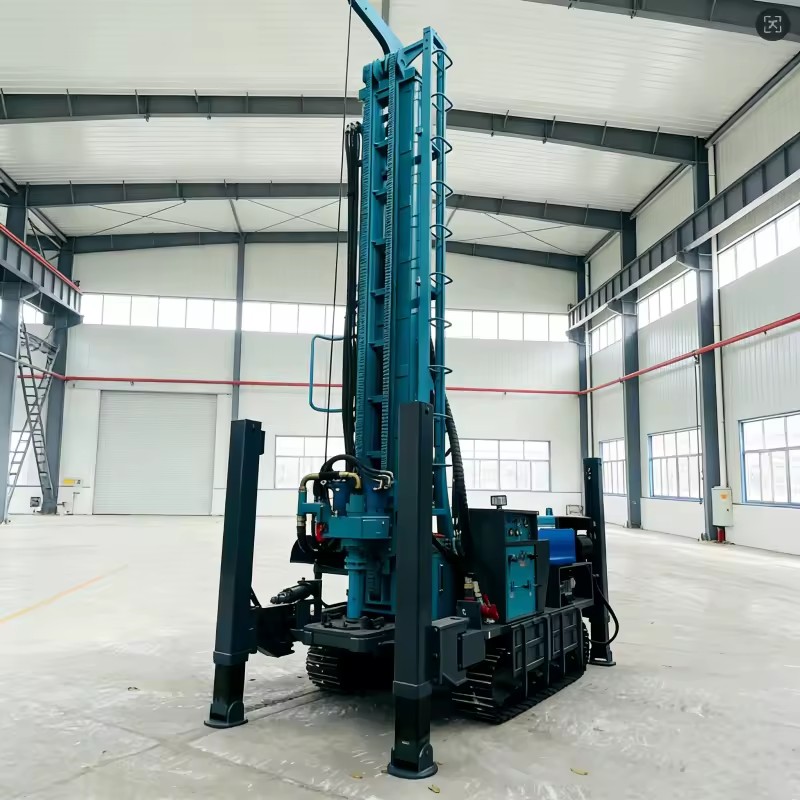

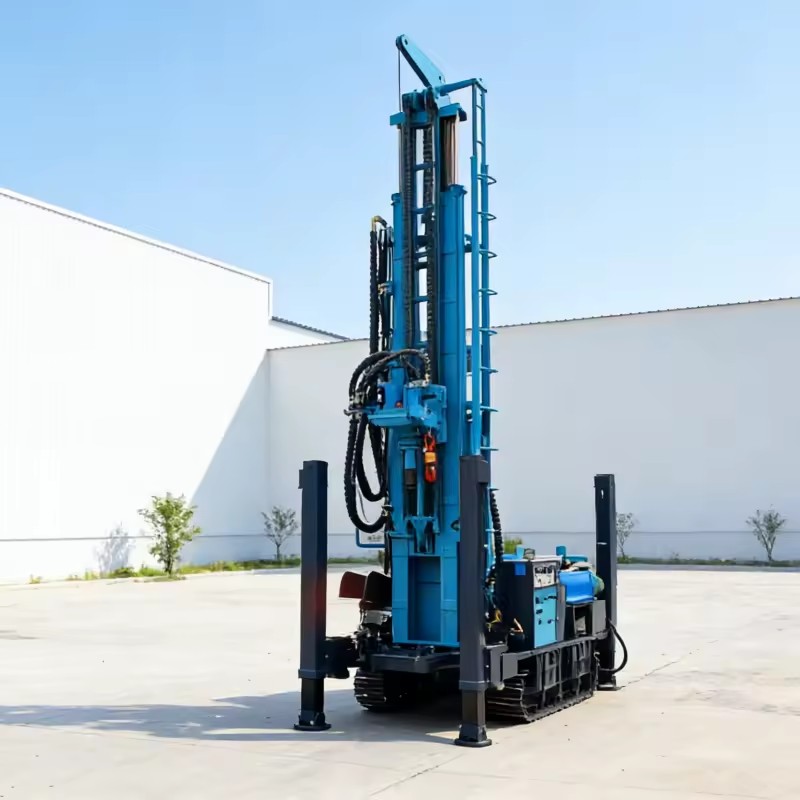

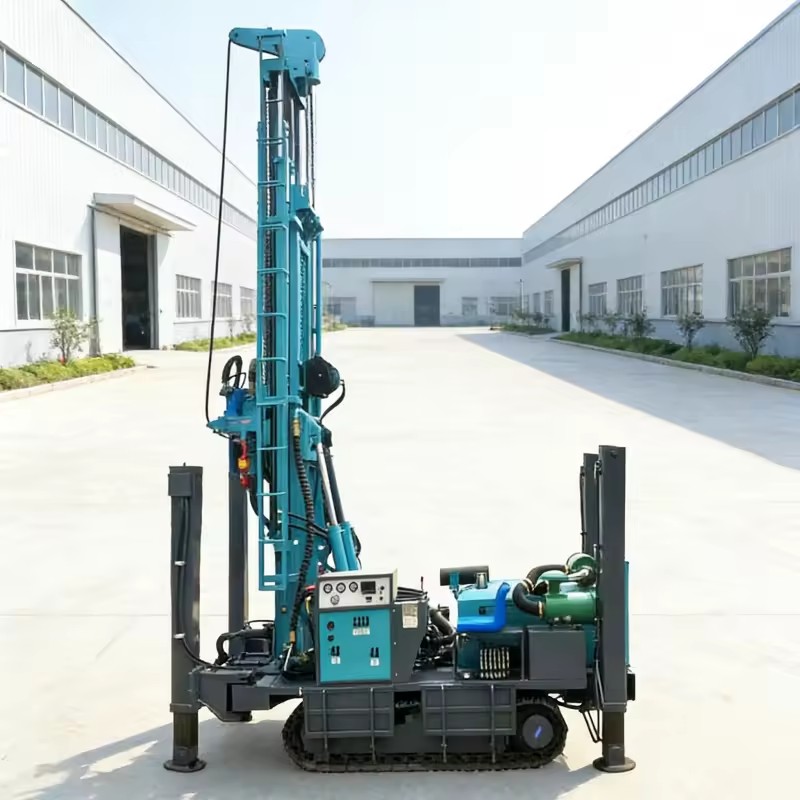

400 Meter Fully Hydraulic Chinese Factory Mine Drilling Rig High Efficiency Water Well Drilling Rig

Available for enquiry 0.0 · 0 reviews 4 sold
USD

$ 1,090.00 1090.0 USD $ 1,090.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Usage
Water Well
Type
water well drilling rig
Drilling Depth
Max.400m
Drilling Diameter
140-325mm
Power Type
Diesel
Voltage
220v
Product description

Warning/Disclaimer

Product features

Pneumatic Water Well Drilling Rig Main Technical Parameters
ModelHKQZ-160LHKQZ-180LHKQZ-220LHKQZ-260LHKQZ-320LHKQZ-400LHKQZ-500LHKQZ-600LHKQZ-800L
Tower2M3M3M3M/6M3M/6M3M/6M6M6M6M
TrackRubberRubberRubber/SteelRubber/SteelSteelSteelSteelSteelSteel
Drilling diameter (mm)138-203130-254130-254130-305130-325130-325130-350130-350130-350
Drilling depth (m)160180220260320400500600800
Single-pass advancement length（m）23.63.63.63.63.6/6.66.66.66.6
Walking speed (km/h)2.52.52.52.52.52.52.52.52.5
Climbing capacity(Max.)303030303030303030
EngineYUCHAIYUNEIYUNEIYUNEIYUCHAIYUCHAIYUCHAIYUCHAIYUCHAI
Power77.3kw42kw60kw76kw85kw110kw118kw132kw151kw
Working pressure (MPa)1.4-2.51.45-2.51.45-2.51.7-3.01.7-3.01.7-3.51.7-3.51.7-3.51.7-3.5
Air consumption (m³/min)17-3117-3117-3117-3117-3517-3517-4217-4217-42
Drill pipe diameter (mm)76/8976/8976/8976/8976/89/10289/102/108/114102/108/114102/108/114102/108/114
Drill pipe length (m)1.0/1.5/2.01.5/2.0/3.01.5/2.0/3.01.5/2.0/3.0/6.01.5/2.0/3.0/6.01.5/2.0/3.0/6.03.0/6.03.0/6.03.0/6.0
Lifting force (T)1212151718/2425262830
Rotation speed（rpm）50-11040-6545-6545-6540-70/55-11545-11540-10045-11555-120
Rotational torque（N.m)78003500-38004000-46004500-4700 /5500-60006000-7500 /8500-90007000-90008000-100009000-1100011000-13000
External Dimensions2300*1200*19003500*1700*22503800*1700*22503900*1850*2350 /5200*1850*23505300*2200*28005400*2200*2500 /5400*2200*28706000*2200*29506000*2200*29506200*2300*2950
Total Weigh（T）2.64.54.54.8/5.87/98/1011.51216
Description images
Product detail
Product detail
Product detail
Product detail
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    15 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 26 fields
Usage
Water Well
Type
water well drilling rig
Drilling Depth
Max.400m
Drilling Diameter
140-325mm
Power Type
Diesel
Voltage
220v
Core components
Bearing, PLC, Motor, Pressure Vessel, Gear, Pump
Warranty
1 Year
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
Competitive Price
Place of origin
China, Shandong
Weight
9200 KG
Dimension (L*W*H)
6000*2000*2550mm
Mobility
move by track
Swing Speed
66-135rpm
Gradeability
30Max
Fast feeding speed
33m/min
Walking speed
2.5km/h
Rapid rise speed
18m/min
Drill pipe length
1.5m 2m 3m 6m
Selling Units
Single item
Single volume
0 cm3
Single gross weight
0.0 kg
Model number
HK-400
Power (W) (Product option)
92KW
Lead time
15 days
Minimum order
1 Units
