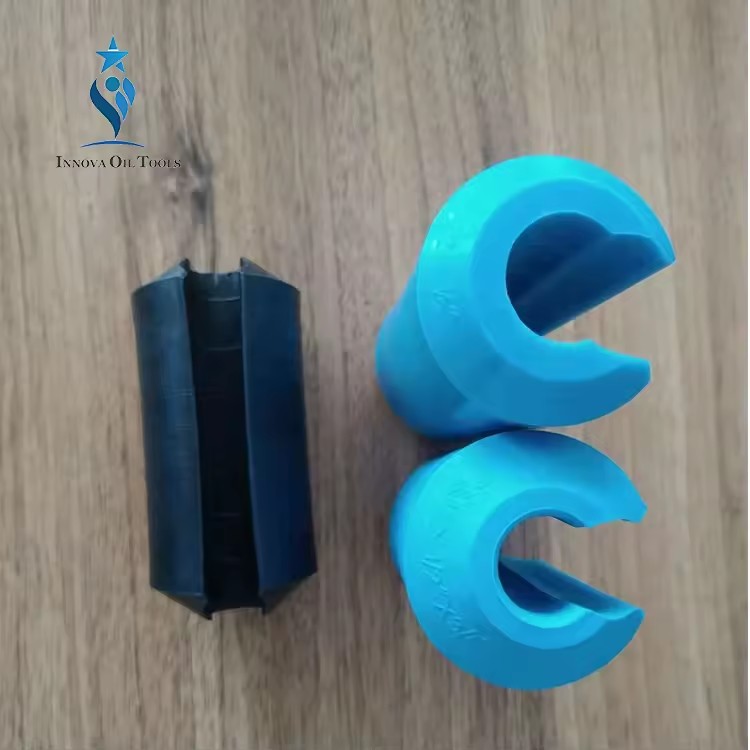

API Oilfield 3/4 Nylon Snap-on Sucker Rod Guide Pump Rod Centralizer

Name: API Oilfield 3/4 Nylon Snap-on Sucker Rod Guide Pump Rod Centralizer
SKU: RVND-YSNX-89QT
Price: 20.0 USD
Availability: PreOrder

Available for enquiry 0.0 · 0 reviews

USD

$ 20.00 20.0 USD $ 20.00

Minimum order quantity: 500 Units

Key attributes

View all

Type

Sucker Rod, snap-on, twist-on, wheeled type

Material

Plastic, Steel, Rubber, Nylon

Use

oil extraction

Processing Type

Forging

Machinery test report

Provided

Machine type

Drilling Tool

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Shipping fees and delivery dates are confirmed with your quotation.

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

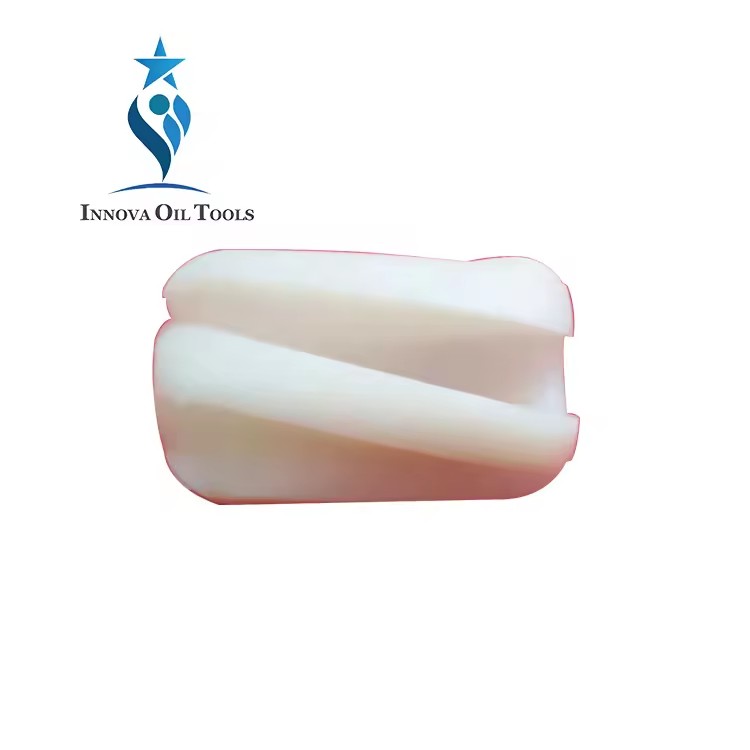

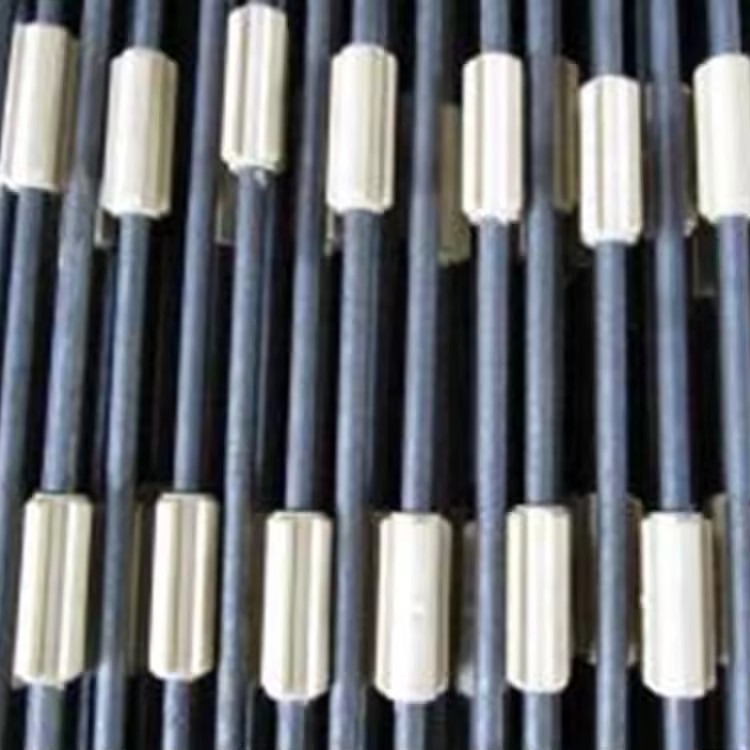

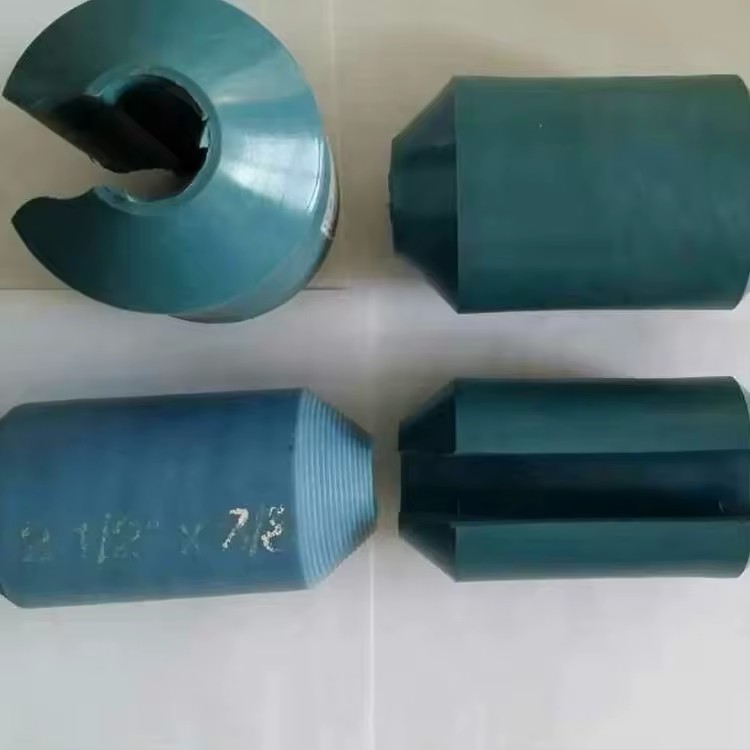

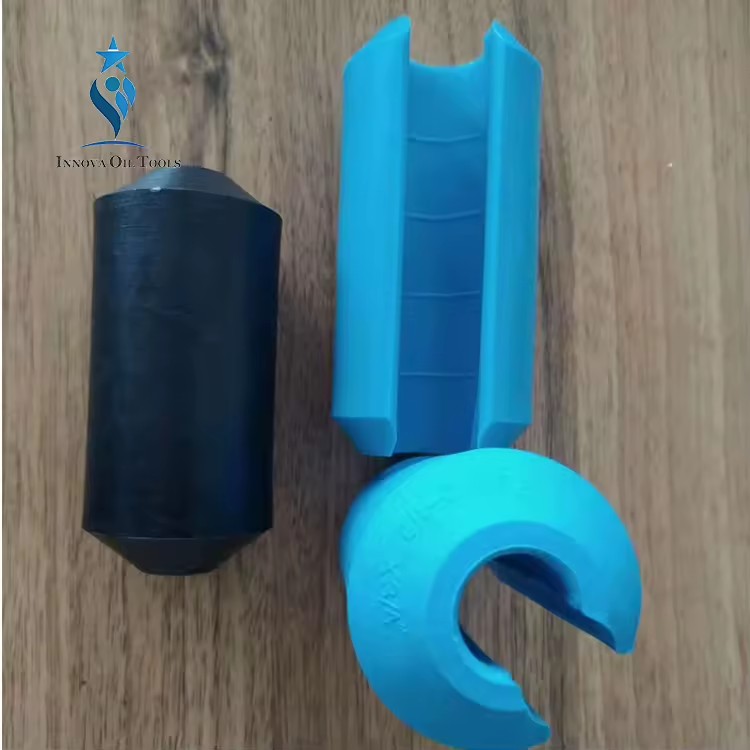

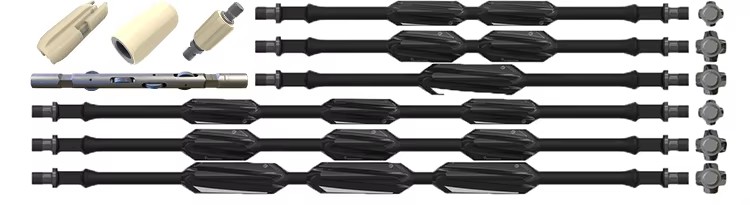

Sucker rod centralizers or rod guides keep the rod and couplings away from the tubing to eliminate the internal tubing wear, also can keep paraffin off the tubing as paraffin scrapers. The sucker rod guides minimize costly metal-to-metal contact between the sucker rods and tubing. Even when the tubing buckles during upstrokes, the guides help prevent contact between the rods and tubing. **Application: Rod Pumping Rod **Standard: API 11B **Material: Plastic, Nylon, Rubber, Steel, Aluminium **Type: Snap-on rod guide, Twist-on rod guide, Wheeled rod guide

Sucker Rod Coupling

The sucker rod couplings are used for connecting sucker rods, polished rods and sinker bars. ** The main types of sucker rod couplings are sucker rod couplings, polished rod couplings and sub-couplings. ** All of the three types have two classes: class T(through-hardened)and class SM (sprayed metal). **Material: carbon steel, alloy steel. **Specification:5/8", 3/4", 7/8"1", 1 1/8"

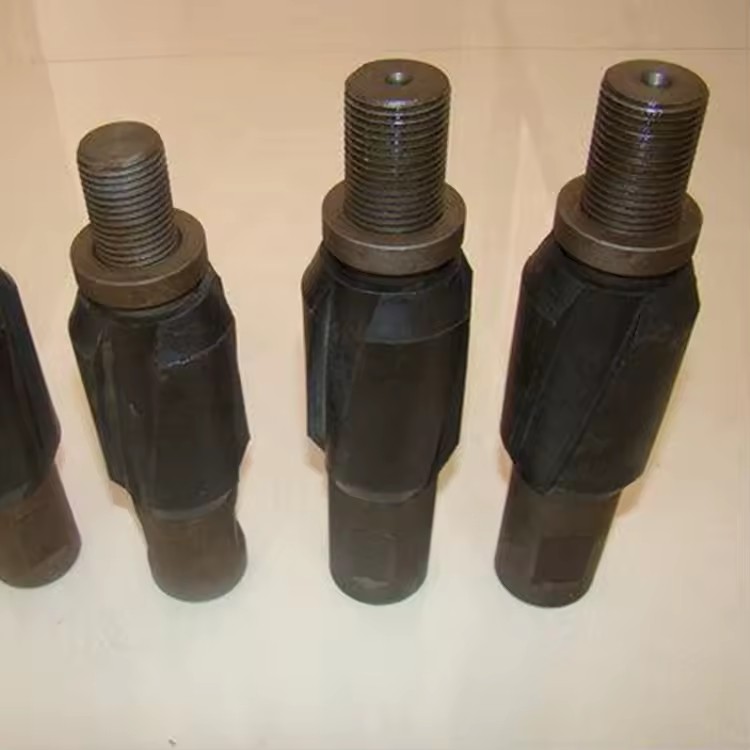

good quality API 11B roller sucker rod centralizer/ rod guide

Sucker rod coupling
Pin size	Full Size/ Slim Hole	Outside Diameter	Coupling Length	Length	Weight per Coupling	Hardness
in	in	mm	in	mm	kgs	HRA
5/8	FS	1 1/2	38.1	4	101.6	0.58	56-62
SH	1 1/4	31.75	4	0.34
3/4	FS	1 5/8	41.28	4	0.63
SH	1 1/2	38.1	4	0.47
7/8	FS	1 13/16	46.04	4	0.77
SH	1 5/8	41.28	4	0.52
1	FS	2 3/16	55.56	4	1.23
SH	2	50.8	4	0.89
1-1/8	FS	2 3/8	60.33	4 1/2	114.3	1.48
SH	2 1/4	57.15	4 1/2	1.21

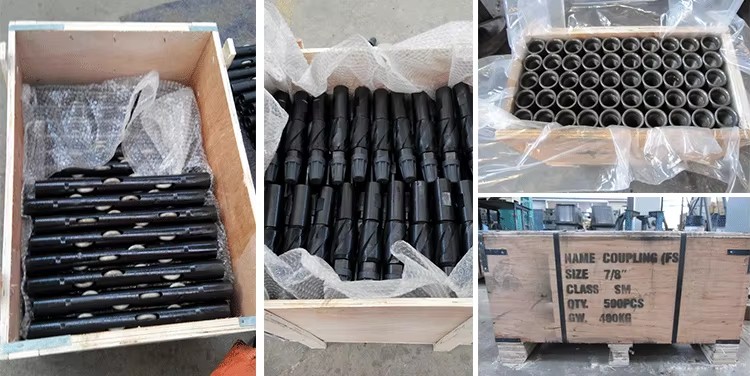

Packing & Delivery

Our sucker rod guides and couplings are packed by pallet or wood case. Professional packing and loading machines make products' quality & appearance free from damage.

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 500 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

Lead time will be confirmed with your quotation.
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 21 fields

Type

Sucker Rod, snap-on, twist-on, wheeled type

Material

Plastic, Steel, Rubber, Nylon

Use

oil extraction

Processing Type

Forging

Machinery test report

Provided

Machine type

Drilling Tool

Warranty

2 Years

Video outgoing-inspection

Provided

Place of origin

China, Shandong

Standard

API 11B

Application

oil pumping well

Size

all sizes

Color

As requirement

Package

pallet or wood case

Packaging Details

Pallet or wood case as per API 11B standard

Port of dispatch

Shanghai Port, Qingdao, tianjin

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Supply Ability

100000 pieces per Month

Model number

Minimum order

500 Units
