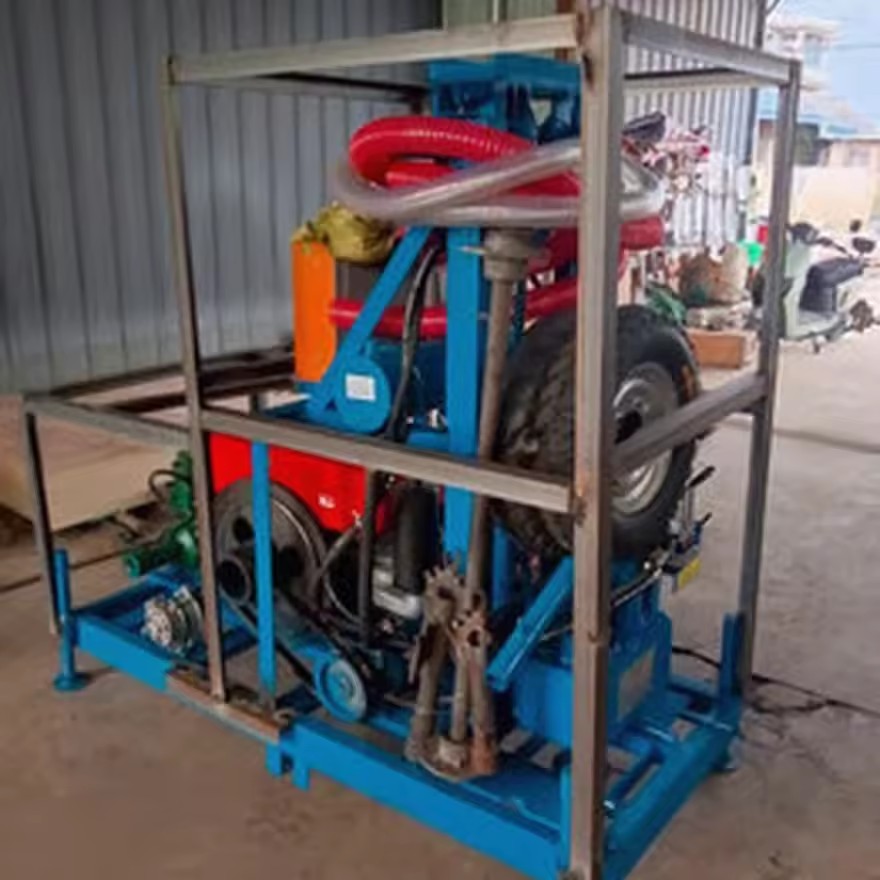

One for Diesel-Powered Portable Small Bore Water Well Drilling Rig with Engine & Gear for Max.150m Depth

Available for enquiry 0.0 · 0 reviews
USD

$ 340.00 340.0 USD $ 340.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Usage
Water Well
Type
Drilling Rig
Drilling Depth
Max.150m
Drilling Diameter
350 mm
Power Type
Diesel
Voltage
24 V
Product description

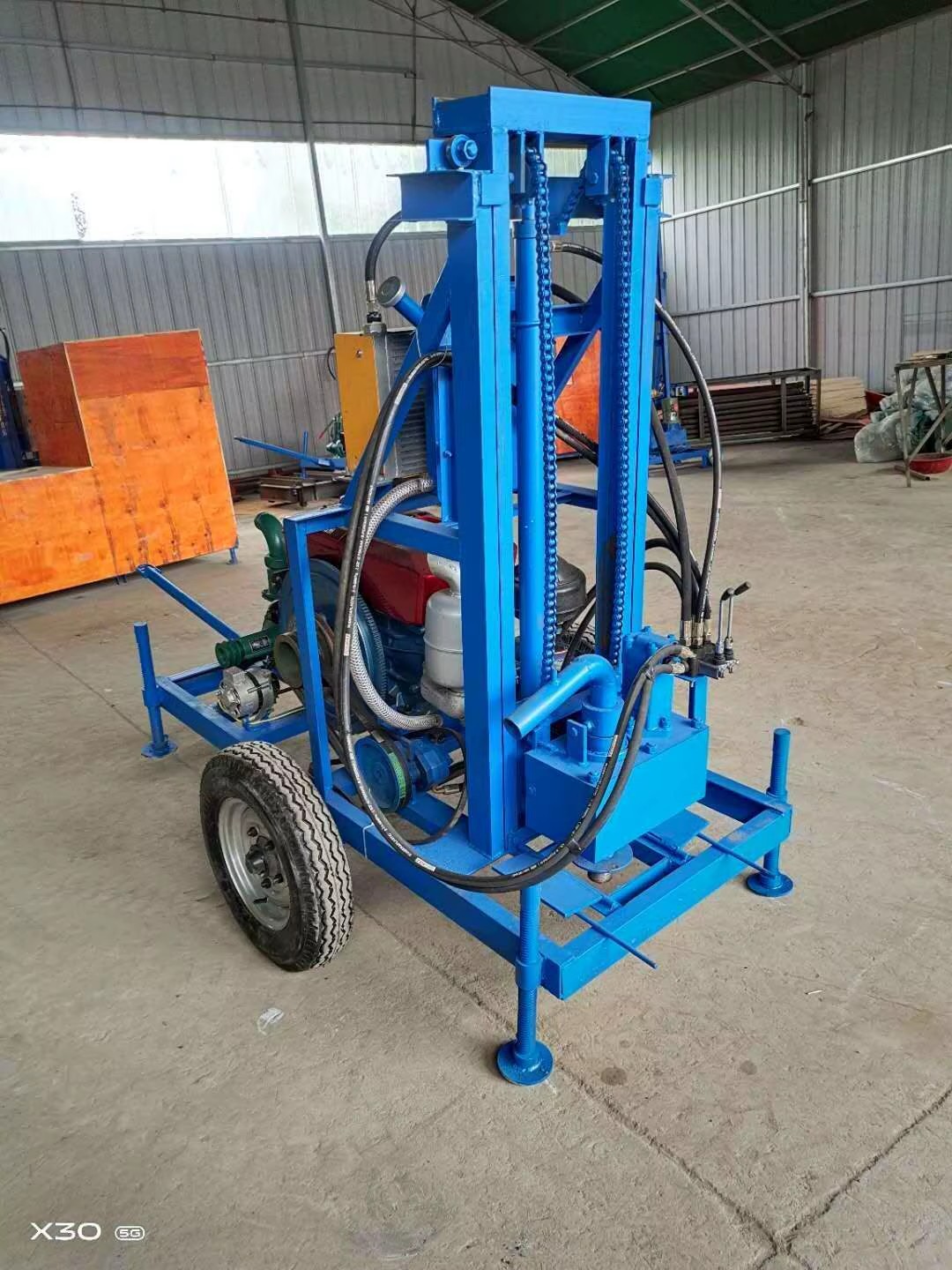

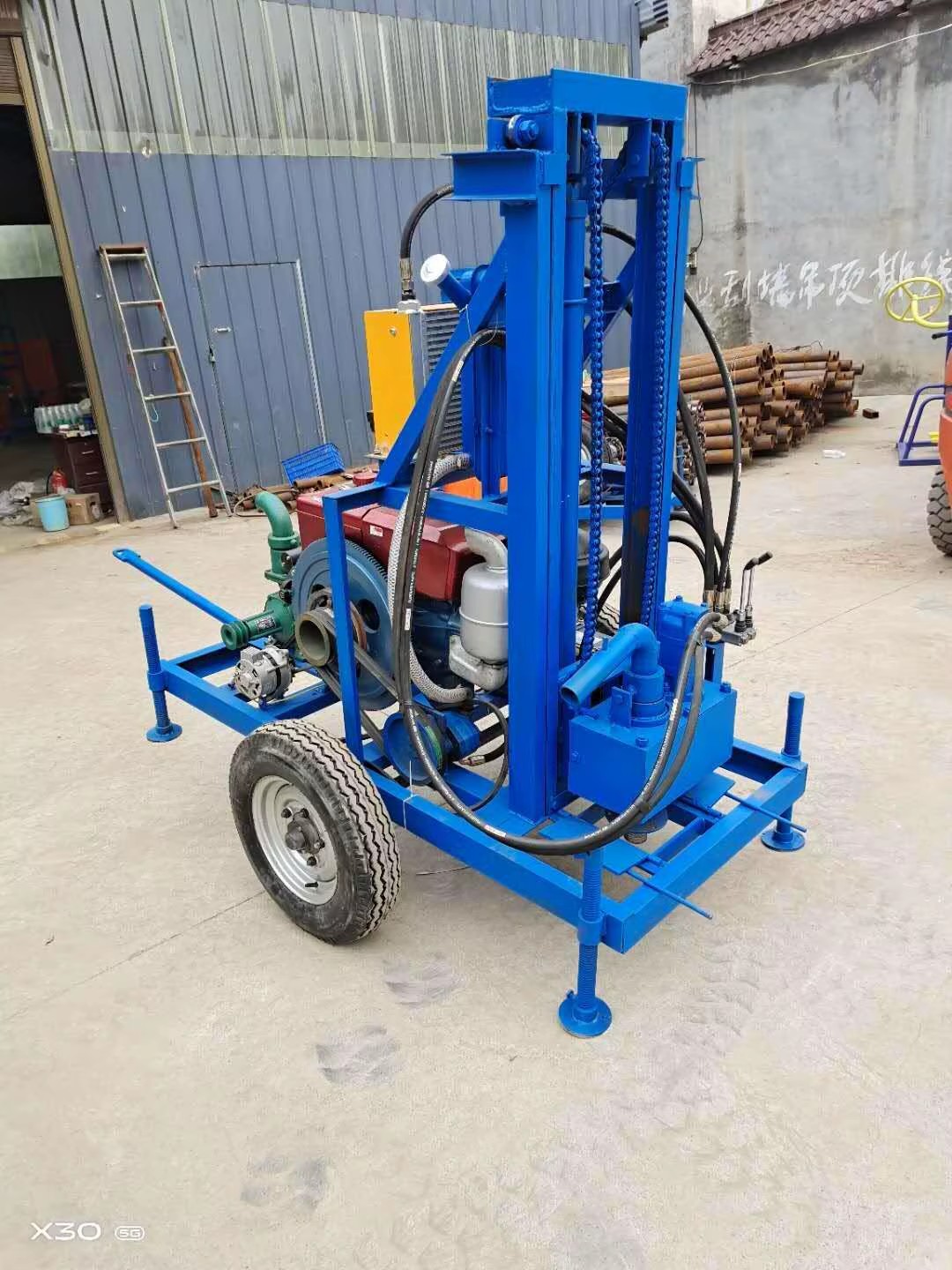

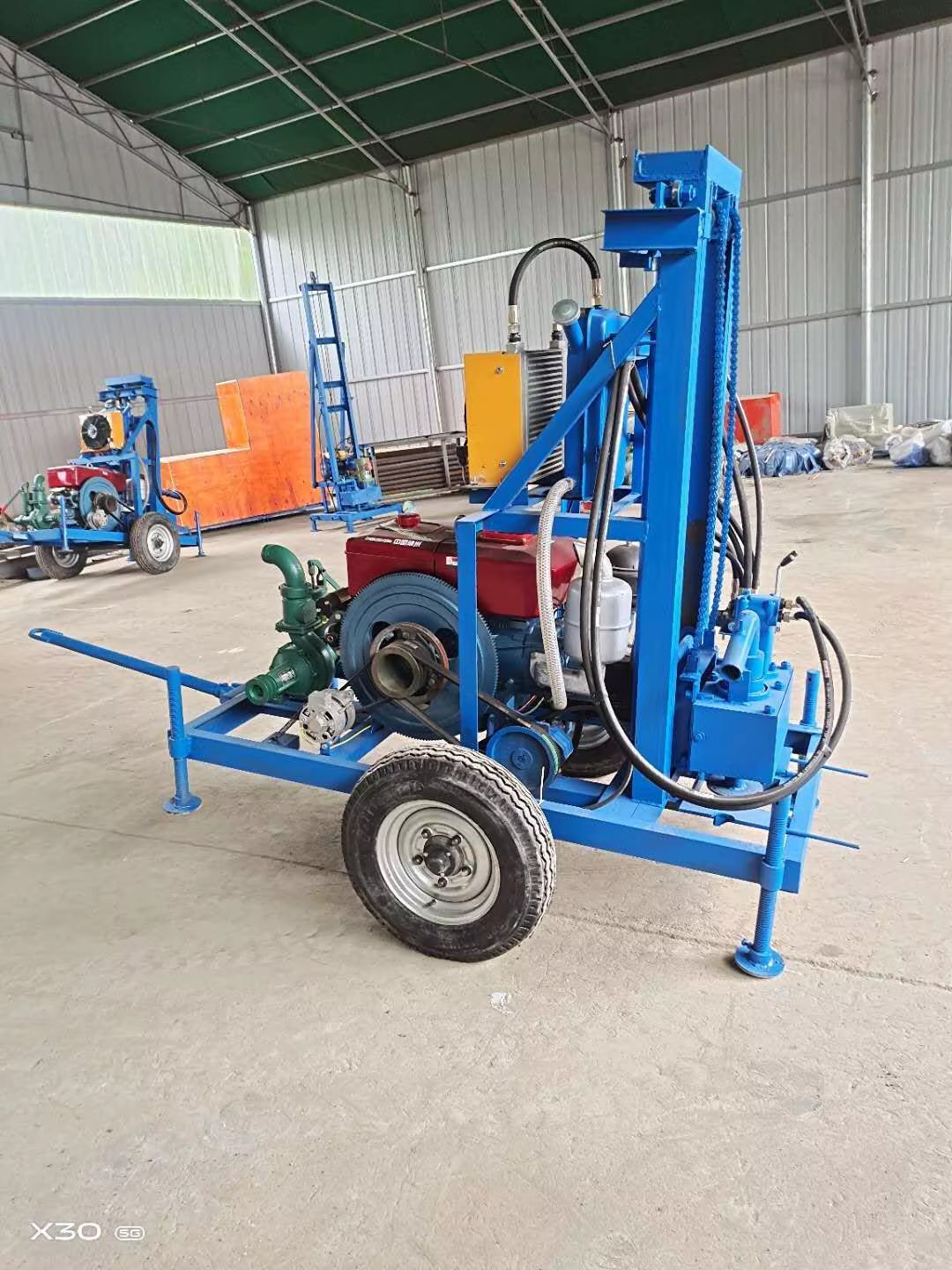

RCS200P small hydraulic water well drilling machine

I. Applications

This water well drilling machine mainly apply to geothermal drilling, farm irrigation,house yard, gardens, water well drilling and boring drilling etc,it can drill 70-450 mm diameter, Max 15 0m depth,It also can be used in small building piling, like farmhouse or factory, the drilling diameter can reach 450 mm, it can apply to different stratum, such as sand,soil,clay, soft rock and so on.

II. Features and Advantages

1. Light weight, energy saving.

2. Patented product, unique design and simple drilling structure

3. Easy to transport and can learn how to handle the machine in short time

4. Can drill through hard stratum, unless thick rock layer

5. One person operation, reduce the labor intensity

6. High efficiency and work fast

7. Assure easily operation and long life service life.

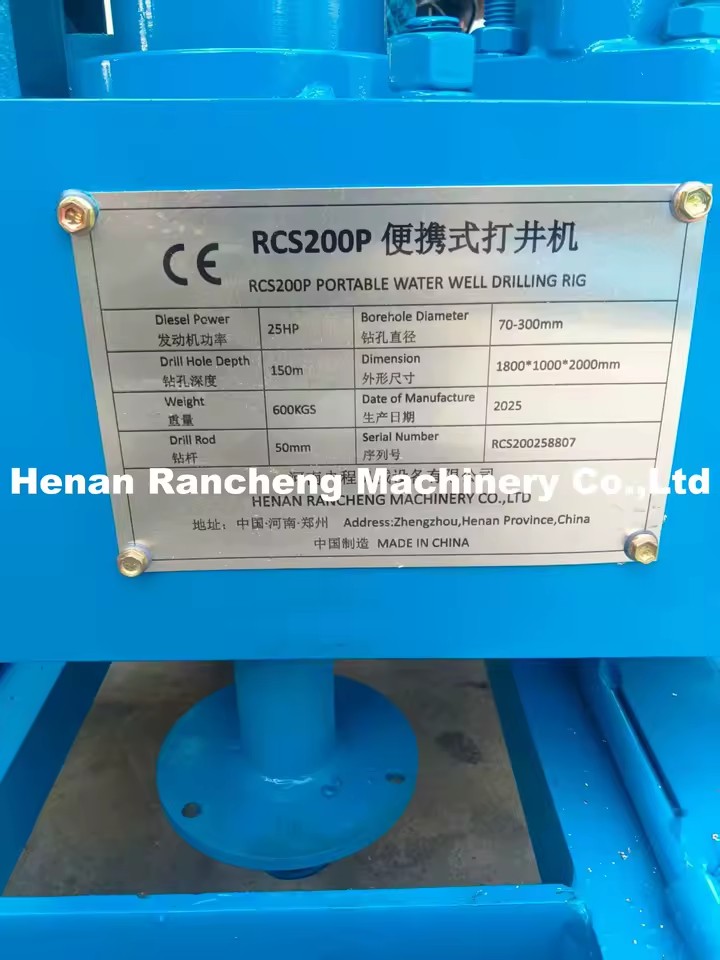

III. Specifications

Model of drilling machineRCS200P
Drilling machine overall dimension(mm)1800 * 1000 * 2000
Weight of Drilling machine (kg)1 00 0

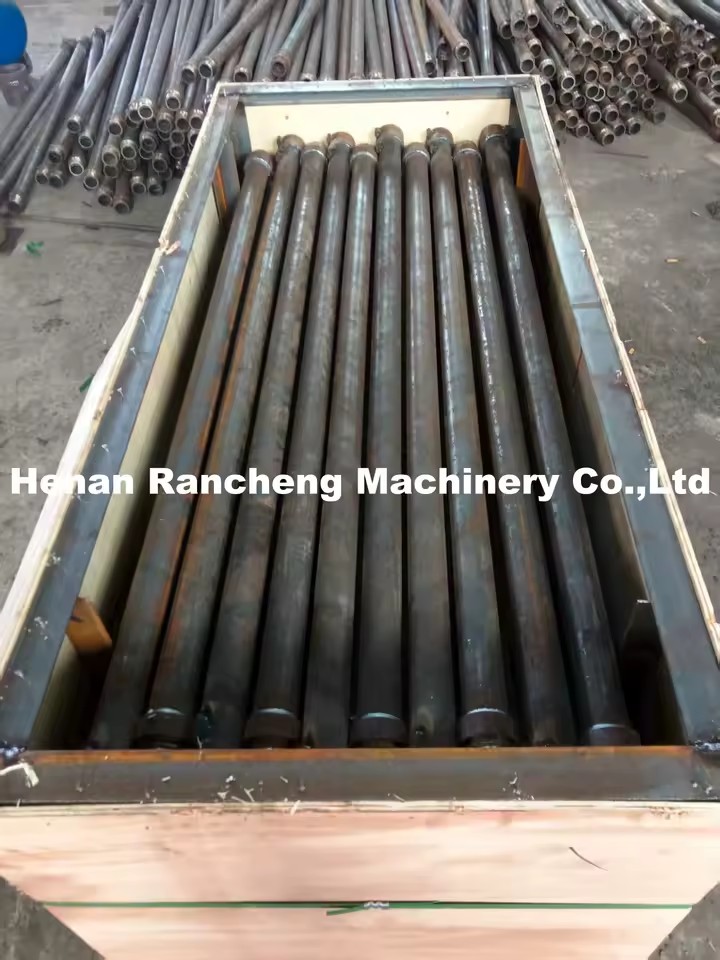

Drill rod diameter (mm)Ø5 0
Drill rod length(mm)1500
Rod change methodFull automatic screw thread
Drilling depth(m)150
Diesel Motor Power (Hp/kw)22/16.2
Drilling methodPercussive and rotating type
Drilling hole diameter(mm)Within Ø 450 mm
Stroke distance (mm)2000
Hosting capacity (kg)1500KG

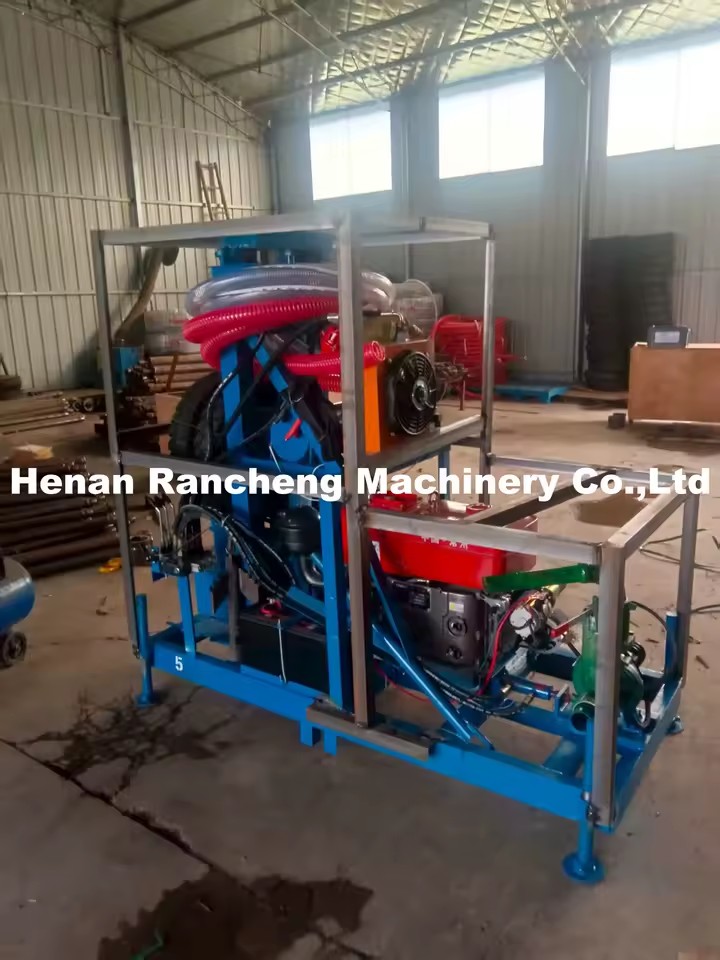

Description images
One for Diesel-Powered Portable Small Bore Water Well Drilling Rig with Engine & Gear for Max.150m Depth
One for Diesel-Powered Portable Small Bore Water Well Drilling Rig with Engine & Gear for Max.150m Depth
One for Diesel-Powered Portable Small Bore Water Well Drilling Rig with Engine & Gear for Max.150m Depth
One for Diesel-Powered Portable Small Bore Water Well Drilling Rig with Engine & Gear for Max.150m Depth
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    15 days

  • Step 3

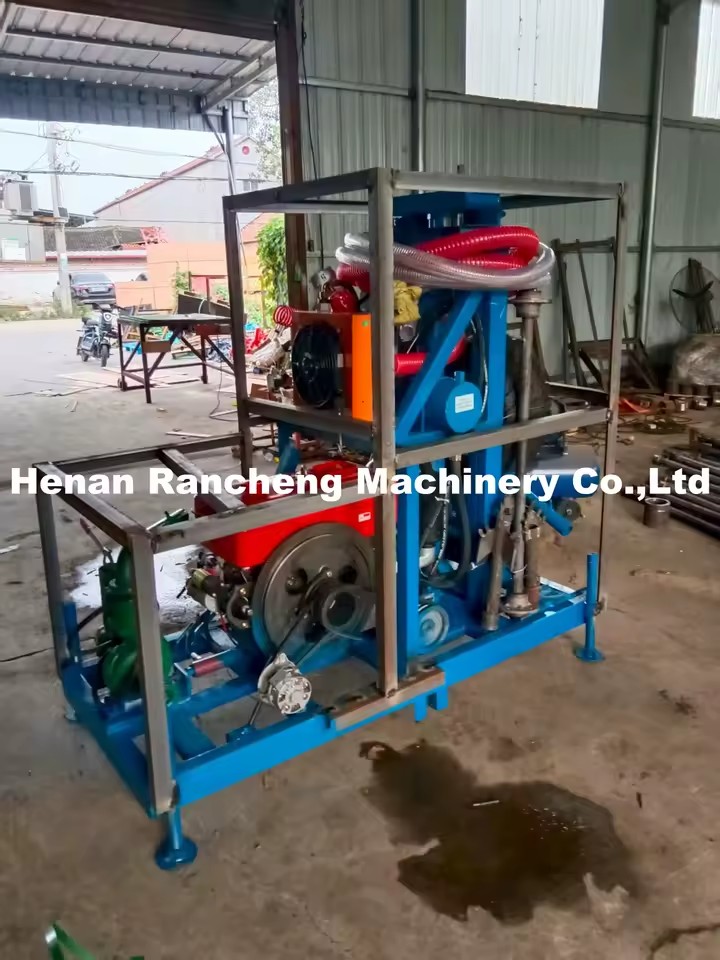

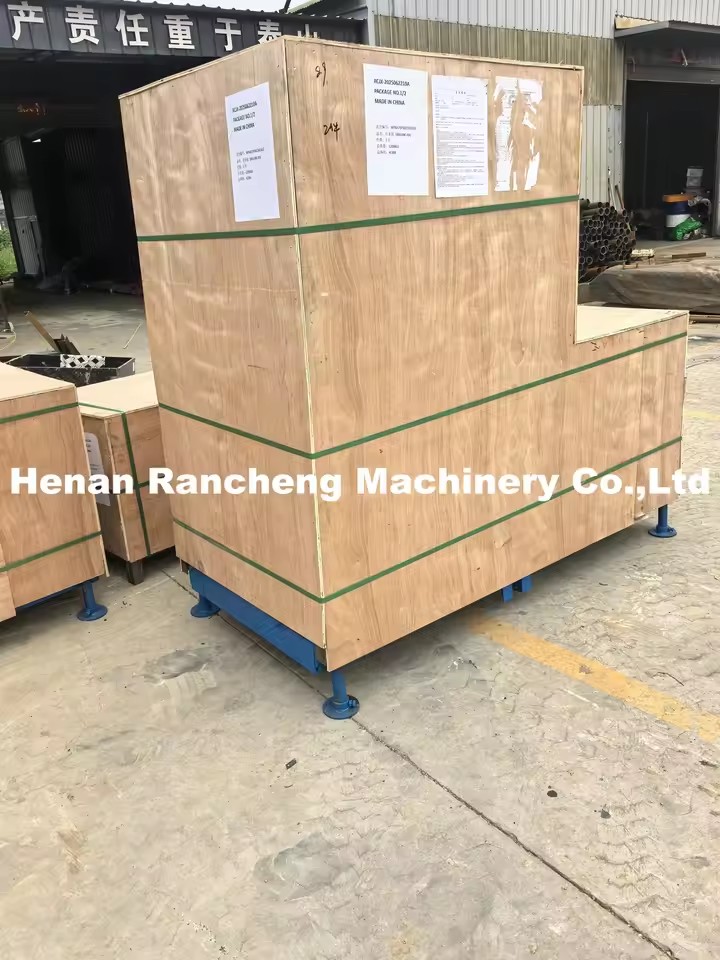

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 20 fields
Usage
Water Well
Type
Drilling Rig
Drilling Depth
Max.150m
Drilling Diameter
350 mm
Power Type
Diesel
Voltage
24 V
Core components
Pressure Vessel, Gear, Engine
Warranty
1 Year
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
Competitive Price
Place of origin
China, Henan
Weight
1000 kg
Dimension (L*W*H)
5350*1850*2600mm
Mobility
Flexible
Selling Units
Single item
Single volume
0 cm3
Single gross weight
0.0 kg
Model number
RCS200P
Power (W) (Product option)
22hp
Lead time
15 days
Minimum order
1 Units
