Name: Rotary Drum Dryer Machine River Sand Dryer Energy Saving Three Pass Drying Equipment Industrial Dryers for Building Materials
SKU: B2B-34179
Price: 8600.0 USD
Availability: PreOrder

Product description

Introduction

The Three-cylinder Dryer for River Sand is purpose-built for the most widely used drying material in construction: river sand. Whether for dry-mix mortar, ready-mix concrete or foundry sand, it turns wet dredged sand into stable dry sand below 1% moisture around the clock.

Triple-pass heat exchange passes hot air through the sand three times inside a short shell, cutting fuel by 30-40% and floor space by half versus a single-drum dryer of equal capacity. With 8-75 t/h models from 2.0×4m to 3.6×8m, there is a river sand drying line for every plant scale.

Hot Questions River Sand Buyers Ask Most

1. Wet river sand holds 15-25% moisture — how dry can it get?

Down to below 1% as required. For dry-mix mortar we typically dry to 0.5-1%, and for foundry or glass-grade sand to 0.3-0.5%, controlled by air temperature, rotation speed and feed rate.

2. Will wet sand stick or clog inside the drum?

No. The three nested cylinders plus three-stage lifting plates keep the sand constantly lifted and turned into a loose material curtain, preventing wall sticking and blocking even at 25% moisture.

3. Does drying damage the sand grains or change their quality?

No. Gentle lifting and adjustable rotation speed protect grain size and shape — no crushing, no burning, no color change — so dried river sand keeps its full value for mortar and concrete.

River Sand Application Scenarios & Complete Line

Dry-Mix Mortar: River sand is the main aggregate of dry-mix and plaster mortar; stable low moisture keeps the mix ratio and quality consistent batch after batch.

Ready-Mix & Precast Concrete: Pre-dried fine aggregate guarantees accurate water-cement ratio, essential for high-strength and winter construction.

Foundry Sand: Low-moisture sand below 0.5% for molding sand preparation and sand reclamation.

Glass & Construction Materials: Siliceous river sand pre-dried as raw material for glass batch and construction products.

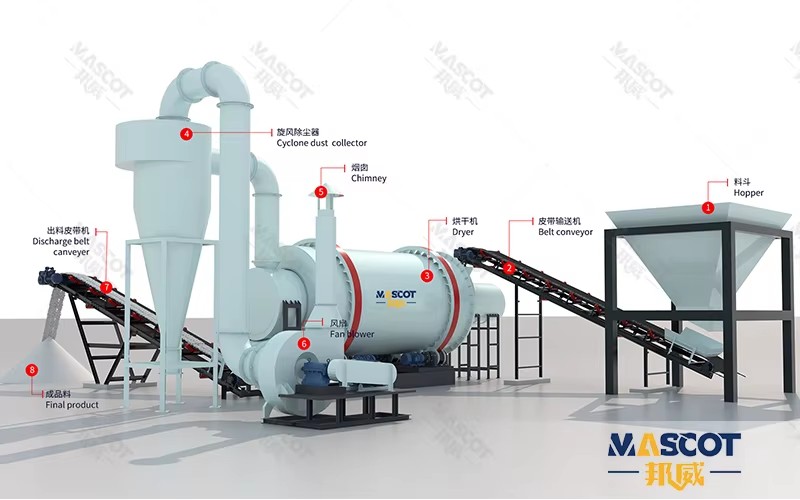

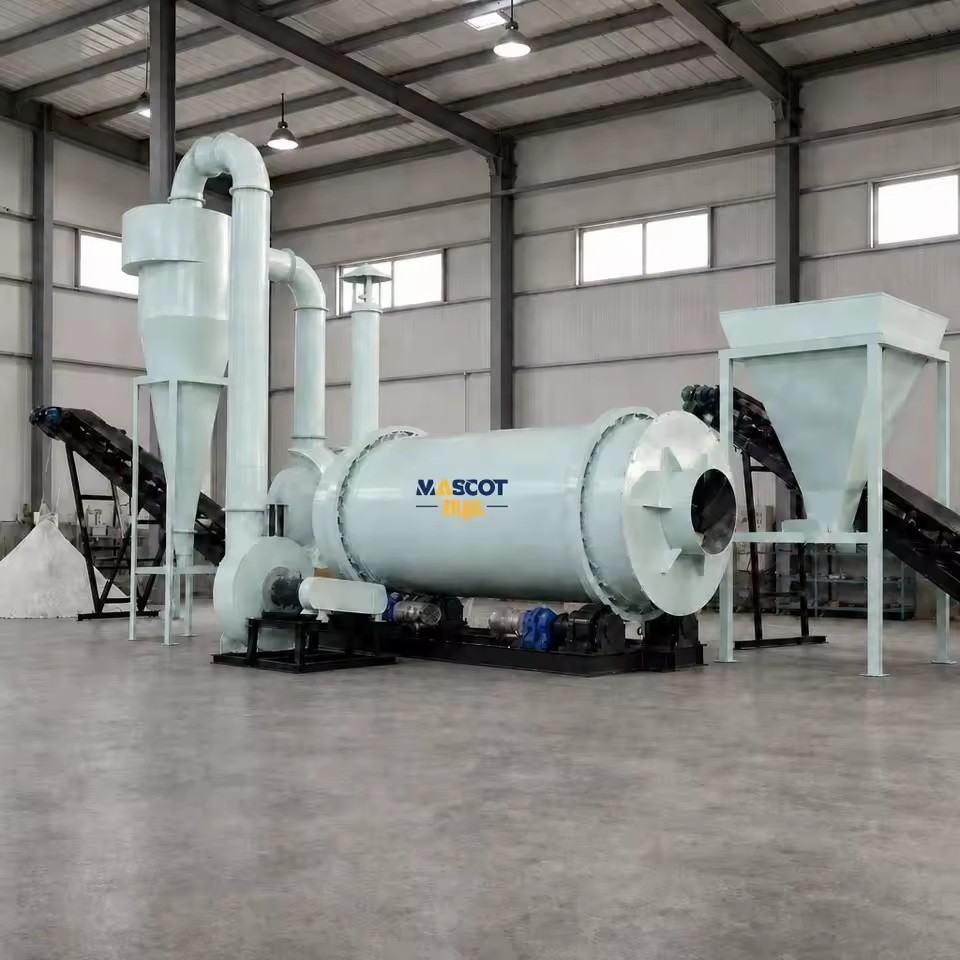

Complete river sand drying line: wet sand stockpile → vibrating feeder → three-cylinder dryer → cooling conveyor → screening → storage silo — engineered for continuous, single-operator-per-shift production.

Technical Parameters (8-75 t/h River Sand Series)

Model	Diameter of outer cylinder (m)	Length of outer cylinder (m)	Drum volume (m³)	Rotation speed (r/min)	Max. air flow temperature (℃)	Production capacity (t/h)	Power (kW)
2.0m*4m	2	4	12.56	4-10	700-750	8-15	5.5x2
2.2m*5m	2.2	5	18.99	4-10	700-750	12-20	5.5x2
2.5m*6m	2.5	6	29.43	4-10	700-750	18-28	7.5x2
2.8m*6m	2.8	6	36.92	4-10	700-750	25-35	11x2
3.0m*6m	3	6	42.39	4-10	700-750	30-40	7.5x4
3.0m*7m	3	7	49.45	4-10	700-750	30-45	7.5x4
3.2m*7m	3.2	7	56.27	4-10	700-750	35-55	11x4
3.6m*8m	3.6	8	81.39	4-10	700-750	55-75	18.5x4

Drum volume from 12.56 to 81.39 m³ — choose by your daily sand output, from small mortar plants to large aggregate lines.

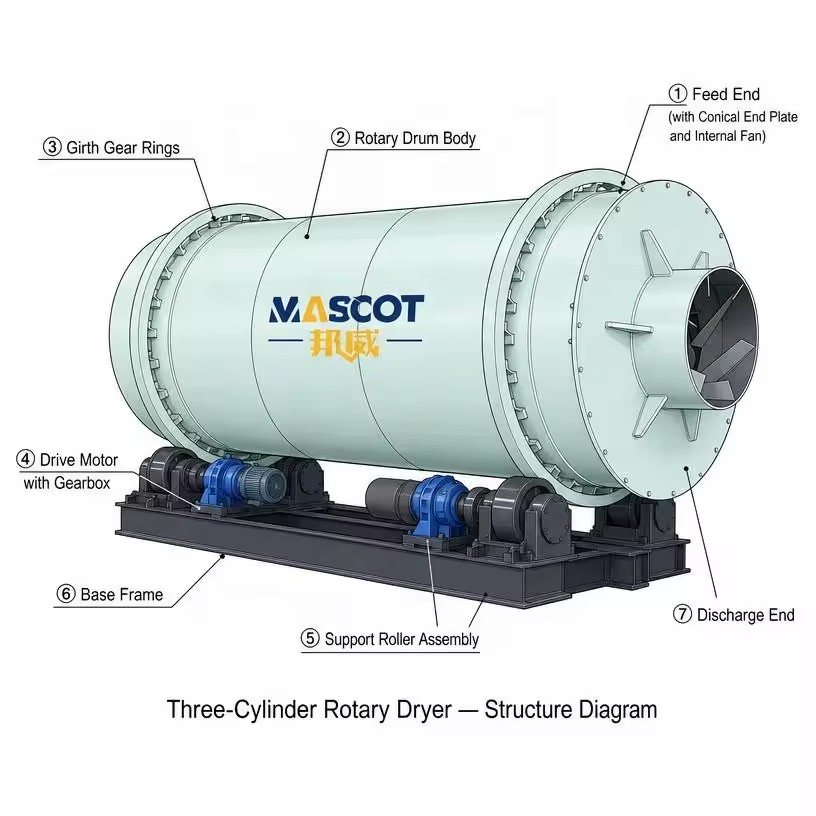

Working Process for River Sand Drying

1. Feeding: Wet dredged river sand is fed evenly into the three-layer nested cylinders via belt or vibrating feeder at a stable, adjustable rate.

2. Turning & Dispersing: Three-stage lifting plates repeatedly lift and turn the sand into a loose, uniform material curtain — preventing sticking and clogging even at high moisture.

3. Heat Exchange: Hot air at 700-750°C passes through the sand three times inside the short shell, maximizing moisture pickup per unit of fuel.

4. Moisture Evaporation: Sand travels from the inner cylinder to the outer one; final moisture drops to below 1% — or 0.3-0.5% for foundry grade — without burning or damaging grains.

5. Discharge & Dedusting: Dry sand discharges continuously to the cooling conveyor and silo; exhaust gas is cleaned by the cyclone and bag filter before emission, keeping the site clean.

The Customer Site

1.Factory Direct Pricing: You buy directly from the manufacturer — no middleman markup, competitive pricing for sand plants of every size, and fast spare parts supply.

ee Line Design: Send us a sample of your river sand and your target moisture, and we design the complete drying line and layout for your site — free of charge.

3.Quality You Can Trust: We use premium steel and strict QC on every machine; sand-drying is our most installed application worldwide.

's Service

We offer a 12-month warranty for the whole machine and also a 12-month warranty for core components such as the cylinder shell, lifting plates and gear ring, along with 24/7 online consultation via

FAQ

1. How much moisture can wet river sand have before drying?

The dryer handles river sand with initial moisture up to 20-25% directly. For extremely wet stockpiles above that, we recommend a simple dewatering screen or settling pit before the dryer.

2. What final moisture can be achieved?

Below 1% for dry-mix mortar and concrete; 0.3-0.5% for foundry and glass-grade sand. Final moisture is set by adjusting air temperature, rotation speed and feed rate.

3. What sand sizes can it process?

Fine, medium and coarse river sand from 0-5 mm are all suitable; the three-stage lifting plates keep every grain evenly exposed to the hot air stream.

4. What capacity range is available?

Eight models from 2.0×4m to 3.6×8m cover 8-75 t/h, so both small mortar plants and large aggregate lines are served by the same proven design.

5. Can wet sand be fed directly, or is pre-dewatering needed?

Direct feeding is standard for up to 20-25% moisture. If your sand comes straight from a washing line above that level, a dewatering screen or settling pit is the low-cost option we recommend.

Description images

Rotary Drum Dryer Machine River Sand Dryer Energy Saving Three Pass Drying Equipment Industrial Dryers for Building Materials

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

15 days
Step 3

Packaging and dispatch

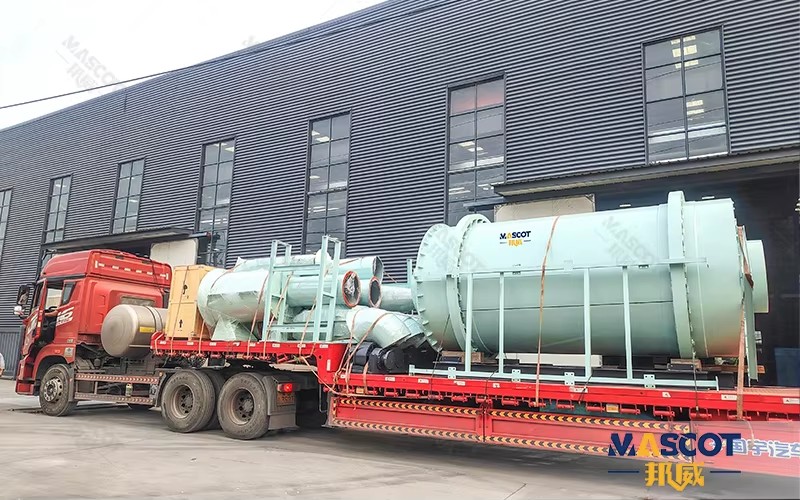

Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 25 fields

Type

Rotary Drying Equipment

Voltage

220V/380V/UPON

Heating method

Gas Heating

Material

Other

Power(w)

11-88KW(14.75-118.01hp)

Application

Mineral processing

Core components

Motor, Gear, Pump

Key selling points

Automatic, Competitive Price, Eco-Friendly

Warranty

1 Year

Machinery test report

Provided

Video outgoing-inspection

Provided

Place of origin

China, Henan

Weight (kg)

3000

Dimension(L*W*H)

Accroding to model

Feed size

4-10r/min

Motor power

11-88KW

Capacity

8-100t/h

Color

Customer's Request

Certification

After-sales Service Provided

Provided 1 year

MOQ

1 Set

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Model number

2m*4m, 2.2m*5m, 2.5m*6m, 2.8m*6m, 3.0m*6m, 3.0m*7m, 3.2m*7m, 3.6m*8m, 4.0m*10m

Lead time

15 days

Minimum order

1 Units
